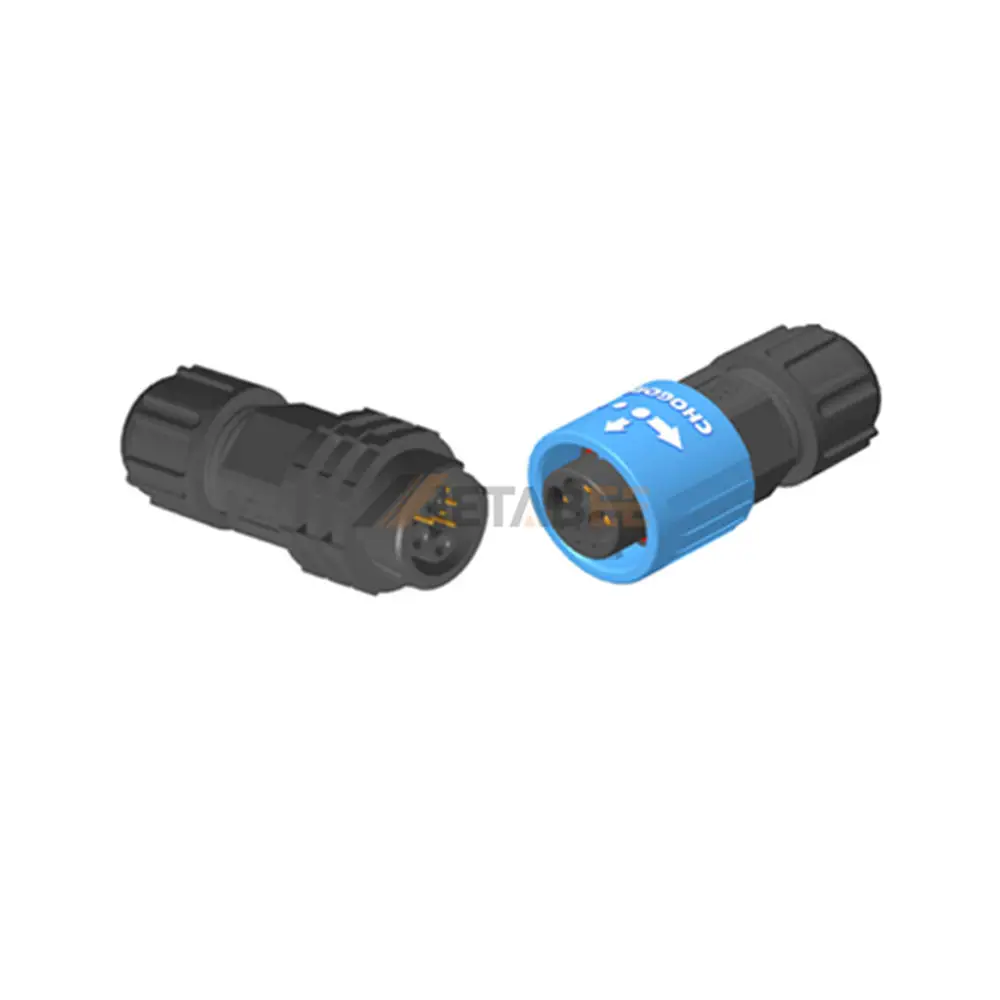

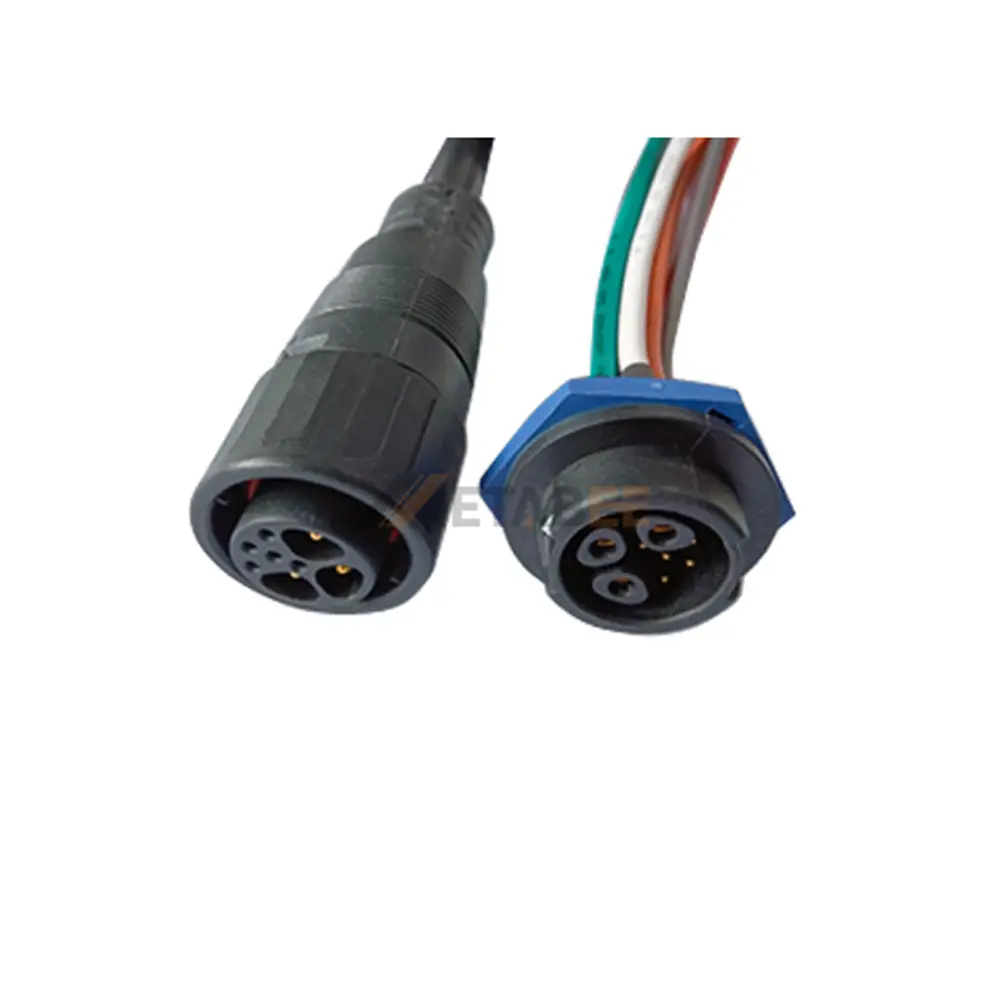

Light Weight Electric Two Wheeler Charger, 3+5 Pin, IP67
Introduction
The Light Weight Electric Two Wheeler Charger is designed for reliable electrical connectivity in electric two-wheeler charging systems. Featuring a 3+5 pin configuration, this connector supports power and signal transmission in a compact, lightweight design, making it suitable for electric scooters and motorcycles.
With an IP67 protection rating, the connector provides dust-tight protection and resistance to temporary water immersion under specified test conditions. Its UL94V-0 flame-retardant material enhances fire safety, while the operating temperature range of -40°C to +105°C supports dependable performance in demanding environments.
Key Features:
- 3+5 Pin Configuration: Supports power and signal connections.
- Lightweight Design: Helps reduce overall system weight.
- IP67 Protection: Provides dust-tight and water immersion protection.
- UL94V-0 Flame Retardancy: Enhances fire safety.
- Wide Operating Temperature: Functions from -40°C to +105°C.
- Versatile Applications: Suitable for electric two-wheeler charging systems.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0027 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 3+5 Pin | |
| Wire Gauge: | Power 16AWG/ Max Signal 22AWG/ Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 125V+30V | |
| Rated Current: | 15A+2A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
