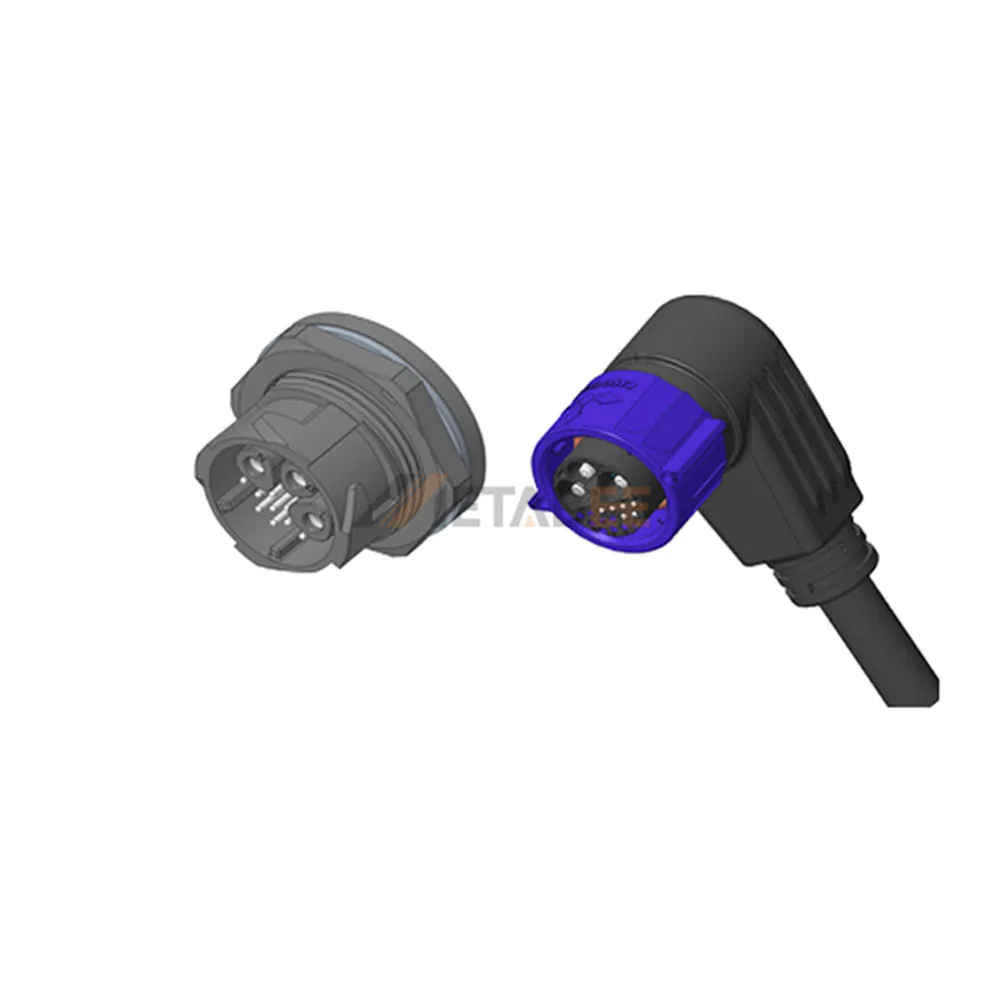

LEV Waterproof Power & Signal Charging Connector, 3+13 Pin, Push Lock
Introduction
The Lev waterproof power & signal charging connector is designed for reliable electrical connectivity in light electric vehicle (LEV) charging and battery systems. Its hybrid configuration integrates power and signal transmission into a single connector interface, while the push-lock mechanism enables secure mating and convenient connection.
Featuring an IP67 protection rating, this connector provides dust-tight protection and resistance to temporary water immersion under specified test conditions. The UL94V-0 flame-retardant material enhances fire safety, while its operating temperature range of -40°C to +105°C supports stable performance in demanding environments.
Key Features:
- 3+13 Pin Configuration: Supports integrated power and signal connectivity.
- Push-Lock Mechanism: Enables secure and convenient connections.
- IP67 Protection: Provides dust-tight and water immersion protection.
- UL94V-0 Flame Retardancy: Enhances fire safety.
- Wide Operating Temperature: Functions from -40°C to +105°C.
- LEV Applications: Suitable for electric vehicle battery and charging systems.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0016 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 3+13 Pin | |
| Wire Gauge: | Power 12AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 60V+30V | |
| Rated Current: | 20A+3A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,200V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
