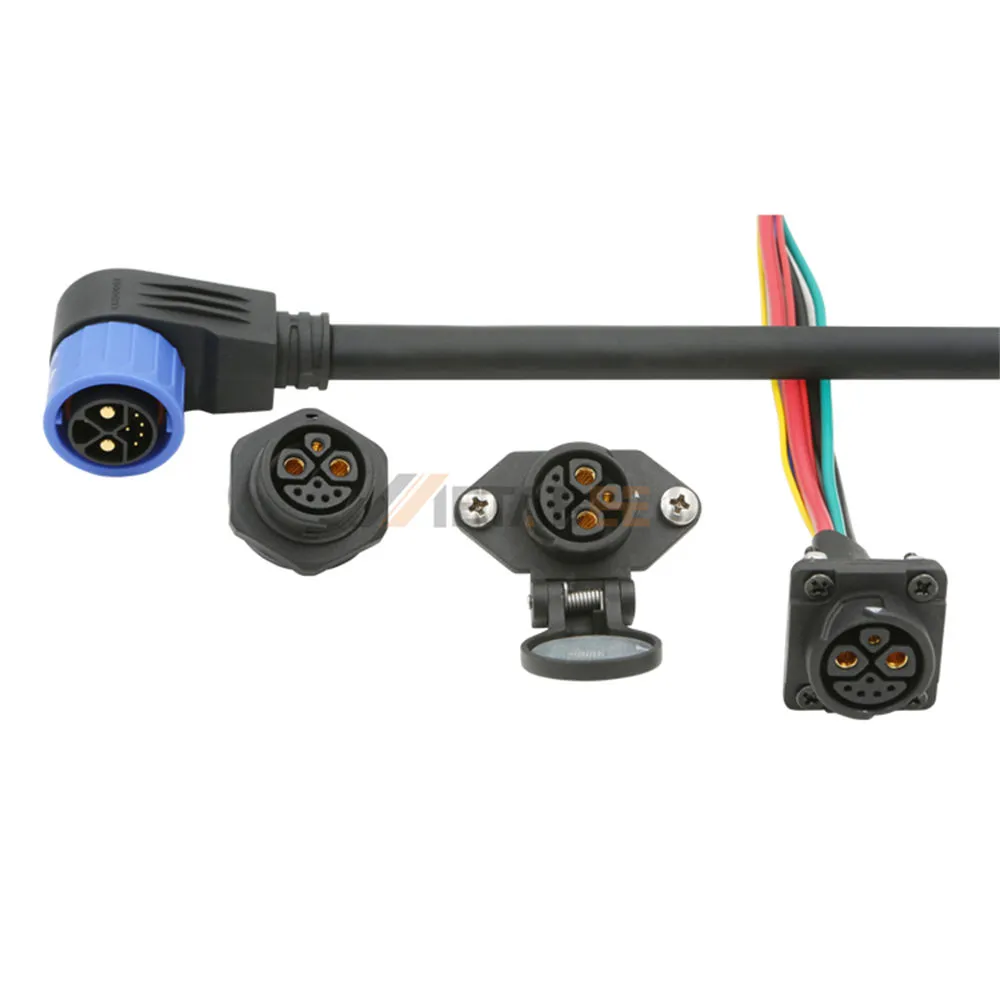

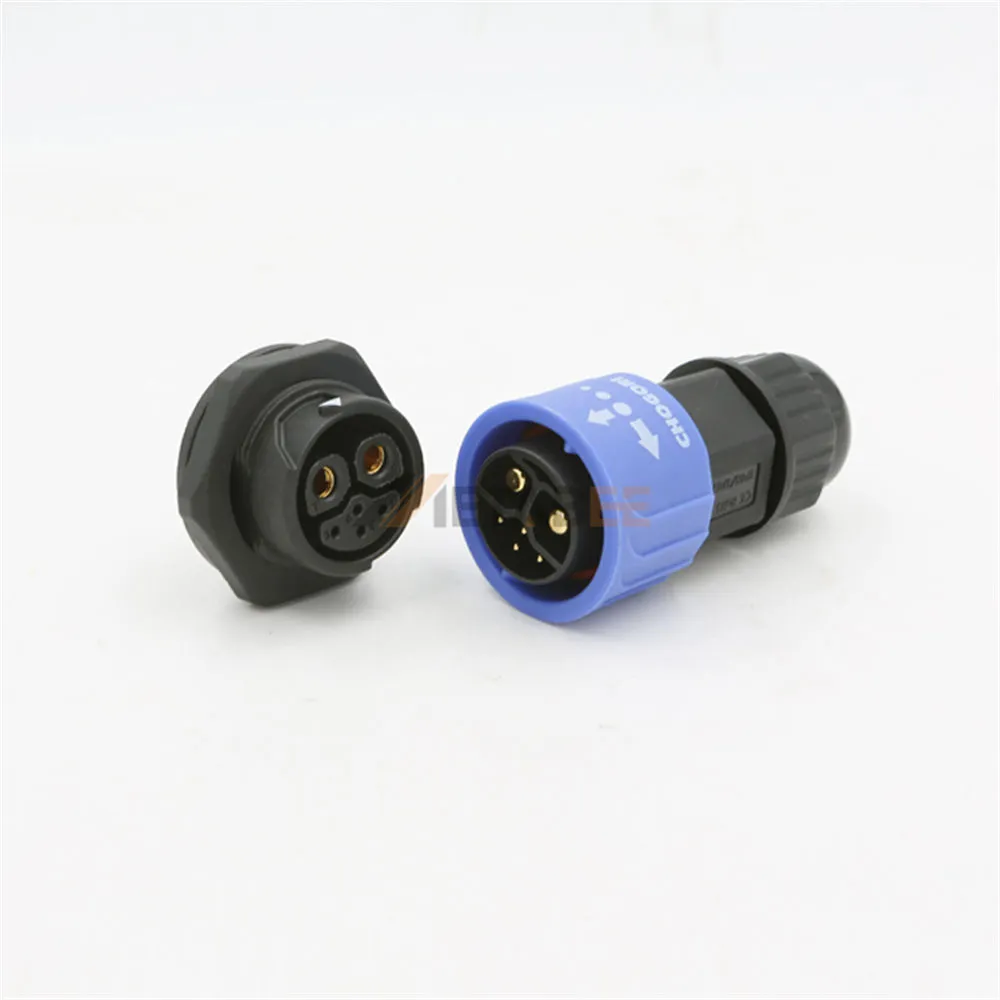

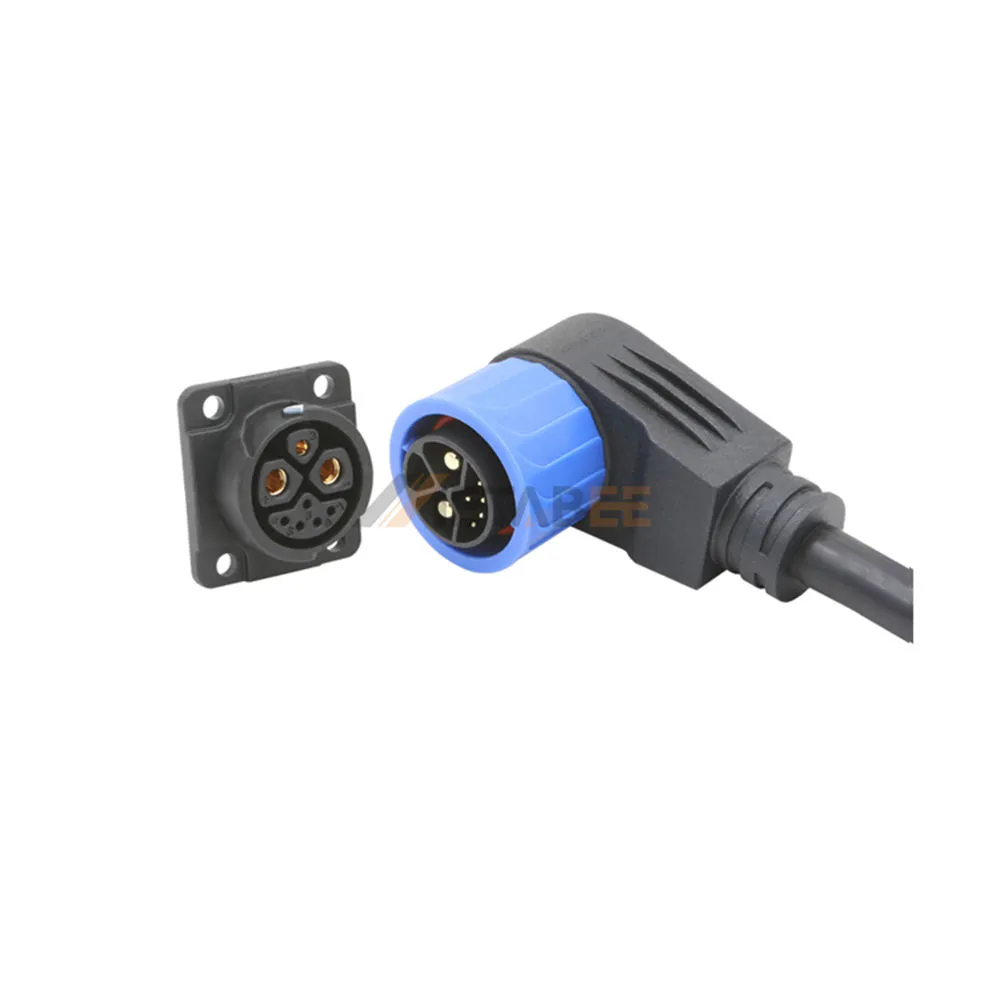

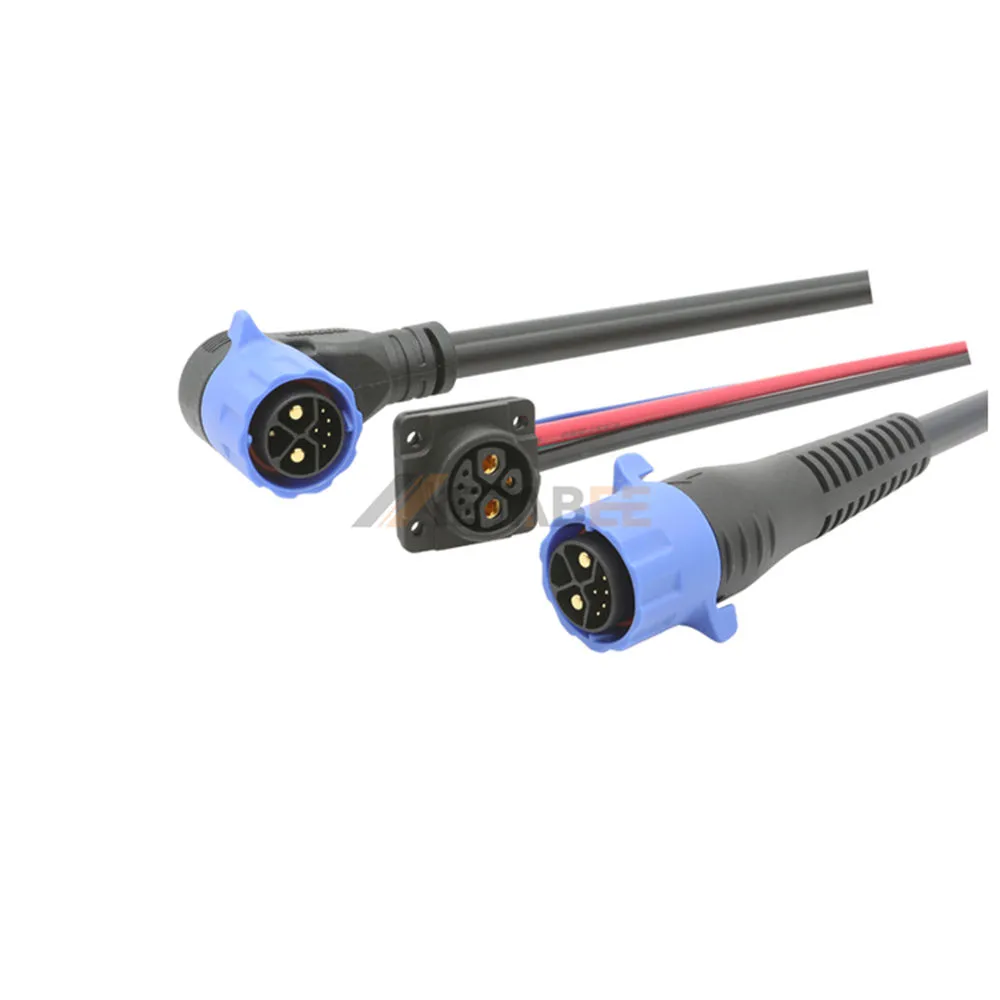

LEV Waterproof Power & BMS Signal Connector, 2+1+5 Pin, IP67
Introduction
The lev waterproof power & bms signal connector, 2+1+5 pin, is designed for electric motorcycles and light electric vehicles, providing reliable power transmission and battery management system (bms) signal connectivity. Its integrated pin configuration supports efficient electrical connections for demanding electric vehicle applications.
With an ip67 protection rating, this connector provides protection against dust and water immersion. Its ul94v-0 flame-retardant material enhances safety, while the operating temperature range of -40°c to +105°c ensures reliable performance in challenging environments.
Key Features:
- Pin configuration: 2+1+5 pin design for power and bms signal transmission.
- Waterproof protection: ip67 rating for dust and water resistance.
- Flame retardancy: ul94v-0 rated material for enhanced safety.
- Wide temperature range: operates from -40°c to +105°c.
- Reliable connectivity: supports stable power and signal transmission.
- Versatile applications: suitable for electric motorcycles and light electric vehicles.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0012 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+1+5 Pin | |
| Wire Gauge: | Power 9AWG/Max, Single 1 Pin 16AWG/Max, Signal 5 Pin 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 80V DC | |
| Rated Current: | 40A+15A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
