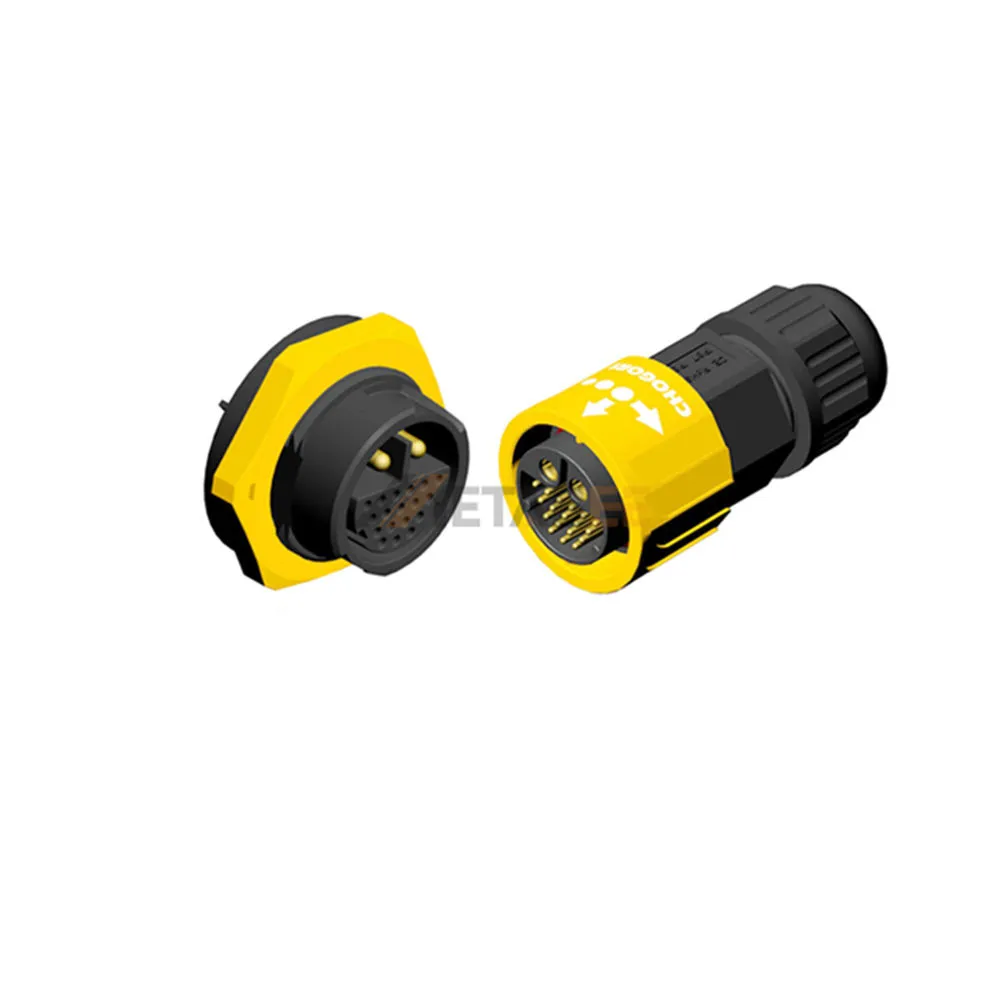

LEV Power BMS Hybrid Charging Connector, Push Lock, 2+18 Pin, IP67
Introduction
The LEV power bms hybrid charging connector, push lock, 2+18 pin, is designed for electric motorcycles and light electric vehicles, combining power transmission, battery management system (bms) signals, and charging connectivity in one integrated solution. Its push-lock mechanism provides convenient mating and secure connection for reliable operation.
With an IP67 protection rating, this connector offers protection against dust and temporary water immersion. The UL94V-0 flame-retardant material enhances electrical safety, while the operating temperature range of -40°C to +105°C supports reliable performance in demanding environments.
Key Features:
- Pin configuration: 2+18 pin design for power, charging, and bms signals.
- Push-lock mechanism: Enables convenient mating and secure connection.
- Waterproof protection: IP67-rated dust and water resistance.
- Flame retardancy: UL94V-0 rated material for enhanced safety.
- Wide temperature range: Operates from -40°C to +105°C.
- Versatile applications: Suitable for electric motorcycles and light electric vehicles.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0014 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+18 Pin | |
| Wire Gauge: | Power 12AWG/Max, Signal 22AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V+30V | |
| Rated Current: | 20A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 2,000V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
