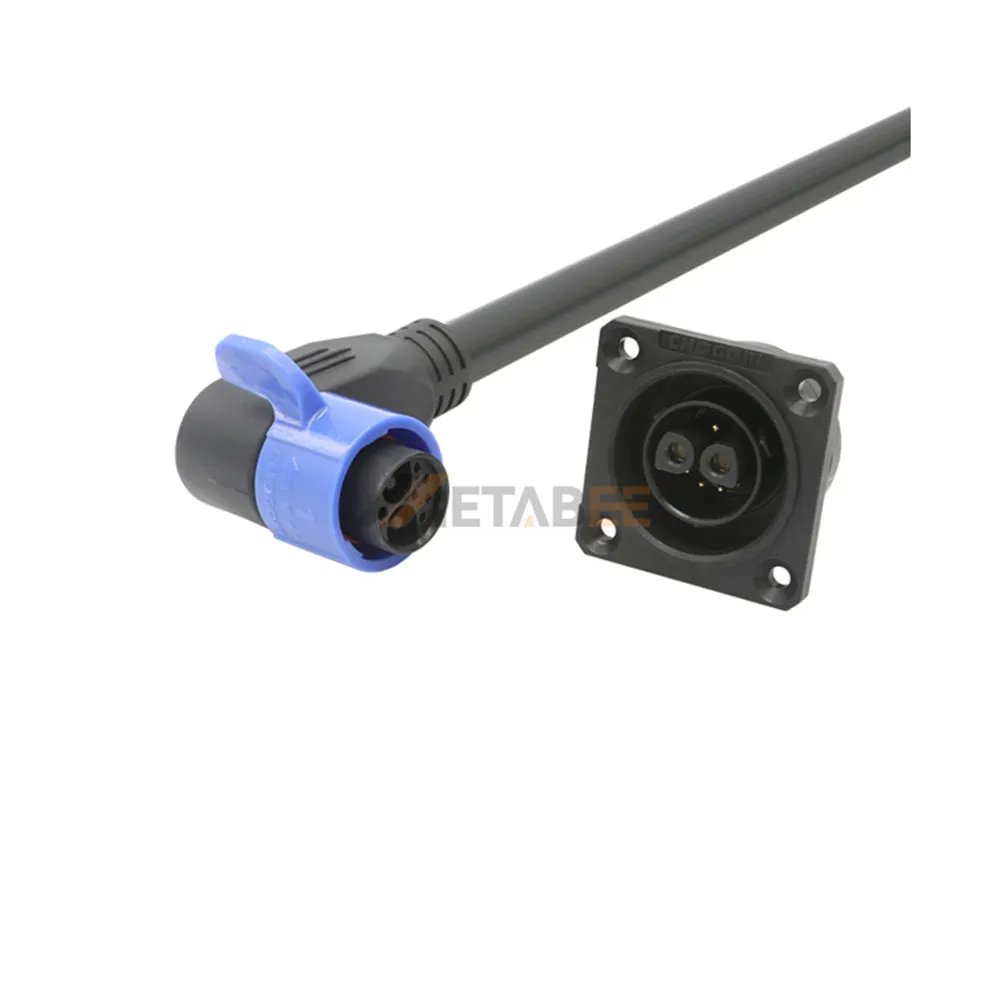

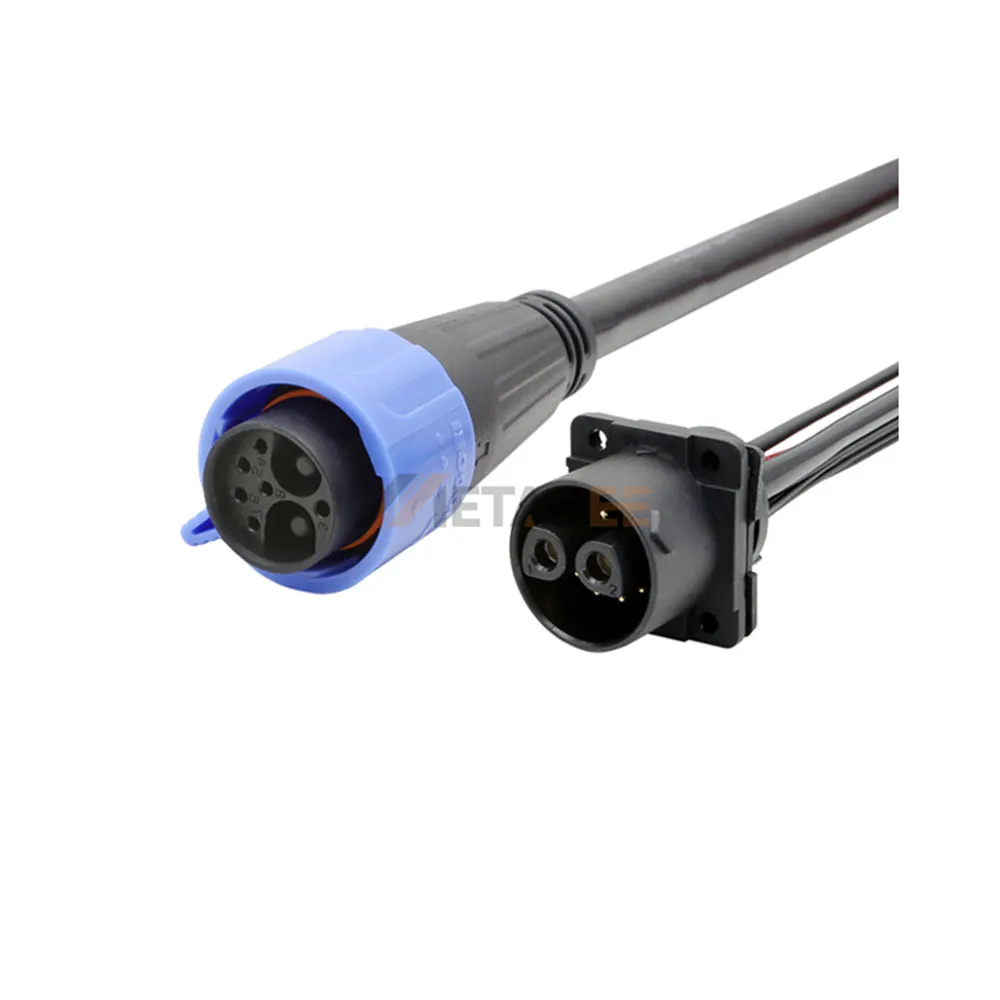

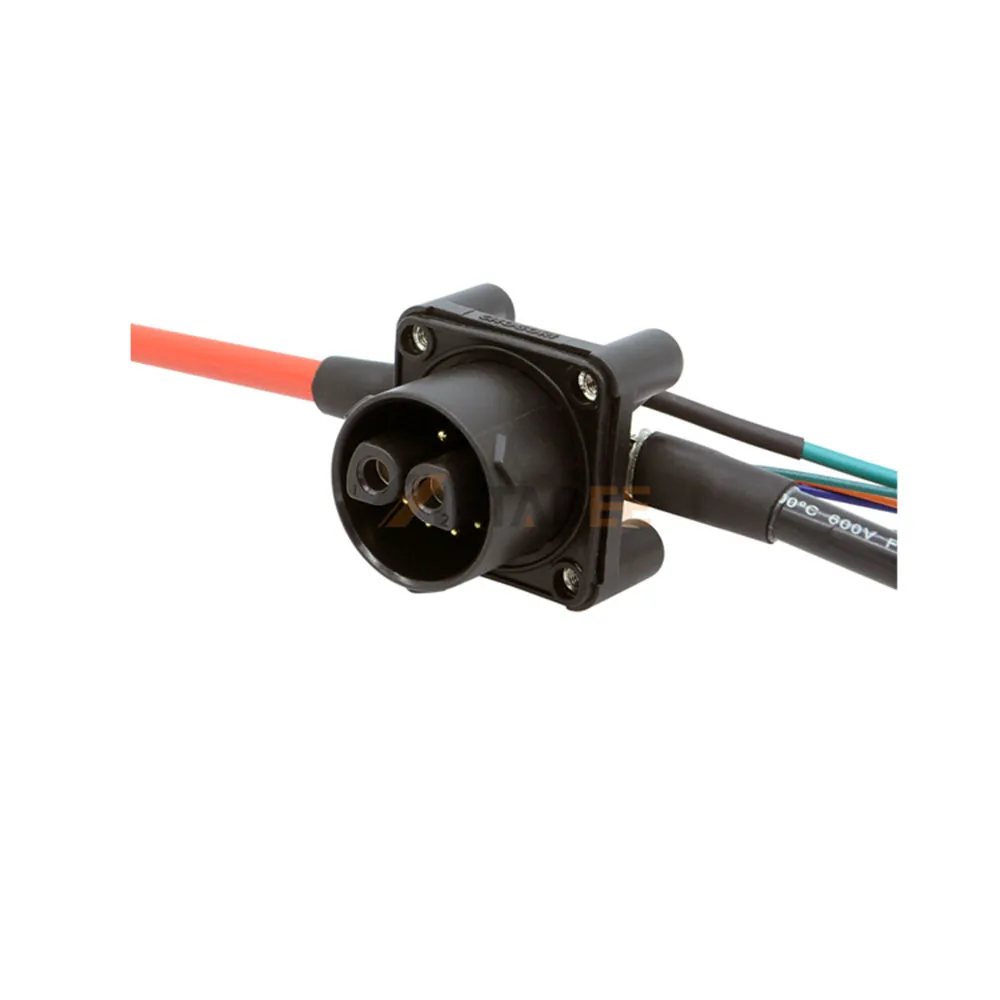

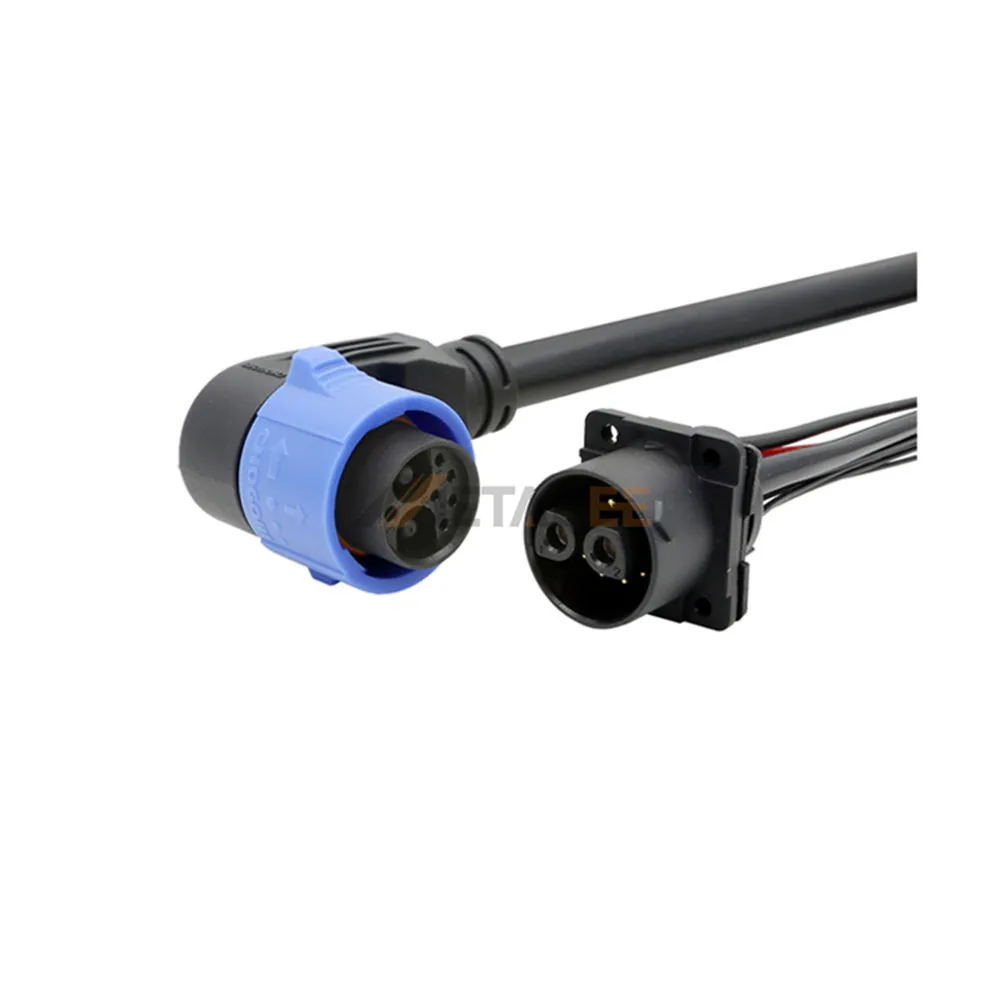

LEV Battery Hybrid Power & SignalConnector, 2+1+5 Pin, IP67
Introduction
The lev battery hybrid power and signal connector features a 2+1+5 pin configuration designed for reliable power and signal transmission in light electric vehicles. Its integrated hybrid design supports compact electrical connections, helping simplify wiring and improve system integration in lev battery applications.
With an ip67 protection rating, this connector offers protection against dust and temporary water immersion. The ul94v-0 flame-retardant material and operating temperature range of -40°c to 105°c support dependable performance in demanding environments.
Key Features:
- Pin configuration: 2+1+5 pin hybrid design.
- Application: Power and signal transmission for lev battery systems.
- Protection rating: Ip67 dust and water protection.
- Flame retardancy: Ul94v-0 rated material.
- Operating temperature: -40°c to 105°c.
- Compact integration: Combines power and signal connections in one interface.
Main Specifications:
General Information:
| Part No.: | YC-E1001-009 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+1+5 Pin | |
| Wire Gauge: | Power 2 Pin 8AWG/Max, Charging 1 Pin 16AWG/Max, Signal 5 Pin 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 125V DC (Power), 80V DC (Signal) | |
| Rated Current: | 60A+15A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
