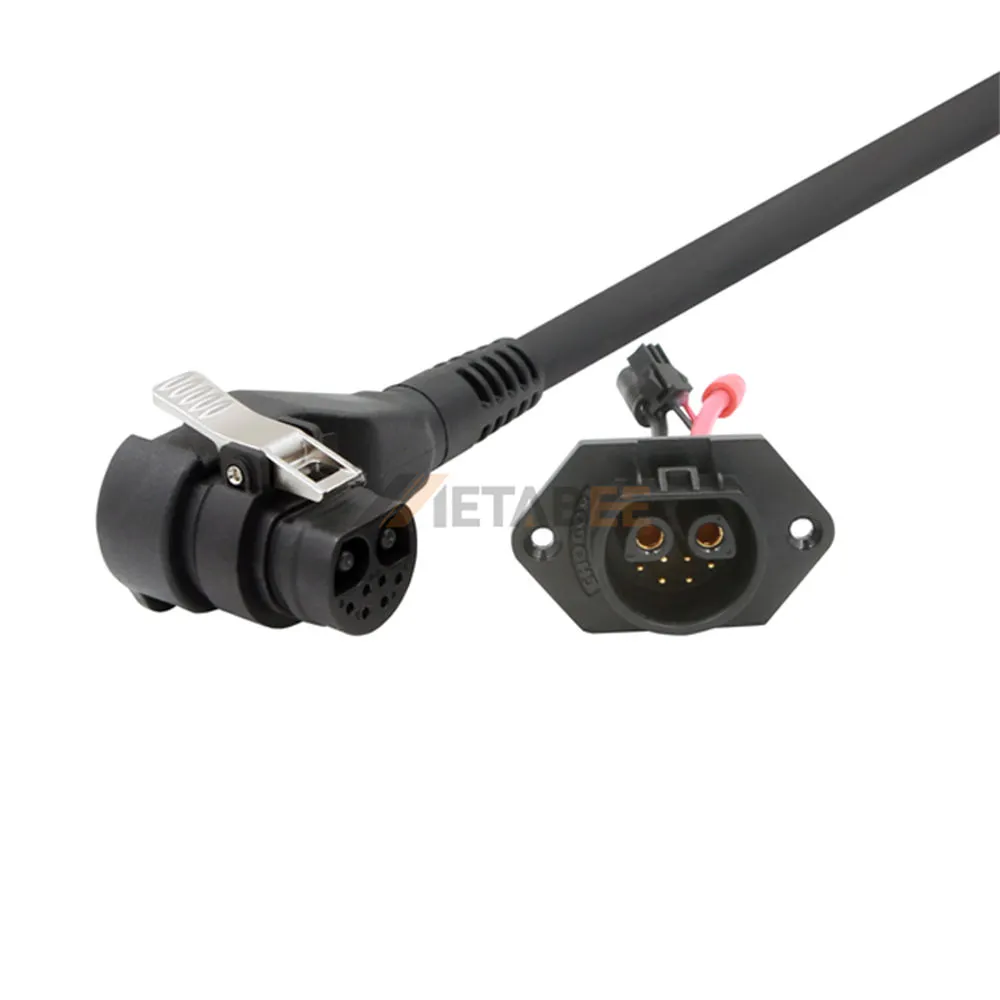

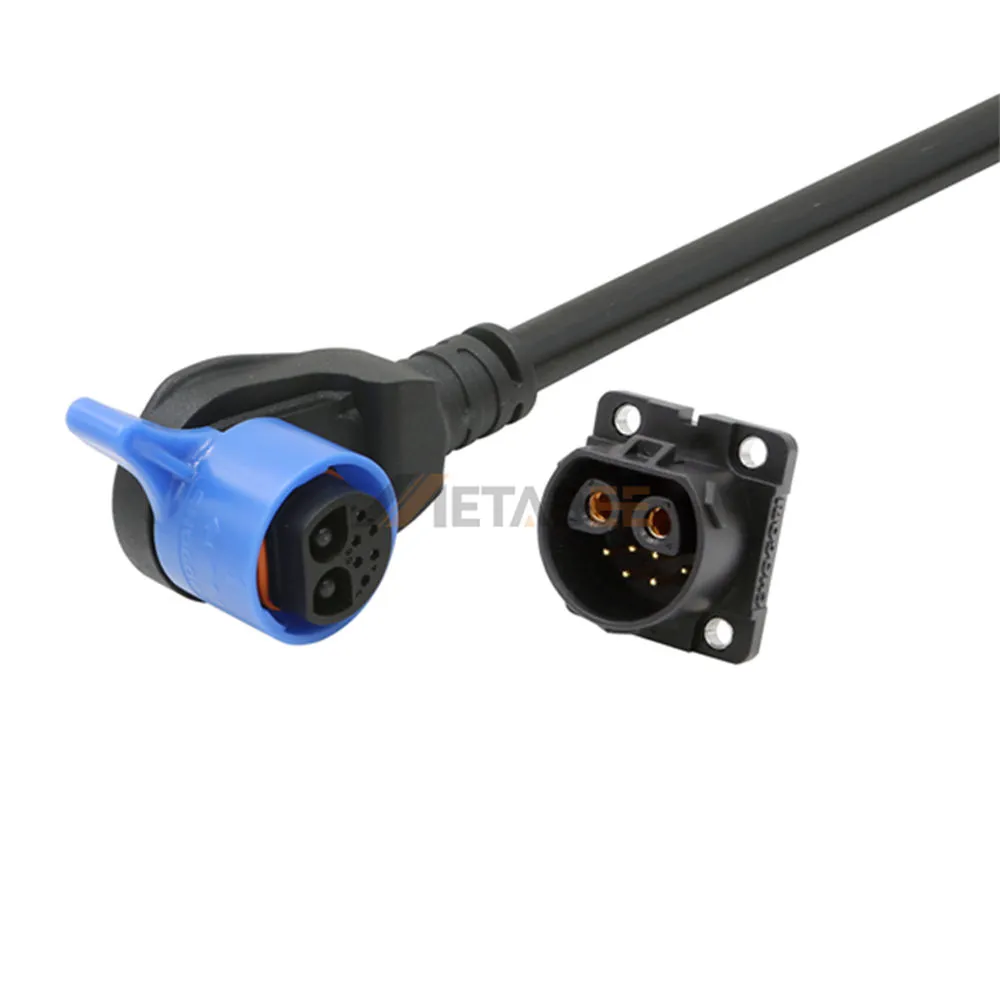

LEV Battery Hybrid Connector for Signal & Power Transmission, 2+8 Pin, IPX7
Introduction
The lev battery hybrid connector combines 2 power pins and 8 signal pins in one compact housing, supporting 50a+5a for charge and discharge and 35a+5a for battery swapping. it is rated for 125v dc power and 72v dc signal, with 1,000v ac withstand voltage and ip67 protection.
Built for demanding electric motorcycle applications, the connector meets ul94v-0 flame retardancy and operates from -40°c to 105°c, ensuring reliable performance in harsh environments.
Key Features:
- 2+8 pin hybrid design for power and signal
- 50a+5a charge/discharge, 35a+5a swapping
- 125v dc power and 72v dc signal rating
- 1,000v ac withstand voltage
- ip67 waterproof and ul94v-0 flame retardant
- wide -40°c to 105°c operating range
Main Specifications:
General Information:
| Part No.: | YC-E1001-007 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+8 Pin | |
| Wire Gauge: | Power 10AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 125V DC (Power), 72V DC (Signal) | |
| Rated Current: | 0A+5A(Charge and discharge) 35A+5A(battery swapping) |
|
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,000V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
