Introduction:
Designing network interfaces becomes much more efficient when using this integrated magnetic RJ45 jack to replace multiple discrete parts. It combines a standard physical port with internal filtering components that clean up signals for stable 10/100 Base-T connectivity. High-quality Nylon 46 material ensures the housing remains durable even during intense soldering processes. A nickel-plated shell blocks outside interference while providing essential electrical isolation for internal chips. Visible status checks are easy because of the built-in green and yellow LEDs on the front. Because it features a board lock design, the connector stays firmly attached to the PCB throughout its life. Most engineers prefer this compact right angle solution for its reliability and ease of installation.
Key Features
- Integrated Magnetics: Filters signal noise for stable 10/100 Base-T networking.
- Full Metal Shielding: Blocks interference using a nickel-plated copper alloy shell.
- Status Indicator LEDs: Provides instant visual feedback for link and activity.
- Right Angle Profile: Optimizes board space on compact through hole boards.
- Secure Board Lock: Ensures a strong mechanical bond to the PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-D1LH-M5D | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Nylon 46 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

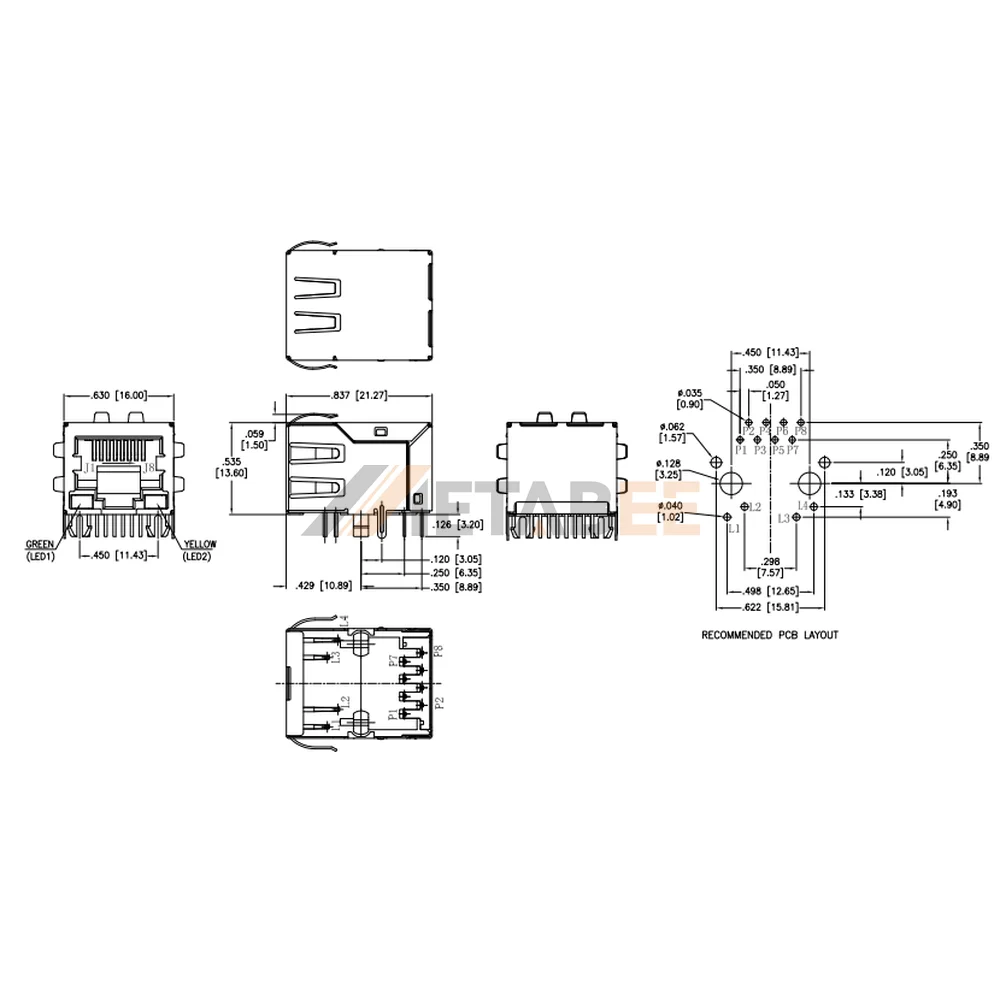

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
