Introduction:
Engineered for 10/100 Base-T networks, the single-port integrated magnetics PoE RJ45 modular jack supports Power over Ethernet functionality for compatible devices. A robust nickel-plated stainless steel (SUS) shield encompasses the component to minimize electromagnetic interference effectively. The black PBT housing utilizes a board lock mechanism for secure right-angle through-hole mounting on the PCB. Visual link status is indicated by green and yellow LEDs integrated into the tab-up profile. Gold-plated copper alloy contacts maintain low contact resistance below 20mΩ for consistent signal performance within the 0°C to 70°C operating range.
Key Features
- 100 Base-T PoE: Facilitates combined power and data transmission.
- SUS Metal Shielding: Stainless steel housing blocks EMI effectively.
- Durable PBT Insulation: Thermoplastic material withstands mechanical stress.
- Integrated Status LEDs: Green and yellow lights show network activity.
- Gold-Plated Contacts: Ensures reliable low-resistance connectivity.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-PG2T-LH-M250 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | SUS, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

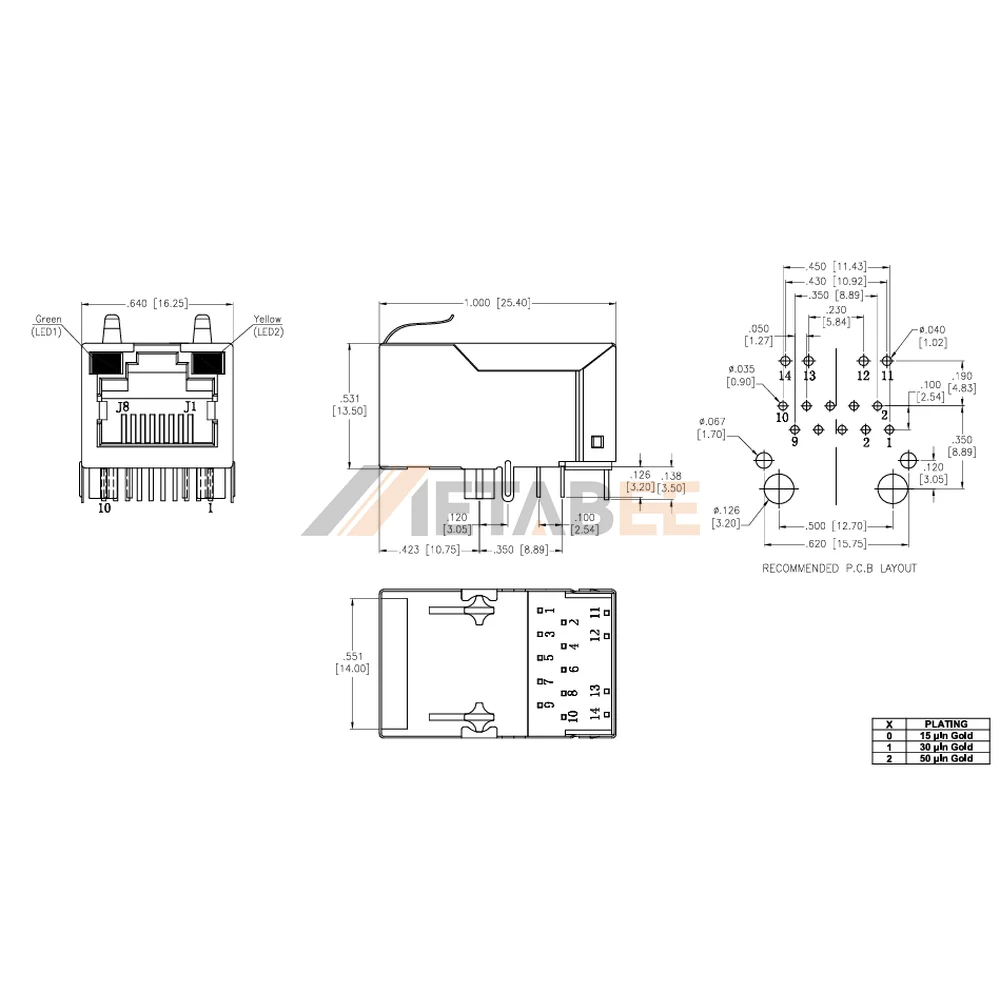

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
