Improving network board density is straightforward when using this 100 Mb integrated magnetics network jack to handle signal conditioning. This professional RJ45 port includes internal transformers that clean up data streams while supporting Power over Ethernet for various devices. Because it features a Tab-Up configuration, the connector fits easily into specific layouts where standard orientations might conflict with other board parts. A nickel-plated brass shell provides full EMI shielding to maintain high signal integrity in busy electronic environments. Designers value the built-in board guides that ensure a stable mechanical attachment to the PCB during assembly. Front-facing yellow and green LEDs offer instant visual confirmation of network activity and link status at a glance.
Key Features
- 100Mb Speed Performance: Supports stable networking for 100 Base-T applications.
- Integrated Magnetics: Filters signal noise and provides essential isolation.
- PoE Compatibility: Delivers power and data through a single port.
- Tab-Up Configuration: Optimizes mechanical fit for specific PCB layouts.
- Full EMI Shielding: Metallic shell blocks interference for high signal integrity.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-PG-VLG-M248 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

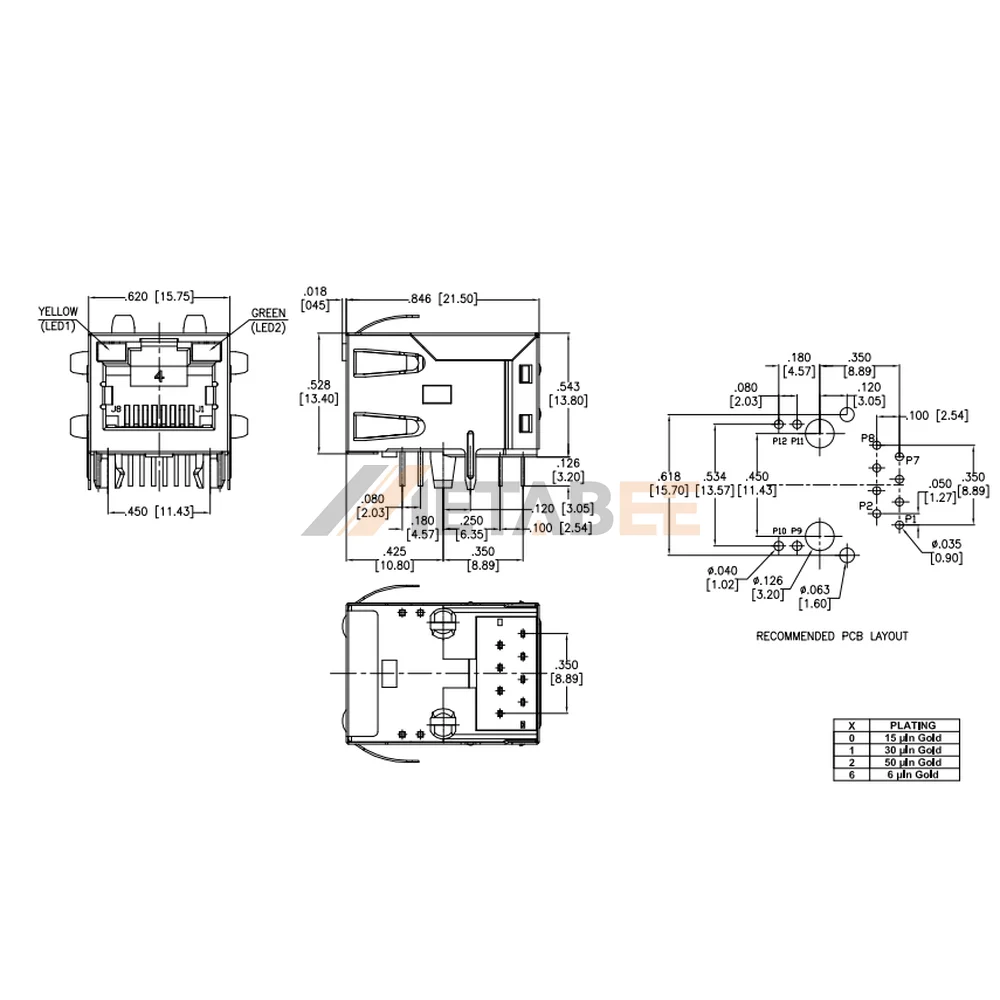

Structure of Modular Jack
