Introduction:
Combining high-performance filtering with a compact physical interface, this integrated 10/100Base T Ethernet LAN RJ45 Jack Connector simplifies your network board design. It handles signal isolation and noise suppression directly inside the shell, protecting your sensitive internal chips from electrical spikes. The stainless steel shell with nickel plating provides a robust shield against electromagnetic interference. Because it operates across an industrial temperature range of -40°C to 85°C, the component is perfect for harsh environments. Designers benefit from the Tab-Up configuration and board lock feature, ensuring a secure mechanical attachment to the PCB. Integrated green and yellow LEDs allow for quick link status diagnostics without requiring extra parts.
Key Features
- Industrial Grade Speed: Supports stable 10/100Base-T networking links.
- Integrated Magnetics: Filters noise and provides signal isolation.
- EMI Shielding: The SUS nickel plated shell blocks interference.
- Tab-Up Design: Optimizes fit for specific board layouts.
- Extreme Temperature Range: Works reliably from -40°C to 85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-PG-VRLH-M13 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | SUS, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |

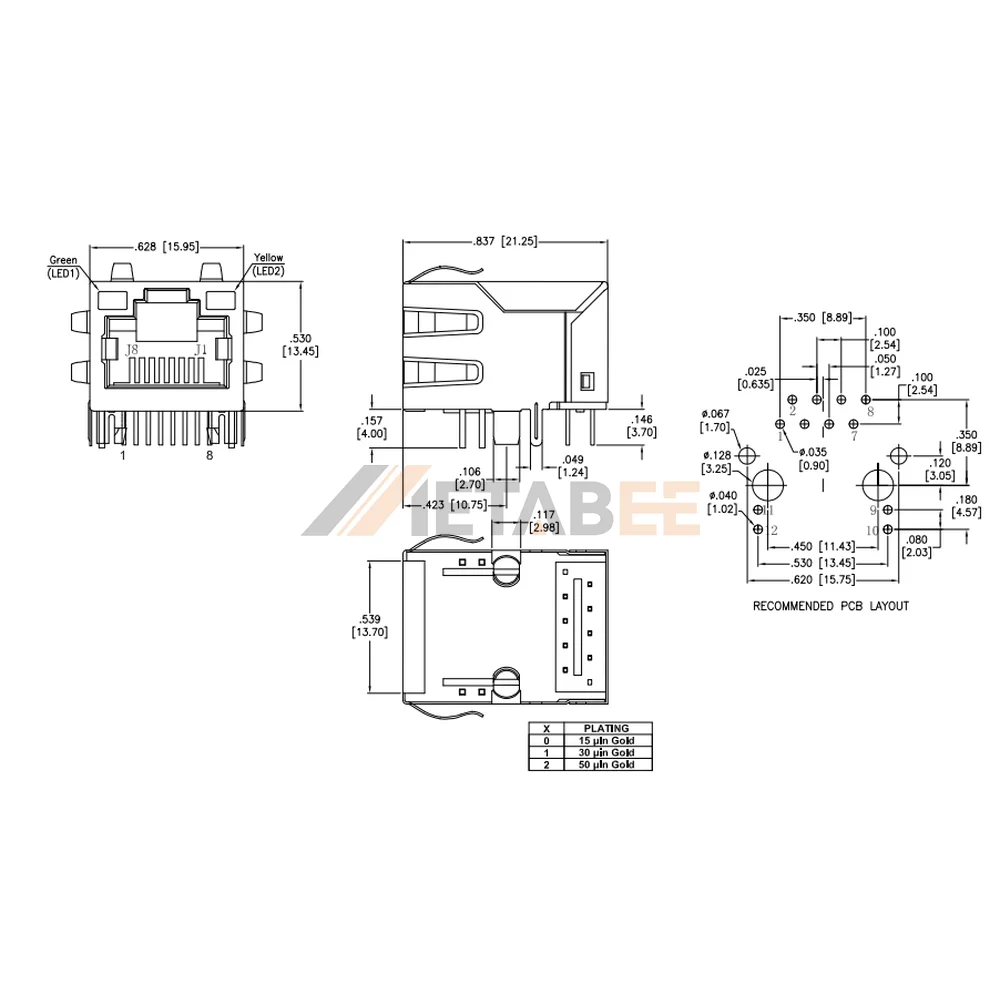

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
