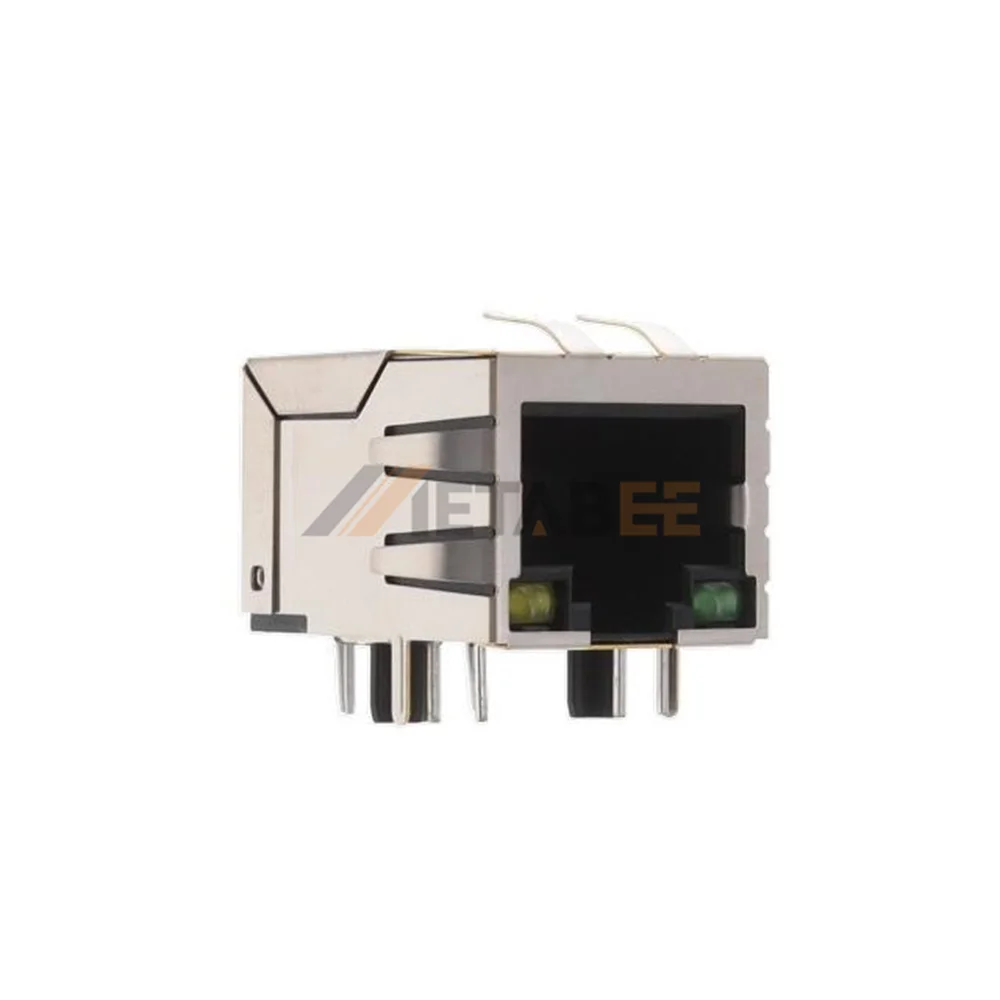

Integrated 10/100 Base-T Ethernet Lan RJ45 Jack, 1 Port, Shielded with EMI, Through Hole, R/A, Yellow/Green LEDs
Introduction:
This professional component provides an integrated 10/100 Base-T Ethernet LAN RJ45 solution that simplifies how your devices connect to the network. Instead of using separate filters, it has built-in magnetic parts that act like a shield to keep your data moving without signal errors. The rugged metal housing features EMI fingers to block out interference from nearby electronics, ensuring the link stays rock-solid. Designers will find the right angle shape helpful for keeping circuit boards compact and tidy. You can easily monitor connection activity through the built-in yellow and green LEDs. It is a tough, reliable port built to handle the daily demands of modern networking equipment.
Key Features
- Integrated Magnetics: Built-in filters ensure a clean and steady network link.
- Full EMI Shielding: Blocks outside noise to maintain high data integrity.
- Yellow/Green LEDs: Provides instant visual feedback for port status.
- Right Angle Design: Saves vertical space on crowded circuit boards.
- Through Hole Mounting: Ensures a strong and lasting physical connection to the PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSP-PG-LG-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
