Introduction:

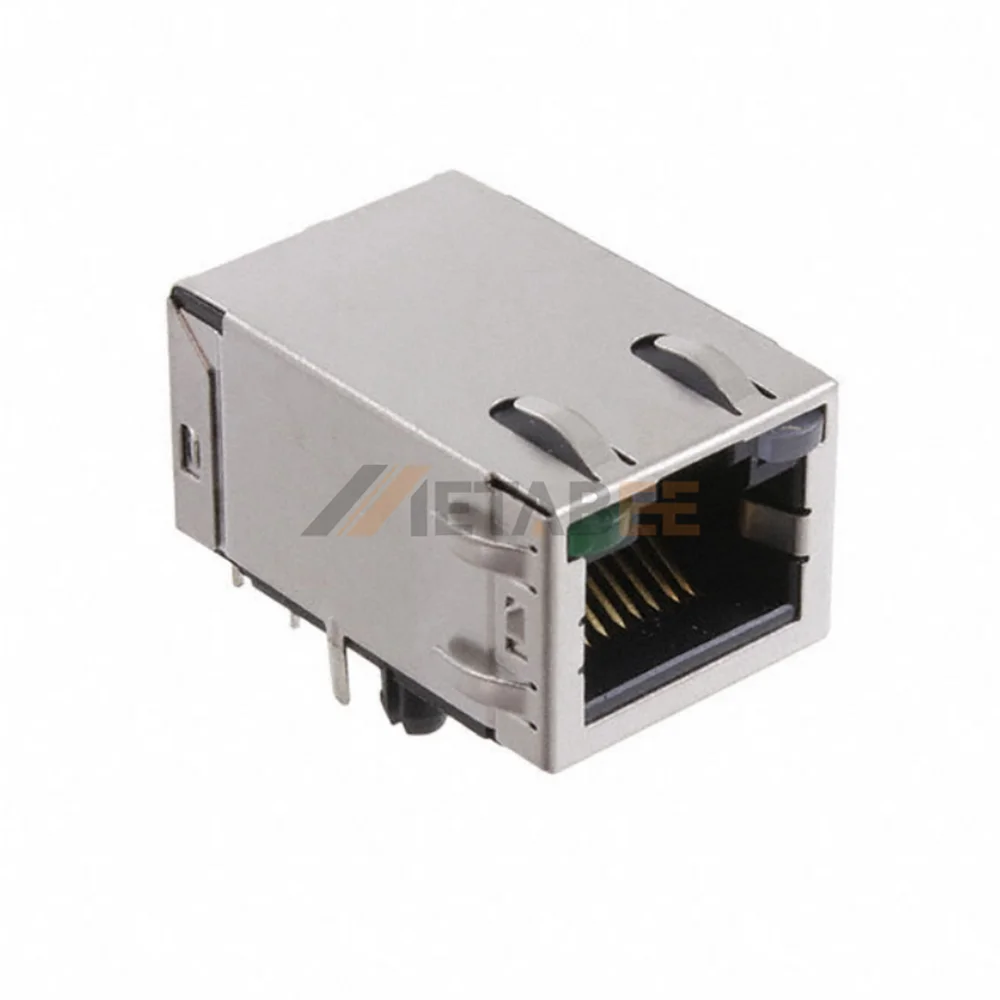

Reliable data processing in modern networks relies on the shielded ICM Ethernet port, specifically engineered to manage 1G Base-T Gigabit traffic. A pre-soldered stainless steel shield completely encloses the black thermoplastic insulator to prevent severe electromagnetic interference within standard 0°C to 70°C commercial environments. Secure printed circuit board mounting depends on a robust mechanical board lock paired with solder retention features inside the right-angle, through-hole architecture. Visual network activity tracking utilizes dual green and green/yellow LEDs positioned cleanly inside the tab-up profile. Furthermore, gold-plated phosphor bronze contacts maintain exceptional electrical conductivity to guarantee flawless signal clarity over extended periods.
Key Features
- 1G Base-T Speed: Manages fast Gigabit Ethernet data transmission flawlessly.
- Stainless Steel Shield: Pre-soldered metal housing blocks electromagnetic interference perfectly.
- Thermoplastic Insulation: Durable black housing safely withstands standard soldering heat.
- Enhanced PCB Mounting: Board lock and solder retention guarantee physical stability.
- Dual-Color Status LEDs: Green and green/yellow lights track exact network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-PG-L35-M357Y | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green/Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
