Introduction:
Robust Gigabit network connectivity is guaranteed with the shielded ICM Ethernet port magjack, explicitly designed for standard 1000Base-T applications. Extreme industrial environments pose no threat, as the component operates flawlessly across a demanding -40°C to 85°C temperature range. A full nickel-plated brass shield encapsulates the module to reject severe electromagnetic interference effectively. To ensure a highly stable right-angle through-hole installation on the printed circuit board, the black thermoplastic housing utilizes a practical board guide. Clear visual link updates are delivered by dual green/yellow LEDs seamlessly integrated into the tab-down profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20mΩ, securing flawless long-term signal transmission.
Key Features
- 1000Base-T Speed: Delivers reliable Gigabit Ethernet data transmission flawlessly.
- Industrial Temperature Range: Operates reliably across extreme -40°C to 85°C environments.
- Brass Metal Shielding: Nickel-plated housing completely blocks severe electromagnetic interference.
- Dual-Color Status LEDs: Green/yellow indicators display precise visual network activity.
- Low Resistance Contacts: Phosphor bronze strictly maintains <20mΩ electrical resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-L16-M267C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green/Yellow, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

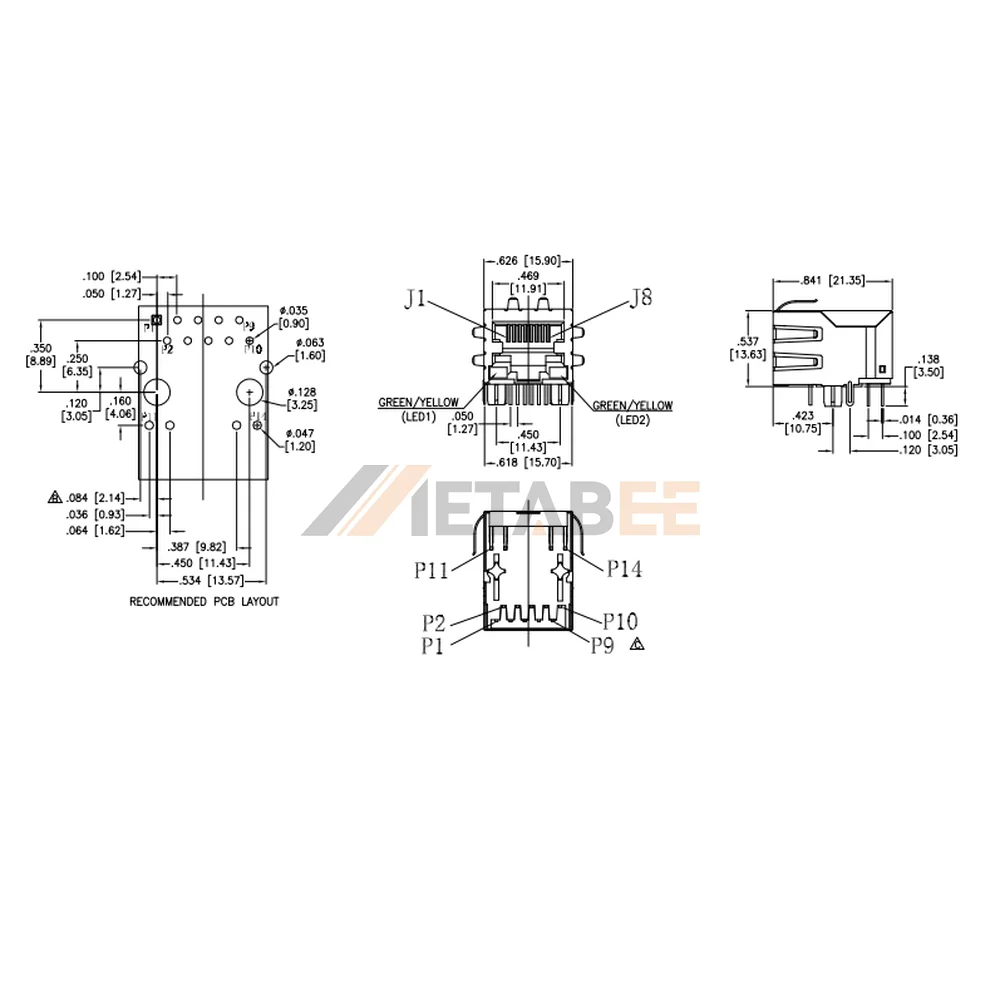

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
