Introduction:
Superior Gigabit network performance is easily maintained using the ICM Ethernet RJ45 jack with magnetics and LEDs. A robust nickel-plated copper alloy shield completely surrounds the component to block electromagnetic interference during 1000Base-T data transmission. To ensure a highly stable right-angle through-hole installation, the black PBT housing incorporates a precise board guide alongside solder retention features. Dual-color yellow/green LEDs are neatly integrated into the tab-down profile, providing instant visual feedback for network link and activity. Furthermore, gold-plated copper alloy contacts strictly keep electrical resistance below 20mΩ, guaranteeing flawless long-term signal clarity across standard commercial operating temperatures.
Key Features
- 1000Base-T Speed: Delivers reliable Gigabit Ethernet data transmission seamlessly.
- Copper Alloy Shielding: Full metal housing blocks electromagnetic interference effectively.
- PBT Insulation Material: Durable black thermoplastic incorporates a precise board guide.
- Dual-Color Status LEDs: Yellow/green indicators provide clear visual network feedback.
- Enhanced PCB Mounting: Solder retention features guarantee strict physical stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LP-M97 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Yellow/Green, Right: Yellow/Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

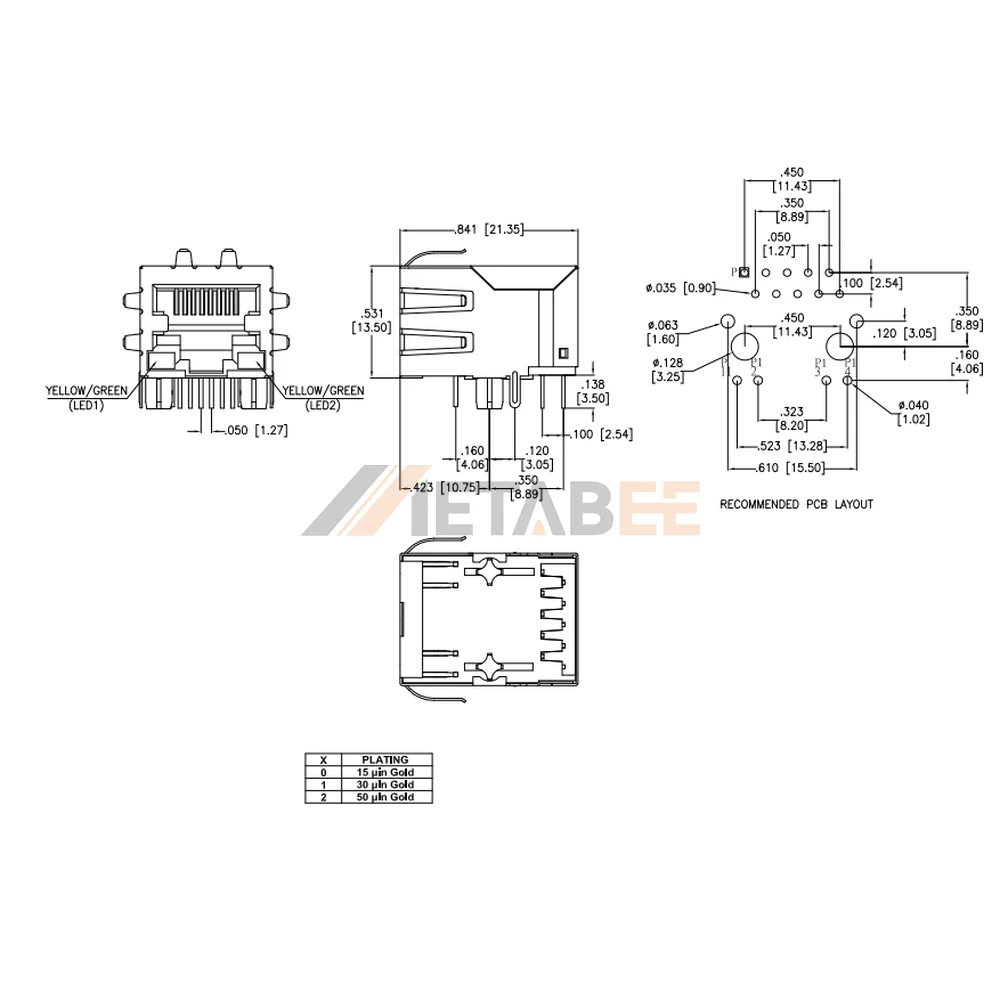

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
