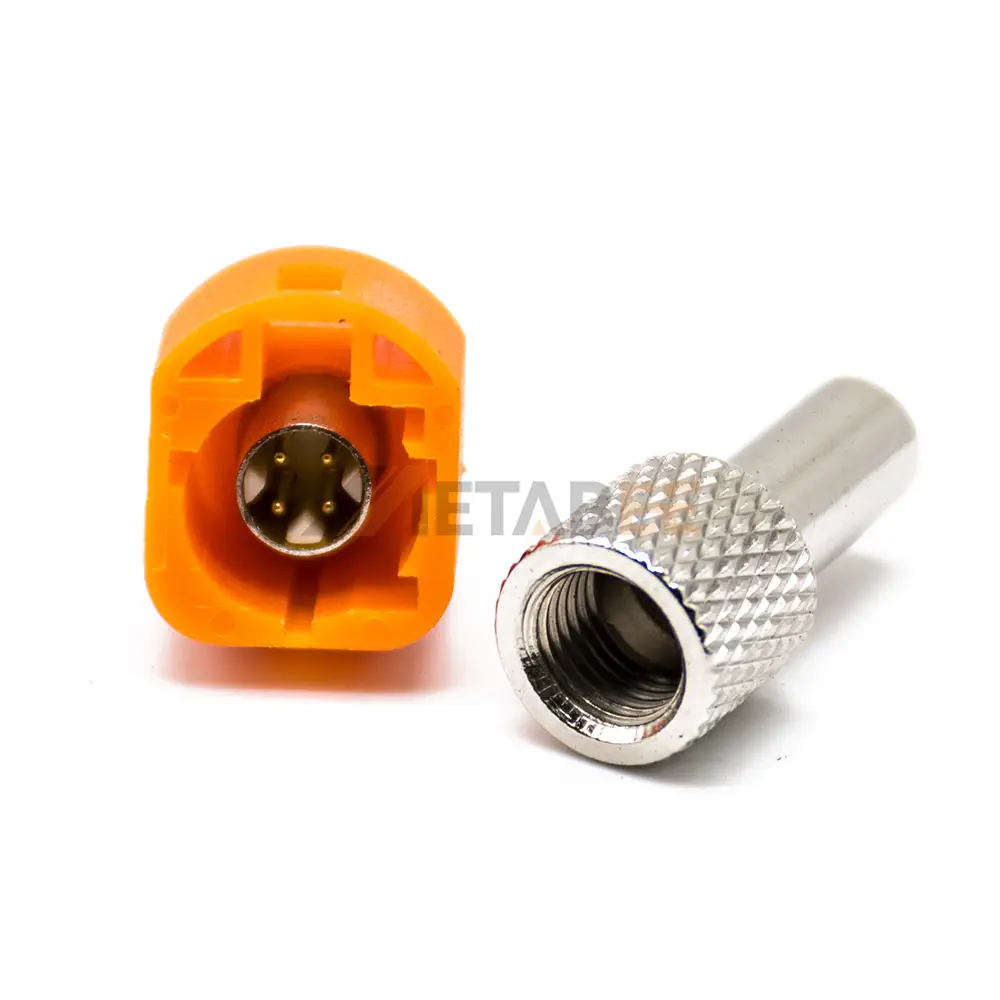

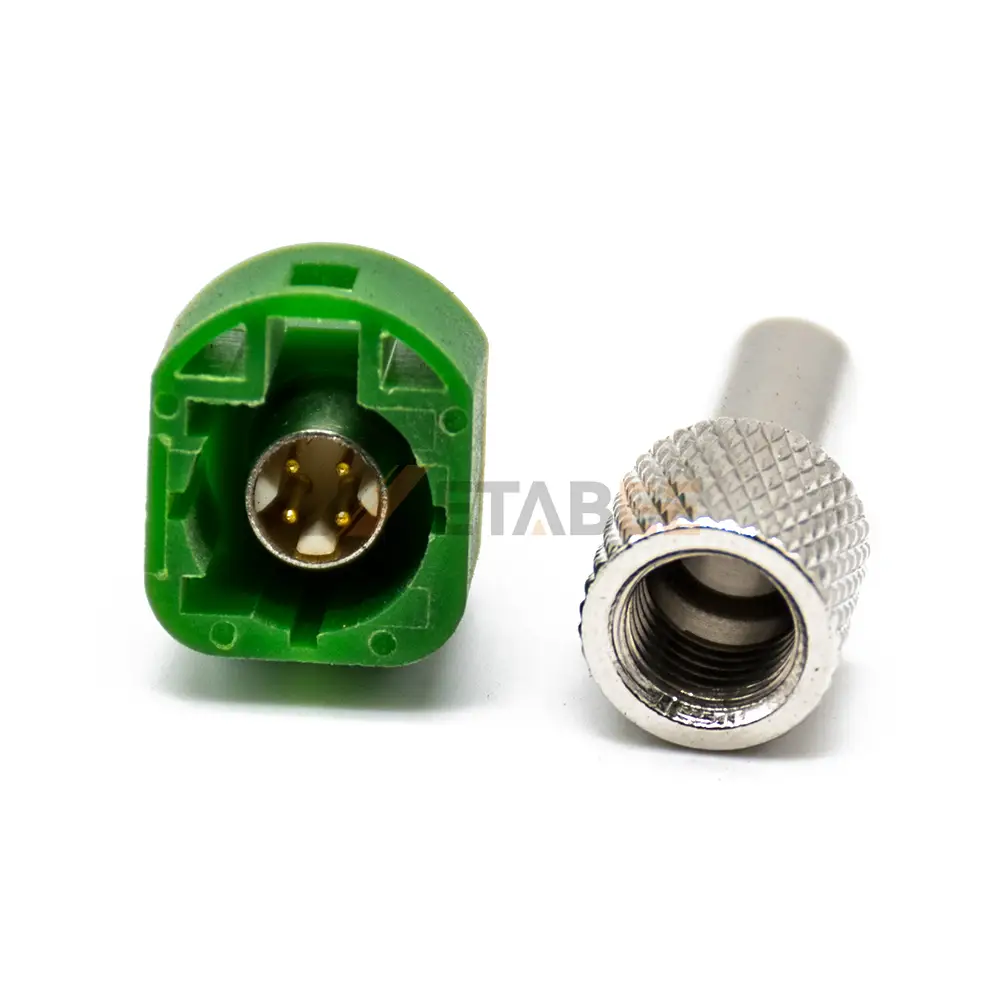

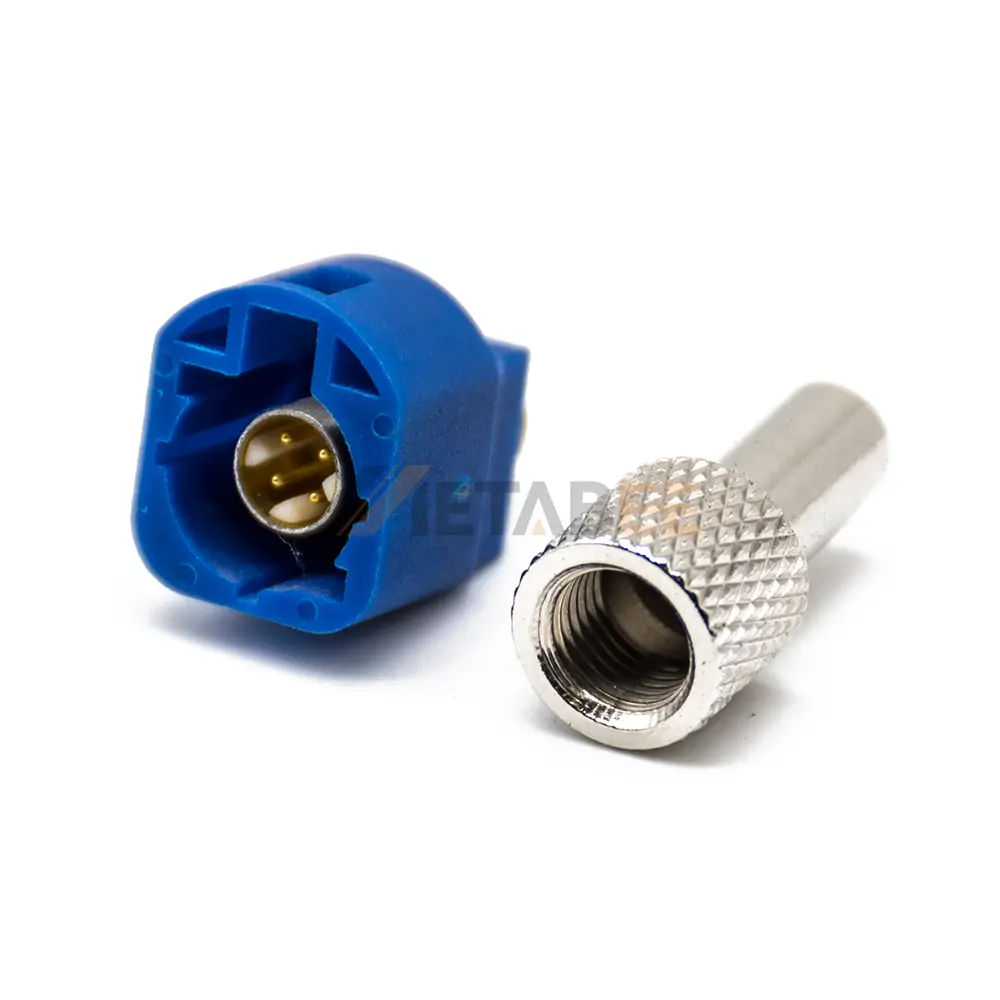

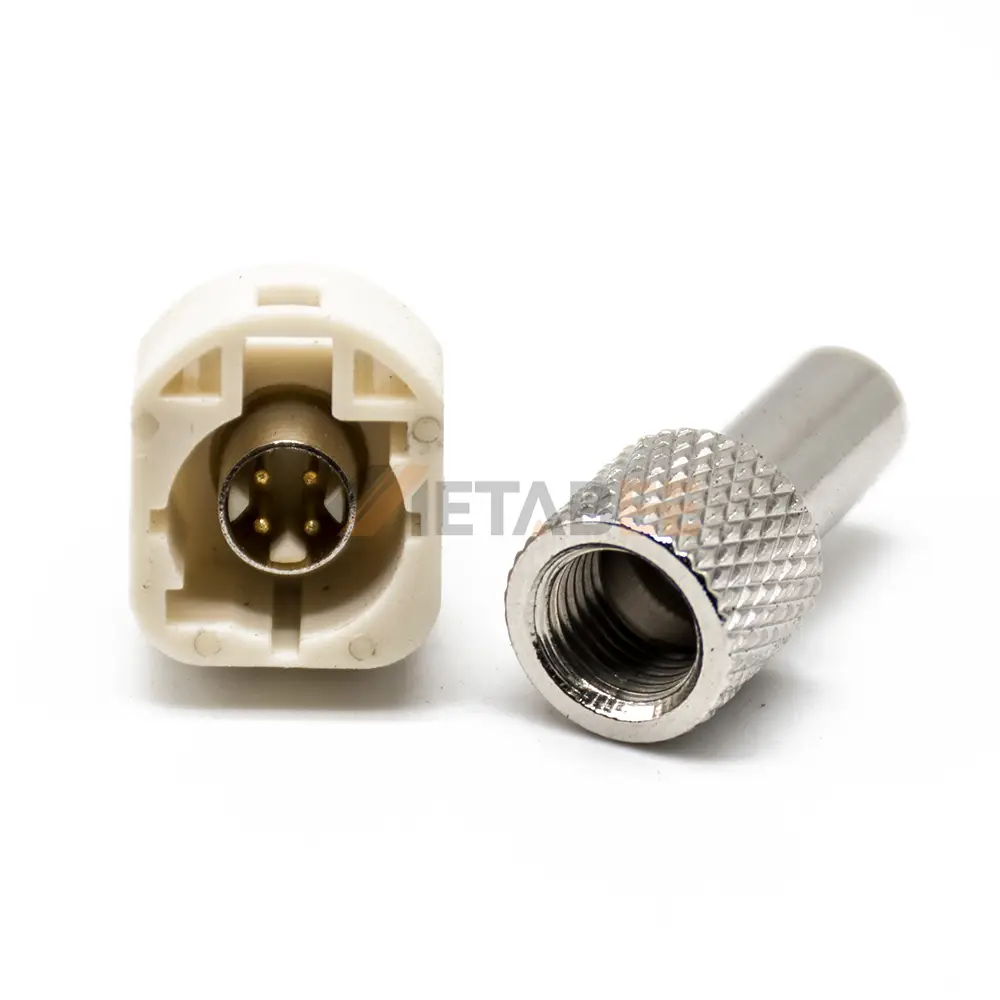

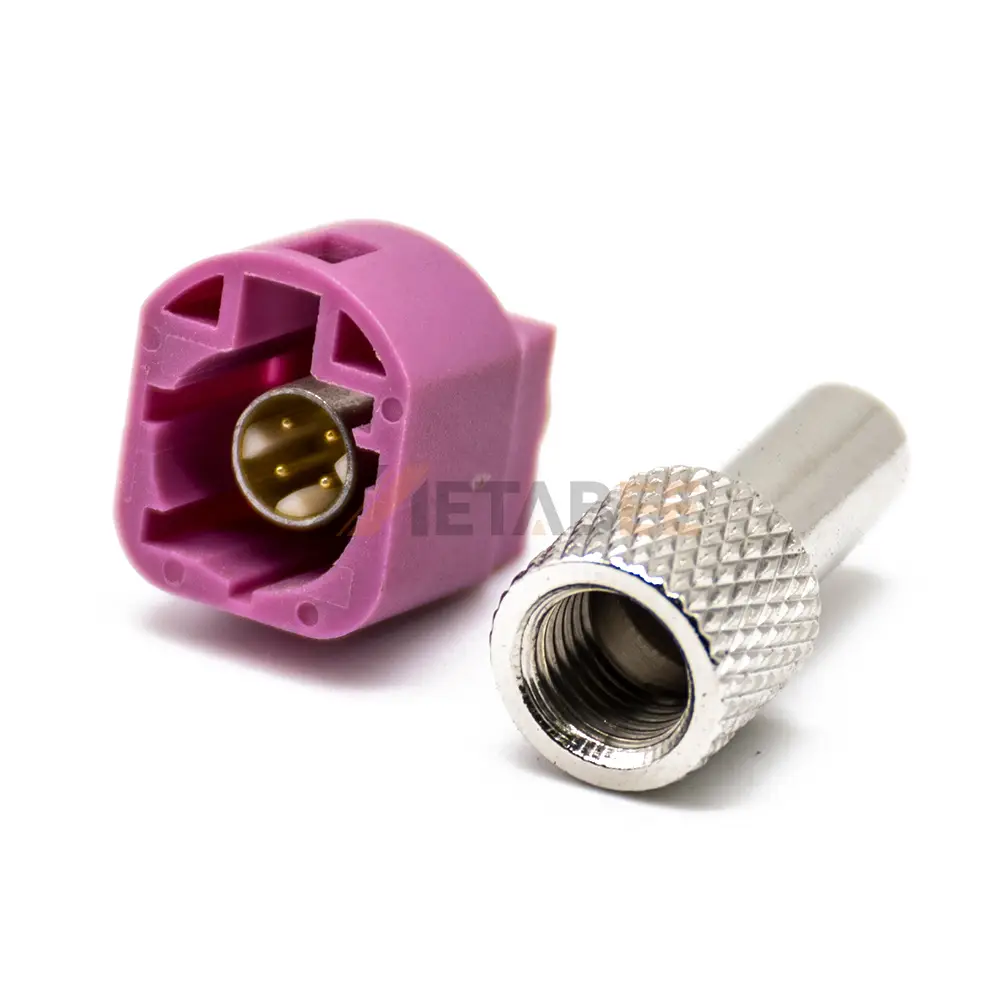

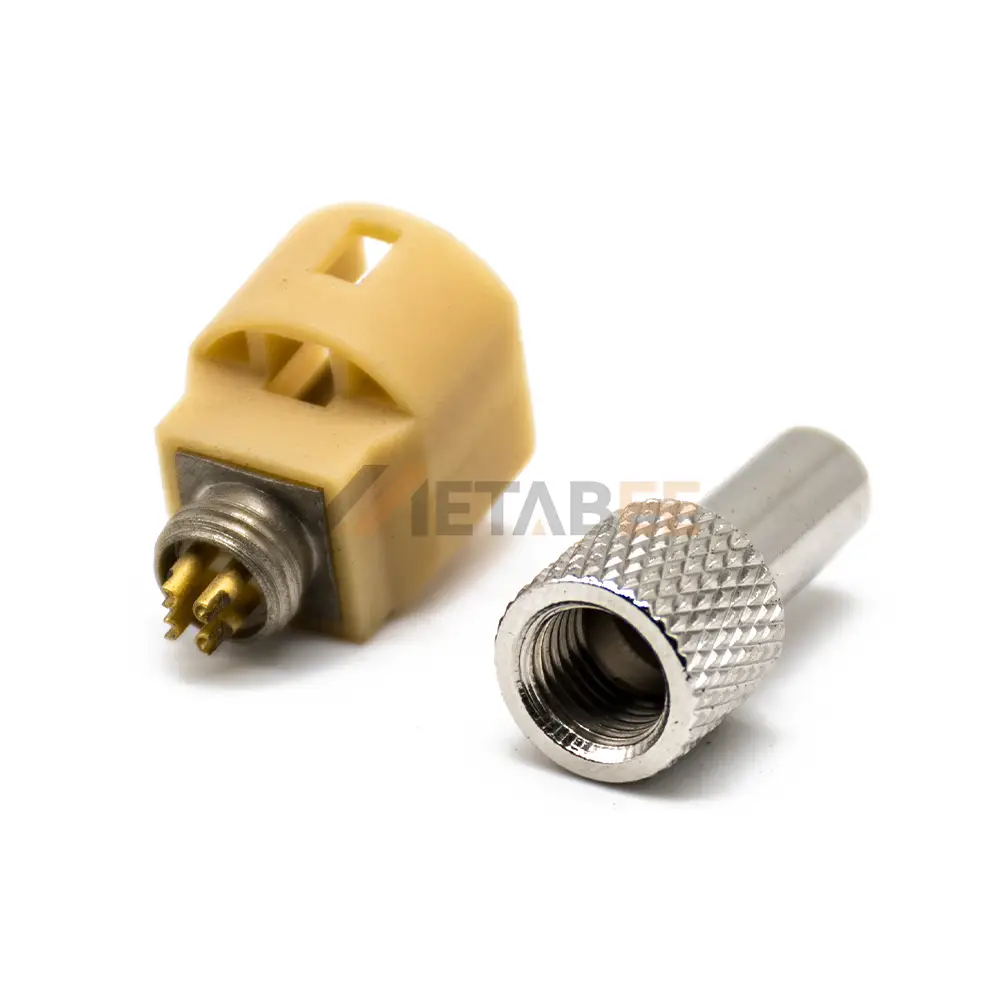

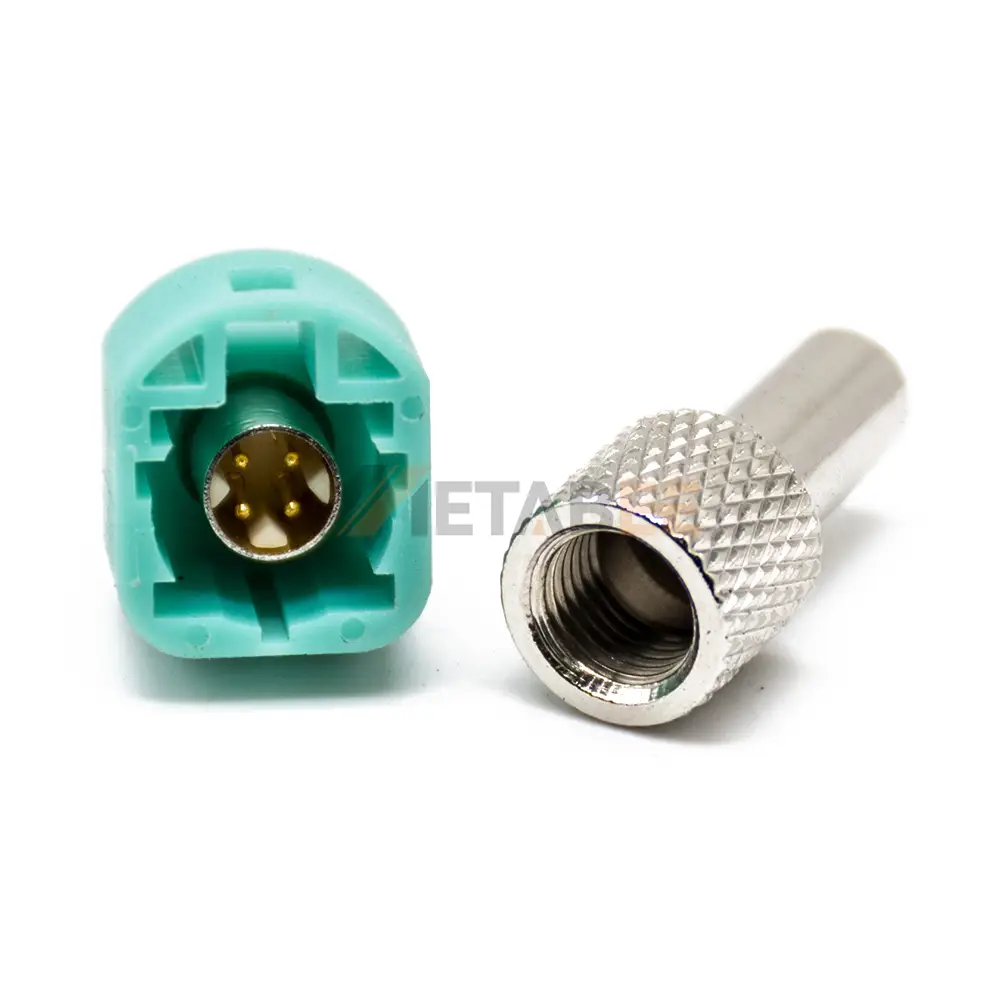

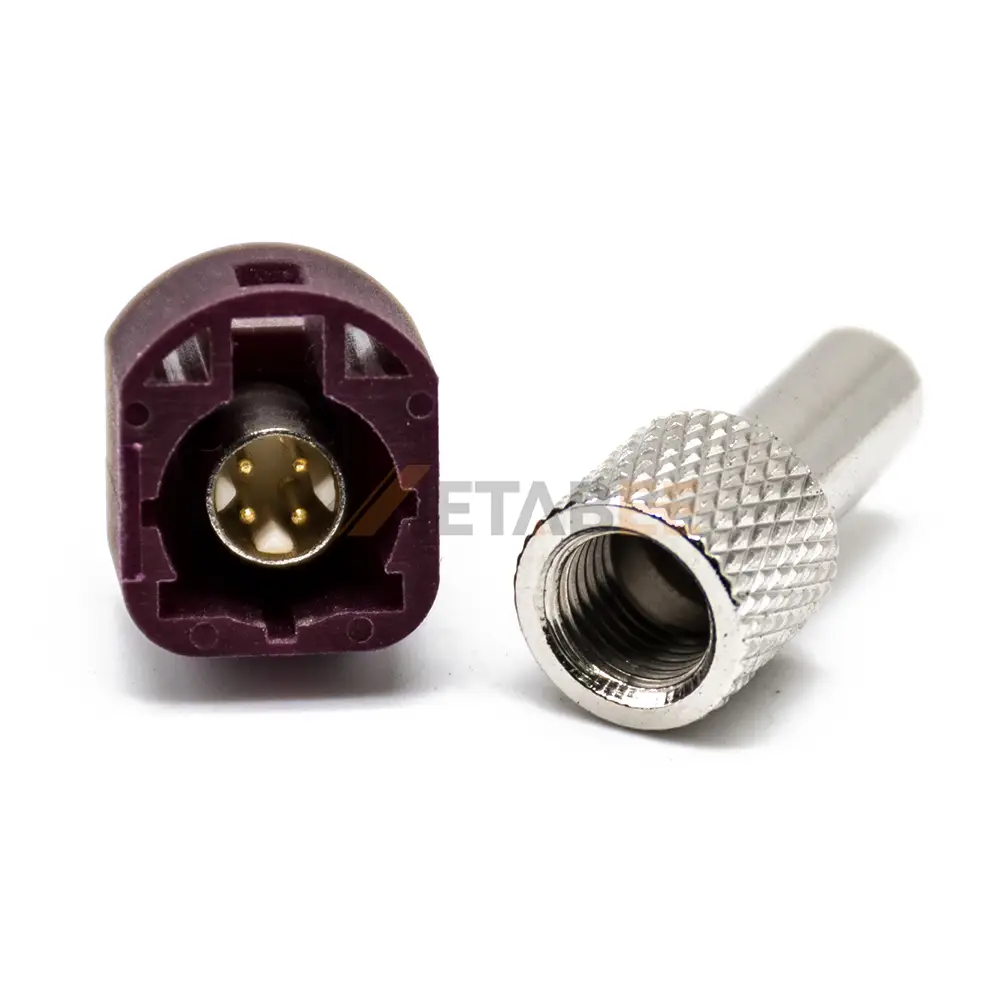

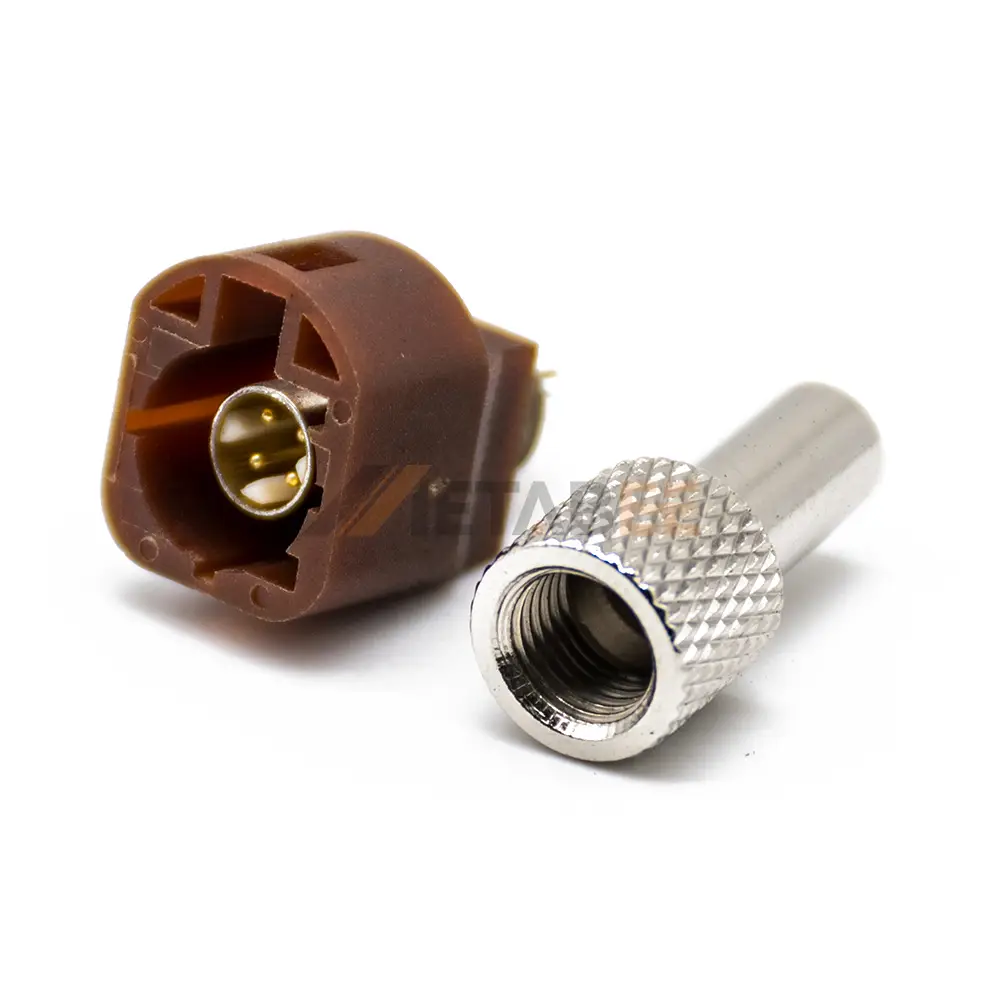

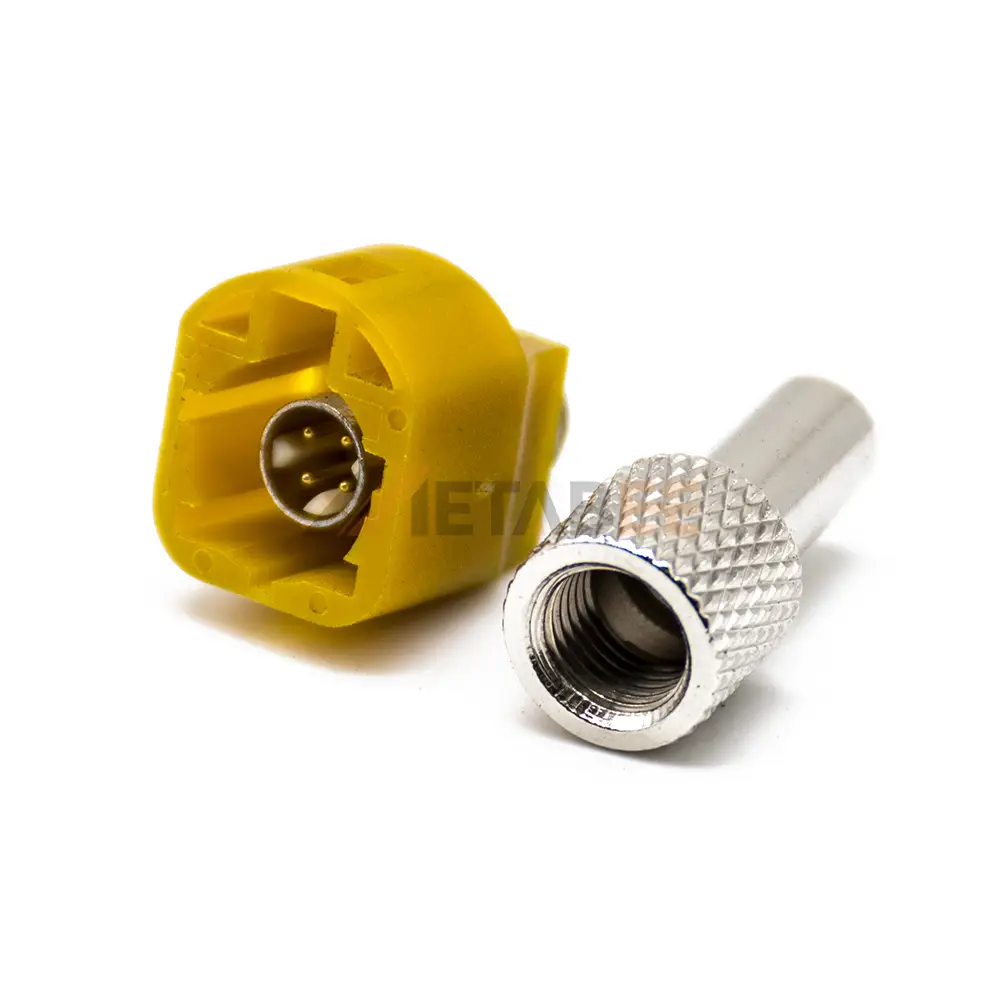

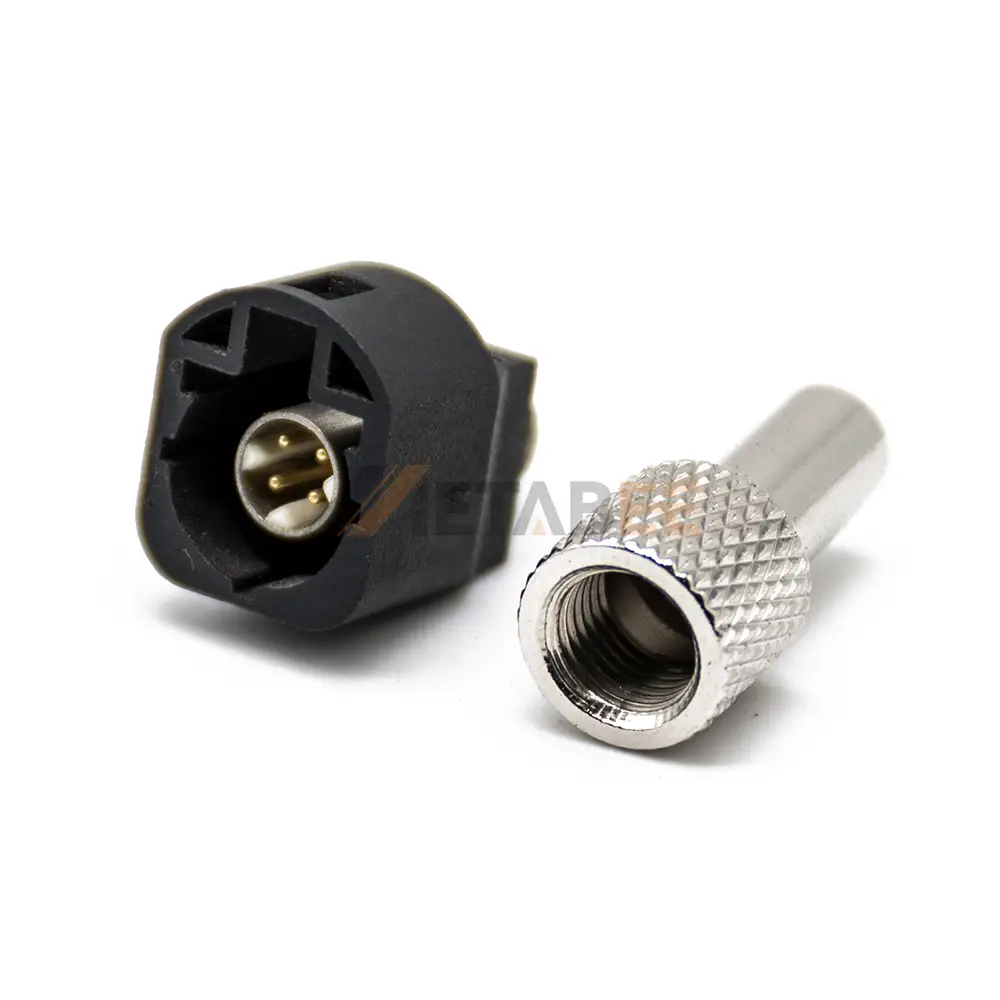

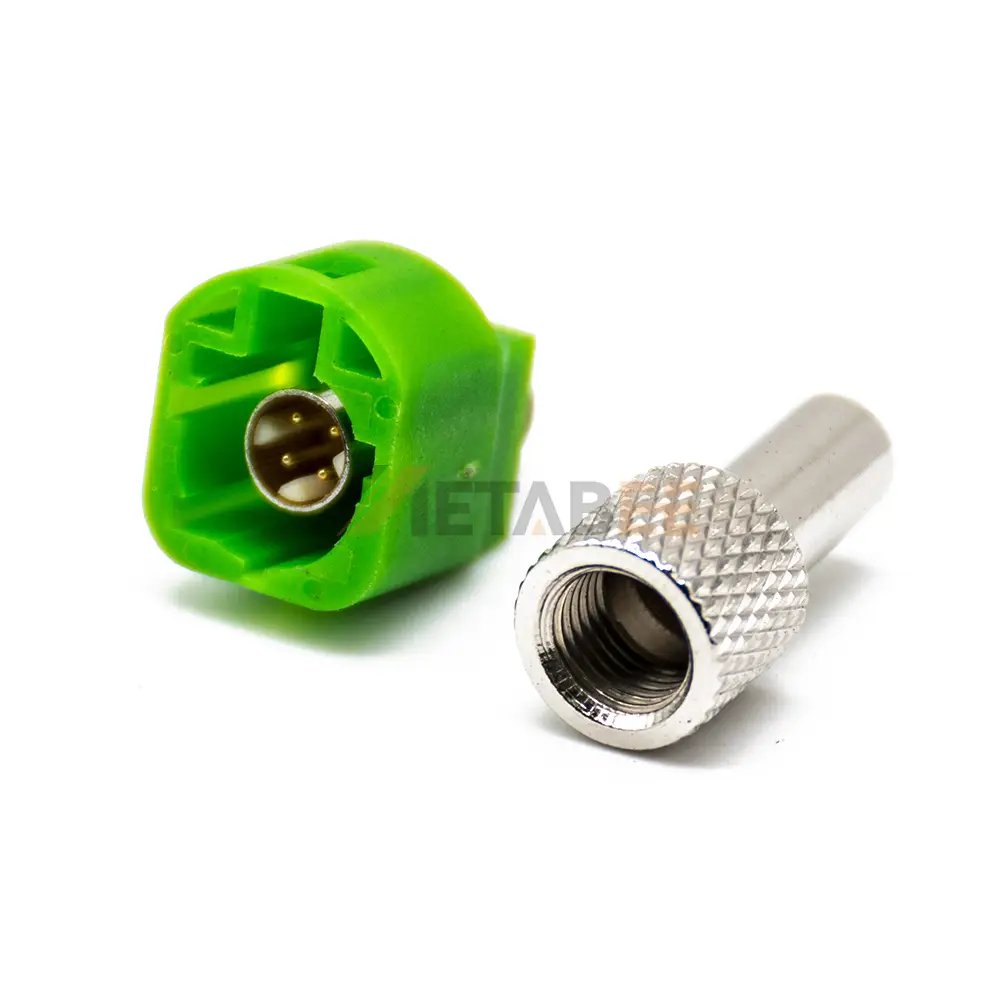

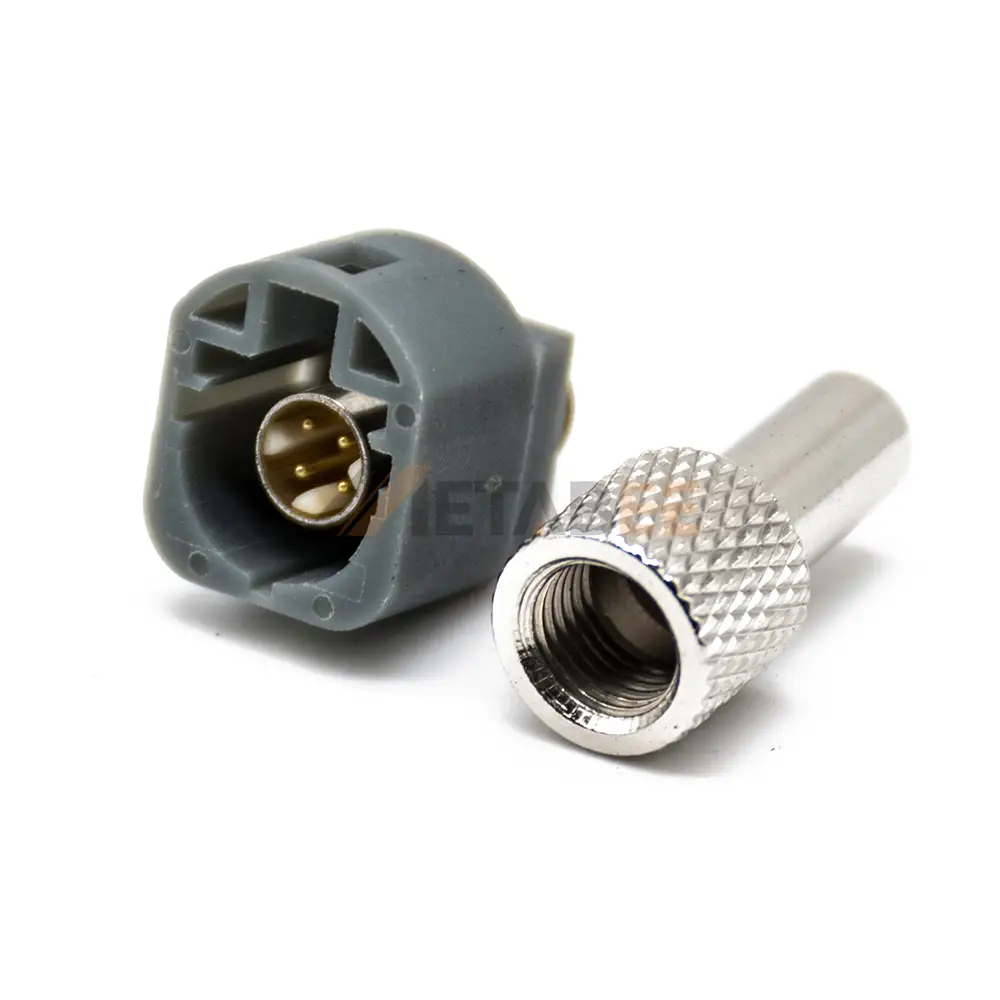

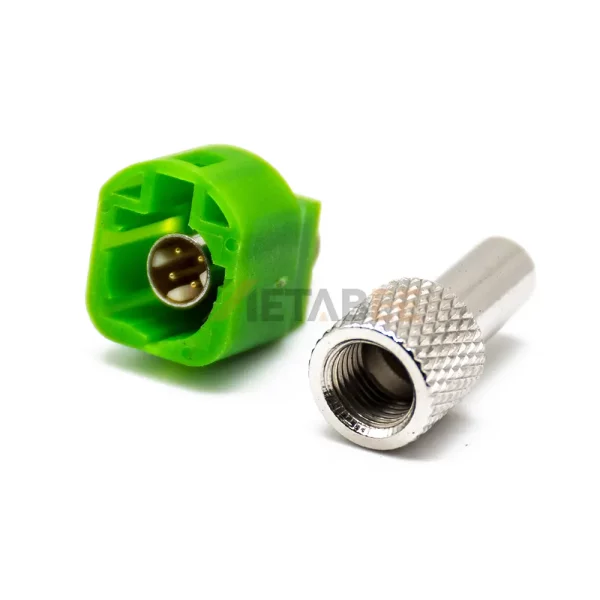

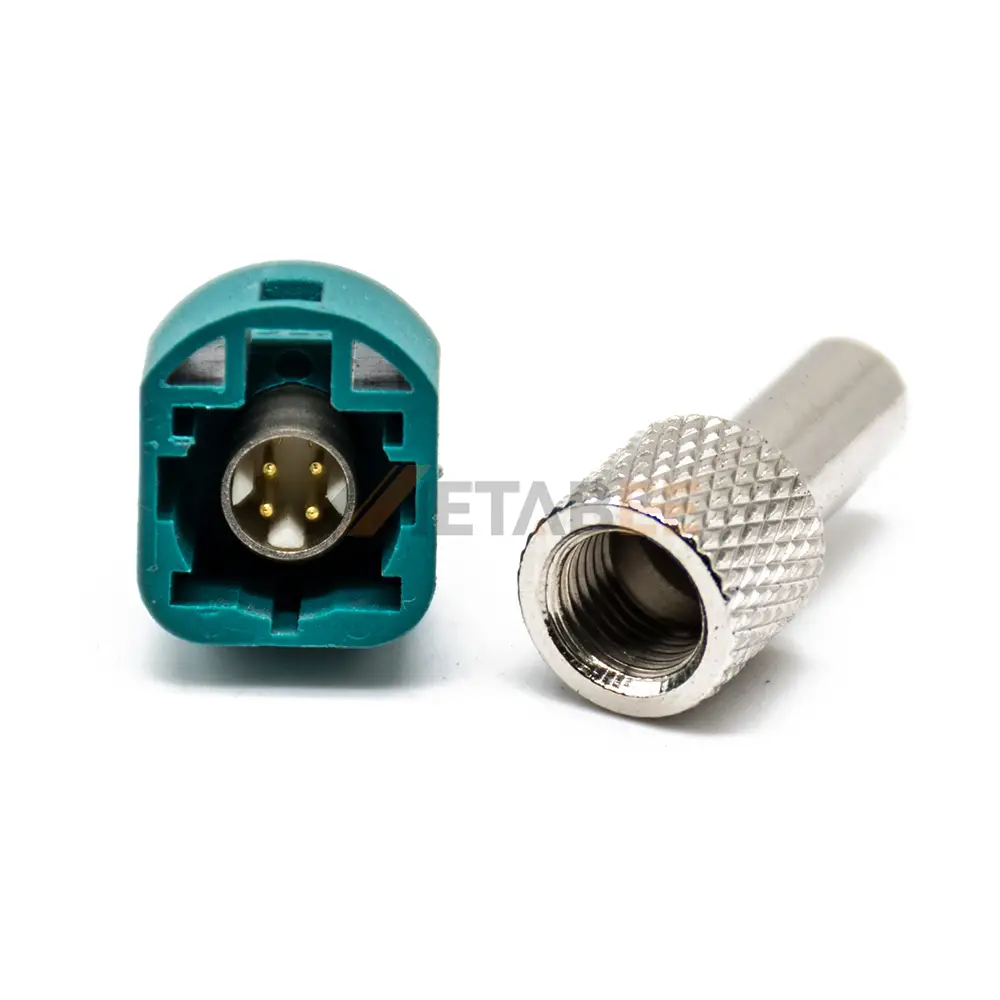

HSD LVDS 4 Pin Plug Connector for Cable, Solder
Introduction
The HSD plug connector is a high-performance connector designed for reliable signal transmission in demanding applications. Featuring a straight installation orientation, this plug-type connector comes with multiple keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z) to prevent mismating. Its robust construction includes a PA plastic housing for durability and a zinc alloy outer conductor with nickel plating for superior EMI shielding. The inner conductor is made of high-quality copper alloy with gold plating, ensuring excellent conductivity and corrosion resistance.
With a contact resistance of 100 ohms and a broad frequency range of DC-2 GHz, this connector is ideal for high-speed data transmission. It operates reliably in extreme temperatures from -40°C to 105°C, making it suitable for industrial and automotive applications. The solder termination ensures a secure connection, while the 4-pin configuration supports efficient wiring.
Key Features:
- 4-pin Plug connector for secure cable connections
- Multiple keying options (A-Z) to prevent misalignment
- PA plastic housing for durability
- Zinc alloy outer conductor with nickel plating for EMI shielding
- Gold-plated copper alloy inner conductor for high conductivity
- Wide frequency range (DC-2 GHz) for high-speed data
- Extended operating temperature (-40°C to 105°C)
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD LVDS 4 Pin Plug Connector for Cable:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
