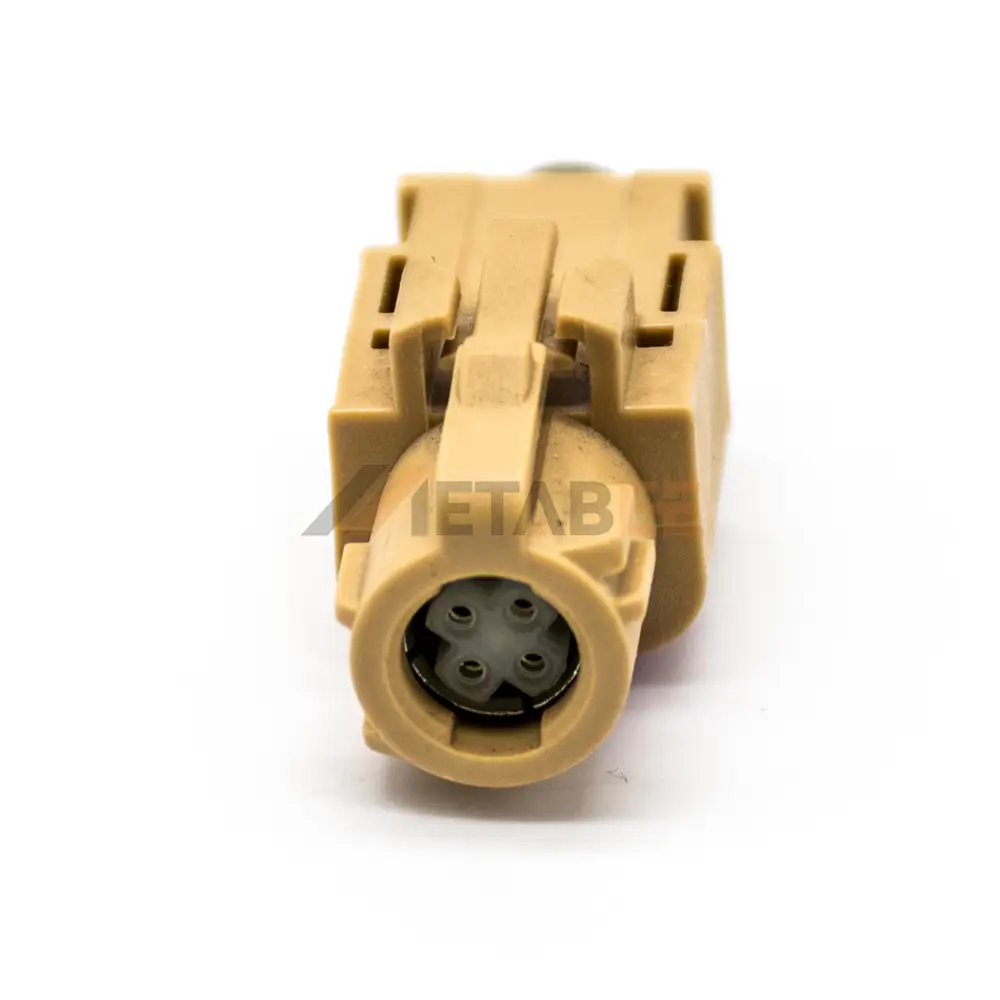

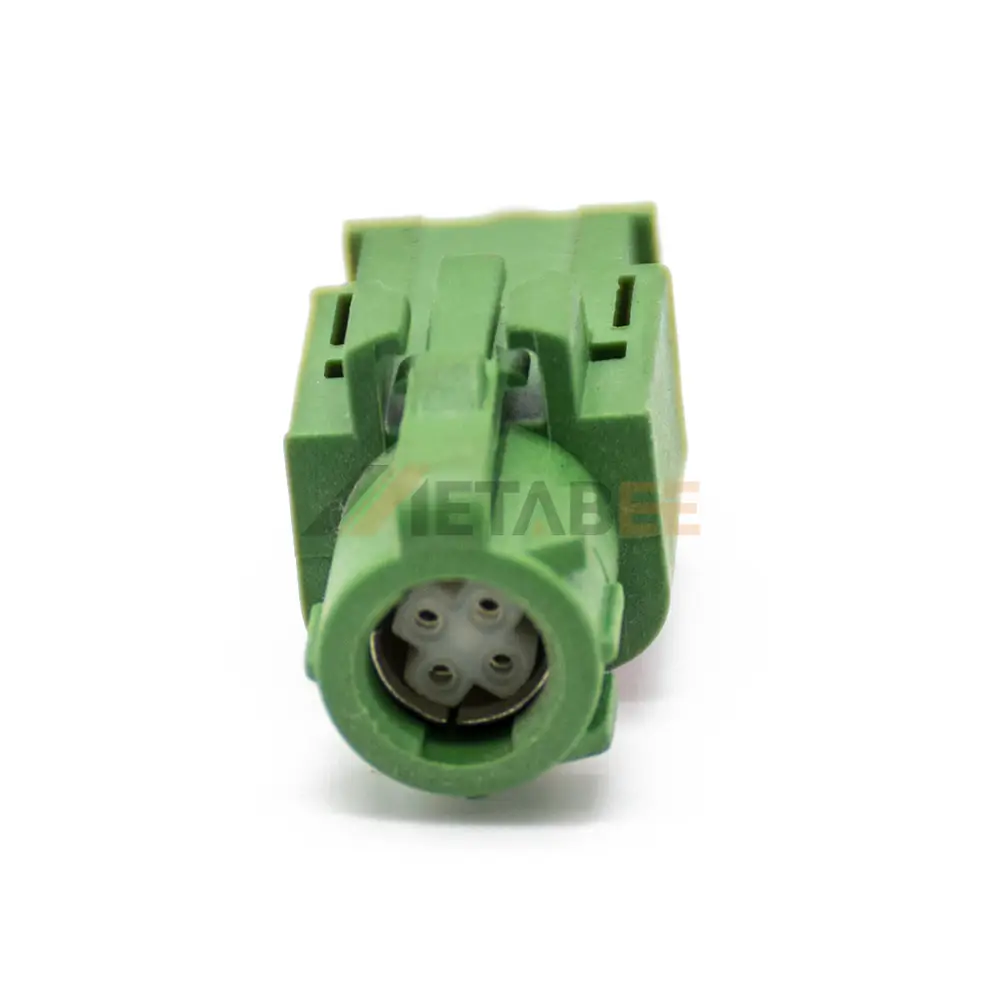

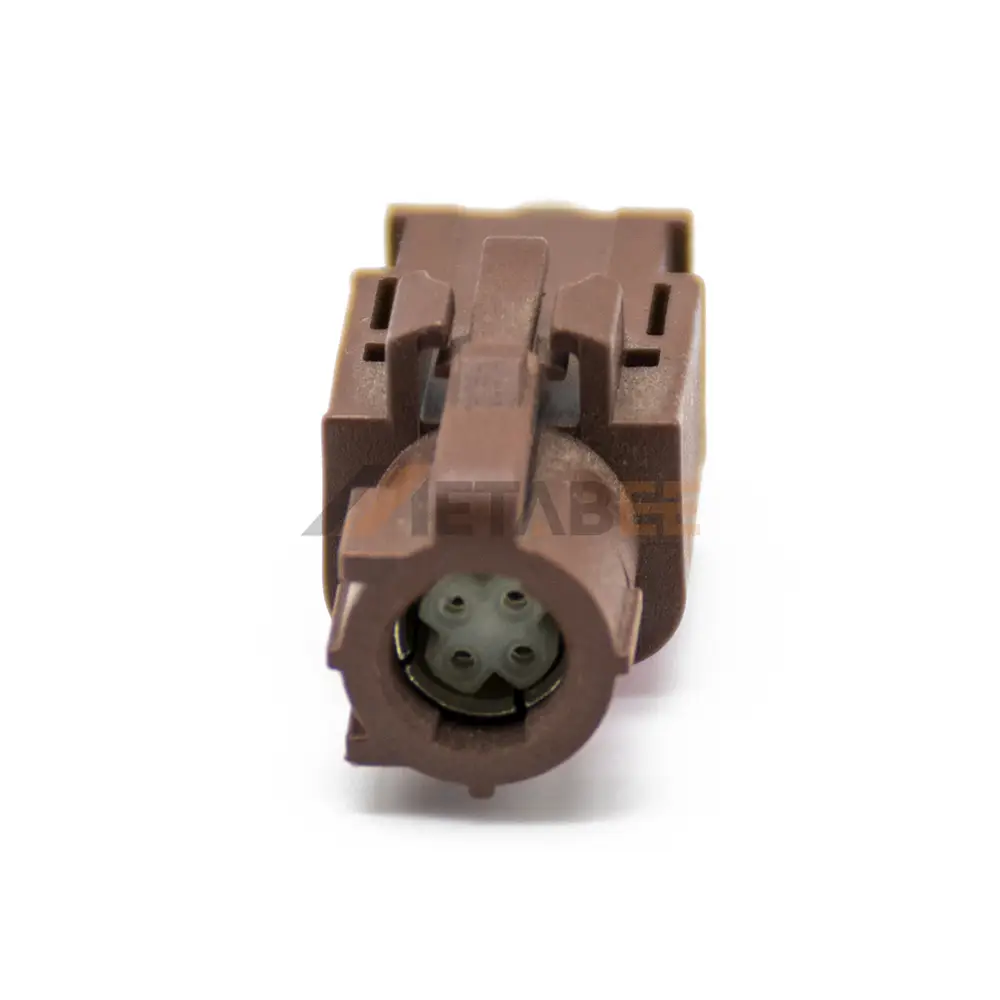

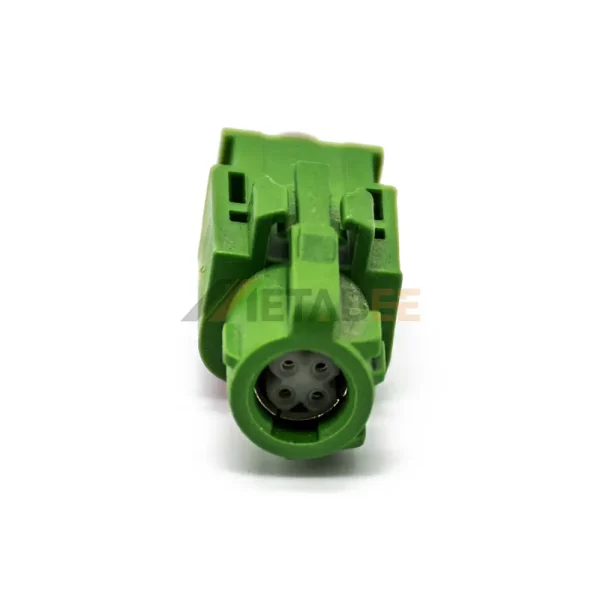

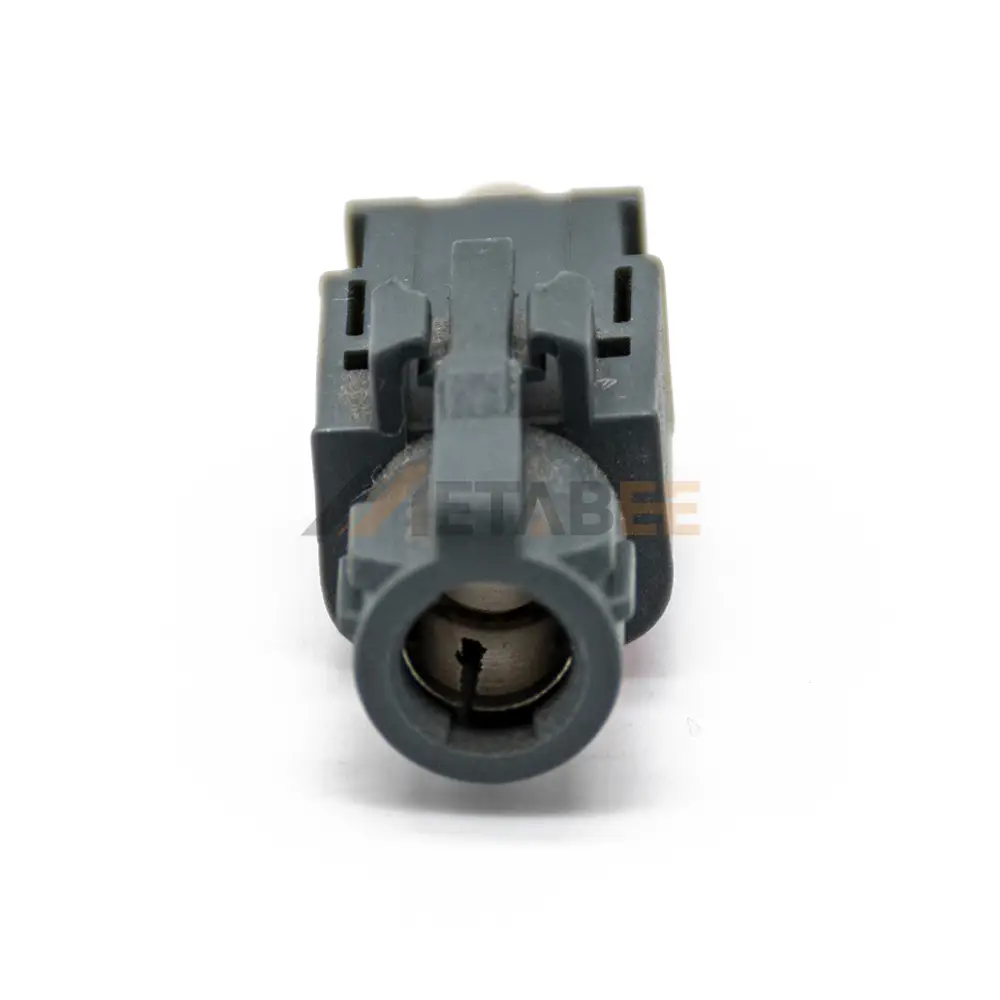

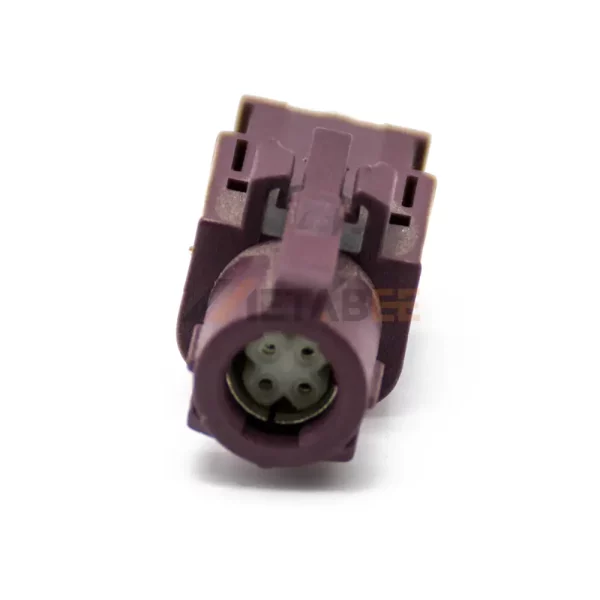

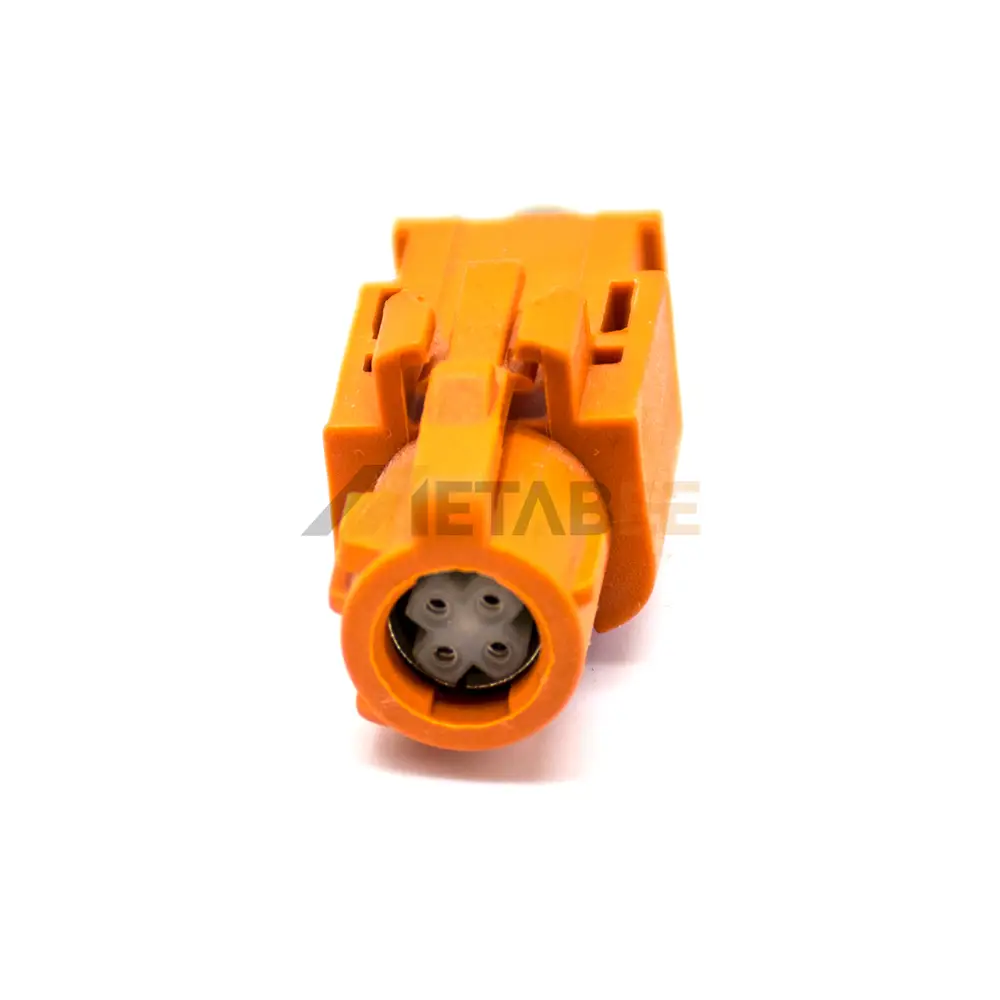

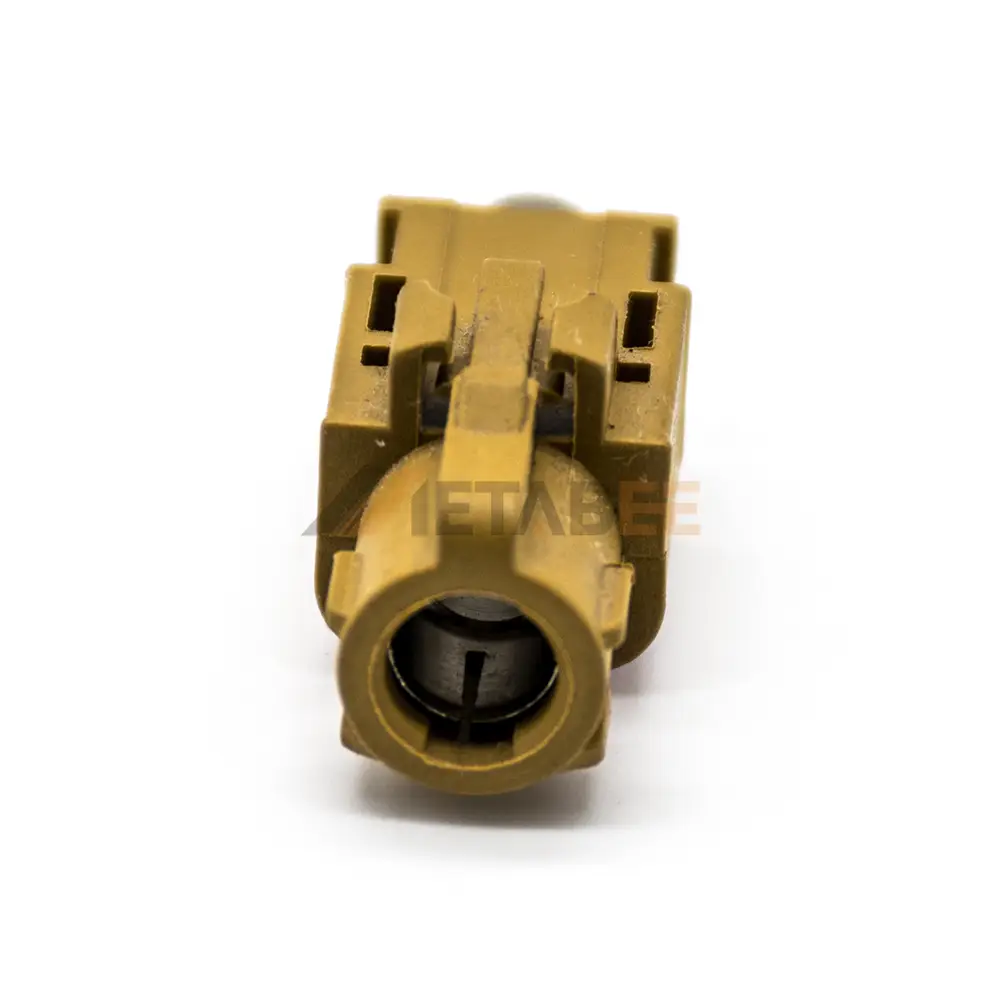

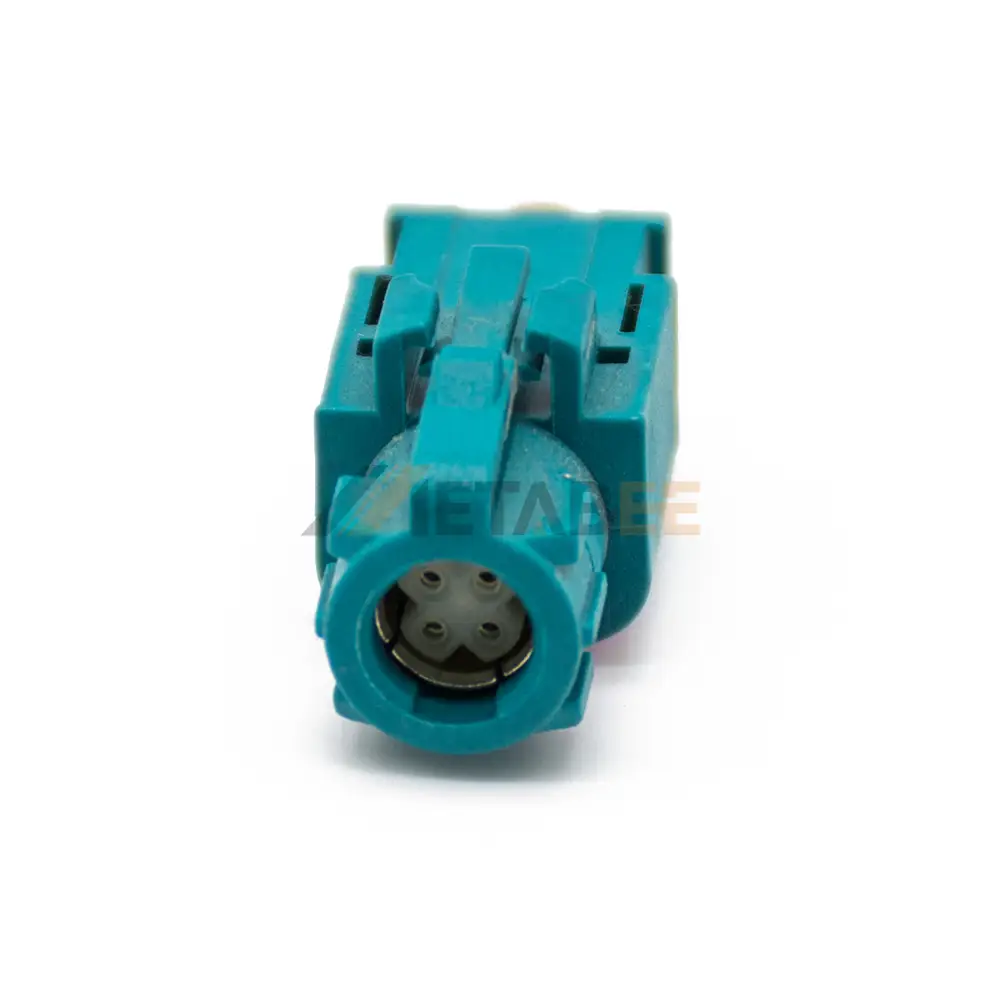

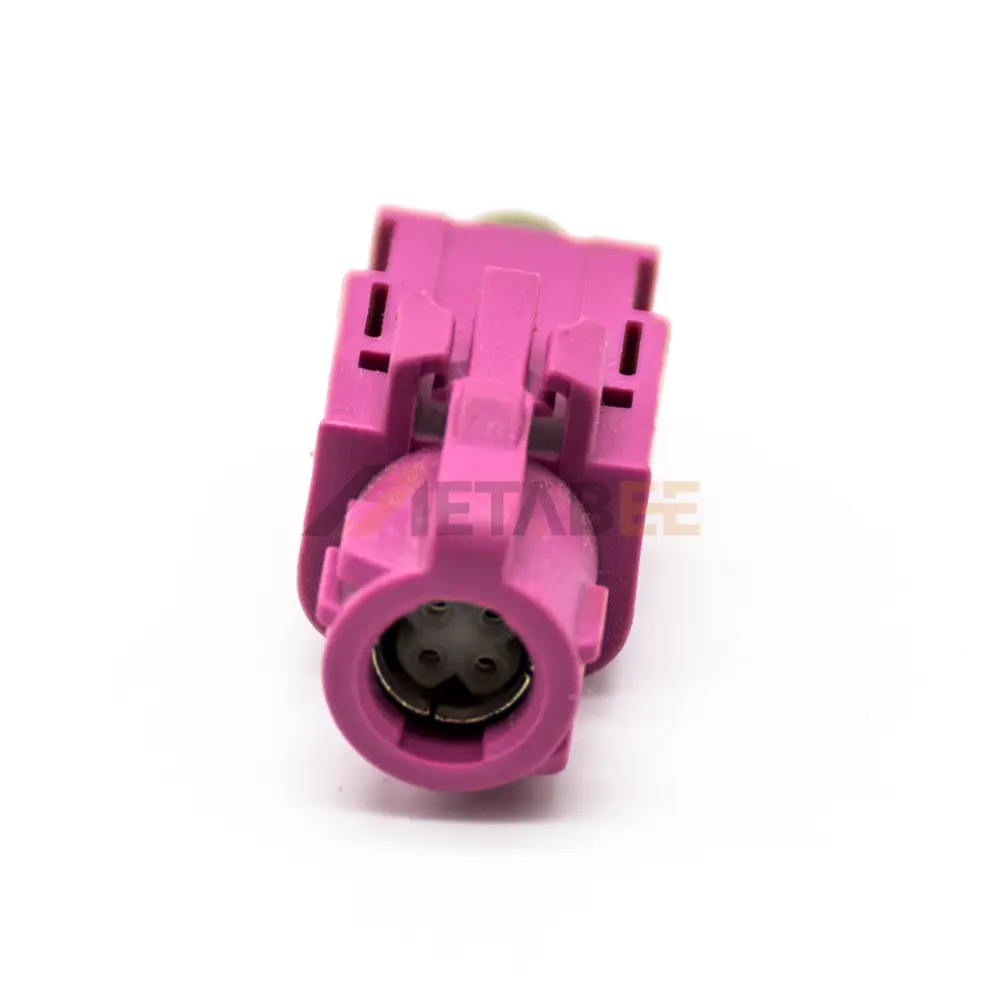

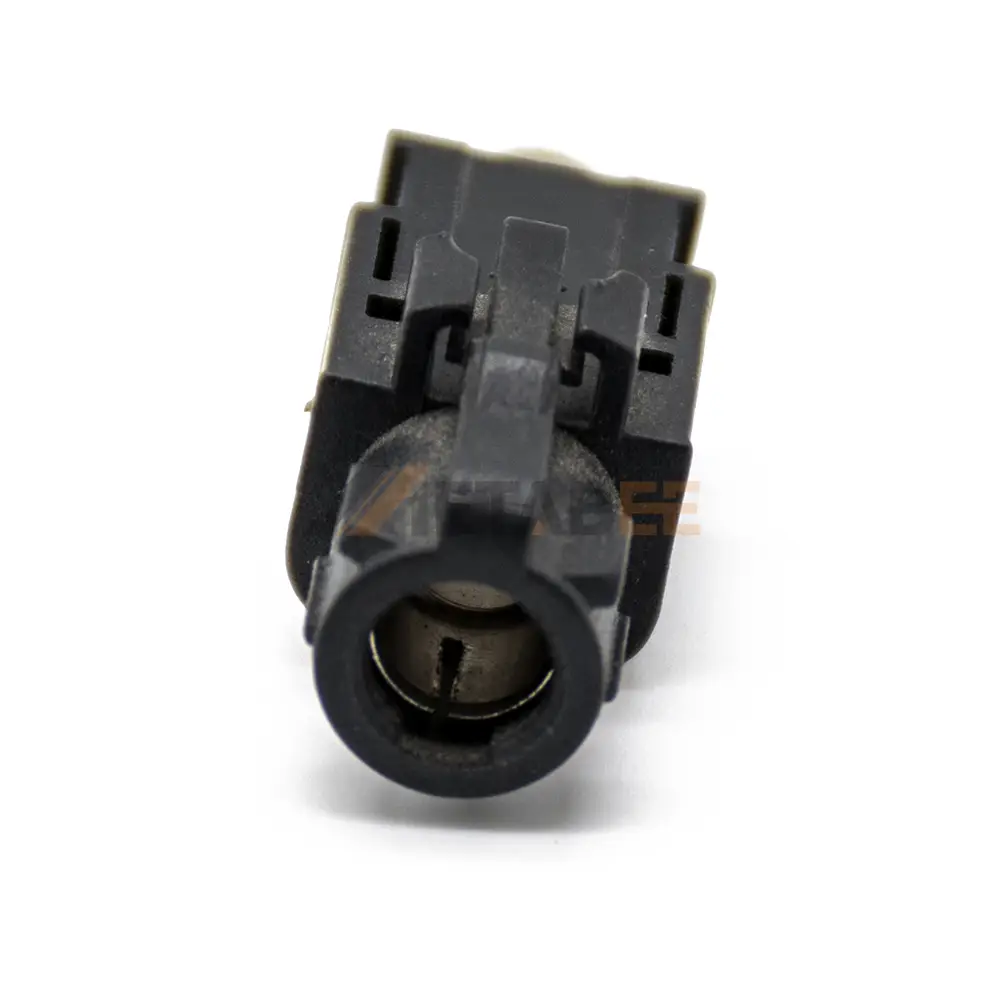

HSD 4 Pin Jack Connector for Cable, Solder
Introduction
The HSD Jack Connecto is a high-performance solution within the HSD Connector series, engineered for reliable high-speed data transmission in automotive, industrial, and communication applications. Featuring a straight mounting orientation and jack gender, it supports multiple keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z) to prevent mismating. With 4 pins and a solder termination method, it ensures secure electrical connections for stable signal integrity.
Built for durability, the connector’s housing is made from robust PA material, while its outer conductor is zinc alloy with a nickel plating for enhanced corrosion resistance. The inner conductor is crafted from copper alloy with a gold-plated finish, ensuring excellent conductivity and long-term reliability. It offers a characteristic impedance of 100 Ohm, a frequency range from DC to 2 GHz, and operates in extreme temperatures from -40 °C to +105 °C, making it suitable for demanding environments.
Key Features:
- Straight and jack design with 14 keying options.
- 4-pin solder termination for secure and stable connections.
- Nickel-plated zinc alloy outer shell for corrosion resistance.
- Gold-plated copper alloy inner conductor for superior conductivity.
- Wide operating temperature range of -40°C to 105°C.
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Jack | |
| Orientation: | Straight | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |

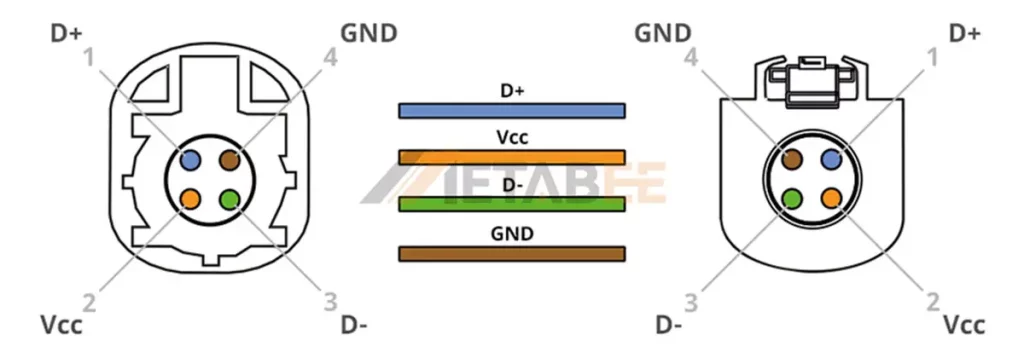

HSD plug and jack in schematic view with pin assignment:

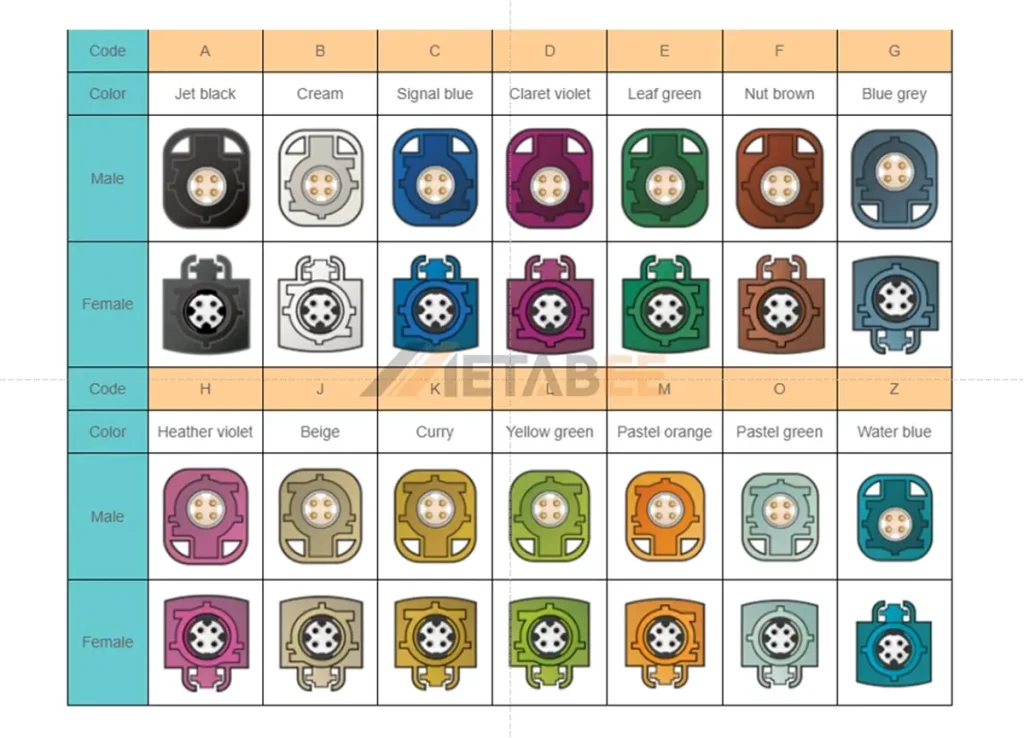

14 codes and colors of HSD male and female:
Applications of this HSD 4 Pin Jack Connector for Cable:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
