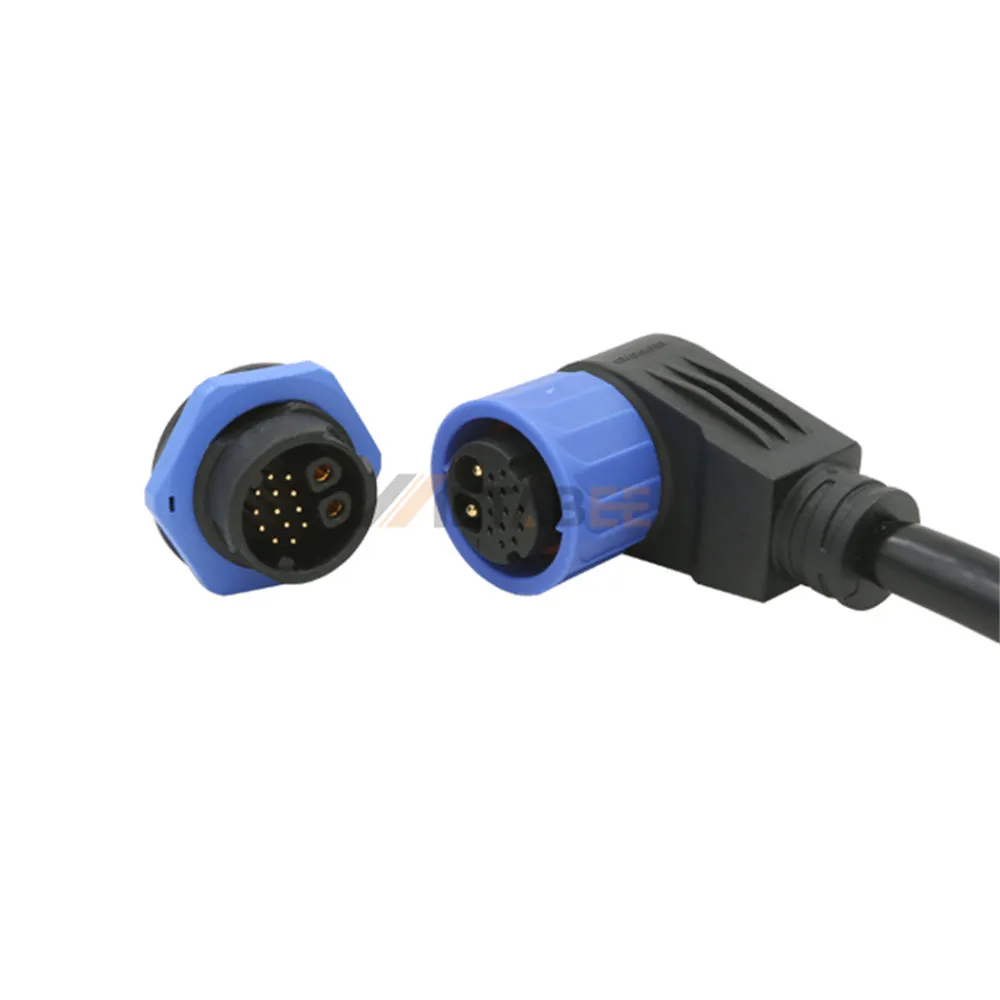

Home Electric Motorcycle Power & Signal Charger, 2+13 Pin, Push Lock
Introduction
The Home Electric Motorcycle Power & Signal Charger, 2+13 Pin, Push Lock is designed for electric motorcycle charging systems requiring reliable power transmission and signal connectivity. Its 2+13-pin configuration integrates power and signal connections in a single interface, while the push-lock mechanism provides secure mating and convenient connection and disconnection.
With an IP67 protection rating, this connector offers protection against dust and temporary water immersion under specified test conditions. The UL94V-0 flame-retardant material and operating temperature range of -40°C to +105°C support dependable performance in demanding environments.
Key Features:
- 2+13-Pin Configuration: Combines power and signal connections.
- Push-Lock Design: Enables secure and convenient mating.
- IP67 Protection: Provides dust-tight and immersion protection.
- UL94V-0 Flame Retardancy: Supports fire-safety requirements.
- Wide Operating Temperature: Functions from -40°C to +105°C.
- Electric Motorcycle Application: Suitable for integrated charging and signal systems.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0017 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+13 Pin | |
| Wire Gauge: | Power 12AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V+30V | |
| Rated Current: | 20A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 2,000V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
