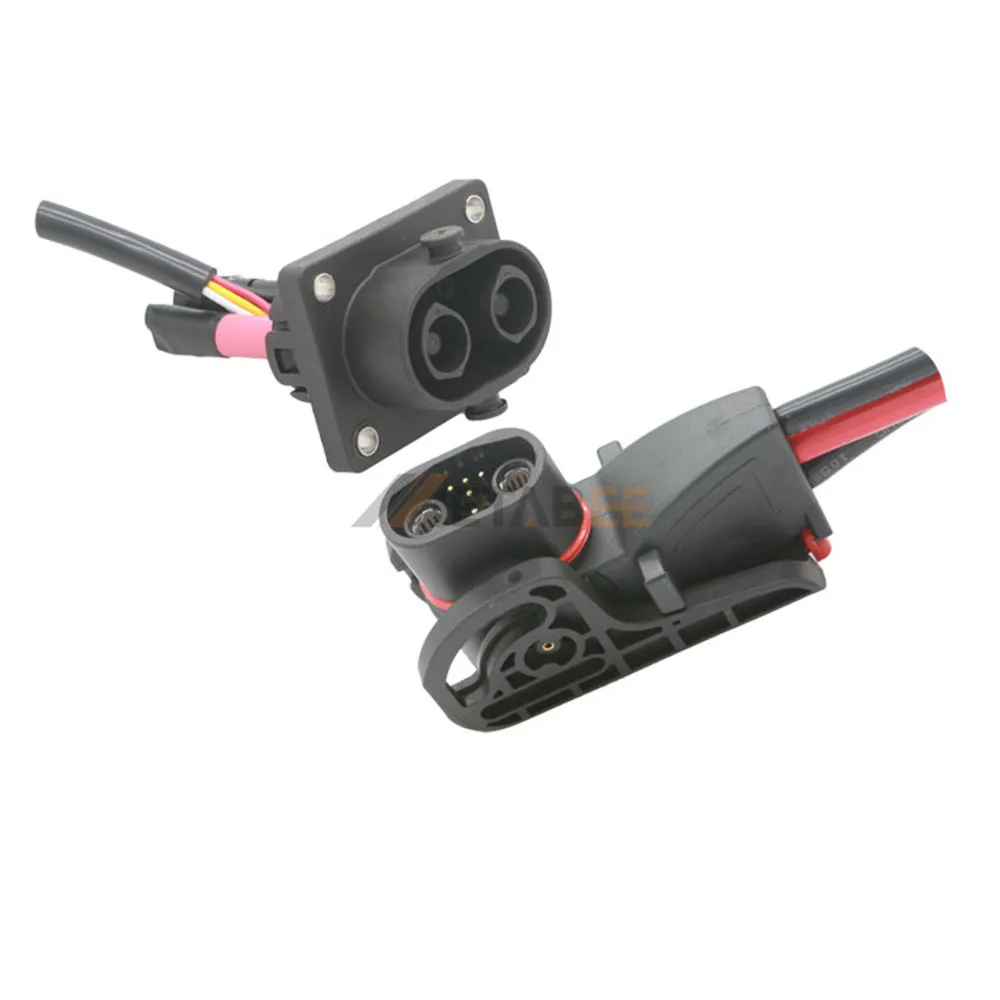

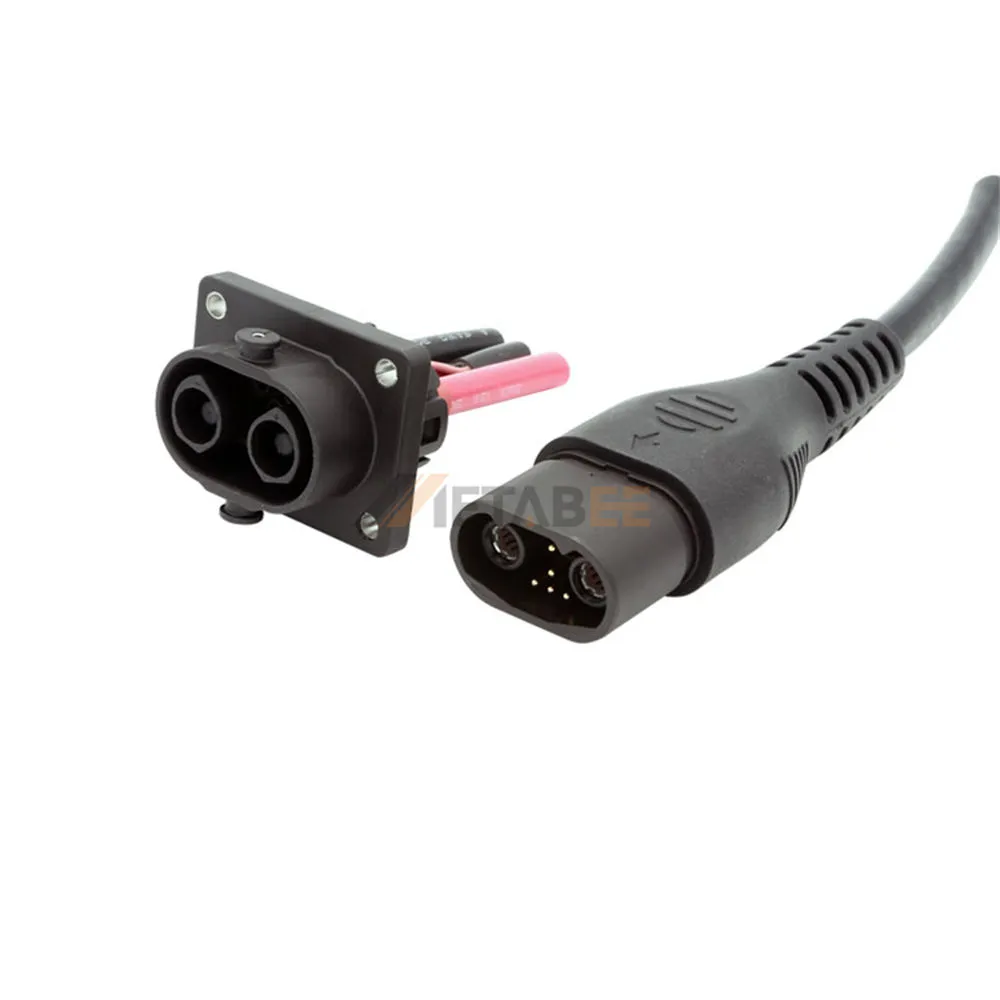

High Power Lithium Battery Hybrid Charger for E-Motorcycle, 2+8 Pin, IPX7
Introduction
The high power lithium battery hybrid charger for e-motorcycle, a critical component designed for the advanced power and data management of electric motorcycle battery systems. This specialized connector ensures optimized charging and discharging cycles, integrating both high-current power delivery and precise signal communication within a single, robust interface. It is engineered to maintain peak performance and reliability under demanding operational conditions.
This sophisticated connector features a versatile 2+8 Pin configuration, engineered to deliver 80A for power transmission and 5A for signal integrity. It supports a rated voltage of 300V DC for power lines and 100V DC for signal lines, with a substantial withstand voltage of 1,500V AC. Compliance with UL94V-0 flame retardancy and an IP67 ingress protection rating guarantees enhanced safety and durability. The operational temperature range spans from -40°C to 105°C, ensuring consistent functionality across diverse environments.
Key Features:
- 2+8 Pin Hybrid Design: integrates high-power and signal transmission.
- High Current Capacity: 80a for robust power transfer.
- Optimal Voltage Support: 300v dc for power, 100v dc for signal.
- Superior Withstand Voltage: 1,500v ac for enhanced electrical safety.
- Ip67 Environmental Protection: sealed against dust and water ingress.
- Ul94v-0 Flame Retardant: provides critical fire safety compliance.
Main Specifications:
General Information:
| Part No.: | YC-E1001-006 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+8 Pin | |
| Wire Gauge: | Power 6AWG/Max, Signal 22AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V DC (Power), 100V DC (Signal) | |
| Rated Current: | 80A+5A | |
| Insulation Resistance: | 500MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
