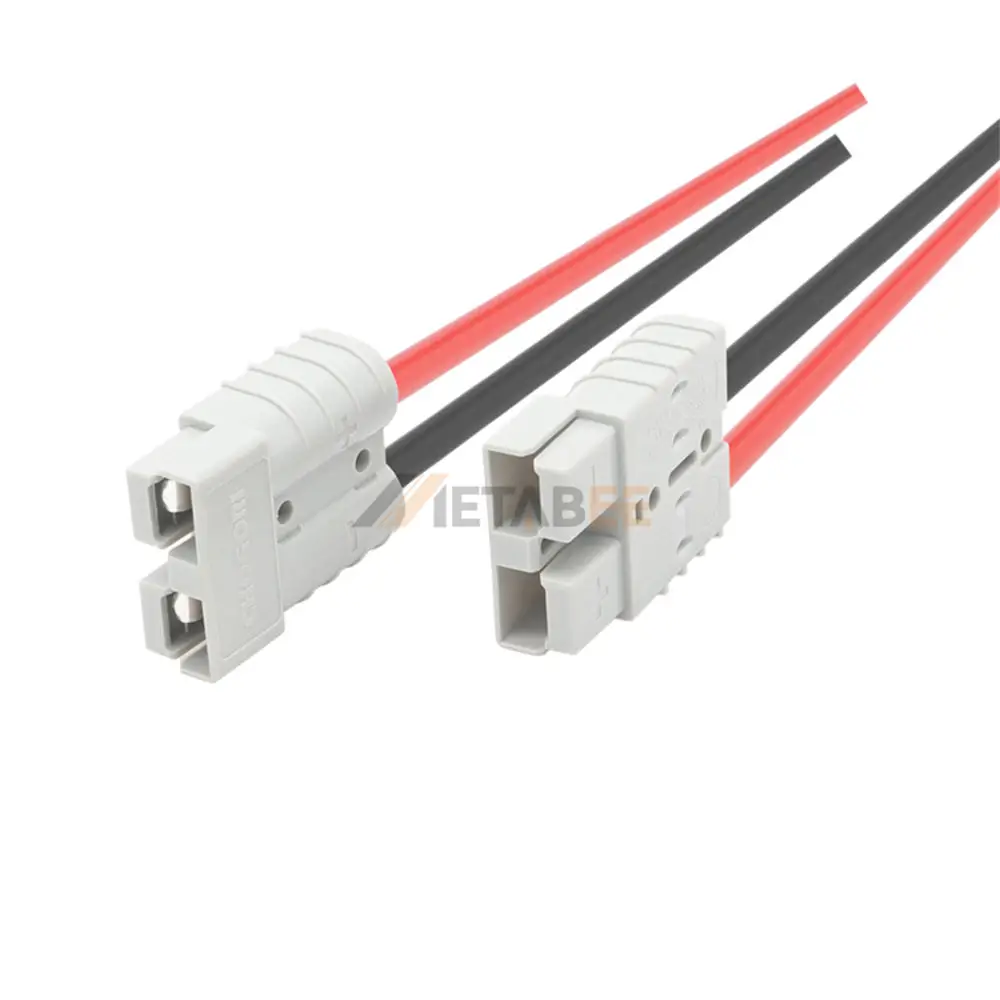

High-Current Power Charging Connector for E-Motorcycle, 2 Pin
Introduction
The High-current power charging connector for e-motorcycle, 2 pin is designed for reliable power transmission in electric motorcycle charging systems. Featuring a durable construction and IP67 protection, this connector helps prevent dust and water ingress, ensuring dependable performance in demanding operating environments.
With a UL94V-0 flame-retardant rating and an operating temperature range of -40°C to +105°C, this 2-pin charging connector supports reliable operation under varying environmental conditions. It is suitable for electric motorcycle charging applications requiring secure electrical connections and durable performance.
Key Features:
- Connector Type: 2-pin power charging connector
- Flame Retardancy: UL94V-0 rated
- Protection Rating: IP67 dust and water protection
- Operating Temperature: -40°C to +105°C
- Application: Electric motorcycle charging systems
- Key Benefit: Reliable power transmission and durable performance
Main Specifications:
General Information:
| Part No.: | YC-E1001-0029 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2 Pin | |
| Wire Gauge: | 6mm²/Max | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 600V DC | |
| Rated Current: | 50A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 2,200V AC | |
| Durability (Mating): | 10,000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
