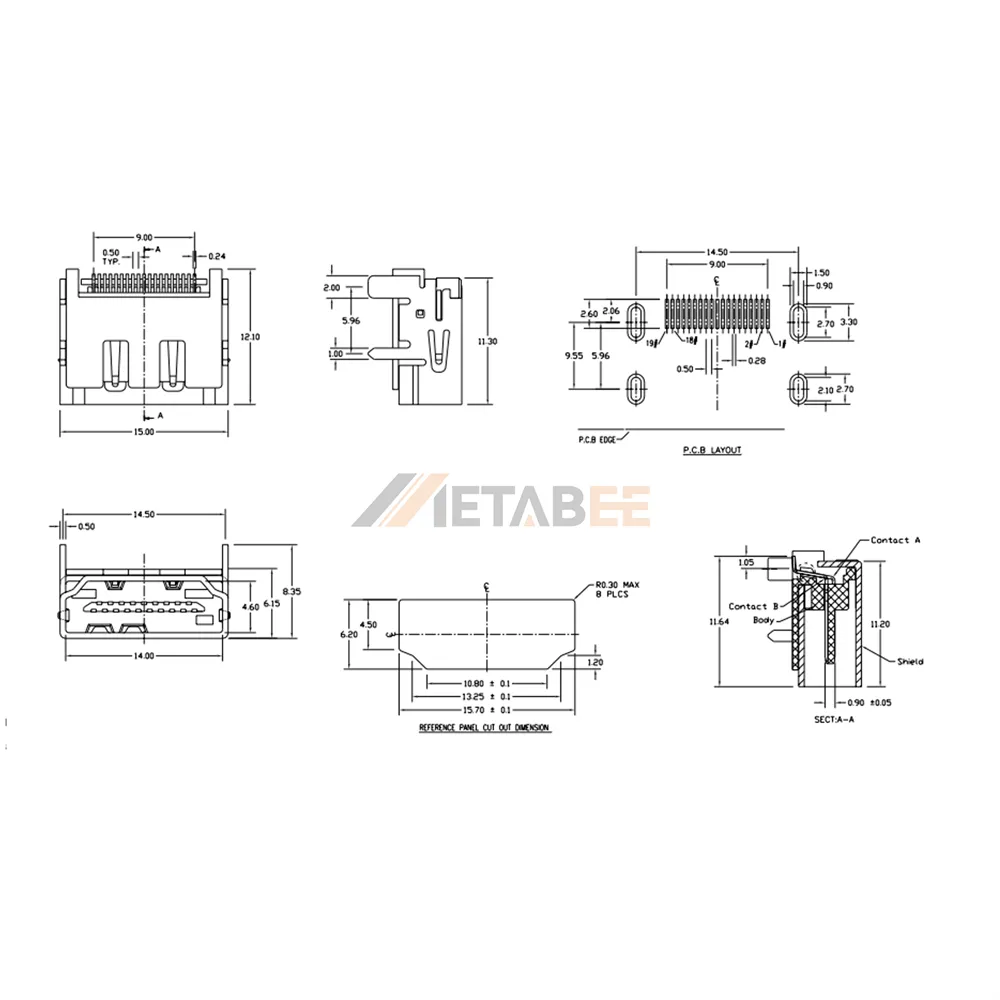

HDMI Type A Receptacle for PCB, 19 Pin, Surface Mount
Introduction:
This 19-pin HDMI type a receptacle is designed for high-density PCB applications where reliable high-definition signal transmission is essential. Featuring a right-angle orientation and surface mount termination, it allows the HDMI port to sit flush with the board edge, optimizing space in compact devices such as media players, laptops, and display interfaces. The single-port design provides a standard HDMI connection point for A/V signal input or output.
Constructed for durability and consistent performance, the connector supports a current rating of 0.5A and a voltage rating of 40V, making it well-suited for low-power signal circuits. It meets UL94V-0 flammability standards for enhanced fire resistance, and operates reliably across a wide temperature range from -55°C to +85°C, ensuring stable performance in demanding environmental conditions.
Key Features
- 19-pin HDMI Type A receptacle, single port
- Right-angle orientation for flush PCB edge mounting
- Surface mount (SMT) termination for efficient assembly
- Rated for 0.5A / 40V operation
- UL94V-0 flame-retardant housing
- Operating temperature range: -55°C to +85°C
Main Specifications:
General Information:
| Product No.: | HDMI-S-R-NF-SMT | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Receptacle for PCB:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
