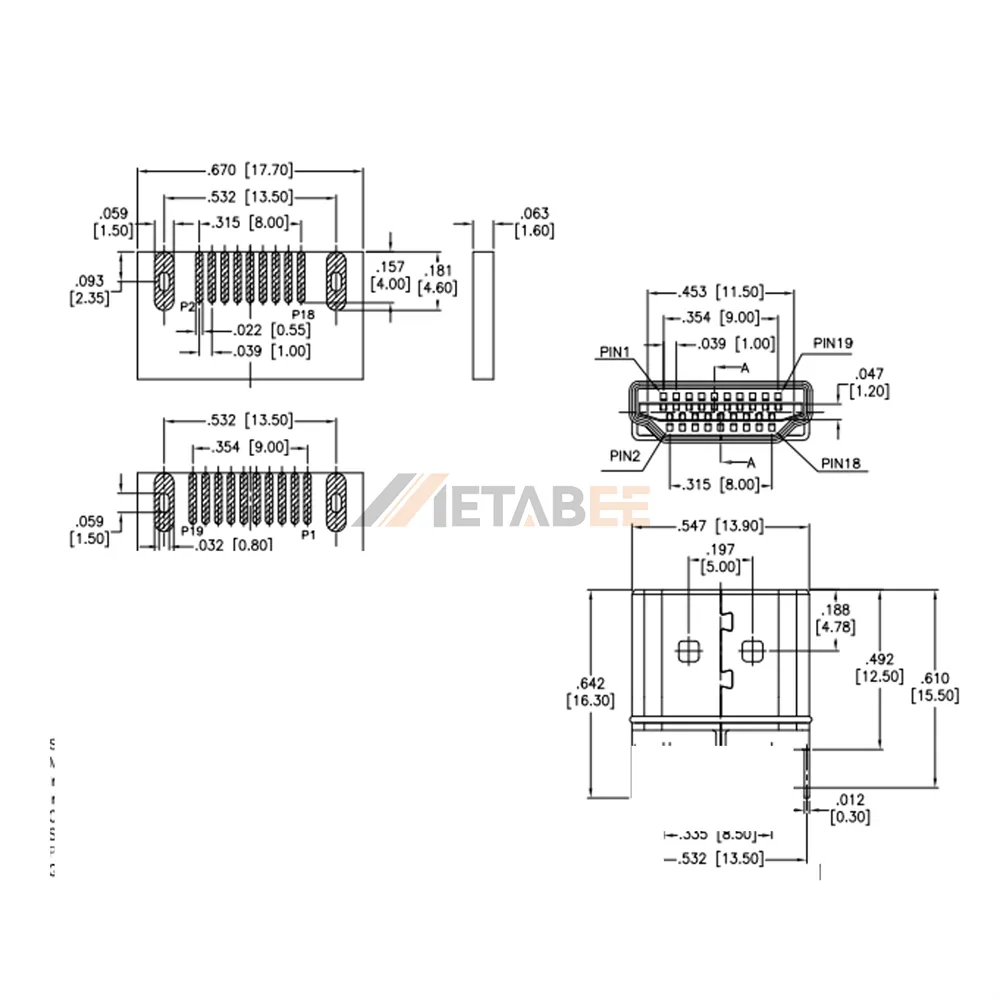

HDMI Type A Male Connector, Solder Type, Straddle Mount
Introduction:
The HDMI type a male connector is a compact 19-pin connector designed for reliable high-speed HDMI signal transmission in electronic and pcb applications. Featuring a single-port, straight configuration, it uses a solder termination and straddle mount design for secure pcb integration and efficient space utilization.
Rated for 0.5a current and 40v voltage, this HDMI connector provides stable electrical performance for demanding applications. Its ul94v-0 flame-retardant rating enhances safety, while the -55°c to +85°c operating temperature range supports reliable operation across a wide range of environmental conditions.
Key Features
- Connector Type: HDMI Type A Male
- Contact Configuration: Single Port, 19 Pin
- Mounting Type: Straddle Mount
- Termination: Solder Type
- Electrical Rating: 0.5A / 40V
- Operating Temperature: -55°C to +85°C; UL94V-0 flame retardant
Main Specifications:
General Information:
| Product No.: | HDMI-PLUG-OM3 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Straight | |
| Mounting Method: | Straddle Mount | |
| Mounting Feature: | N/A | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Male Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
