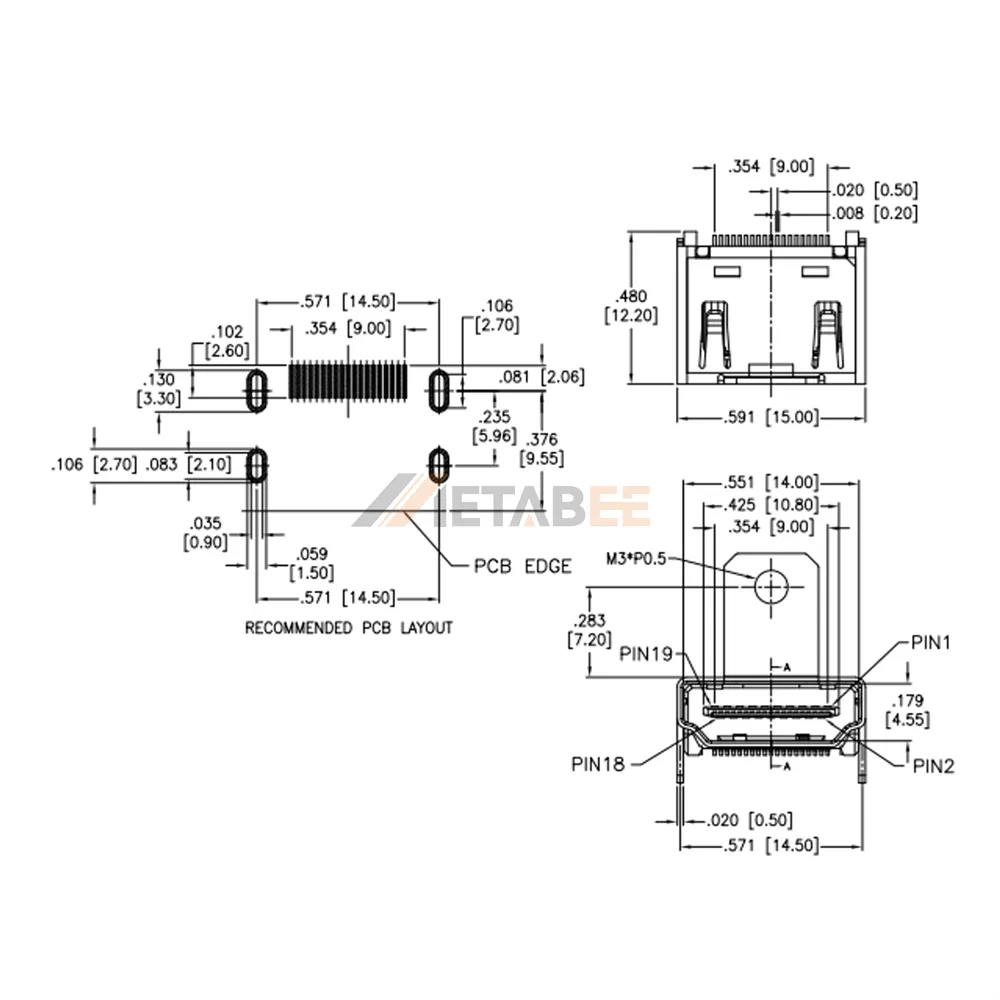

HDMI Type A Female Connector, SMT, Right Angle
Introduction:
Optimize your high-definition multimedia designs with this high-performance 19-pin hdmi type a female receptacle. Engineered for precision surface mount technology (smt), this single-port connector provides a secure, low-profile interface for reliable digital video and audio transmission across modern electronic devices.
Featuring a space-saving right-angle mounting orientation, it streamlines pcb layout integration while maintaining superior mechanical stability. Built to withstand demanding thermal environments, the connector operates safely from -55°c to 85°c with an electrical rating of 0.5 a and 40 v, housed in a ul94v-0 certified flame-retardant casing.
Key Features
- Interface type: Standard 19-pin type a female single-port receptacle.
- Mounting style: Right-angle pcb surface mount for compact integration.
- Current rating: 0.5 a continuous load per pin.
- Voltage rating: 40 v operational capacity.
- Flame resistance: Ul94v-0 rated thermoplastic housing.
- Operating range: Wide temperature tolerance from -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA7-SMT-LMF-SPCC | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
