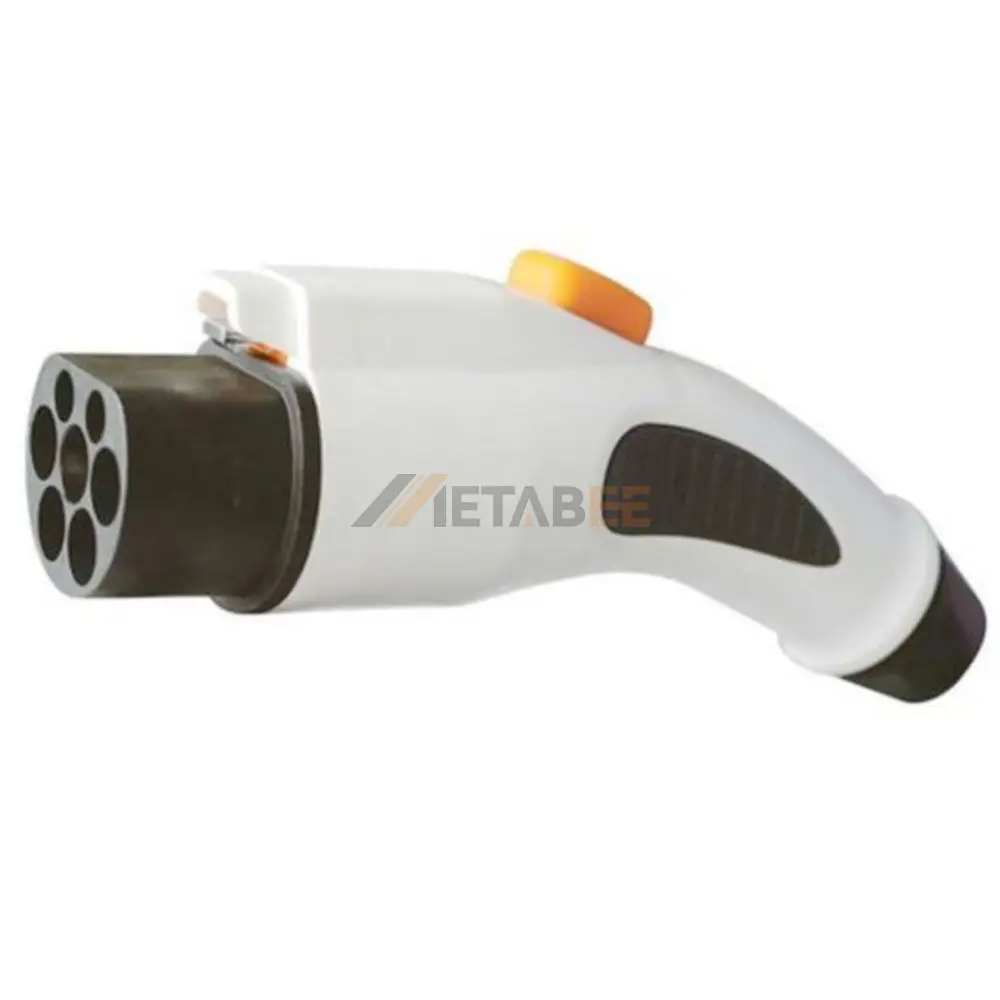

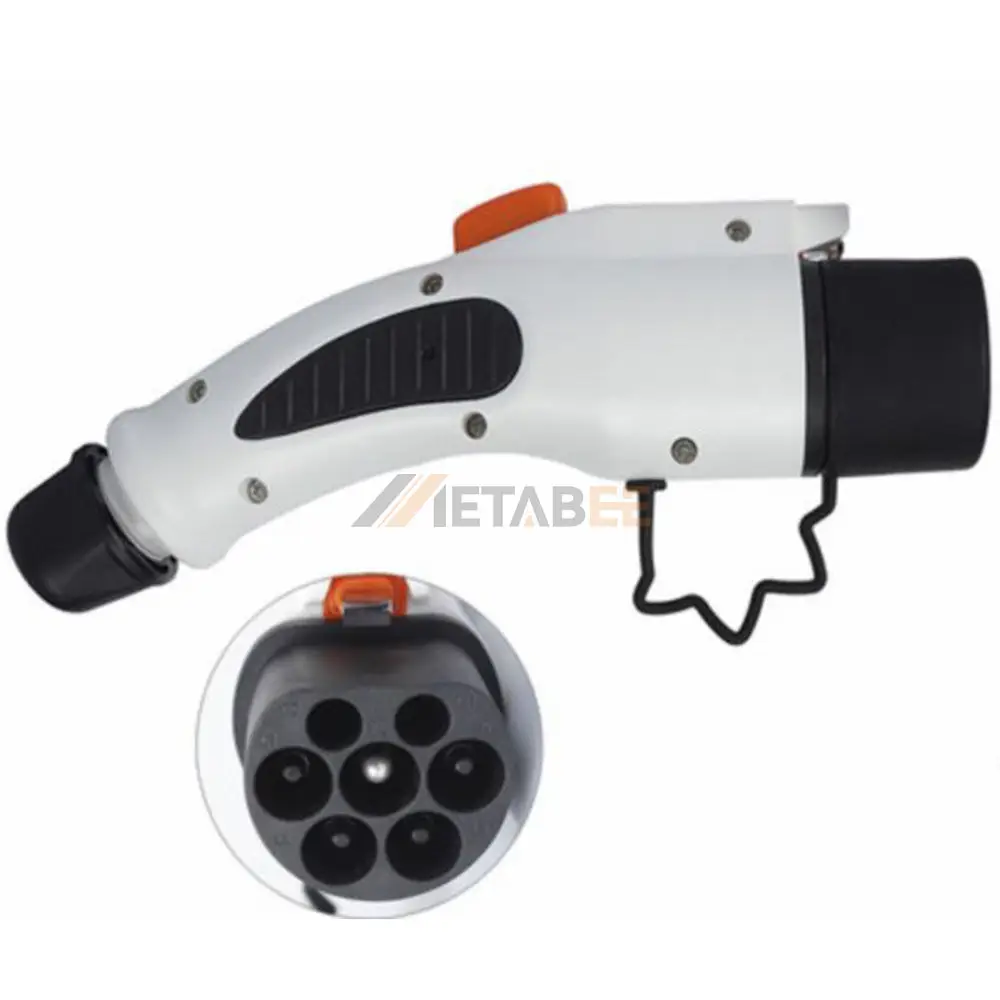

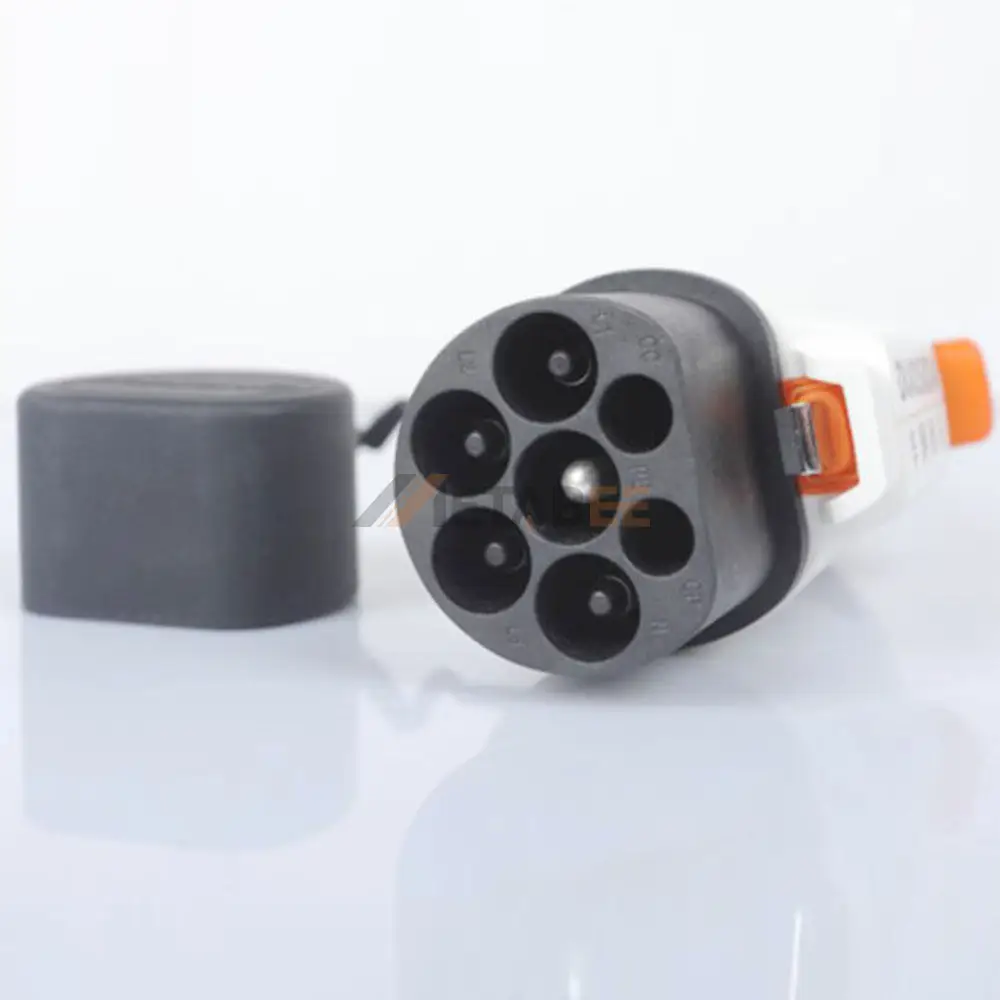

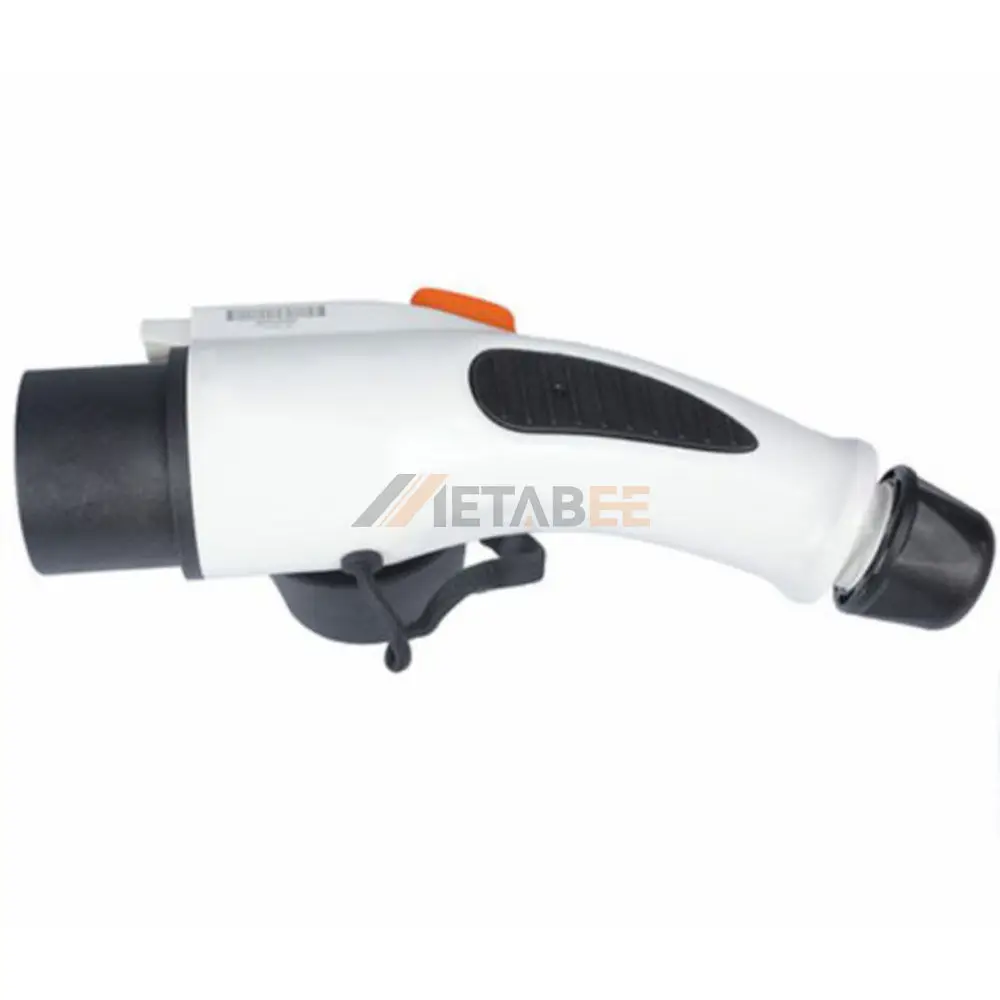

GB/T Standard AC EV Charging Plug, Single Phase, 250V, 10A
Introduction
This GB/T Standard AC EV charger is a reliable and compliant connector designed for single-phase electric vehicle charging in line with the GB/T 20234.2-2015 standard. Engineered for durability and safety, it features a robust thermoplastic housing and high-conductivity silver-plated copper alloy contacts, ensuring efficient power delivery and excellent corrosion resistance. Its IP65 rating guarantees protection against dust and water jets, making it suitable for various outdoor and indoor charging environments.
Rated for 250V and 10A, this plug supports a maximum charging power of 2.5kW, ideal for residential or light commercial AC charging stations. It operates reliably across a wide temperature range from -30°C to 50°C. The connector meets the UL94V-0 flame-retardant standard and is configured for a cable with wire gauge 3X2.5mm² + 2X0.75mm², providing a secure and stable connection for the charging circuit, communication, and safety lines.
Key Features:
- Fully compliant with GB/T 20234.2-2015 standard.
- Single-phase AC, rated at 250V, 10A, and 2.5kW max power.
- IP65-rated for dust and water resistance.
- Flame-retardant thermoplastic housing (UL94V-0).
- Silver-plated copper alloy contacts for optimal conductivity.
- Wide operating temperature range (-30°C to 50°C).
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV10P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X0.75mm² | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 10A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 2.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T Standard AC EV Charging Plug:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
