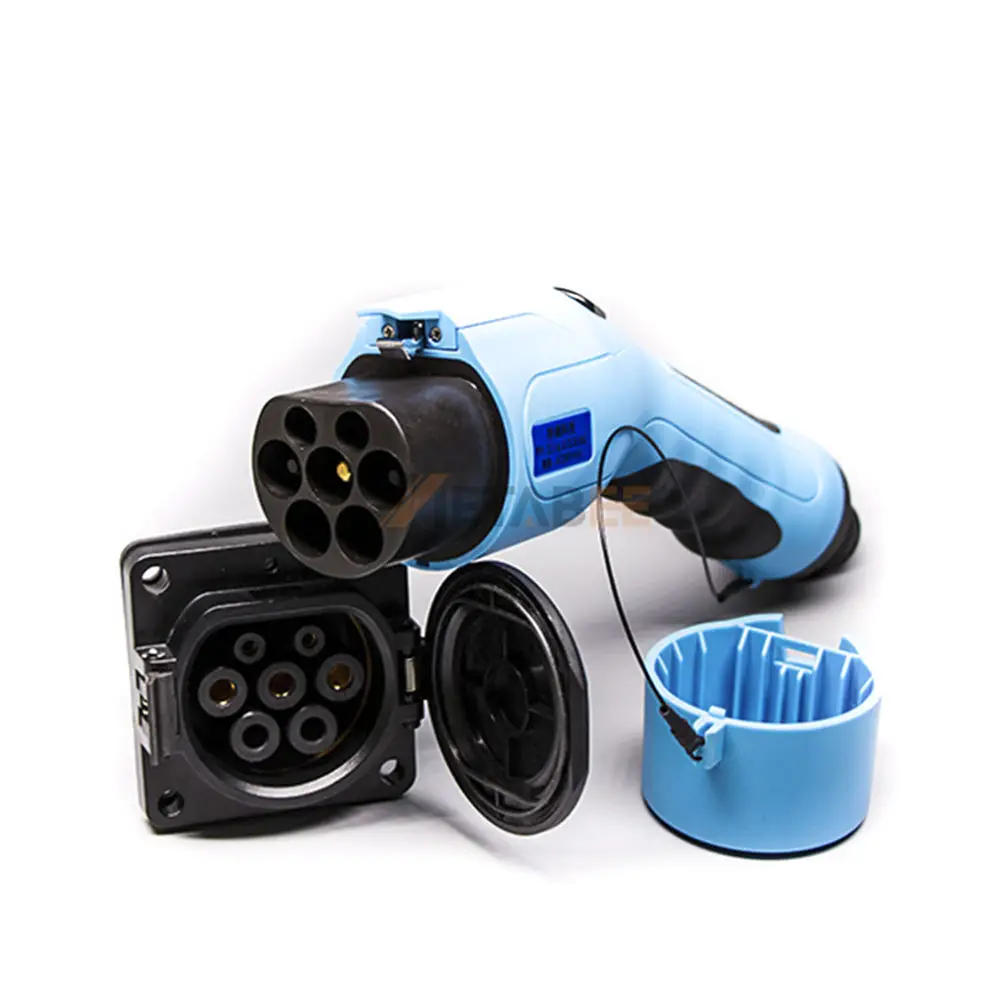

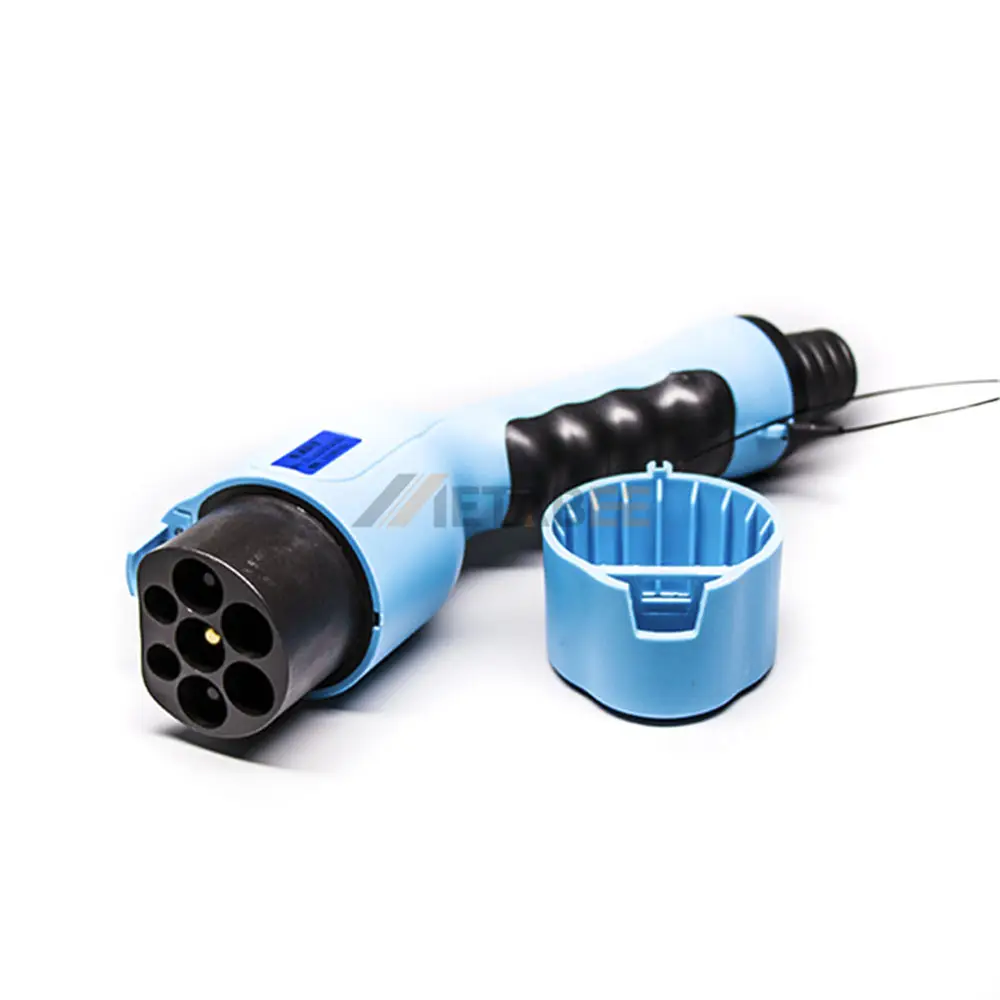

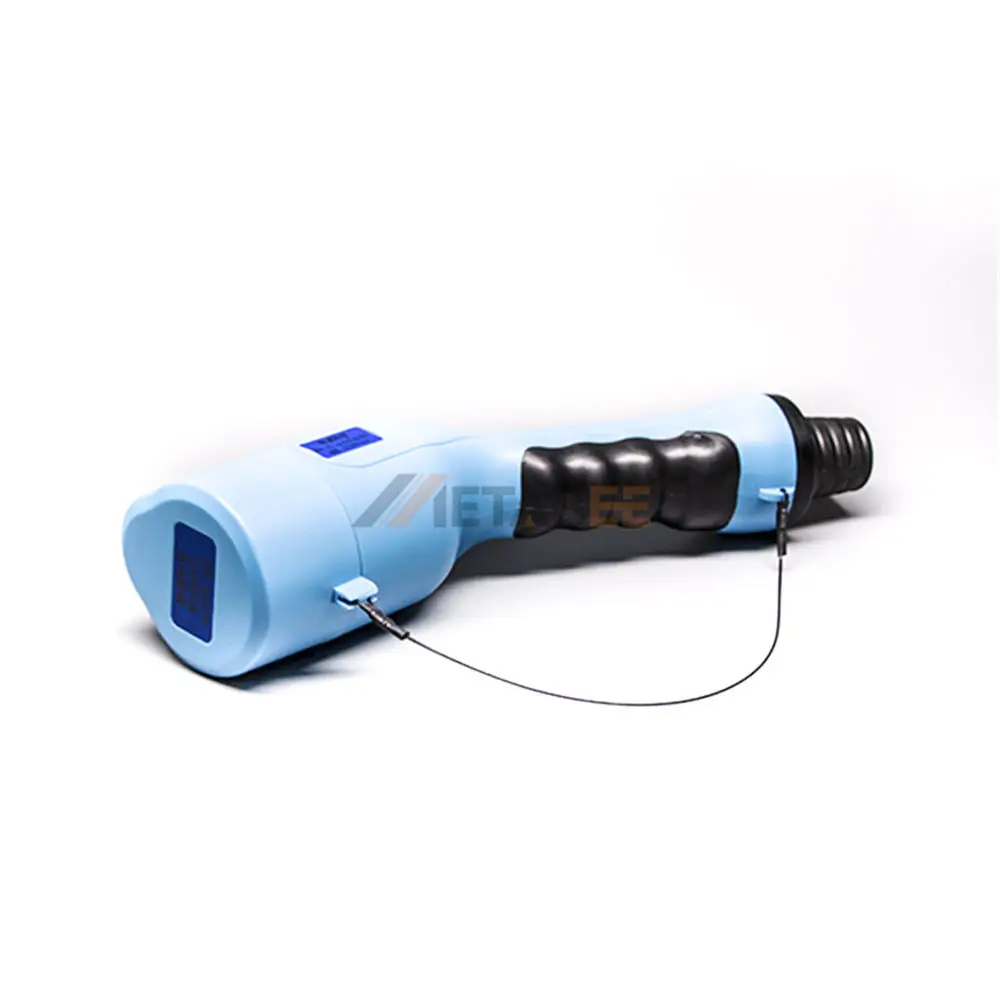

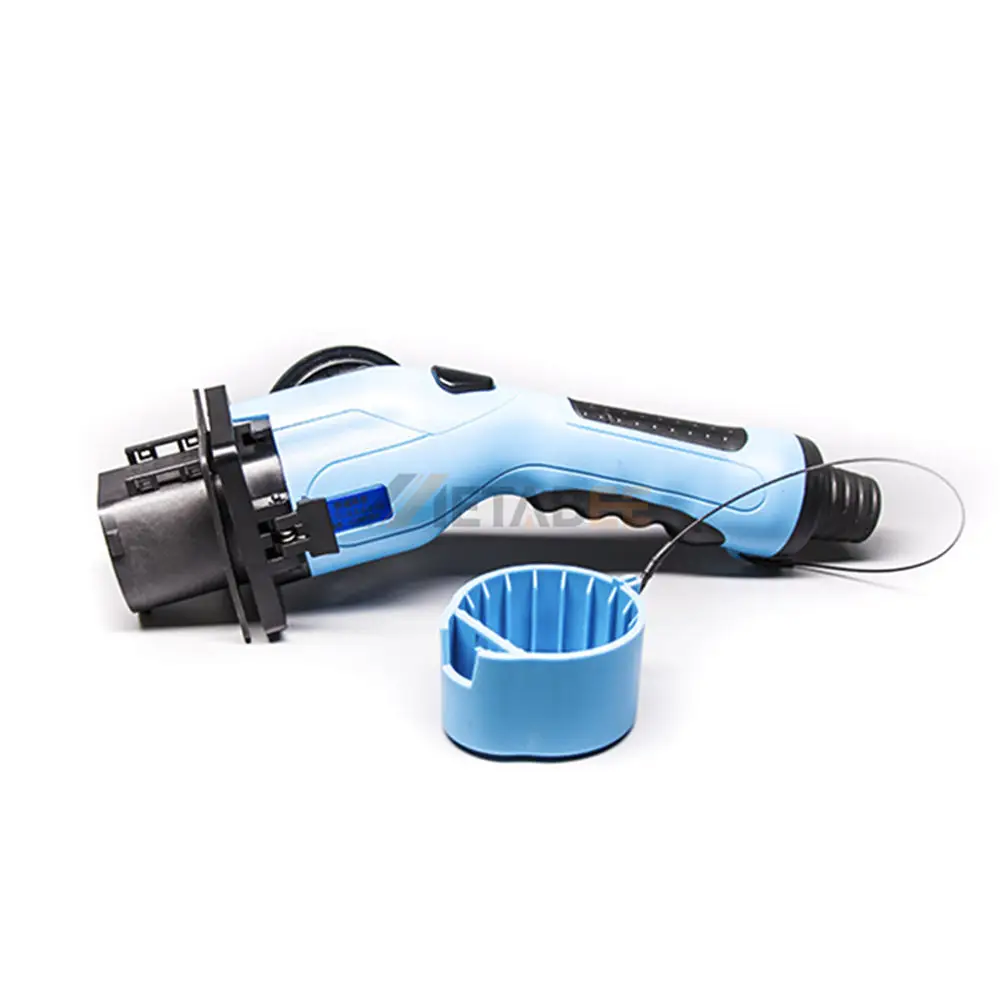

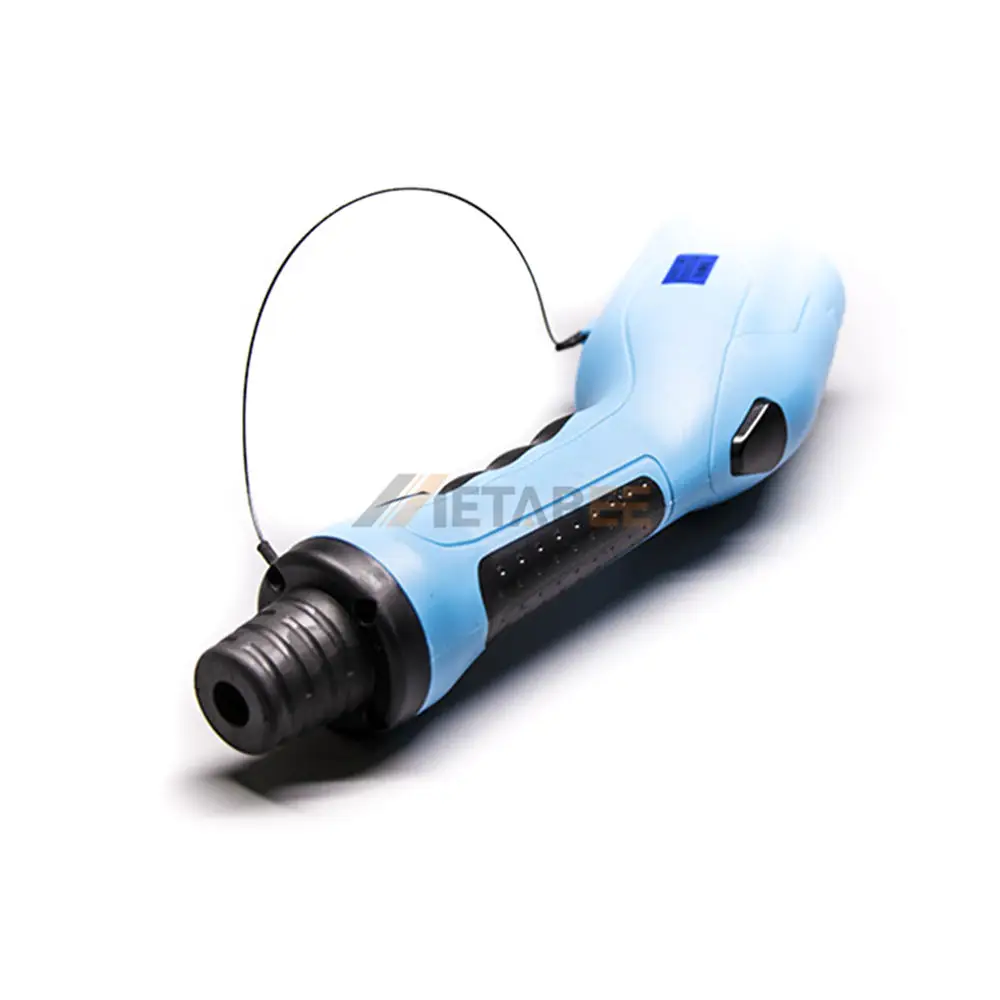

GB/T Standard AC EV Charger Connector, Plug, Single Phase, 440V, 32A
Introduction
This GB/T AC charger is a high-performance single-phase plug, engineered for reliable and safe electric vehicle charging. Fully compliant with the GB/T 20234.2-2015 standard, it is designed for a rated voltage of 440V and a rated current of 32A, delivering a maximum charging power of 14kW. Its robust construction ensures durability and optimal performance in various environments.
Built with a high-grade Thermoplastic housing, the connector achieves an IP65 rating for superior dust and water resistance. The internal Copper Alloy contacts, finished with a Sliver-Plated coating, provide excellent conductivity and corrosion resistance. It maintains a high safety standard with a UL94V-0 flame-retardant rating and operates reliably across a wide temperature range from -30°C to 50°C. The integrated cable follows the specification 3X6mm²+2X0.75mm².
Key Features:
- GB/T 20234.2-2015 Standard Single Phase Plug
- 440V / 32A Rating, Up to 14kW Charging Power
- Robust Thermoplastic Housing with IP65 Protection
- Silver-Plated Copper Alloy Contacts for Superior Conductivity
- UL94V-0 Flame-Retardant & -30°C to 50°C Operating Temperature
- Cable Specification: 3X6mm²+2X0.75mm²
Main Specifications:
General Information:
| Part No.: | NV3Z-YC-EV32P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X6mm²+2X0.75mm² | |
| Color: | Blue | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T Standard AC EV Charger Connector:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
