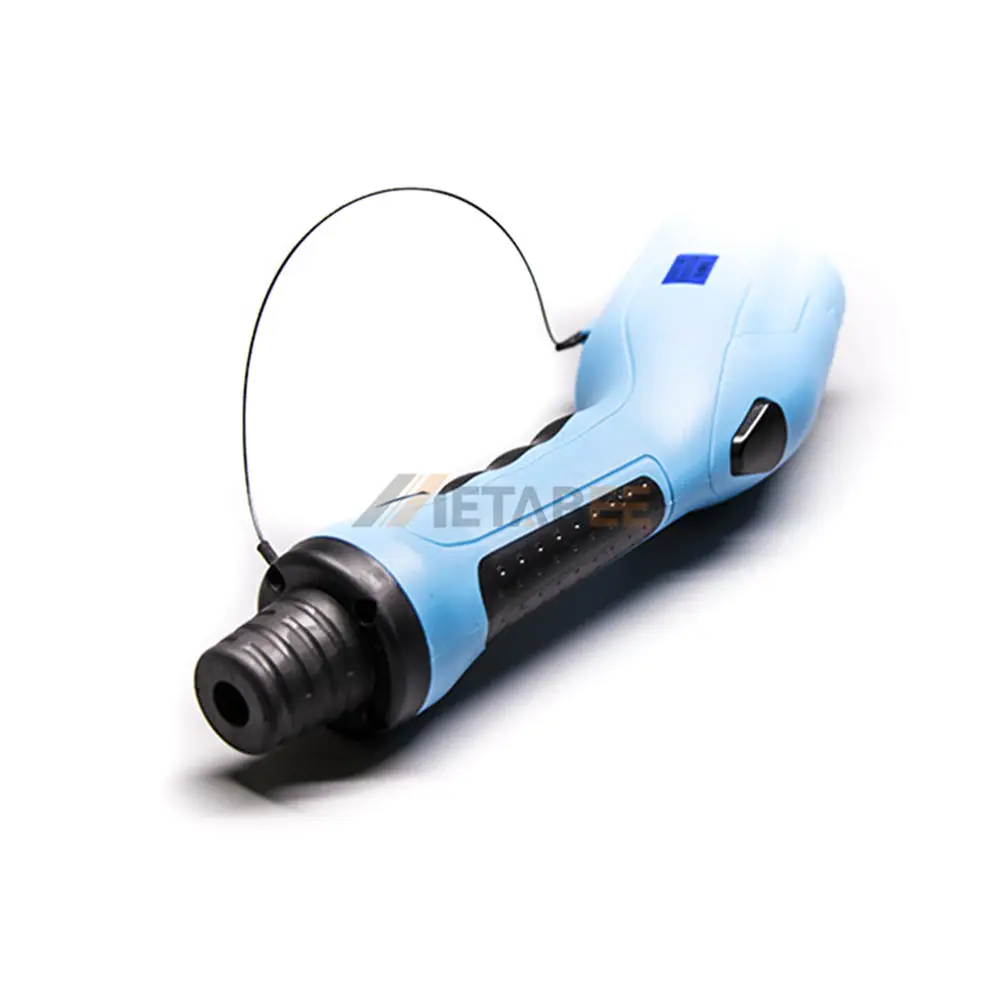

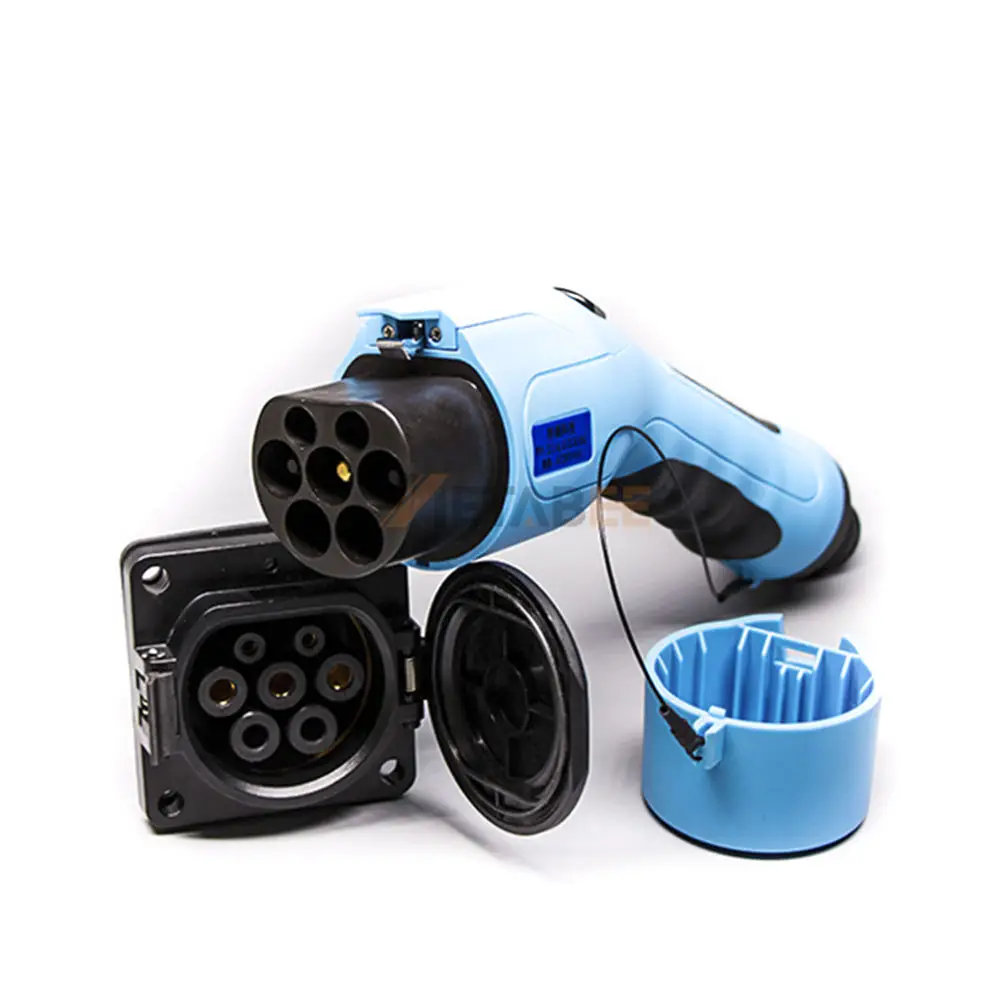

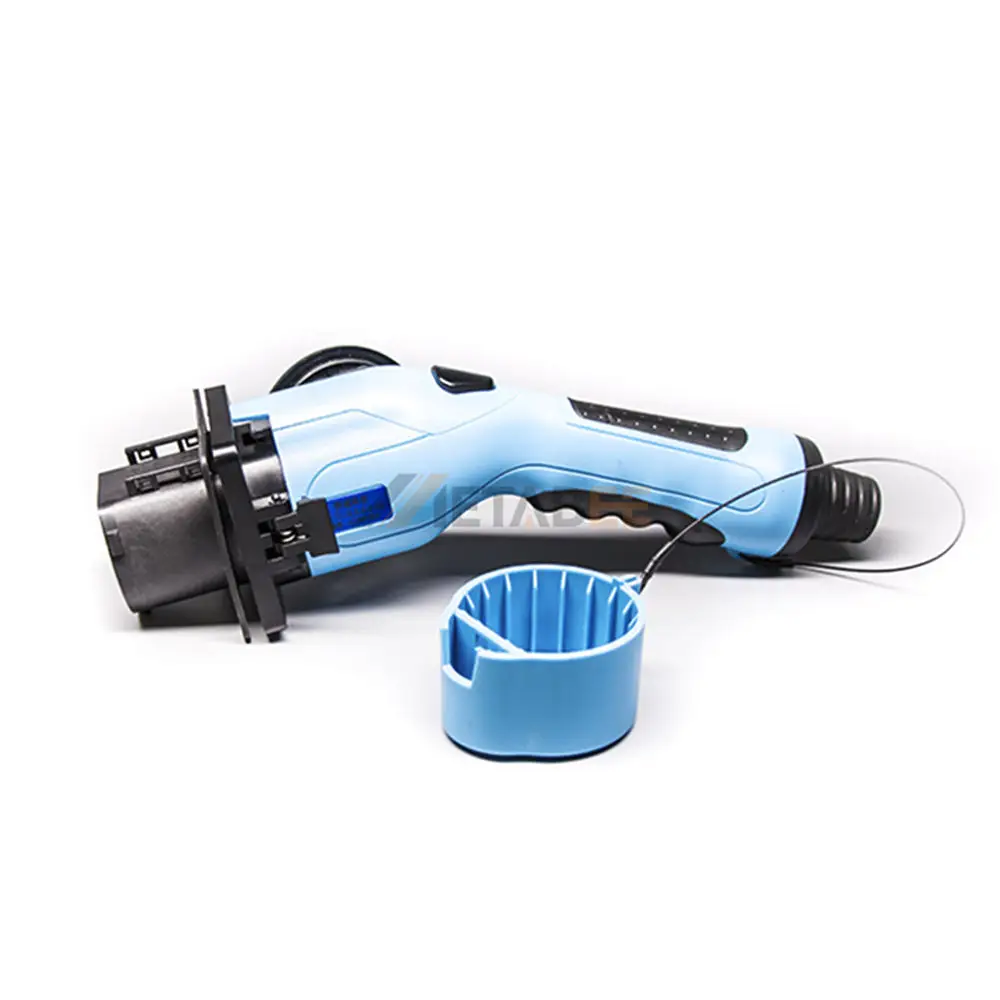

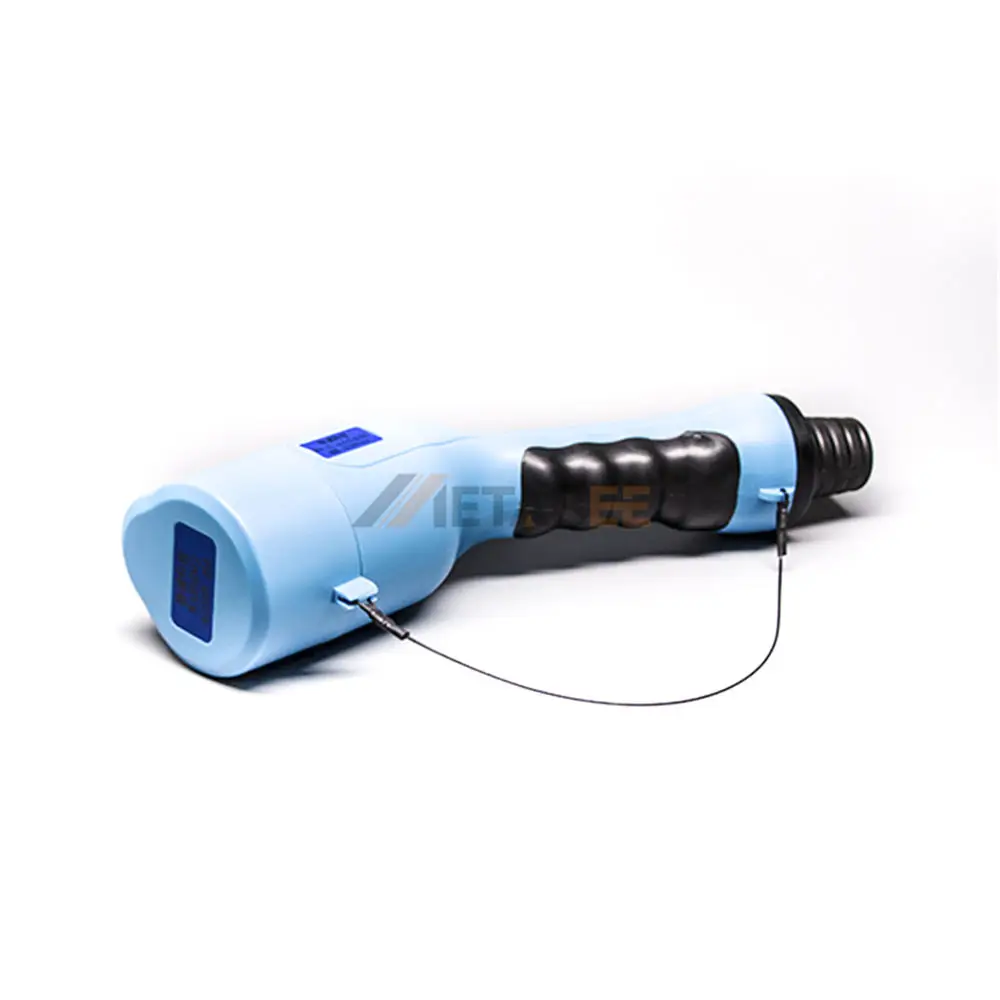

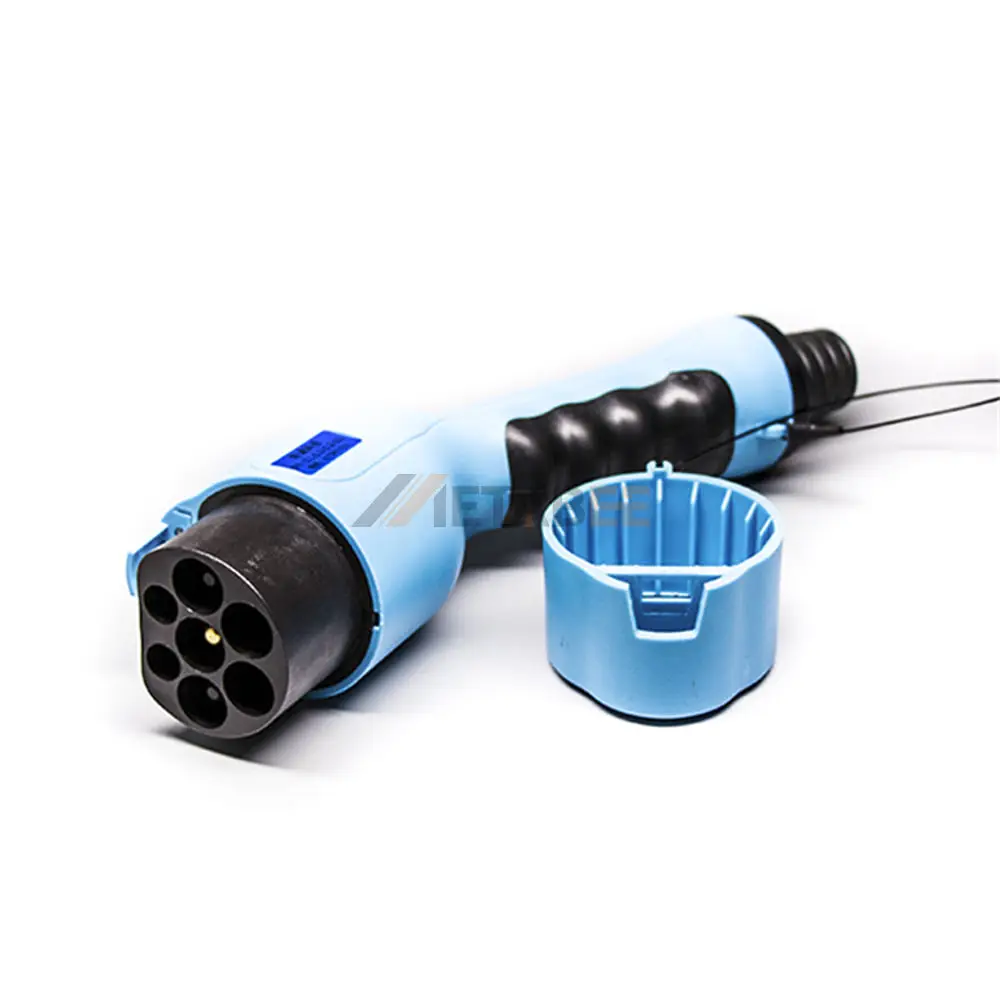

GB/T Standard AC Charger Plug for EV, Single Phase, 250V, 16A
Introduction
The GB/T standard AC charger is engineered to deliver reliable, safe, and efficient AC charging performance for electric vehicles compliant with GB/T 20234.2-2015. Designed for single-phase AC charging applications, this plug provides stable power delivery up to 4 kW, making it an ideal solution for residential, commercial, and light-duty public charging environments.
Constructed with a high-strength thermoplastic housing, the connector offers excellent durability, impact resistance, and long-term environmental protection. The copper alloy contacts with silver-plated surfaces ensure low contact resistance, superior conductivity, and enhanced thermal stability during continuous charging cycles. With an IP65 ingress protection rating and UL94V-0 flame-retardant performance, the plug withstands harsh outdoor conditions, moisture, dust, and high-temperature environments. The connector supports a wire gauge of 3×2.5 mm² + 2×0.75 mm², and operates reliably within a temperature range of –30°C to 50°C.
This GB/T AC charging plug is designed with robust mechanical strength, precise electrical performance, and high safety compliance, making it a dependable choice for EV charging infrastructure manufacturers and system integrators.
Key Features:
- Compliant with GB/T 20234.2-2015 for standardized single-phase AC EV charging.
- 250V, 16A rating supporting up to 4 kW charging power.
- Durable thermoplastic shell with excellent impact and environmental resistance.
- Silver-plated copper alloy contacts for superior conductivity and low heat generation.
- IP65 protection and UL94V-0 flame-retardant rating for enhanced outdoor safety.
- Wide operating temperature range (–30°C to 50°C) with supported wire gauge 3×2.5 mm² + 2×0.75 mm².
Main Specifications:
General Information:
| Part No.: | NV3Z-YC-EV16P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X 0.75mm² | |
| Color: | Blue | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T Standard AC Charger Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
