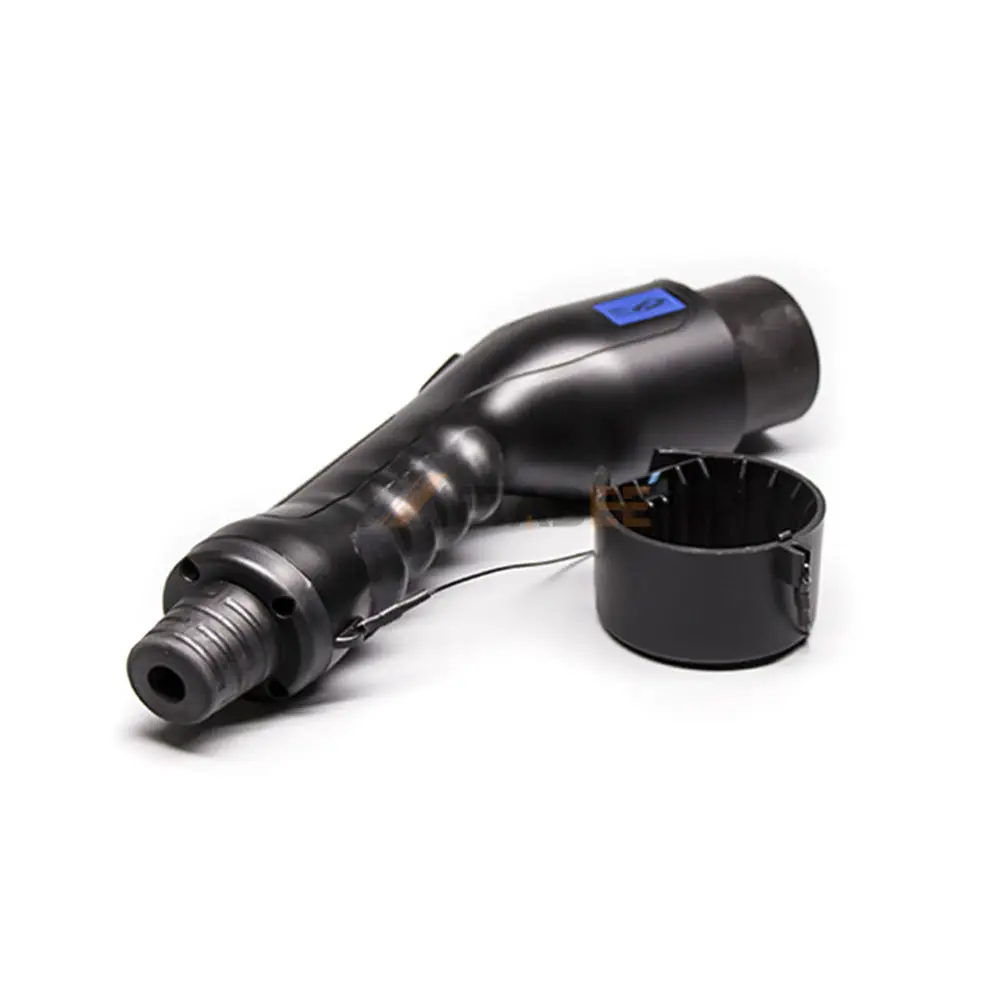

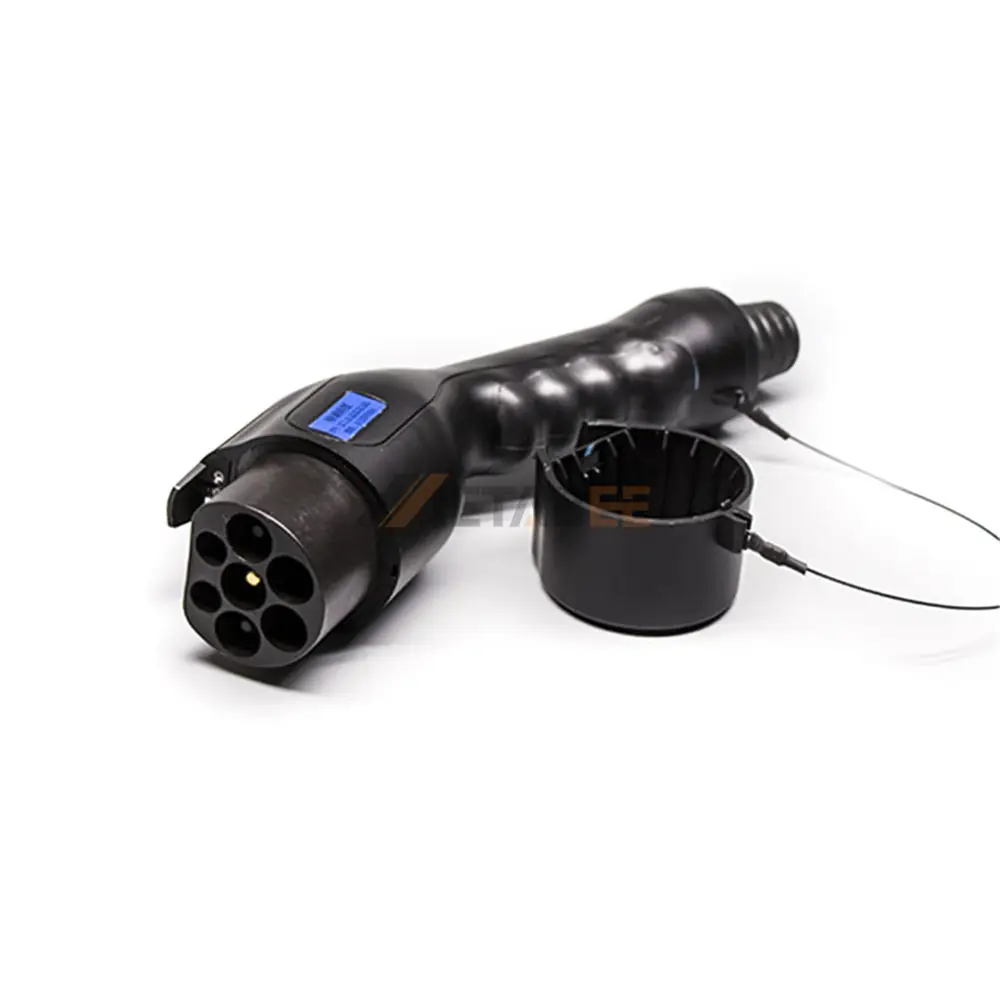

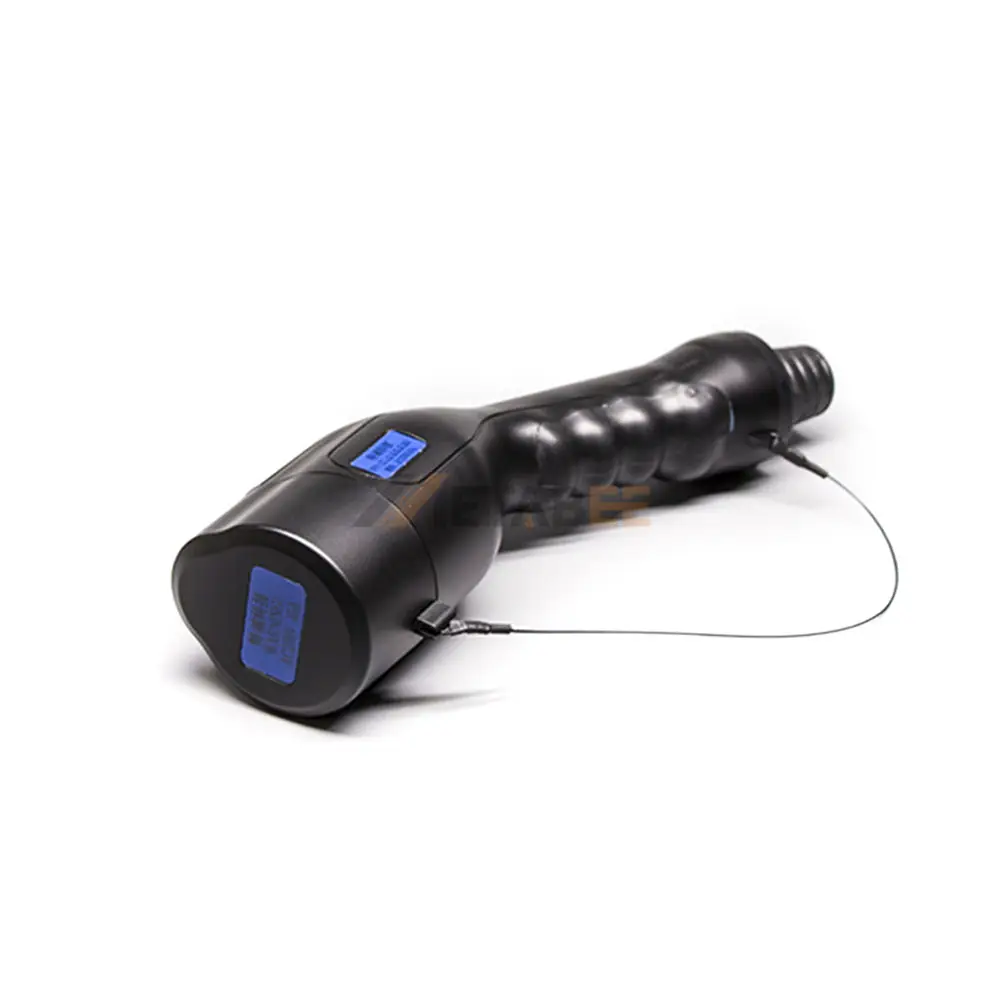

GB/T AC Plug Electric Vehicle Charger, Single Phase, 440V, 32A
Introduction
The GB/T AC charger is engineered to deliver reliable and efficient AC charging performance for electric vehicles compliant with the GB/T 20234.2-2015 standard. Designed as a single-phase plug connector, it supports a maximum charging power of 14 kW, making it ideal for residential, commercial, and light-duty fleet applications. Its thermoplastic housing ensures superior mechanical durability, while the silver-plated copper alloy contacts provide excellent conductivity, reduced heat generation, and long-term stability.
Built for demanding outdoor and on-vehicle environments, the connector features an IP65 protection rating to safeguard against water and dust intrusion. The flame-retardant UL94V-0 rating enhances safety under high-temperature conditions, and the operating temperature range of -30°C to 50°C ensures dependable performance in extreme climates. The cable configuration of 3×6 mm² + 2×0.75 mm² supports high-current transmission with minimal loss, meeting the requirements of 440V/32A AC charging scenarios.
Key Features:
- Compliant with GB/T 20234.2-2015 AC charging standard.
- 14 kW single-phase AC charging output for fast, stable performance.
- Durable thermoplastic housing with silver-plated copper alloy contacts.
- IP65 protection for outdoor and harsh-environment use.
- High safety with UL94V-0 flame-retardant rating.
- Wide operating temperature from -30°C to 50°C with robust cable design.
Main Specifications:
General Information:
| Part No.: | NV3Z-YC-EV32P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X6mm²+2X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Plug Electric Vehicle Charger:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
