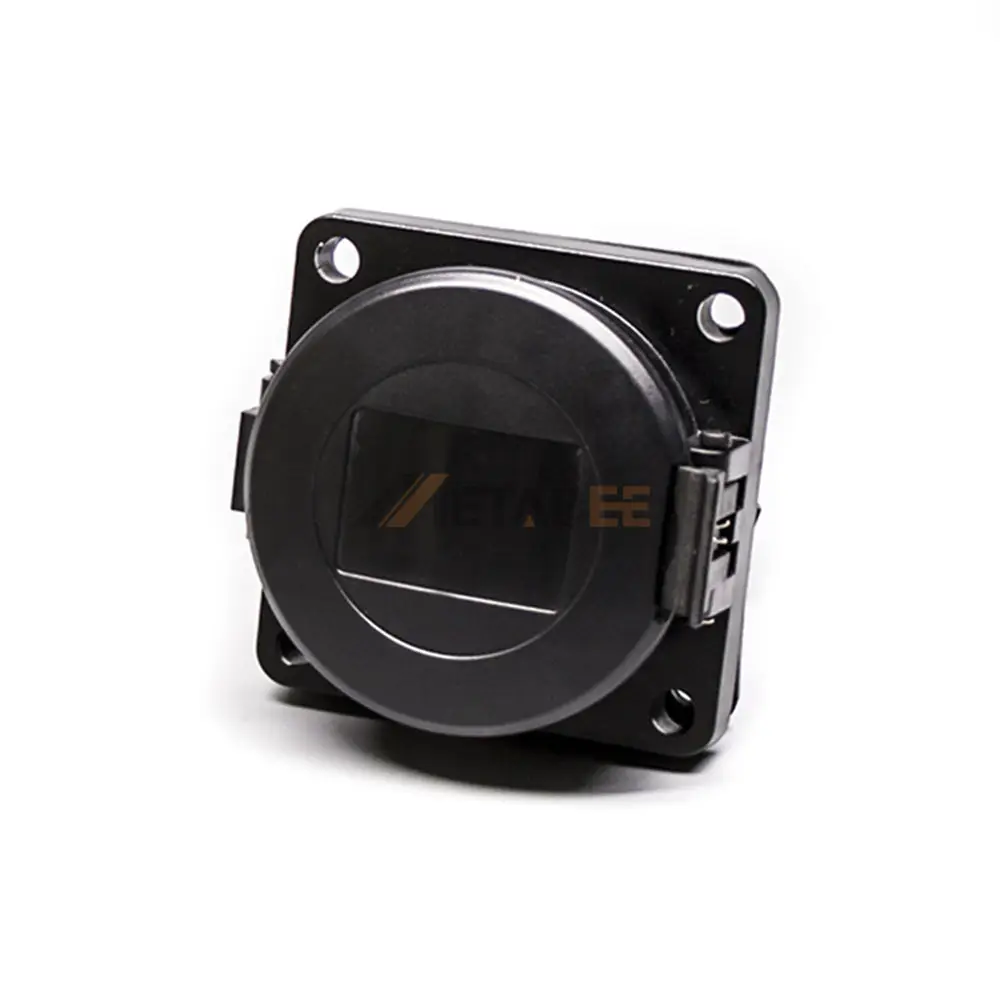

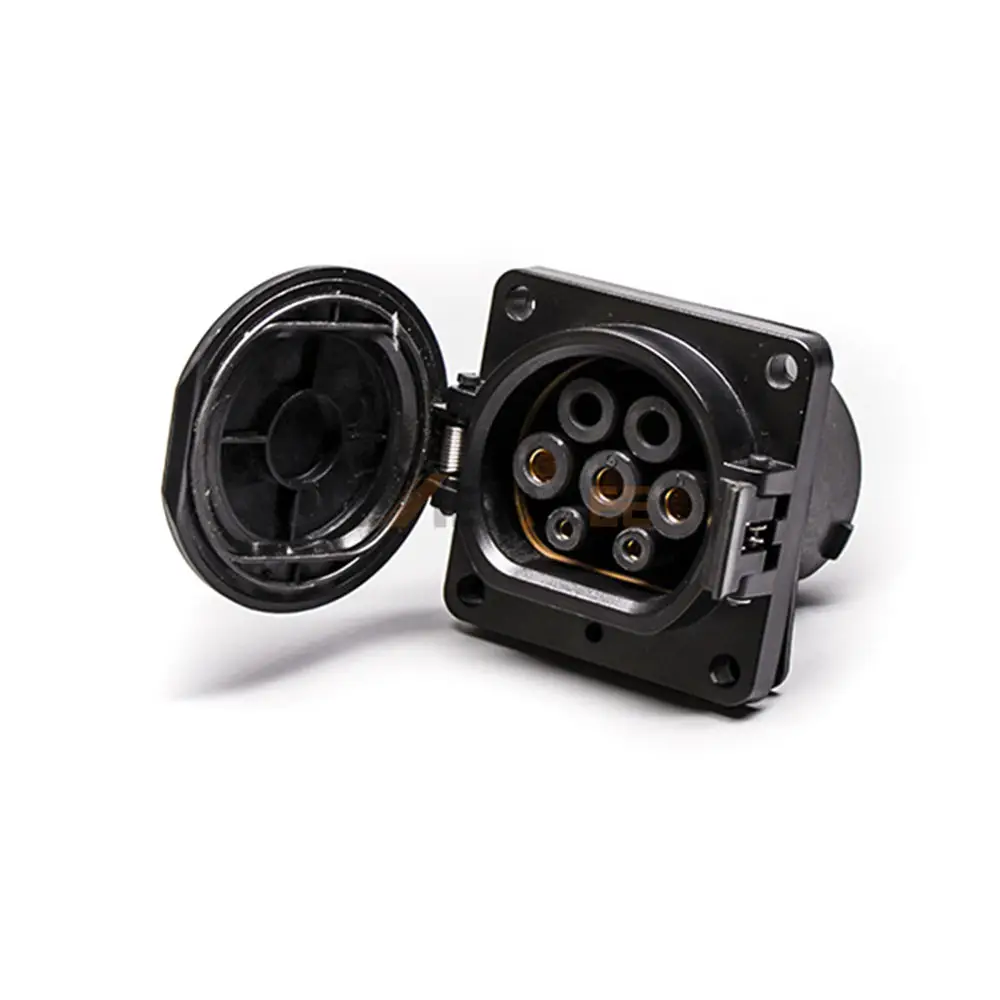

GB/T AC Level 2 EV Charging Connector, Socket, Single Phase, 440V, 32A
Introduction
This GB/T AC EV charging connector is engineered for reliable single-phase AC charging under the GB/T 20234.2-2015 standard. Designed as a socket-type interface, it supports a rated voltage of 440V and 32A output, delivering up to 14kW charging power for residential, commercial, or light-duty EV infrastructure. Its thermoplastic housing provides excellent durability, while silver-plated copper-alloy contacts ensure low resistance, stable conductivity, and extended service life.
Built for demanding environments, the connector features an IP65 protection rating to guard against dust and water intrusion. The UL94V-0 flame-retardant structure enhances safety, and the robust wire gauge design (3 × 6mm² + 2 × 0.75mm²) ensures optimal current handling. With an operating temperature range from –30°C to 50°C, it maintains consistent performance in both cold and hot climates, making it suitable for a wide range of EV charging scenarios.
Key Features:
- GB/T 20234.2-2015 compliant single-phase AC socket.
- Rated 440V, 32A with up to 14kW charging output.
- Thermoplastic housing with UL94V-0 flame-retardant rating.
- Silver-plated copper-alloy contacts for high conductivity.
- IP65 ingress protection for outdoor reliability.
- Wide –30°C to 50°C operating temperature and heavy-duty wiring.
Main Specifications:
General Information:
| Part No.: | NV3Z-YC-GEL-EV32S | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3 X 6mm²+ 2 X 0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Level 2 EV Charging Connector:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
