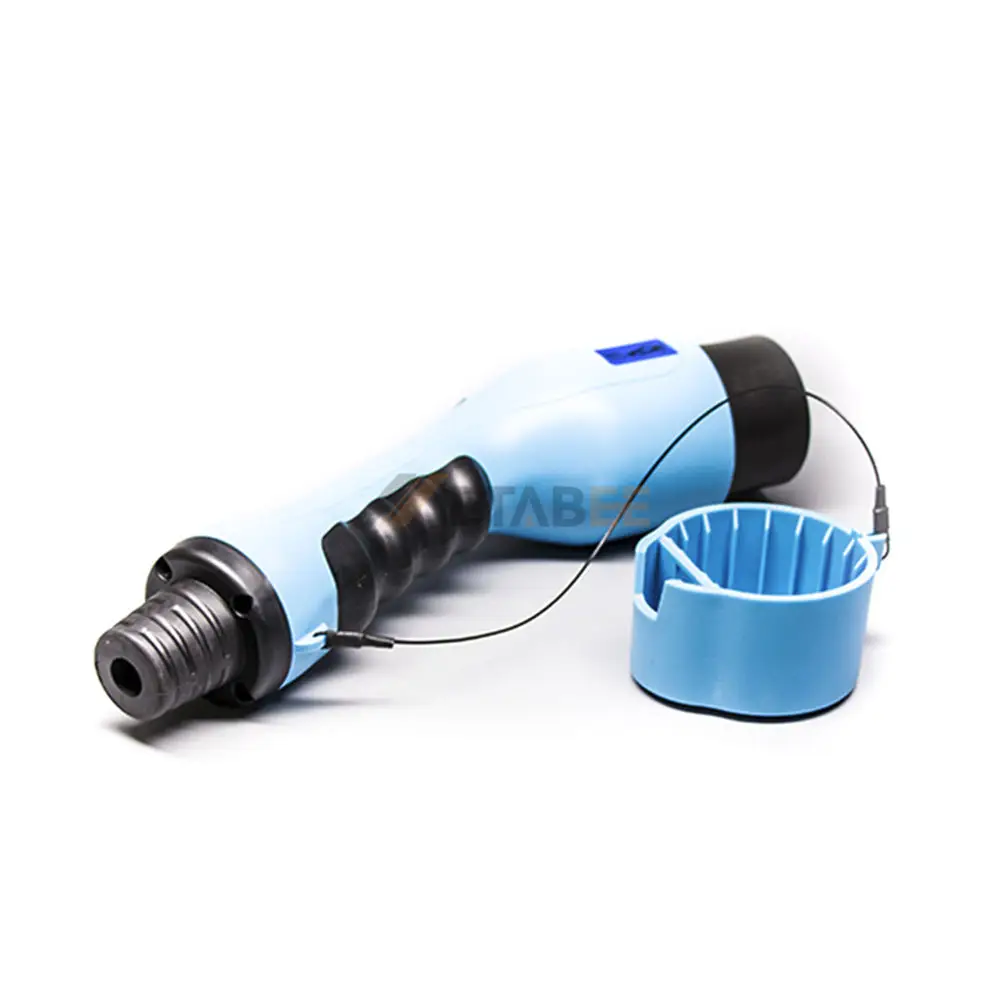

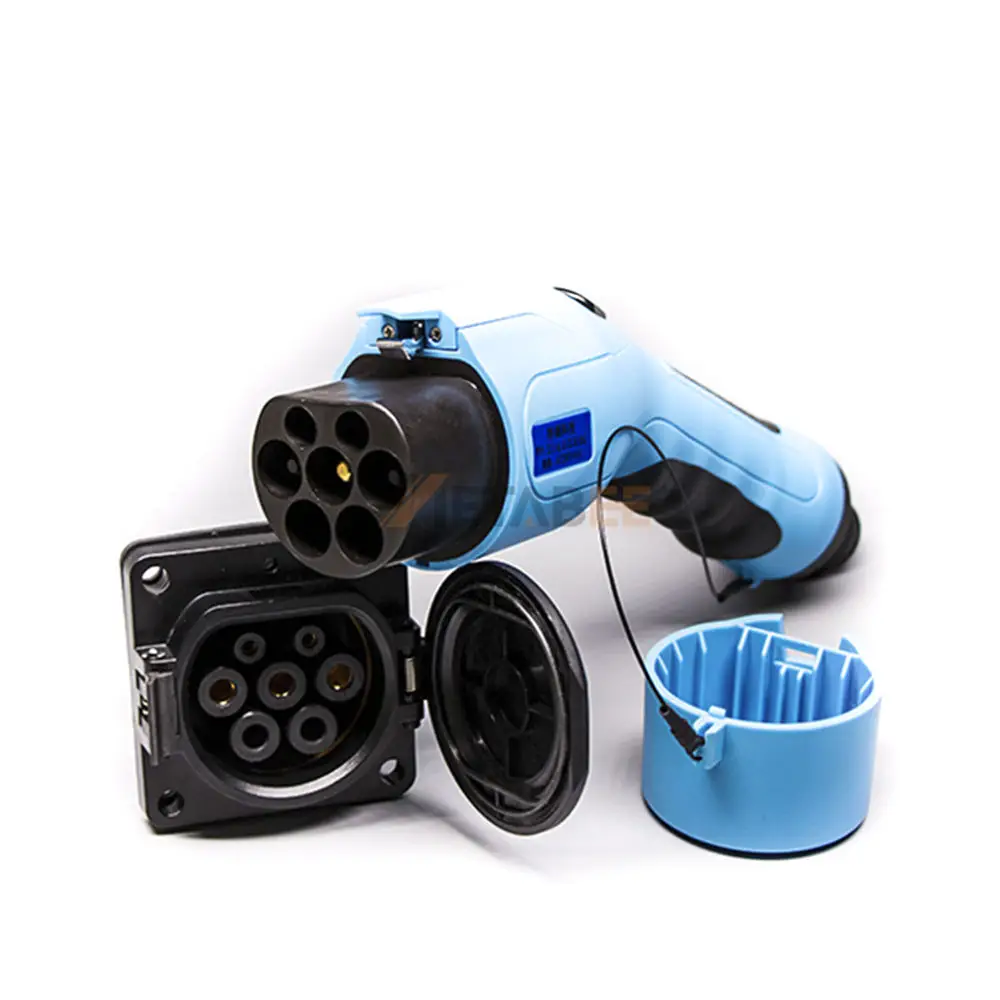

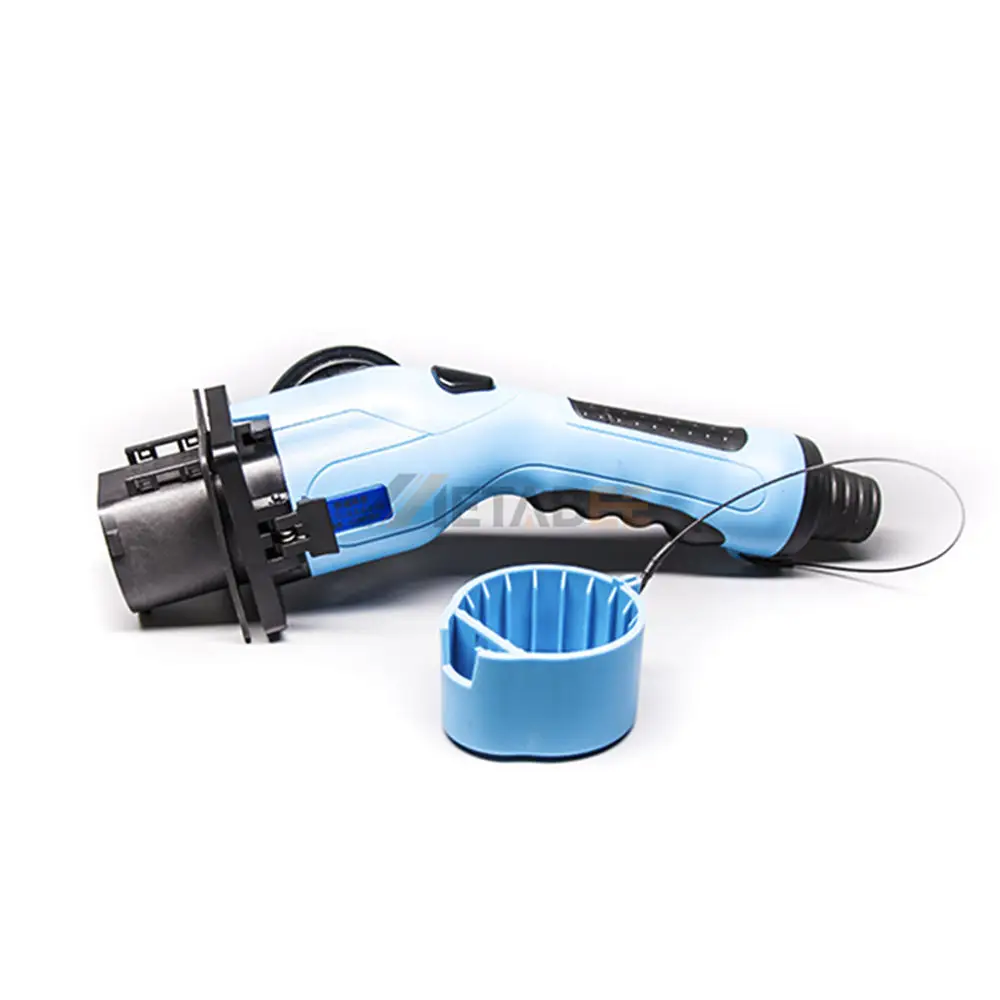

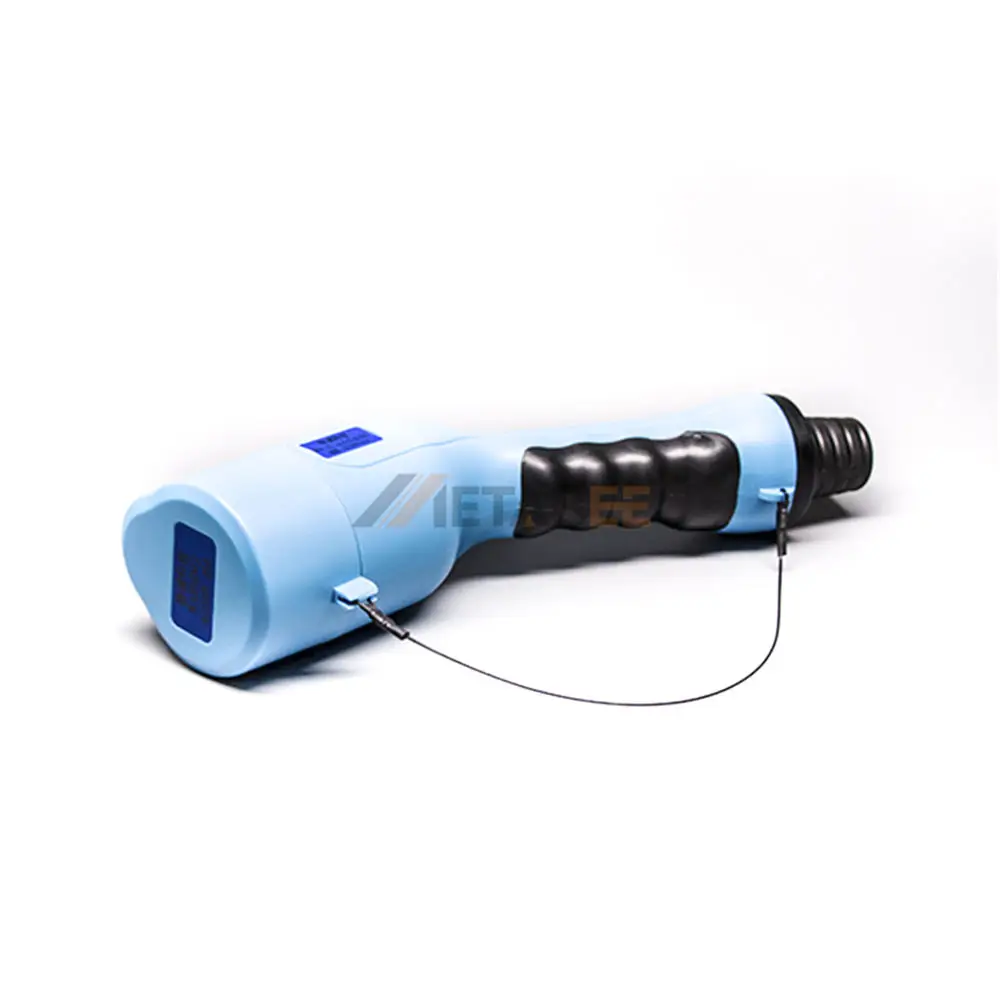

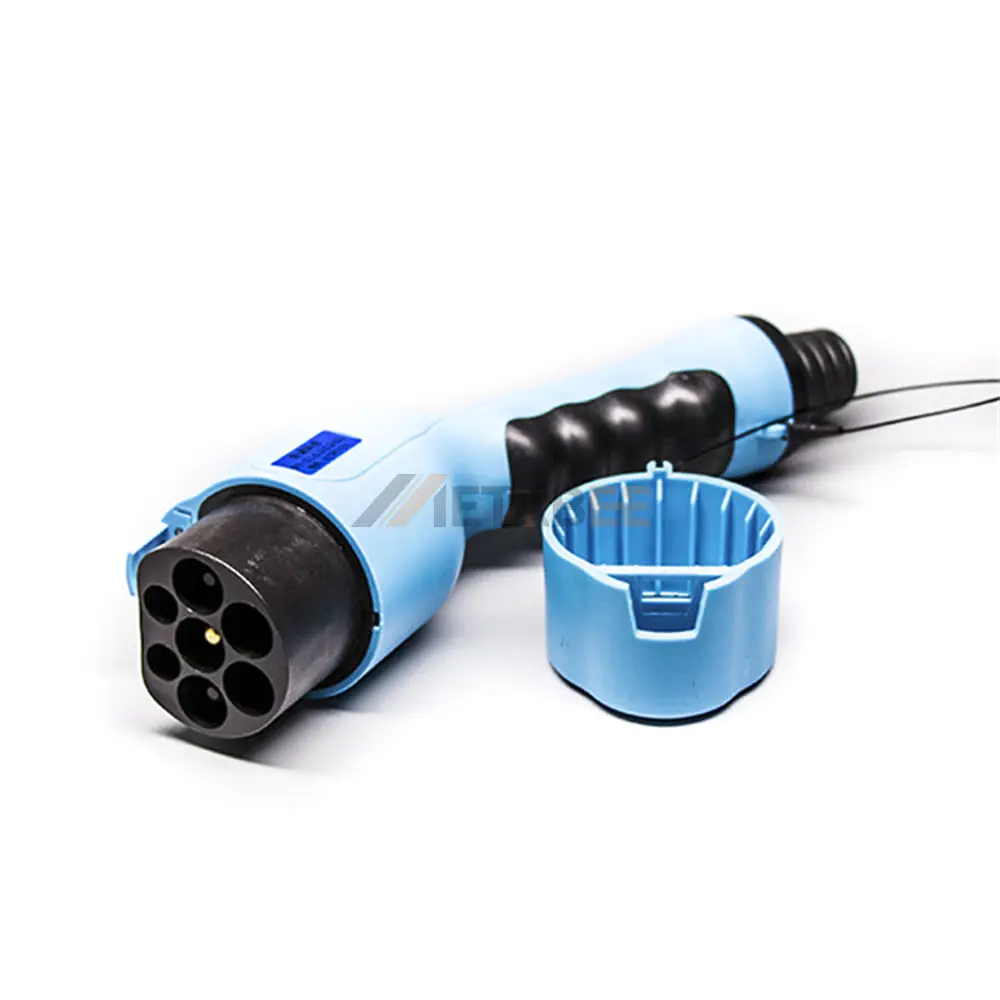

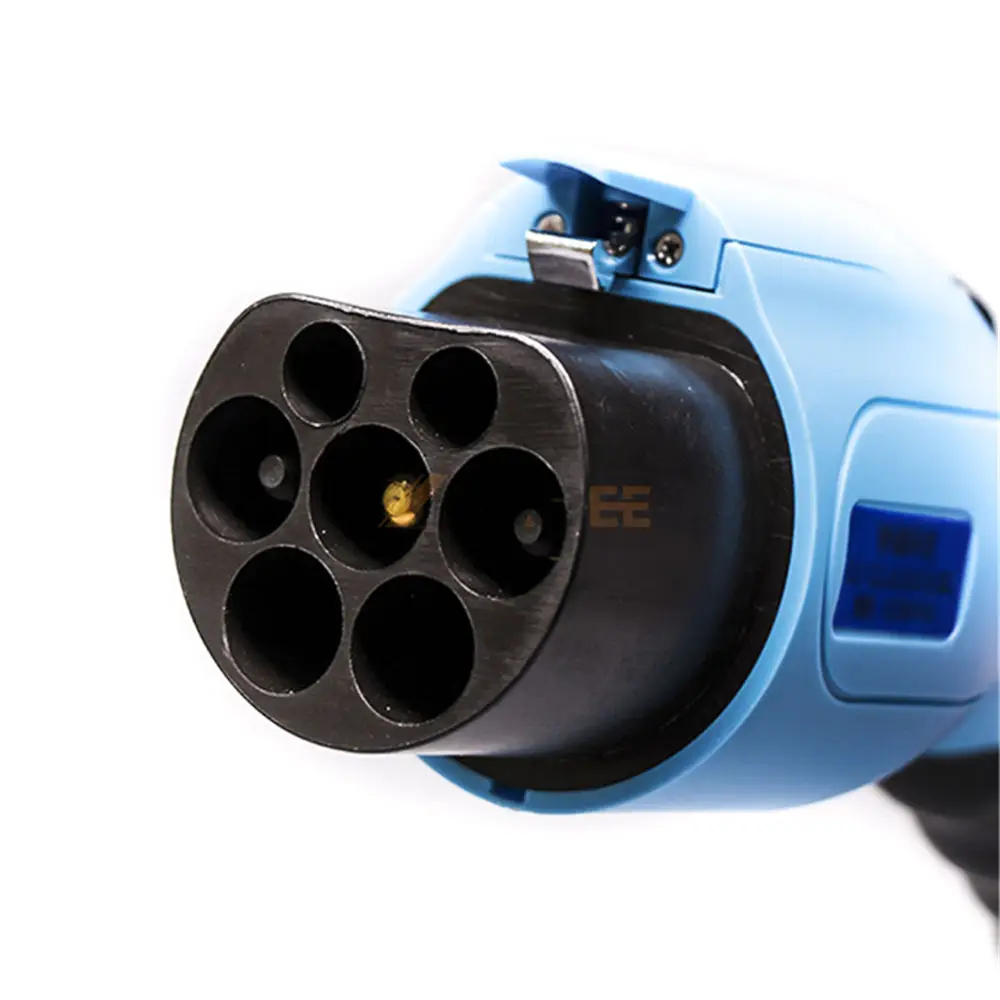

GB/T AC EV Charging Plug, Single Phase, 250V, 10A
Introduction
The GB/T EV charging connector is engineered to meet the requirements of GB/T 20234.2-2015, providing a reliable AC charging interface for electric vehicles across residential, workplace, and light-commercial environments. Built with a high-strength thermoplastic housing and precision-machined copper alloy contacts, this connector delivers stable electrical performance and long-term durability. Its silver-plated contact surfaces ensure low contact resistance, reduced heat generation, and improved charging efficiency.
Designed for single-phase AC charging, the connector supports a rated voltage of 250V, a rated current of 10A, and a maximum charging power of 2.5kW, making it suitable for standard home charging setups. With an IP65 protection rating, UL94V-0 flame-retardant performance, and a wide operating temperature range from -30°C to +50°C, the plug maintains dependable functionality under challenging outdoor conditions. The cable specification of 3×2.5mm² + 2×0.75mm² ensures robust current-carrying capacity and stable signal transmission for safe EV charging.
Engineered for ease of use and long service life, this GB/T AC plug provides secure mating, excellent environmental resistance, and consistent charging performance. It is an ideal choice for EV manufacturers, charging cable providers, and aftermarket charging solutions requiring compliance with the GB/T AC interface standard.
Key Features:
- Compliant with GB/T 20234.2-2015 for AC EV charging.
- Thermoplastic housing with IP65 ingress protection for outdoor use.
- Copper alloy, silver-plated contacts for low resistance and high conductivity.
- Supports 250V, 10A, delivering up to 2.5kW charging power.
- High safety levels with UL94V-0 flame-retardant materials.
- Wide operating temperature range -30°C to +50°C with durable cable design.
Main Specifications:
General Information:
| Part No.: | NV3Z-RHT-EV10P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X 0.75mm² | |
| Color: | Blue | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 2.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charging Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
