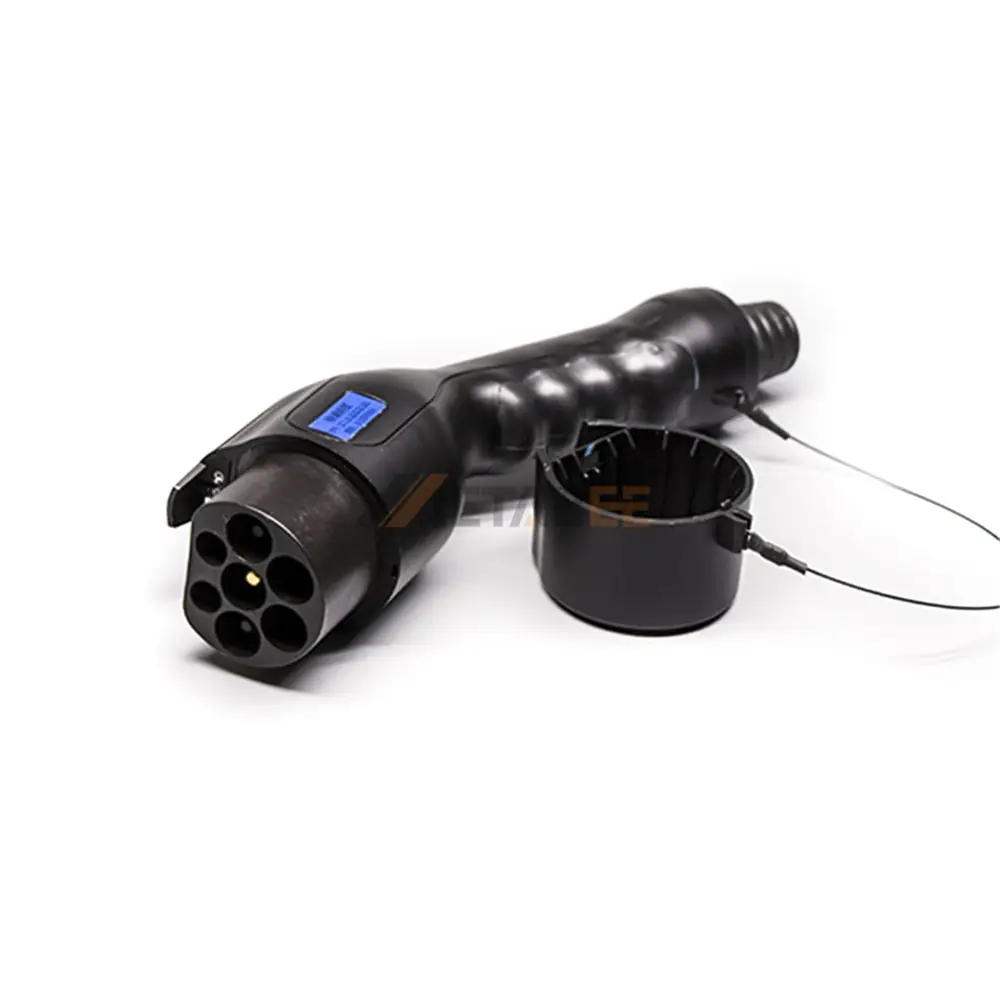

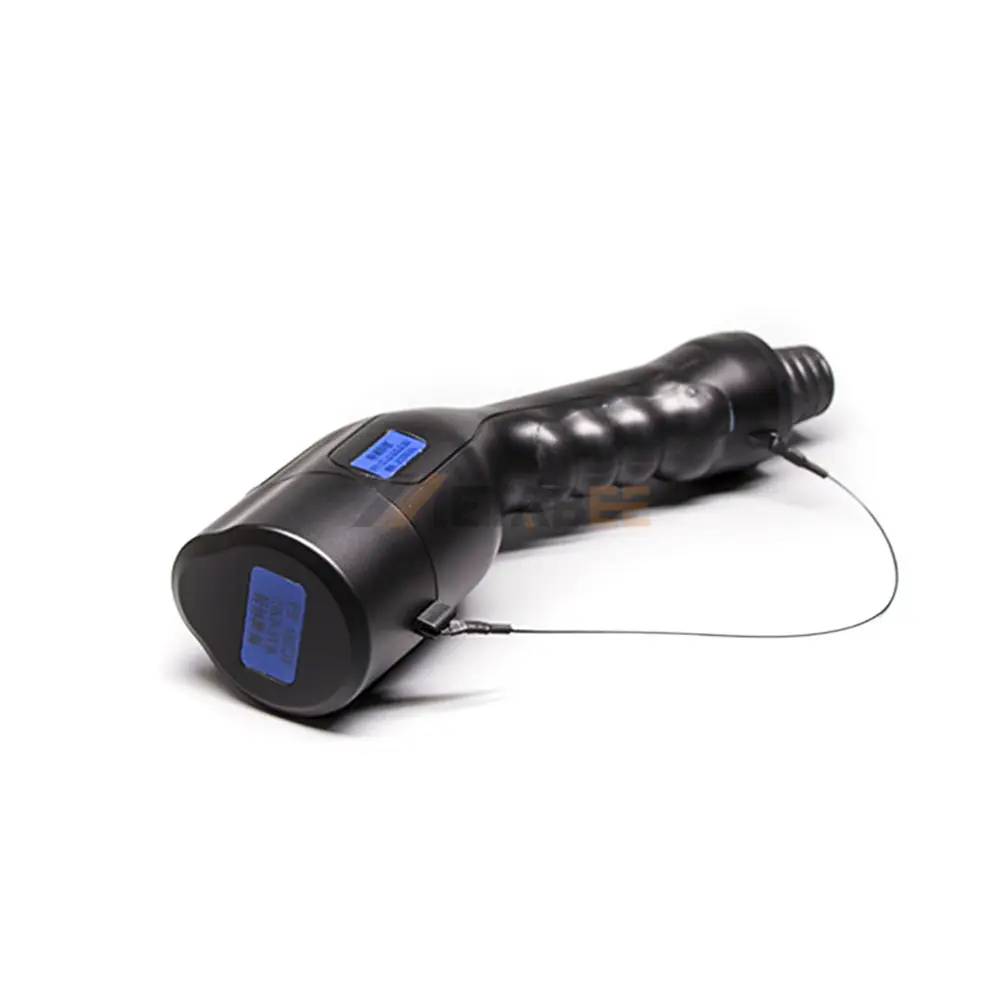

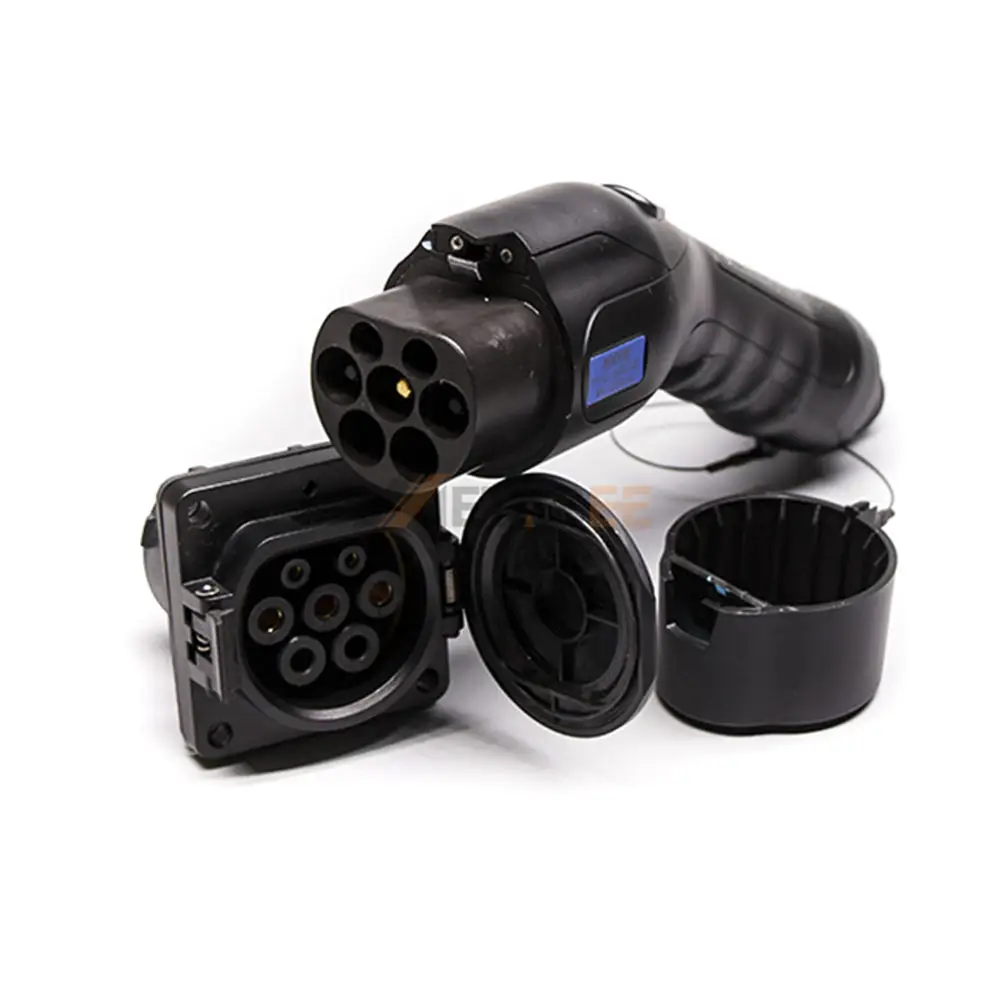

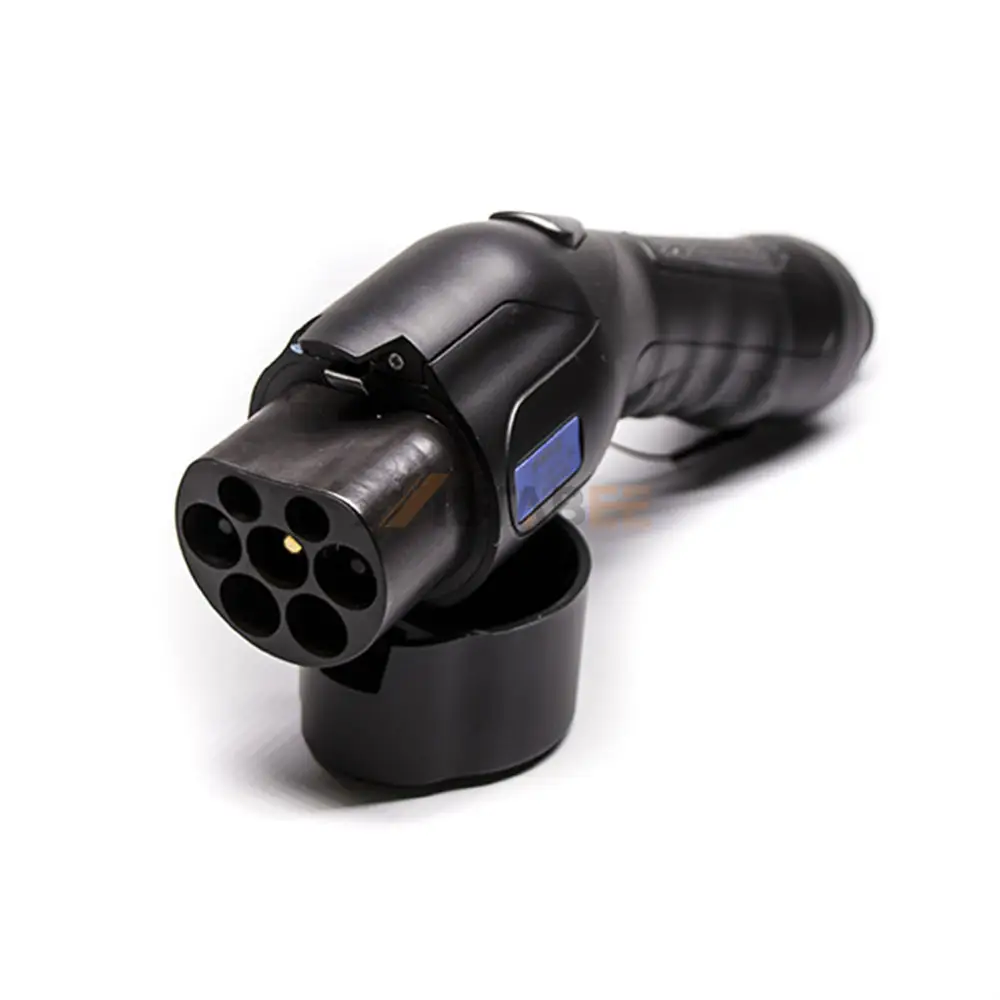

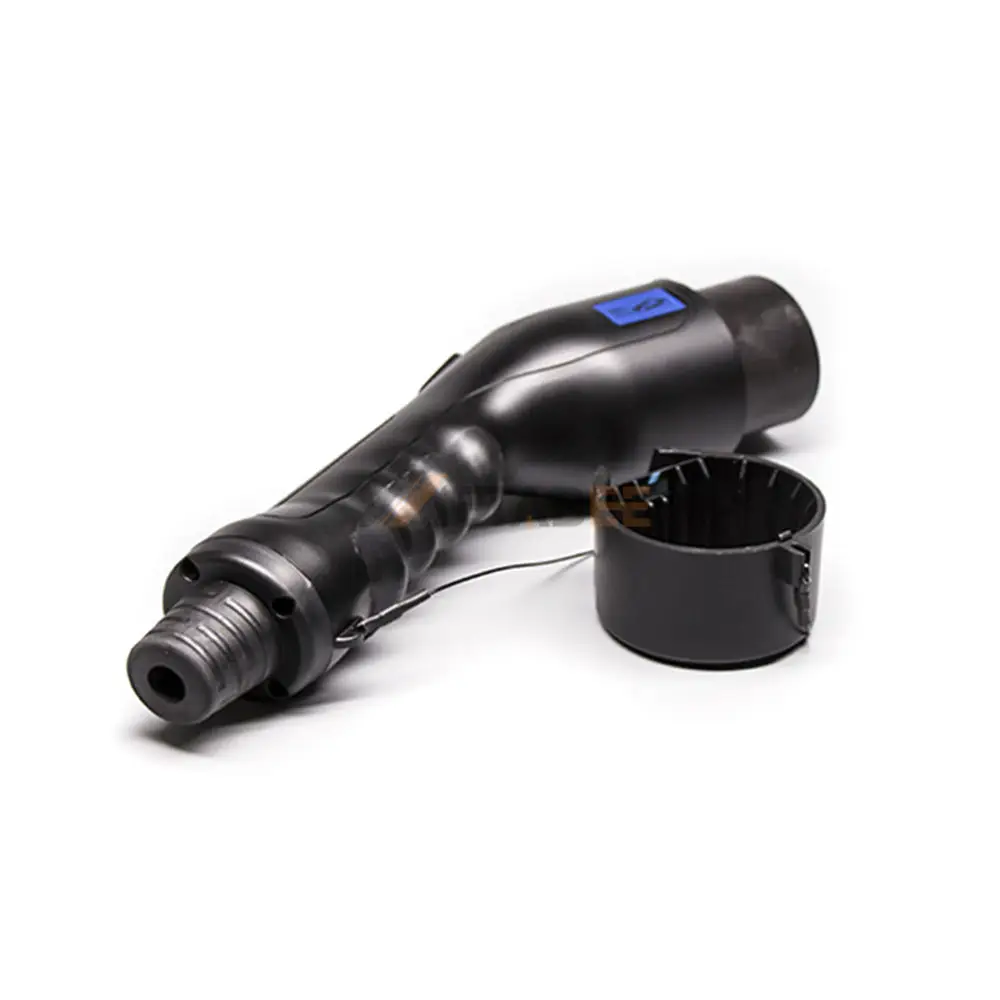

GB/T AC Electric Vehicle Charging Connector, Plug, Single Phase, 250V, 10A
Introduction
This GB/T AC Electric Vehicle Charging Connector is a single-phase plug designed for safe and reliable charging of electric vehicles in accordance with the Chinese national standard GB/T 20234.2-2015. Engineered for single-phase AC charging applications, it features a robust thermoplastic housing ensuring durability and excellent electrical insulation. The internal contacts are made from high-conductivity copper alloy with a silver-plated finish, providing superior electrical performance, minimal voltage drop, and resistance to corrosion for long-term reliability.
Rated at 250V and 10A, this connector supports a maximum charging power of 2.5kW, making it ideal for residential or light commercial charging stations. It boasts an IP65 protection rating, making it dust-tight and protected against water jets, suitable for various outdoor and indoor environments. The connector complies with the stringent UL94V-0 flammability standard, ensuring high flame retardancy for enhanced safety. It is designed to operate reliably across a wide temperature range from -30°C to 50°C and accommodates a wire gauge configuration of 3X2.5mm² + 2X0.75mm²
Key Features:
- Standard-compliant: Conforms to GB/T 20234.2-2015 for AC charging.
- Robust Build: Thermoplastic housing and copper alloy silver-plated contacts.
- High Performance: 250V, 16A rating with up to 2.5kW charging power.
- Superior Protection: IP65 rated against dust and water ingress.
- Enhanced Safety: UL94V-0 flame-retardant material.
- Wide Compatibility: Supports 3X2.5mm²+2X0.75mm² cables and operates from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV3Z-RHT-EV10P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X 0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 10A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 2.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charging Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
