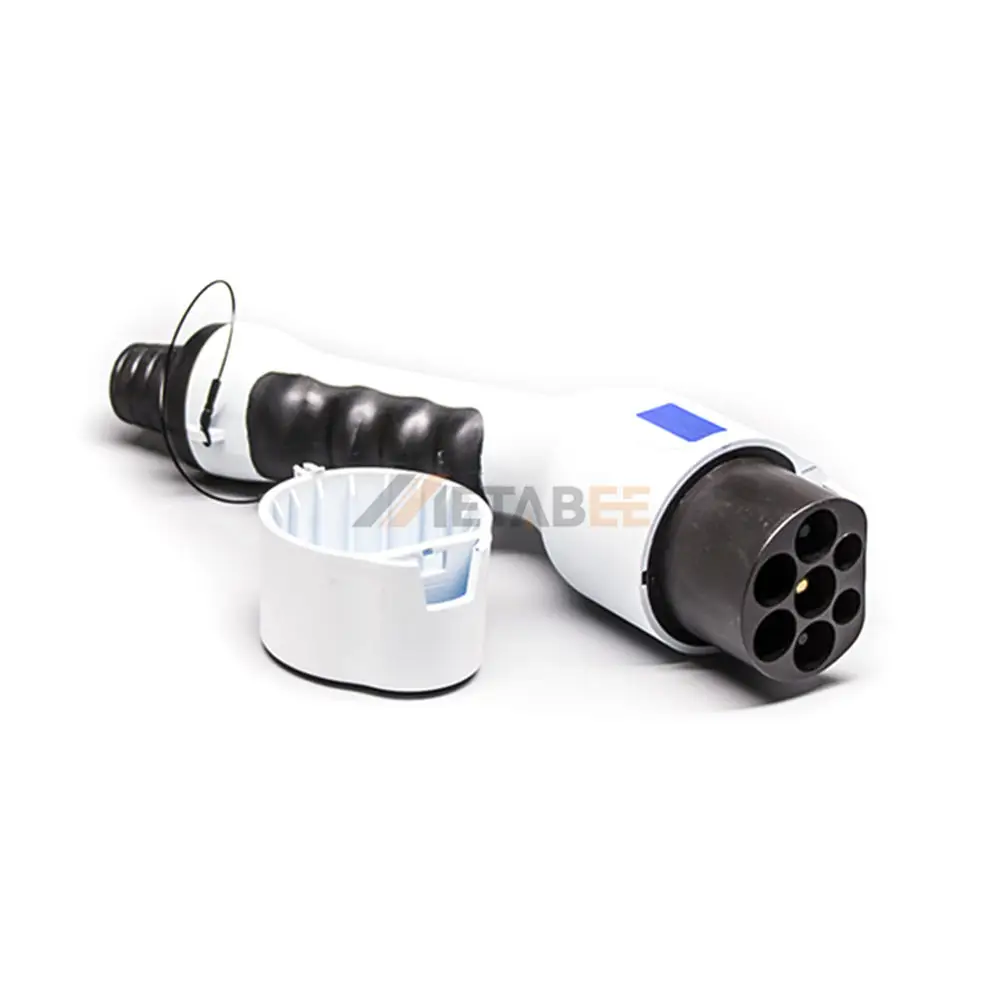

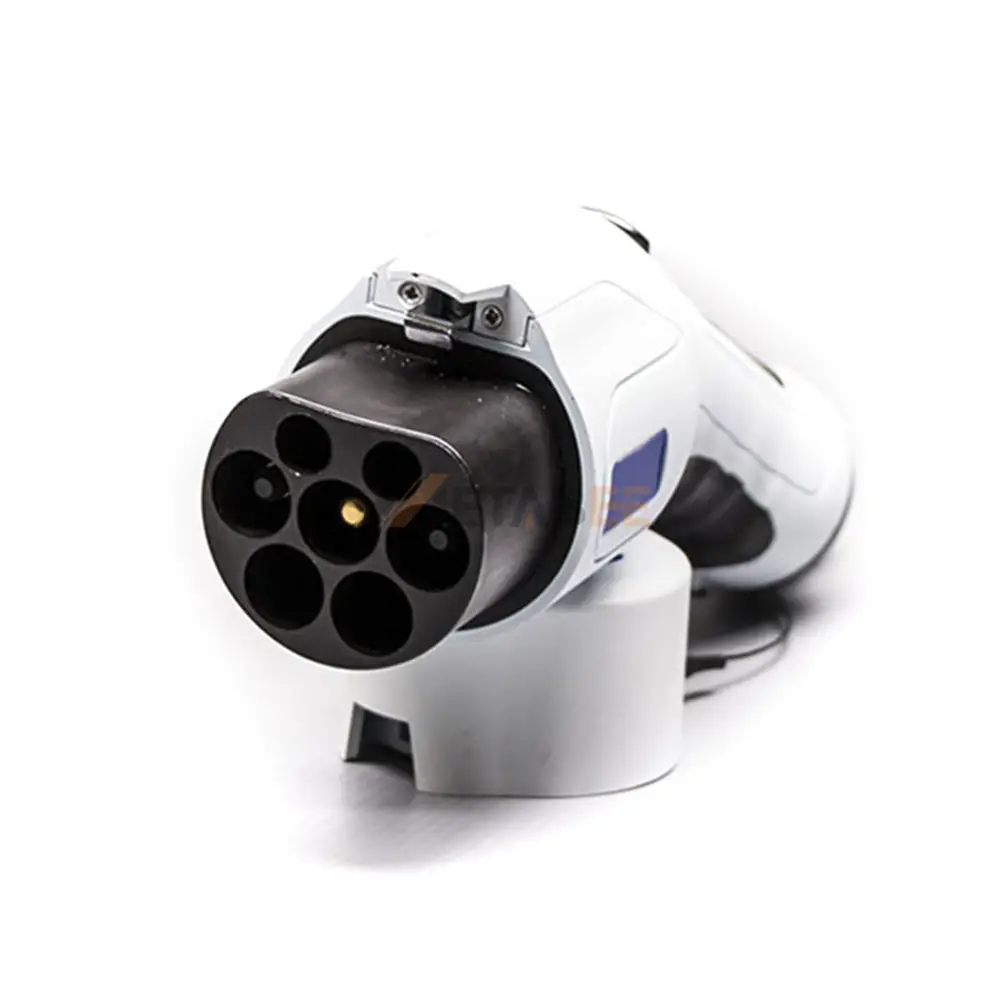

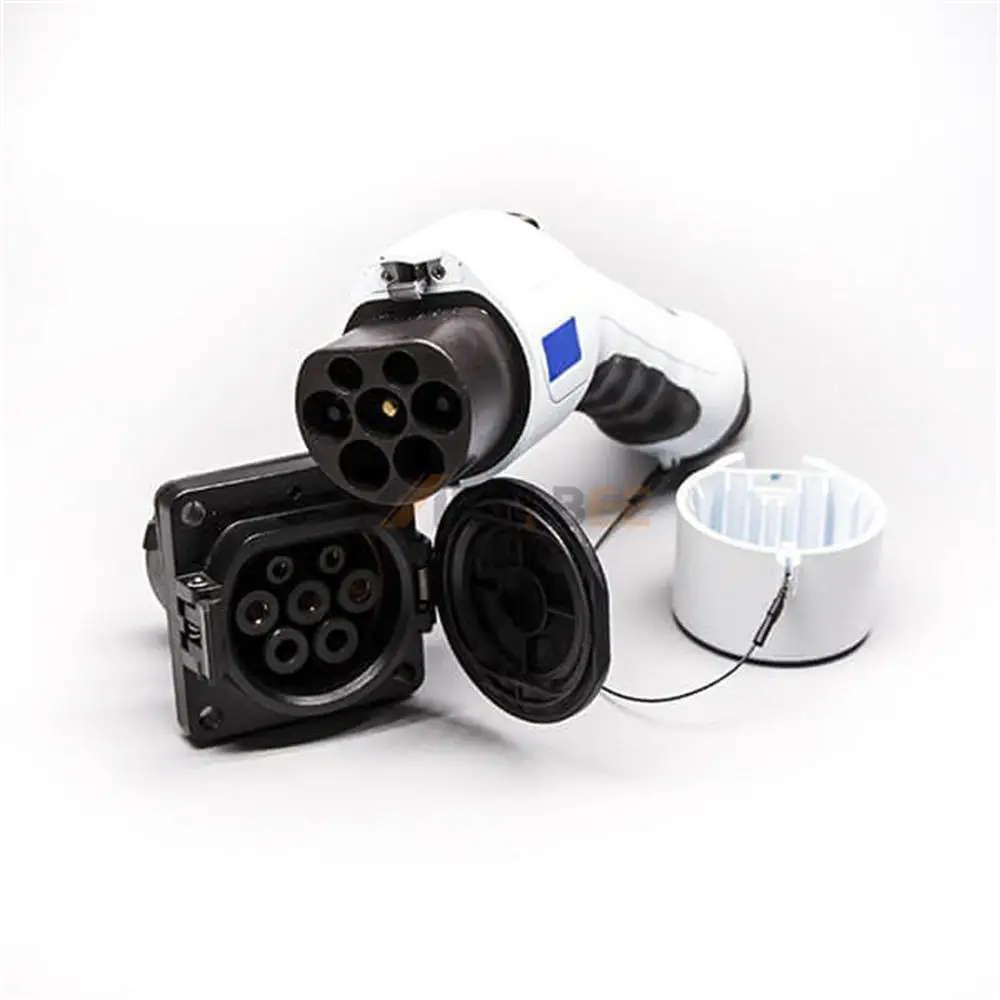

GB/T AC Electric Car Charger, Plug, Single Phase, 440V, 32A
Introduction
The GB/T AC charger is engineered to meet the GB/T 20234.2-2015 standard, delivering stable and efficient AC charging for electric vehicles. Built with a robust thermoplastic housing and precision-machined copper-alloy contacts with silver-plated surfaces, the connector ensures exceptional conductivity, low contact resistance, and long-term durability. Its single-phase design supports a maximum charging power of 14 kW, making it ideal for residential, commercial, and fleet charging applications.
Designed for reliability in demanding environments, this GB/T AC charging plug features an IP65 protection rating for resistance against dust and water ingress. The UL94V-0 flame-retardant material enhances operational safety, while the wide operating temperature range of –30°C to 50°C ensures stable performance in extreme climates. The integrated cable uses a 3×6 mm² + 2×0.75 mm² wire gauge configuration to support high-current transmission with excellent thermal stability.
Key Features:
- Compliant with GB/T 20234.2-2015 AC charging standard.
- 440V, 32A, single-phase output delivering up to 14 kW.
- Durable thermoplastic housing with UL94V-0 flame retardancy.
- Silver-plated copper-alloy contacts for superior conductivity.
- IP65 protection for outdoor charging environments.
- Wide –30°C to 50°C operating temperature range with heavy-duty cable.
Main Specifications:
General Information:
| Part No.: | NV3Z-YC-EV32P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X6mm²+2X0.75mm² | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Electric Car Charger:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
