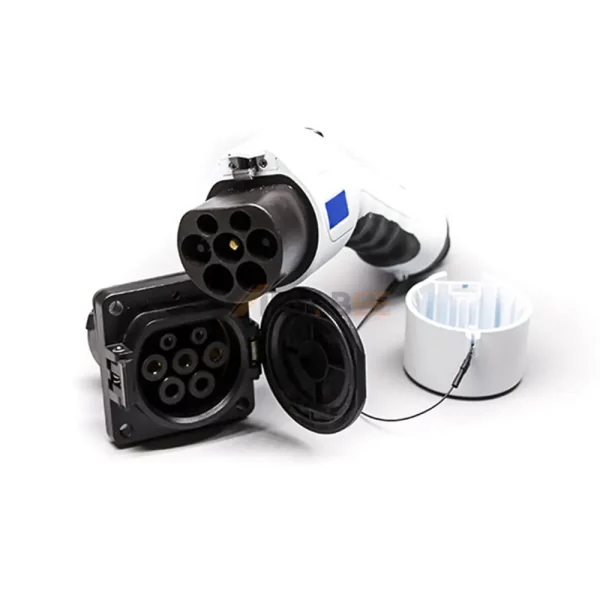

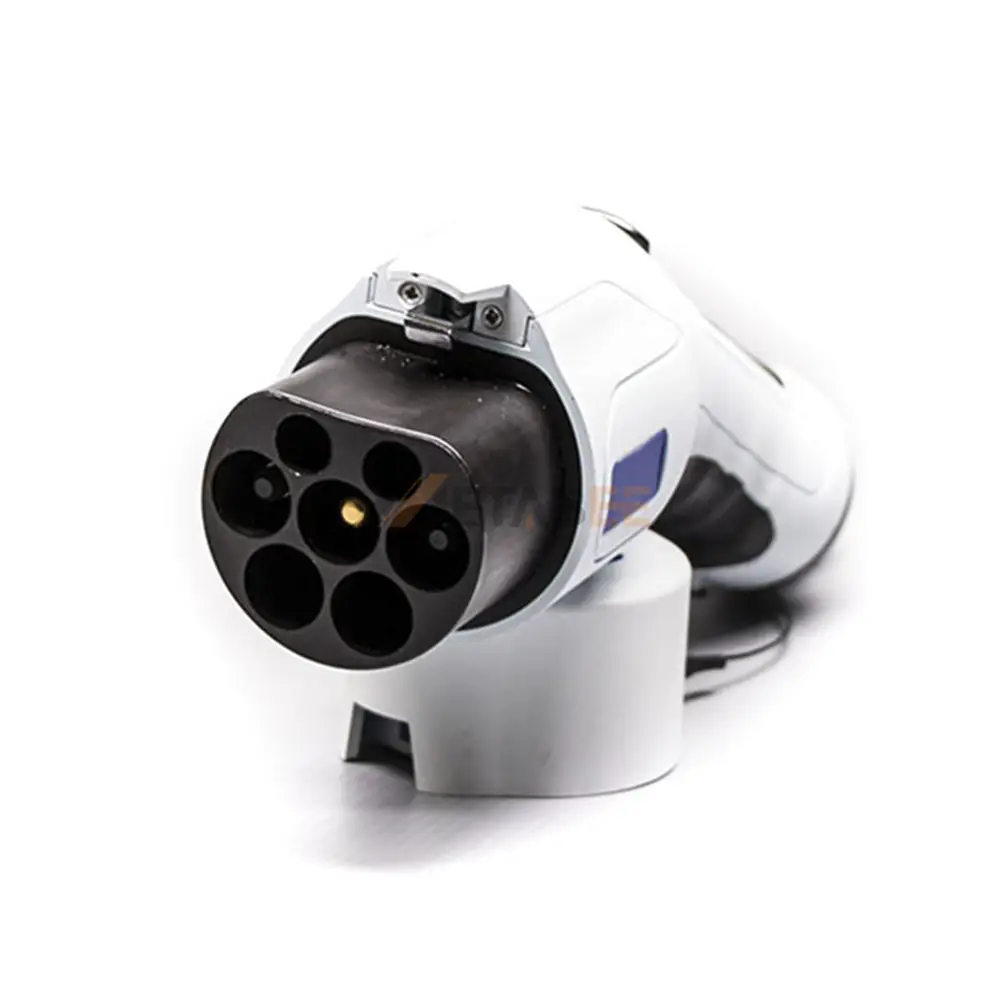

GB/T AC Charging Plug for EV, Single Phase, 250V, 10A
Introduction
Engineered for reliability and efficiency, this GB/T AC Charging Plug is your perfect partner for single-phase EV charging. Built to the rigorous GB/T 20234.2-2015 standard, it ensures a safe and secure connection to your electric vehicle every time. The robust thermoplastic housing and durable copper alloy contacts with a silver-plated finish guarantee long-lasting performance and excellent conductivity. This plug is designed for convenience and peace of mind, featuring a comfortable, ergonomic grip for easy handling.
This charging plug delivers a steady 2.5kW of power with a rated voltage of 250V and a current of 10A, making it ideal for overnight charging at home or top-ups at your destination. Its IP65 rating ensures protection against dust and water ingress, while the UL94V-0 flame retardant rating provides an extra layer of safety. Capable of operating in a wide range of temperatures, from -30°C to 50°C, this charging plug is a dependable solution for all your EV charging needs.
Key Features:
- Robust Construction: The thermoplastic shell and copper alloy contacts with silver plating ensure durability and reliable performance.
- Certified Safety: Compliant with the GB/T 20234.2-2015 charging standard, it provides a safe and secure connection.
- Weatherproof and Resilient: An IP65 rating for dust and water resistance, along with a UL94V-0 flame retardant rating, ensures reliable operation in various conditions.
- Optimal Performance: Delivers up to 2.5kW of charging power, ideal for single-phase AC charging.
- Wide Operating Range: Functions effectively in temperatures ranging from -30°C to 50°C.
- High-Quality Cabling: The 3X2.5mm²+ 2X 0.75mm² wire gauge ensures efficient power delivery.
Main Specifications:
General Information:
| Part No.: | NV3Z-YC-EV10P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X 0.75mm² | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 10A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 2.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charging Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
