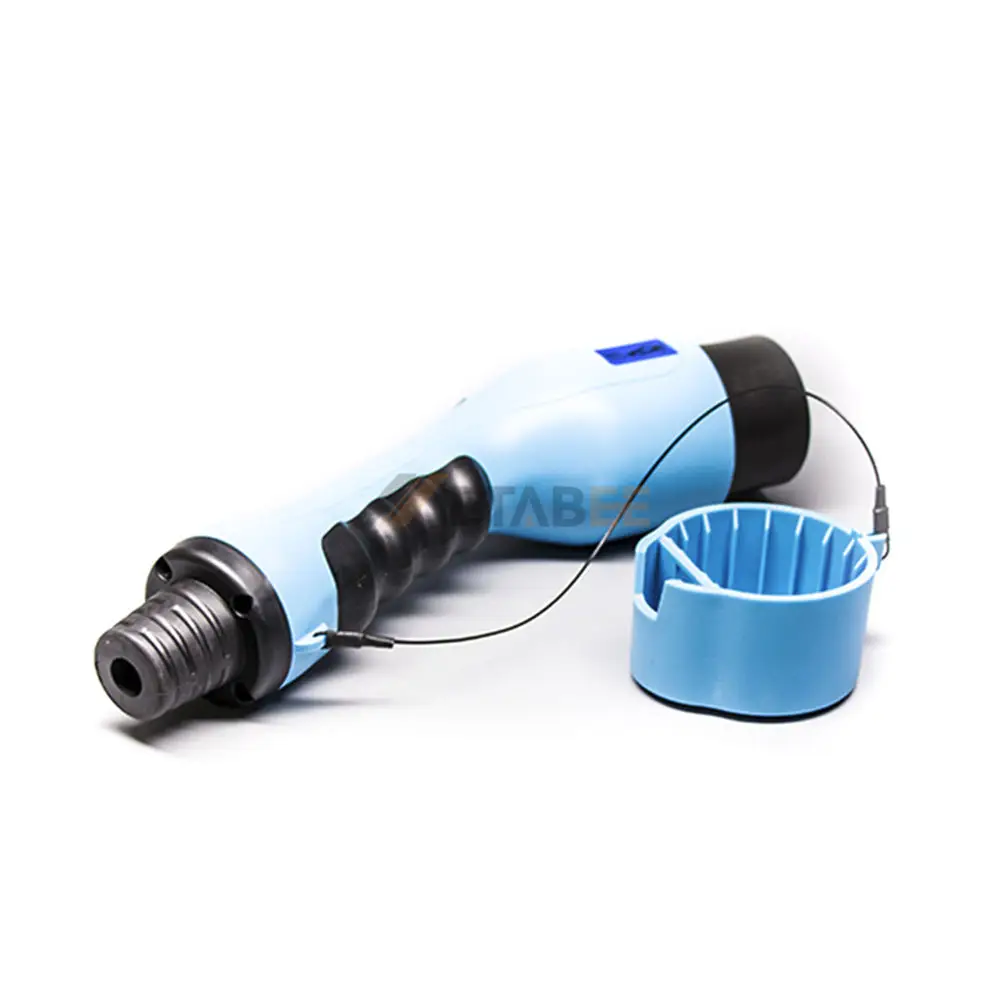

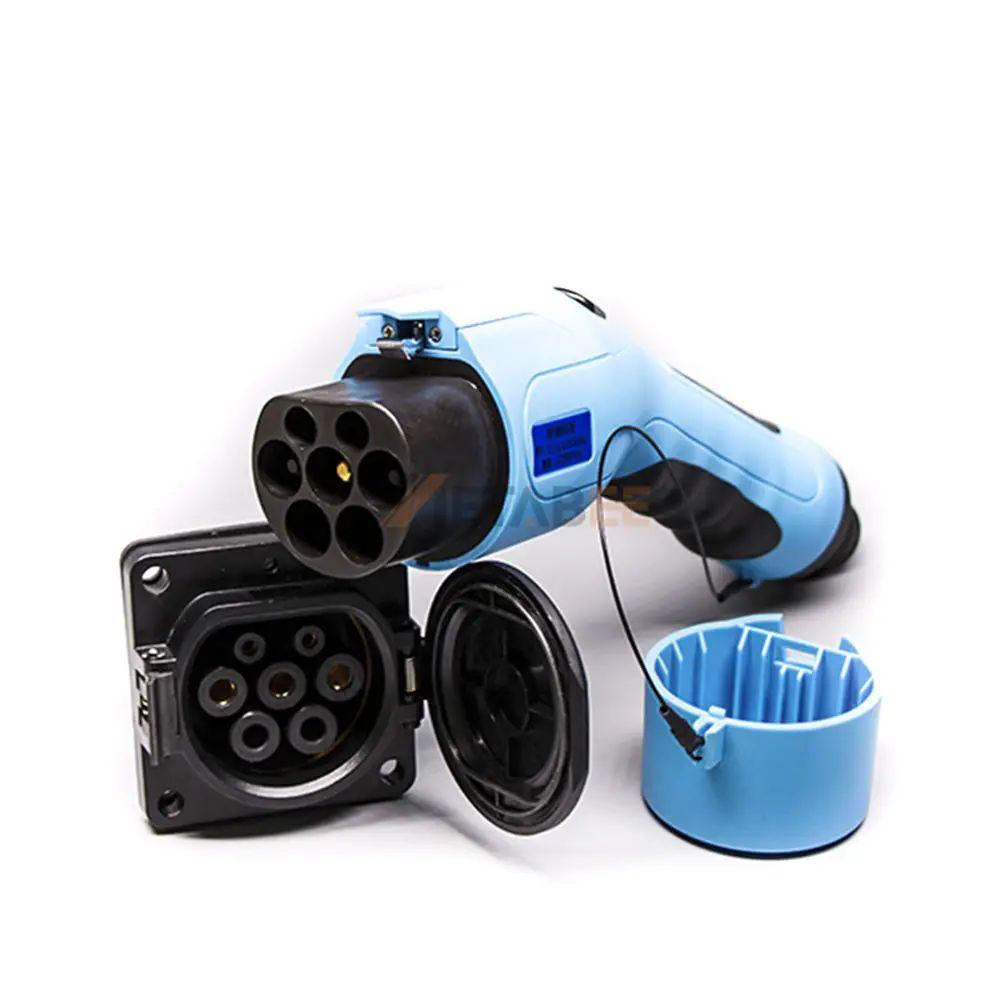

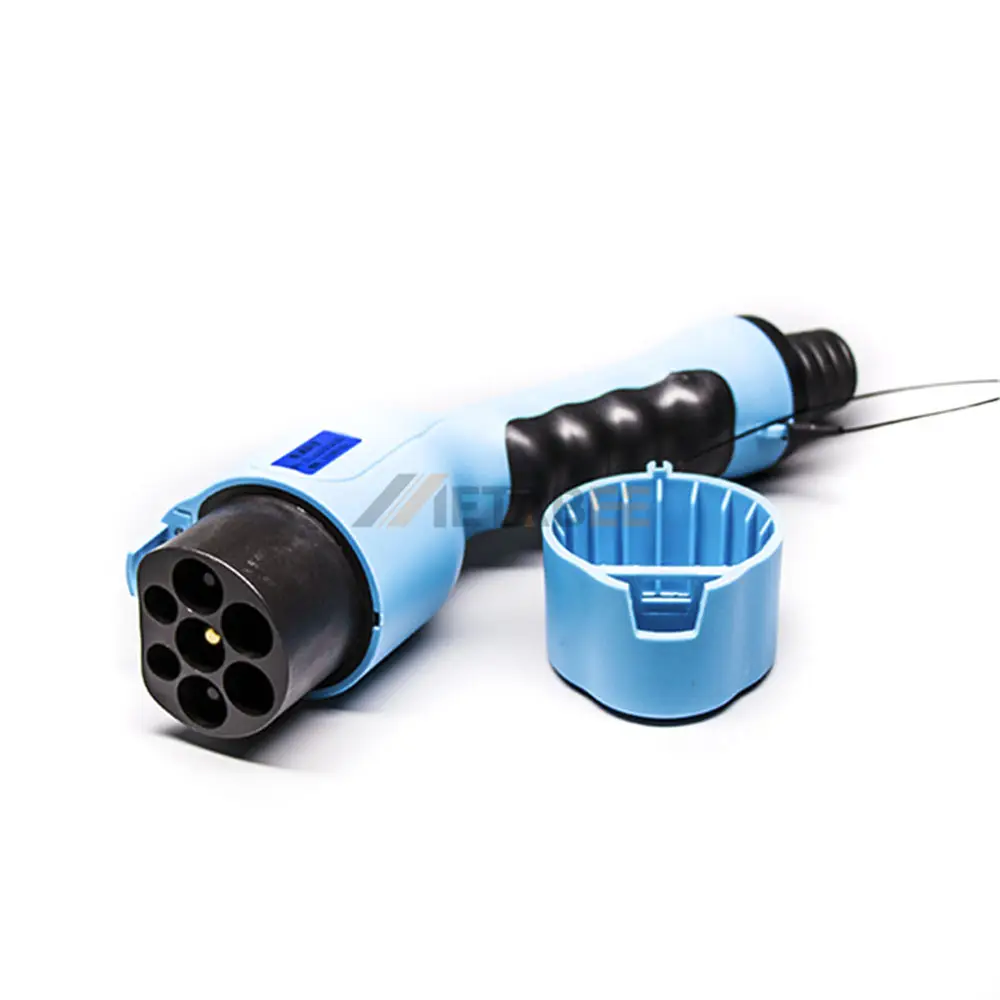

GB/T AC Charger for EV, Plug, Single Phase, 250V, 10A
Introduction
This GB/T AC charger is a single-phase connector designed for electric vehicle charging, fully compliant with the GB/T 20234.2-2015 standard. Engineered for reliable performance, it features a durable thermoplastic housing and offers an IP65 rating for dust and water resistance, ensuring safe operation in various outdoor conditions. The internal contacts are made from a high-conductivity copper alloy with a silver-plated finish, minimizing resistance and ensuring efficient power delivery and a stable connection every time.
Rated for 250V and 10A, this plug supports a maximum charging power of 2.5kW, making it suitable for residential and light commercial AC charging applications. It is built with safety as a priority, boasting a UL94V-0 flammability rating. The connector is designed to operate reliably in a wide temperature range from -30°C to 50°C and accommodates a wire gauge configuration of 3X2.5mm² + 2X0.75mm².
Key Features:
- Compliant with GB/T 20234.2-2015 Standard
- Rated 250V / 10A / 2.5kW, Single Phase AC
- IP65 Rated for Dust & Water Protection
- High-Temperature & Flame Retardant (UL94V-0)
- Silver-Plated Copper Alloy Contacts for Efficiency
- Wide Operating Temperature: -30°C to 50°C
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV10P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X0.75mm² | |
| Color: | Blue | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 10A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 2.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charger for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
