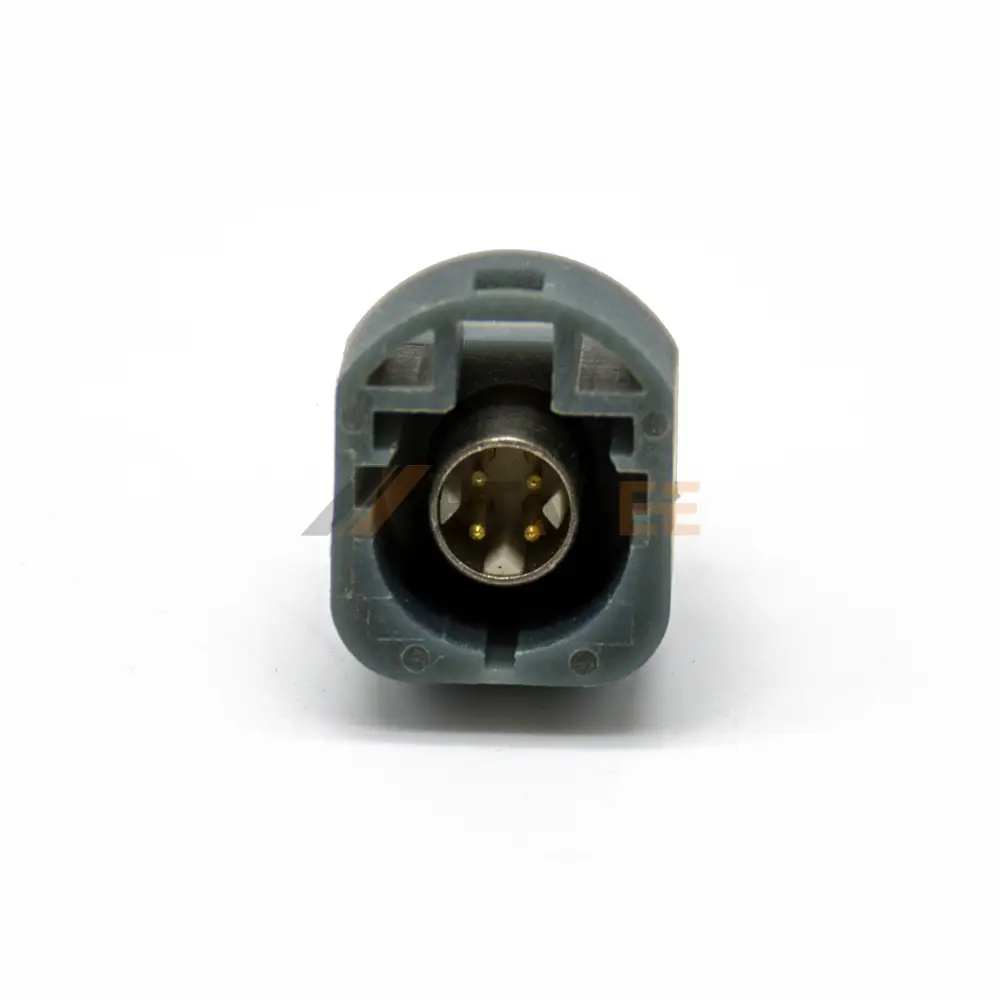

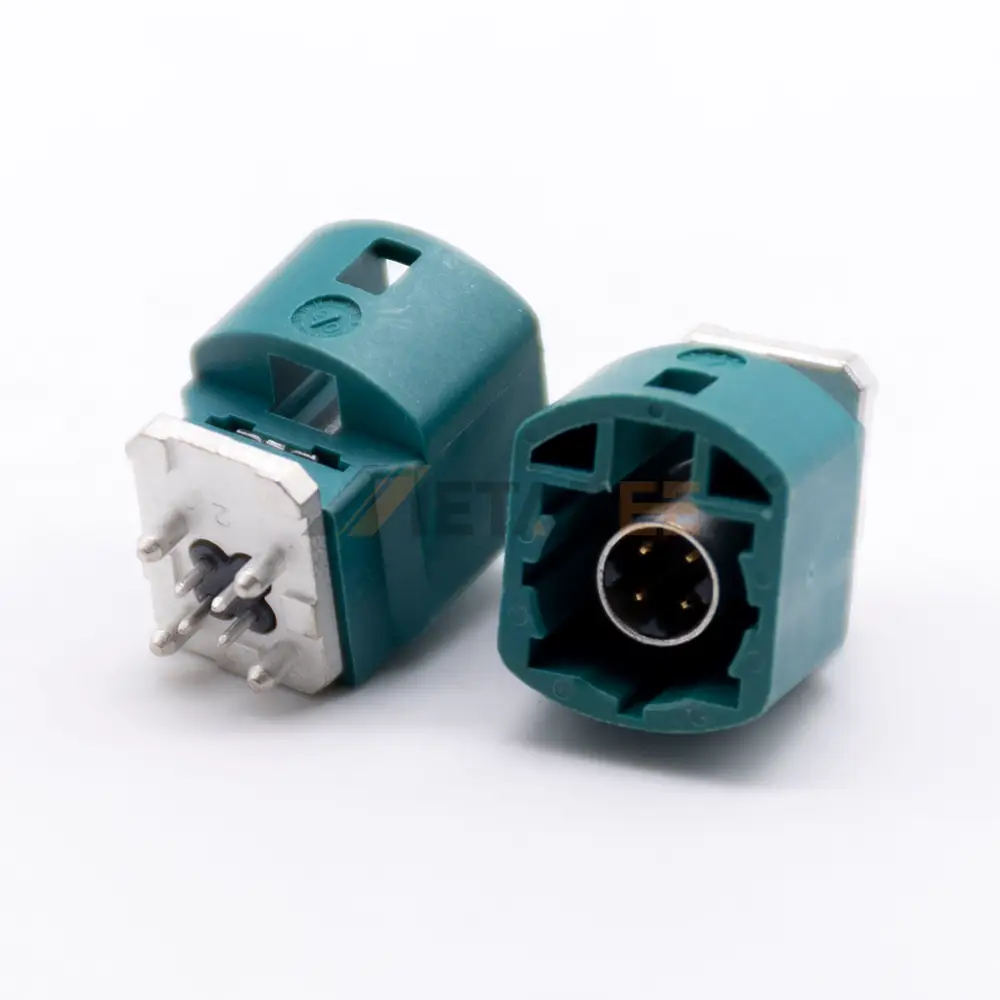

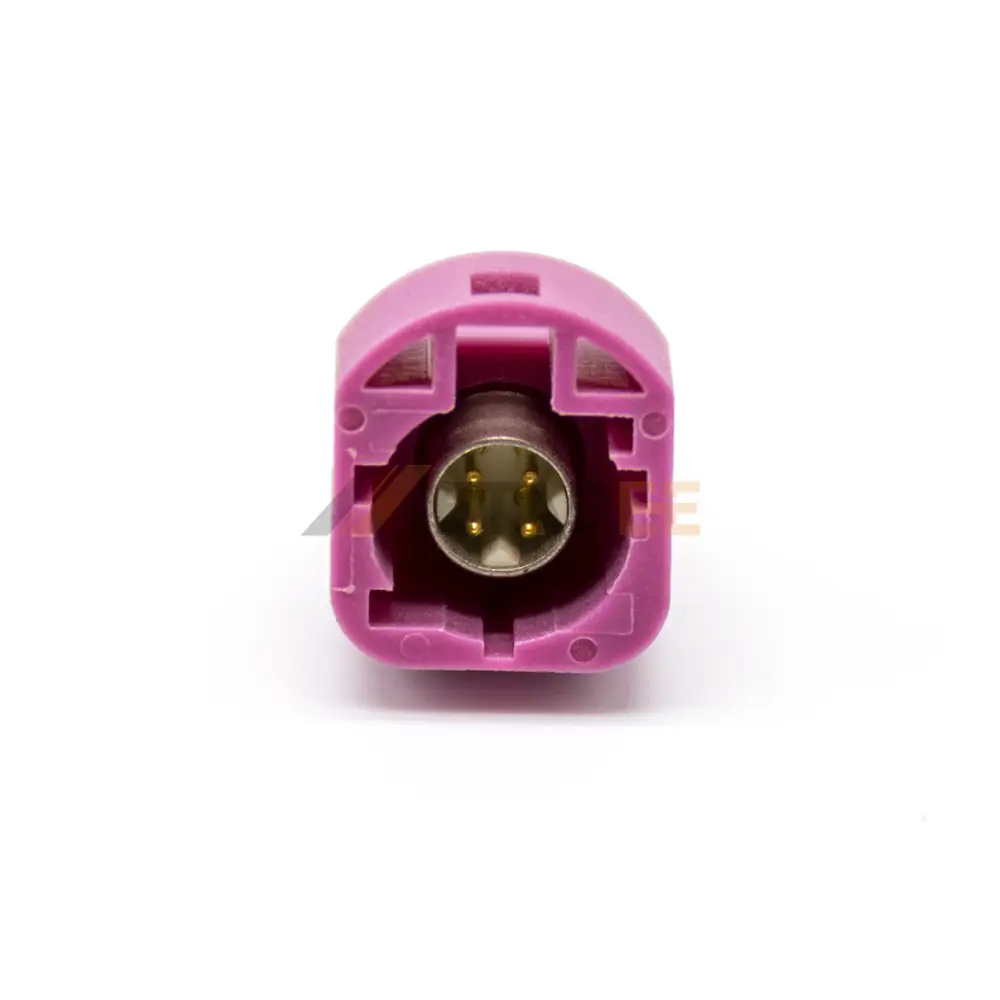

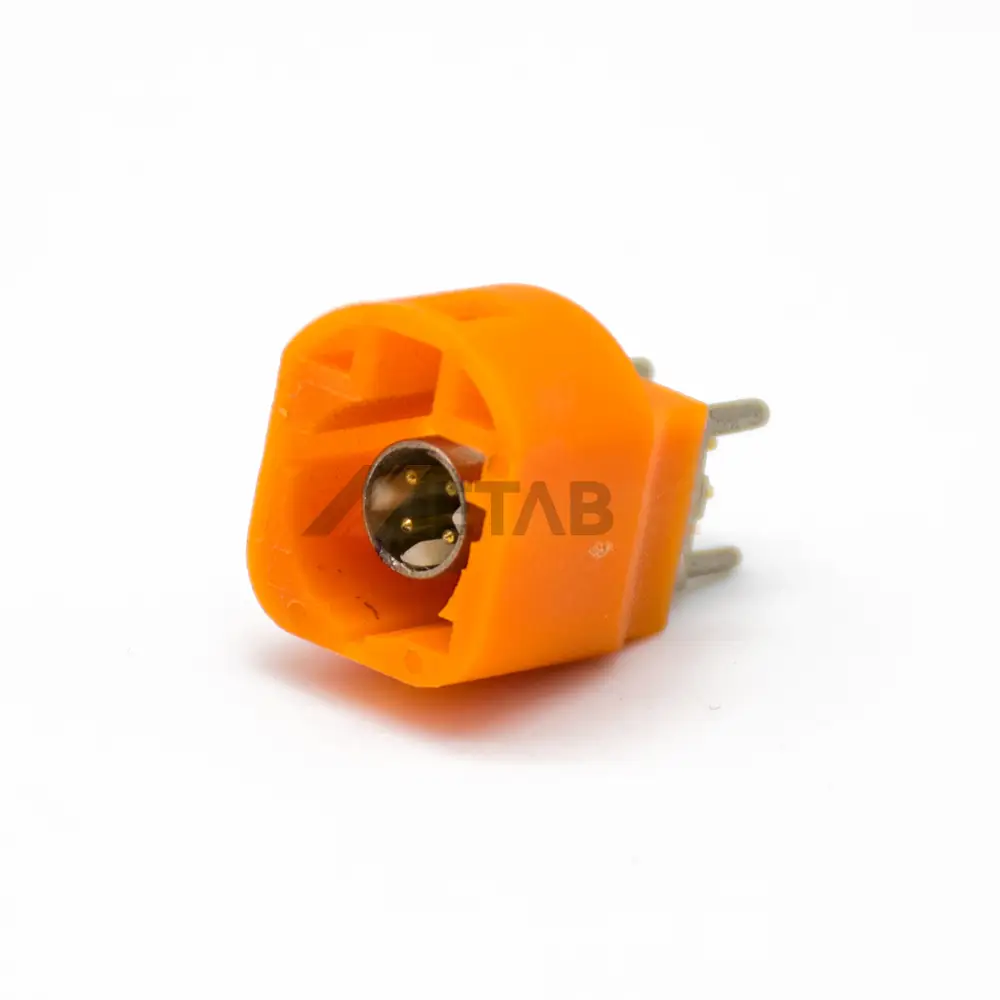

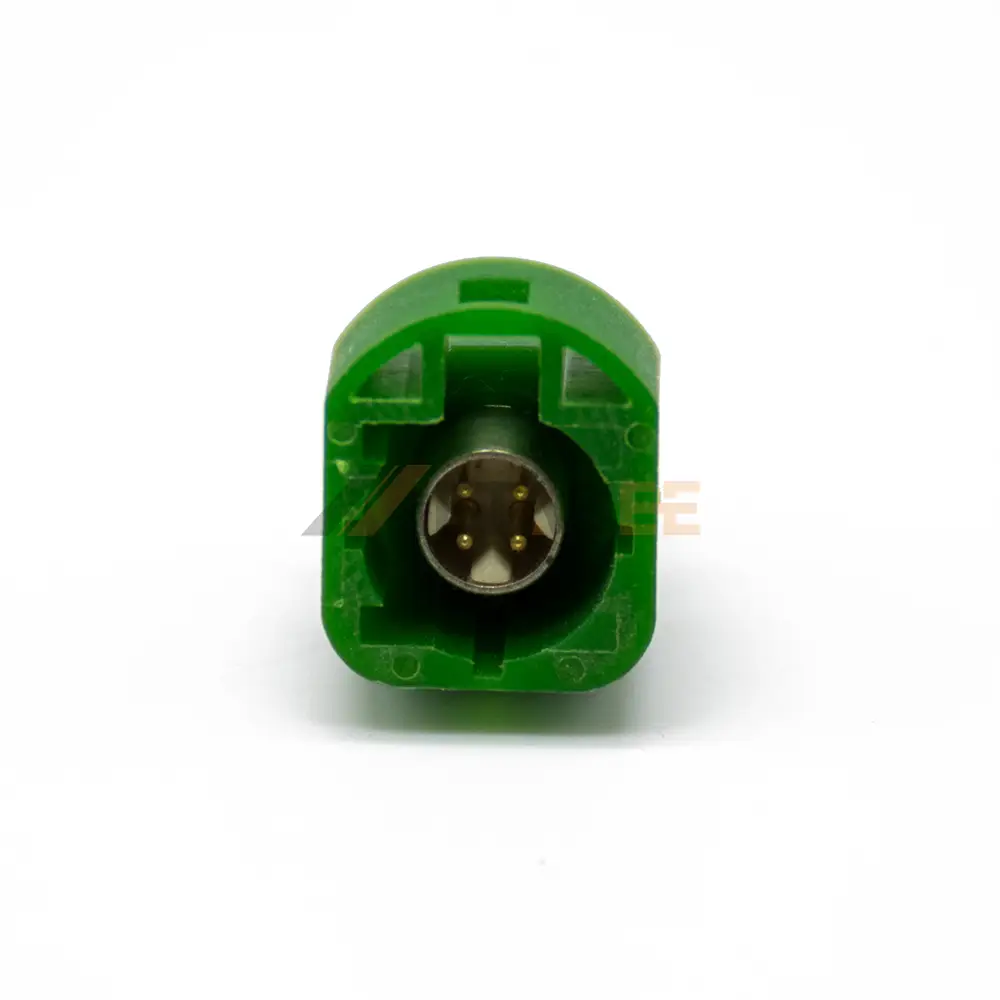

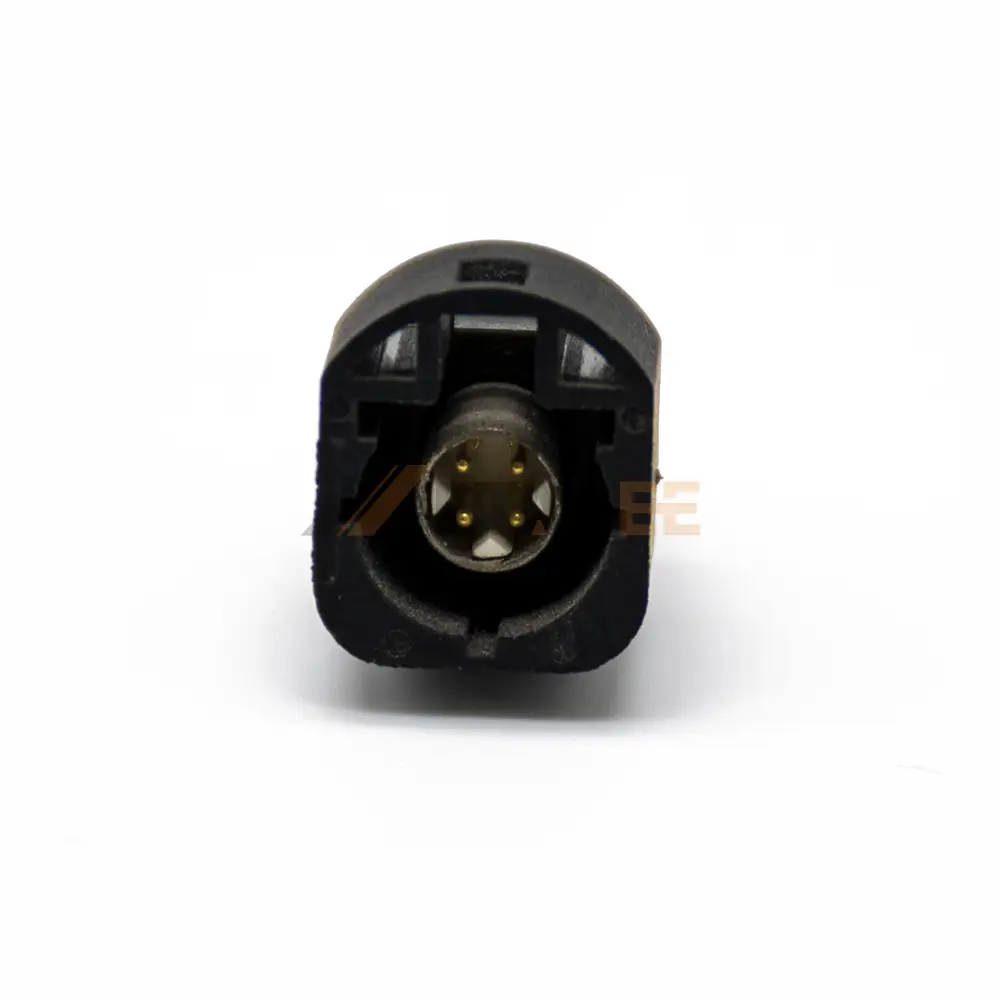

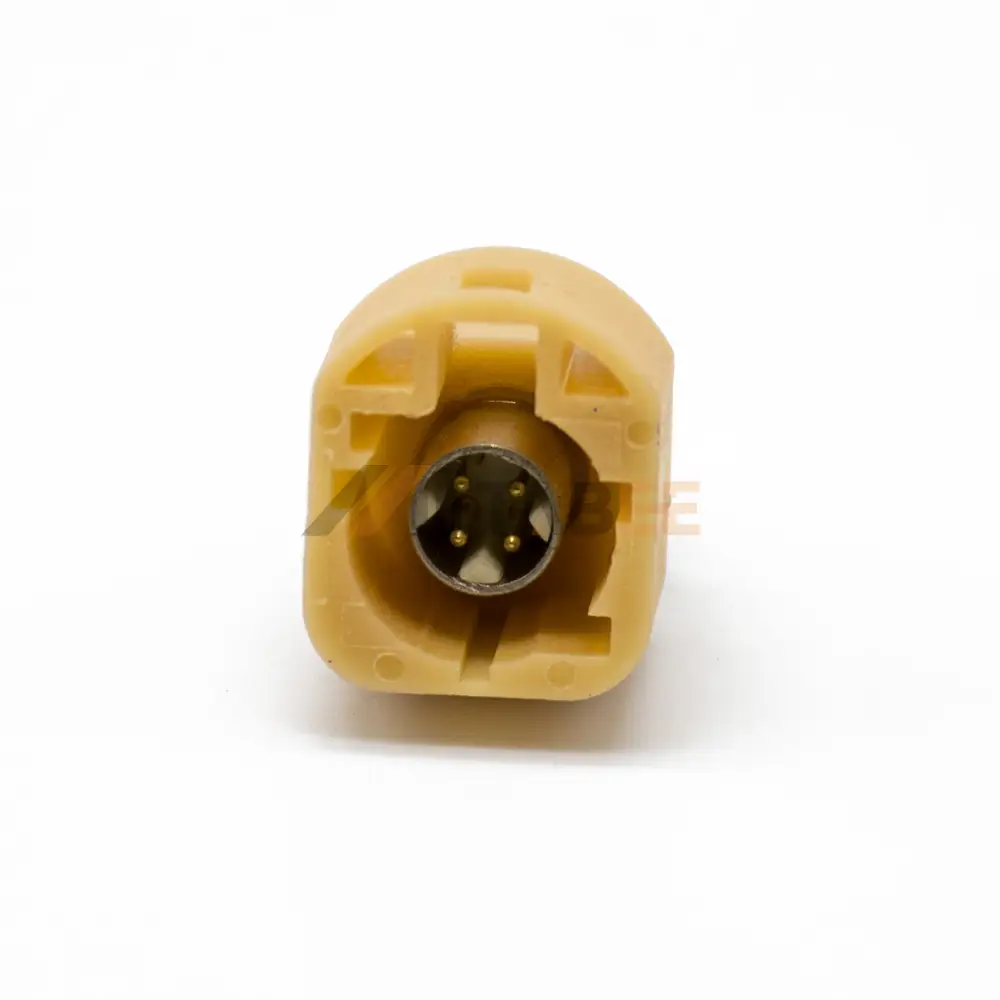

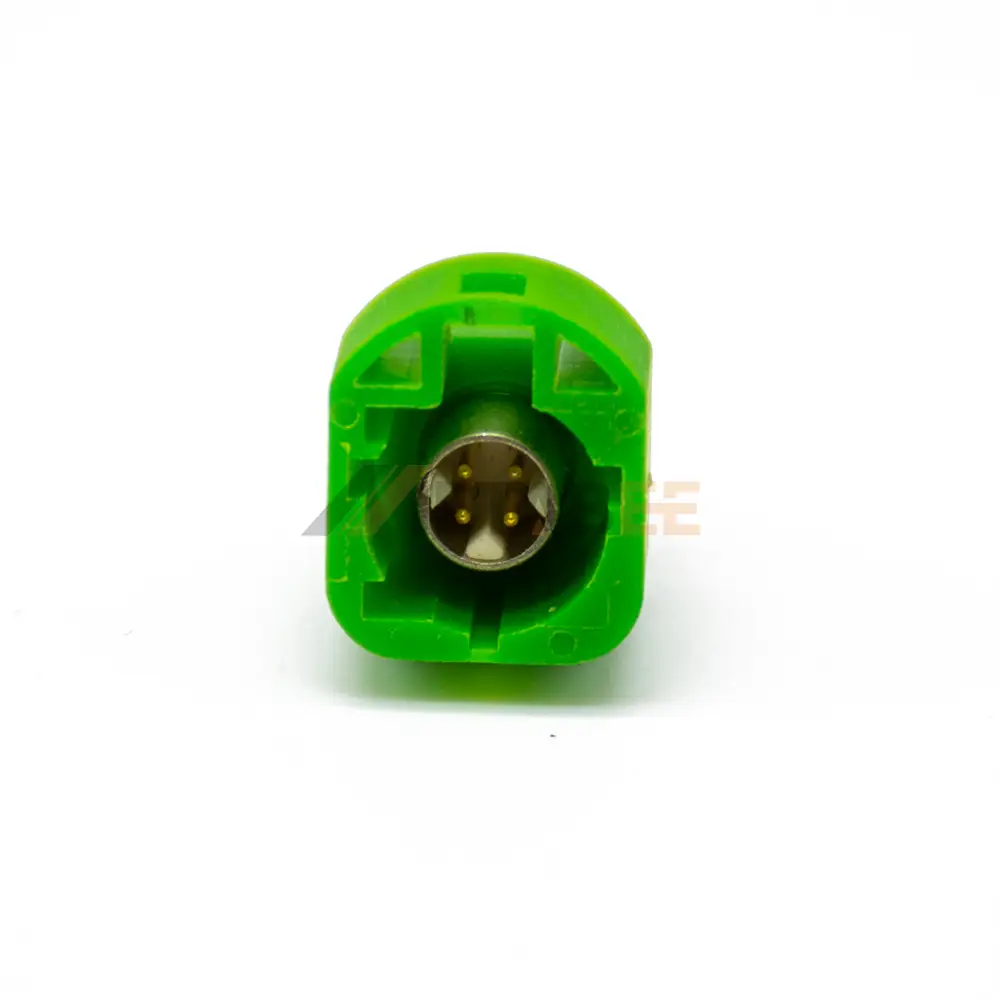

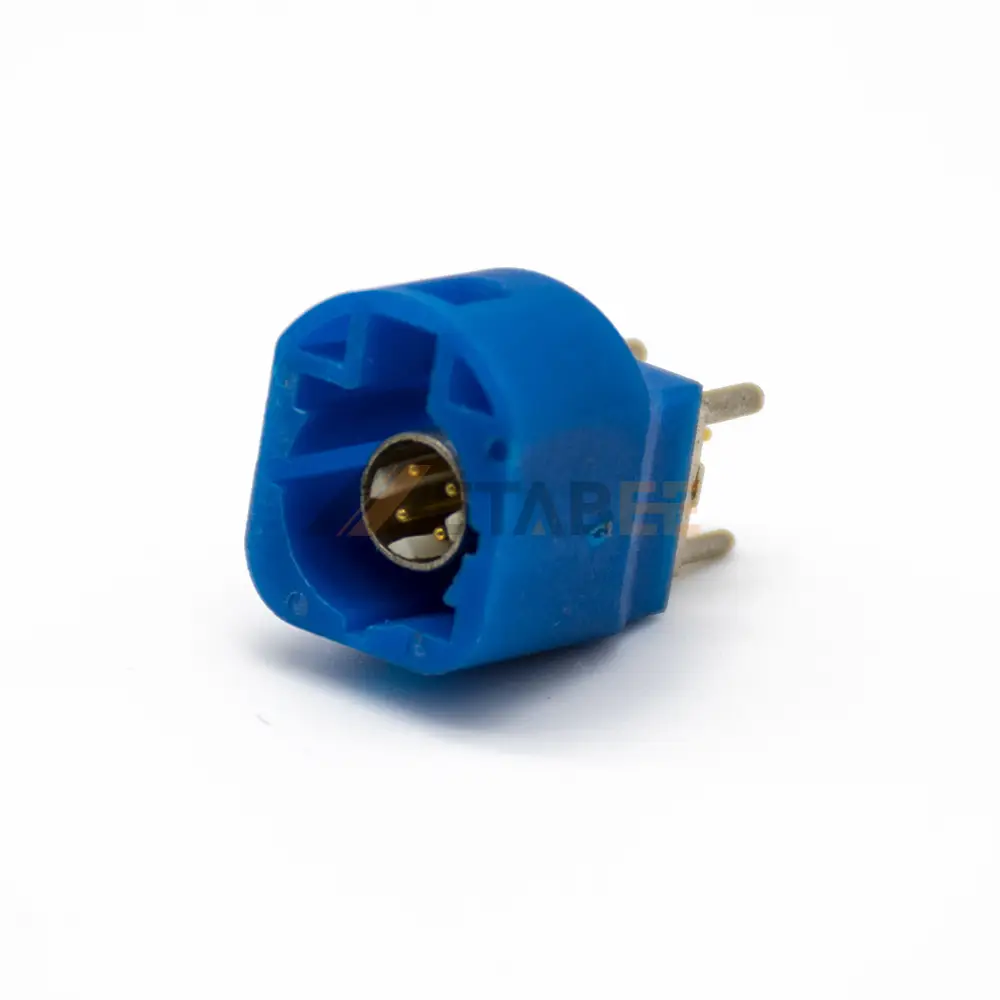

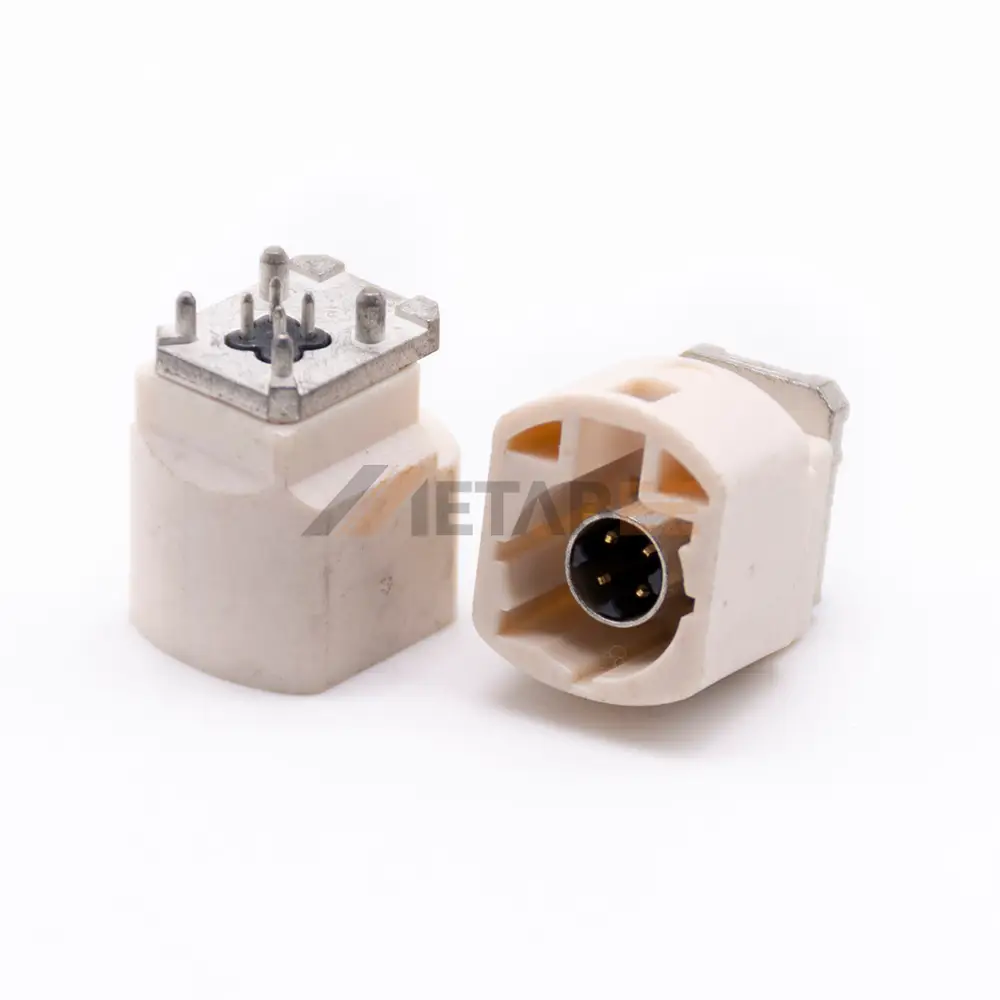

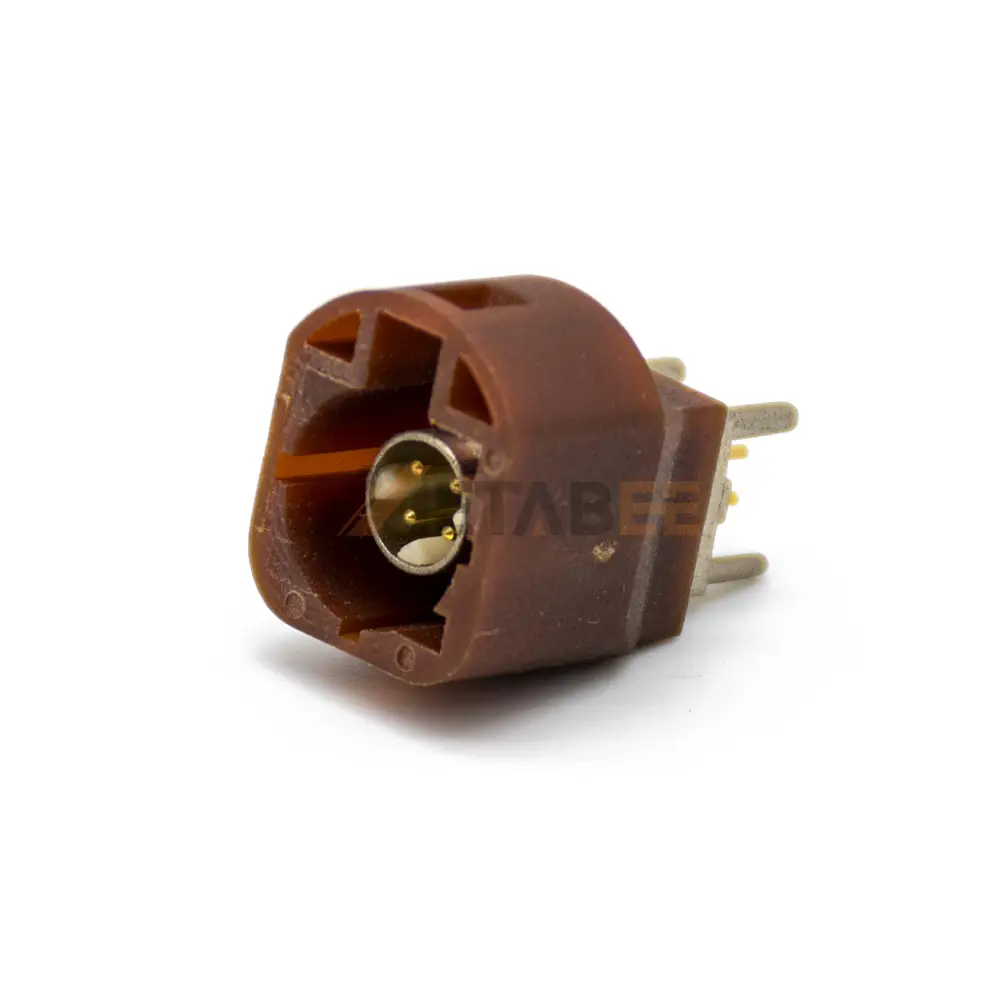

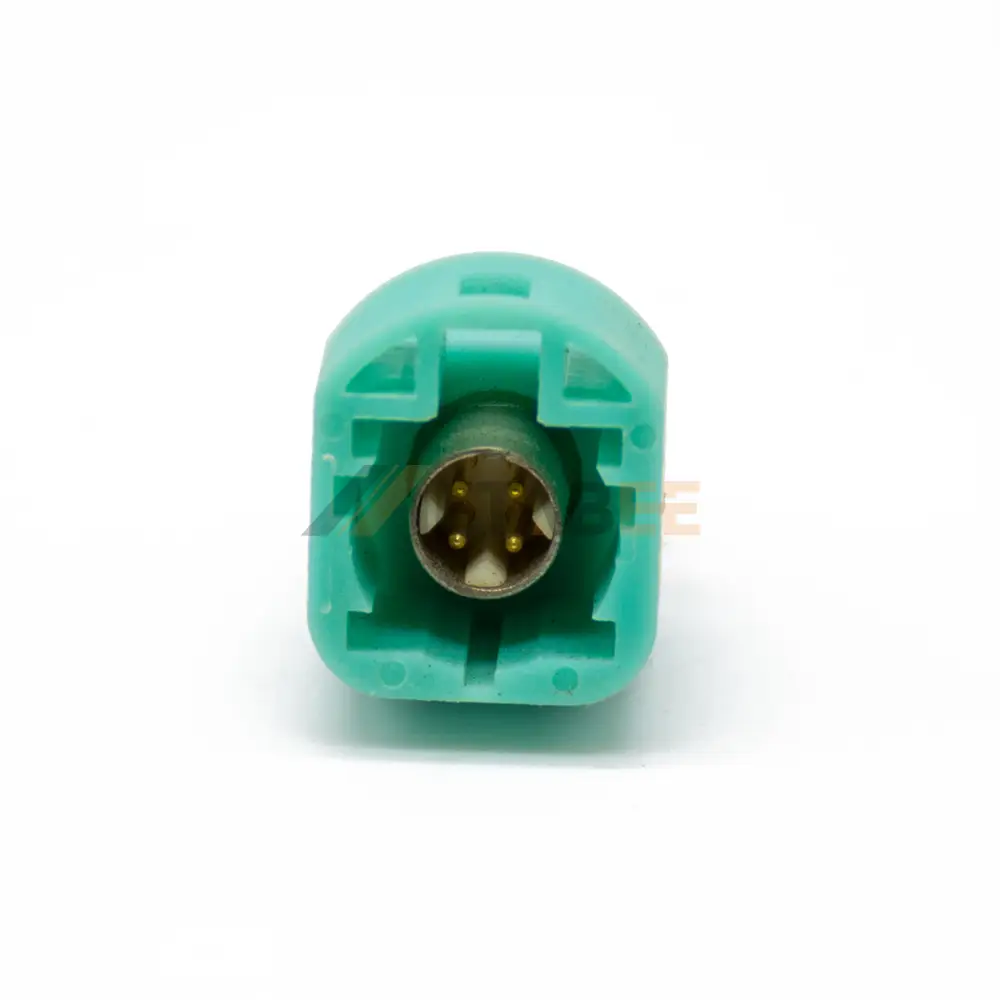

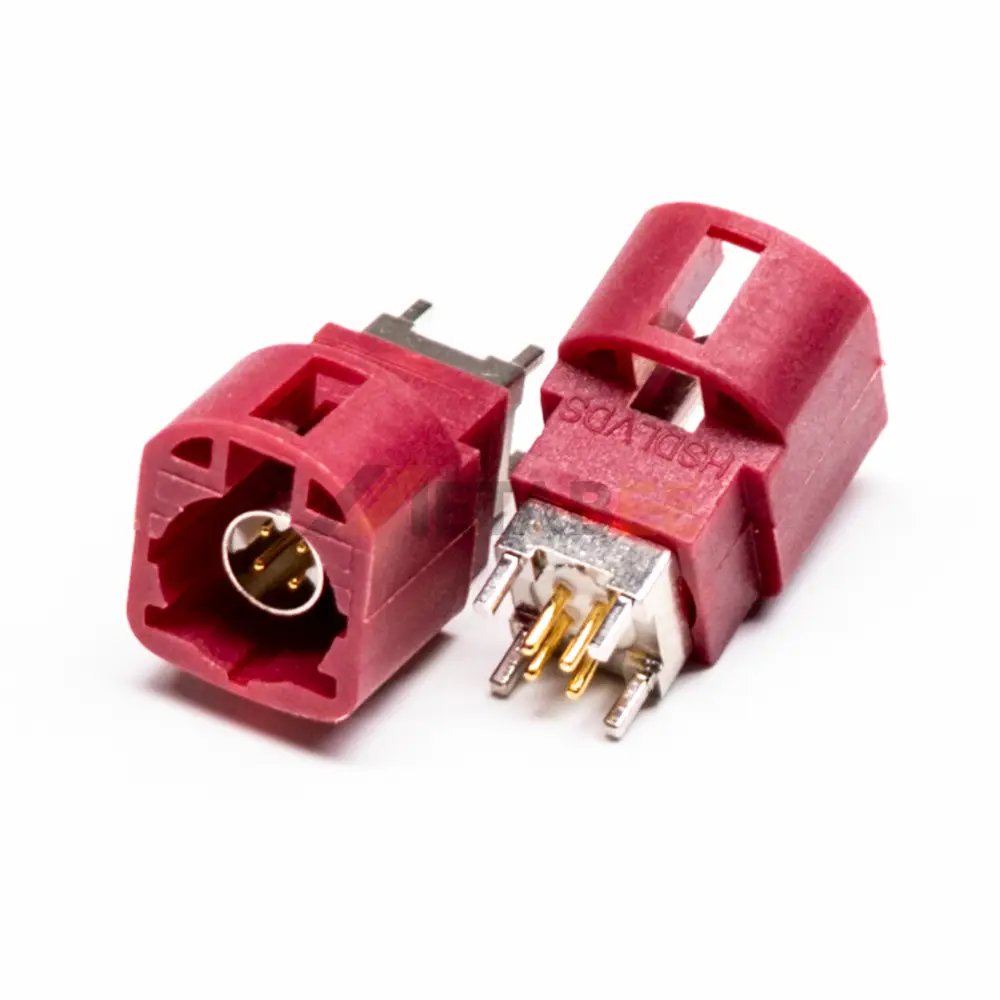

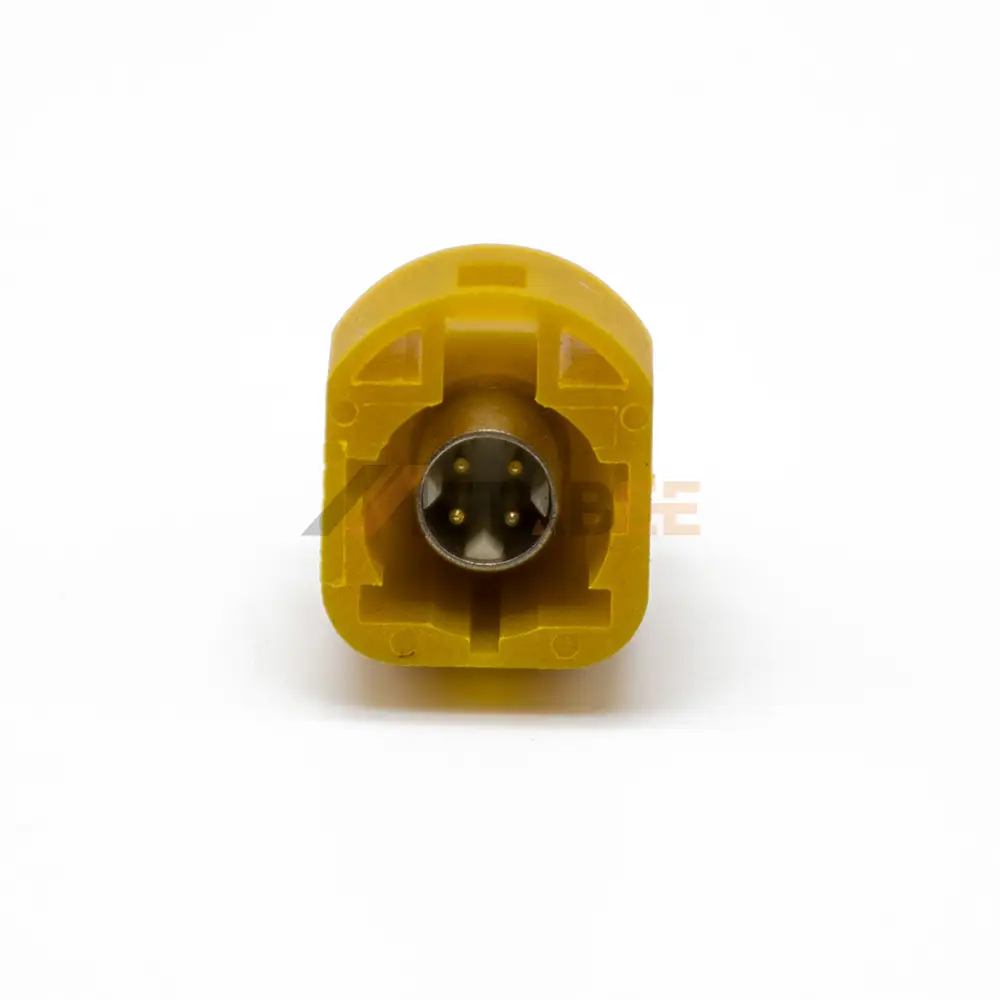

Fakra HSD LVDS 4 Pin Male Connector for PCB, Through Hole

Introduction

The Fakra HSD LVDS connector is a high-performance, through-hole connector designed for reliable signal transmission in automotive and industrial applications. Featuring a straight mounting orientation, this male connector supports keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z) to prevent mismating. Its robust construction includes a PA plastic housing for durability, a zinc alloy outer conductor with nickel plating for corrosion resistance, and a gold-plated copper alloy inner conductor for superior conductivity. With a 4-pin configuration and solder termination, it ensures secure PCB mounting and stable electrical connections.

Engineered for high-speed data transmission, this HSD connector operates within a DC-2 GHz frequency range and maintains a 100-ohm contact resistance. It performs reliably in extreme conditions, with a wide operating temperature range of -40°C to 105°C. Ideal for LVDS applications, it delivers consistent signal integrity and EMI shielding.

Key Features:

• 4-pin male connector for PCB, through-hole mounting.
• Multiple keying options (A-Z) to prevent incorrect mating.
• PA plastic housing with zinc alloy nickel-plated outer conductor.
• Gold-plated copper alloy inner conductor for low resistance.
• Solder termination for secure PCB connections.
• Frequency range: DC-2 GHz, 100-ohm impedance.
• Wide temperature range: -40°C to 105°C for harsh environments.

Main Specifications:

General Information:

Part No.:	102-11-10
Product Series:	HSD Connectors
Brand:	Metabee
Gender:	Male
Orientation:	Straight
Connector Coding:	A, B, C, D, E, F, G, H, I, K, L, M, O, Z
Number of Contacts:	1 Port
Number of Positions:	4 Pin
Contact Termination:	Solder
Mount Method:	PCB Mount
Mount Feature:	Through Hole
Temperature Range:	-40°C to +105°C
Other Feature:	None

Materials and Plating:

Plastic Housing:	PA
Outer Contact Material:	Zinc Alloy
Outer Contact Plating:	Nickel Plated
Inner Contact Material:	Copper Alloy
Inner Contact Plating:	Gold-Plated
Insulator Material:	PTFE

Electrical Performance:

Impedance:	100 Ohms
Frequency Range:	DC – 2 GHz
Insulation Resistance:	≥ 1000 MΩ
Withstanding Voltage:	250 V rms
Operating Voltage:	100 V rms
Durability:	≧25 Cycles
Signal Contact Resistance:	10 mΩ Max
Outer Contact Resistance:	7.5 mΩ Max

HSD plug and jack in schematic view with pin assignment:

14 codes and colors of HSD male and female:

Applications of this Fakra HSD LVDS 4 Pin Male Connector for PCB:

HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.

Here are some main applications:

• Advanced Driving Assistant System (ADAS)
• Automotive Infotainment Systems;
• In-Vehicle Networking (IVN);
• GPS and Navigation Units;
• VR headsets and displays;
• Telecommunications Infrastructure:
• Surgical Equipment and Robot-Assisted Surgery.
