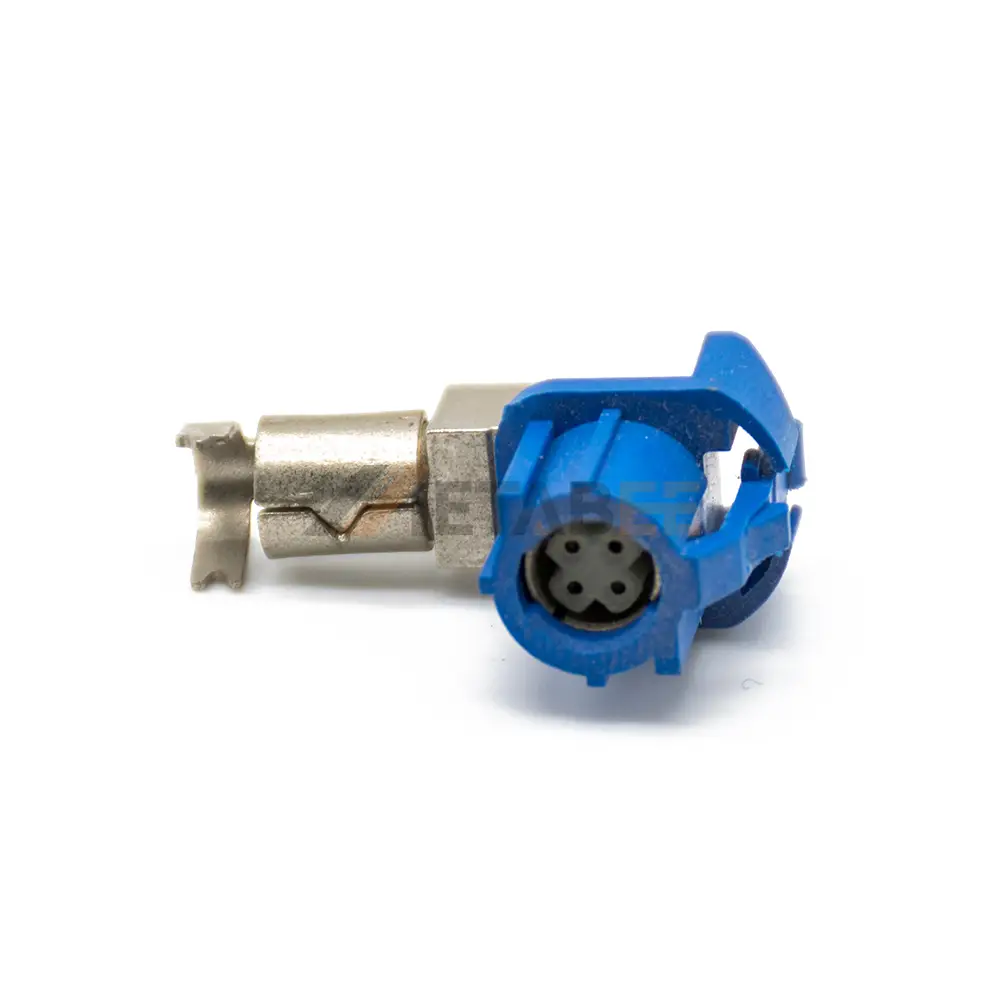

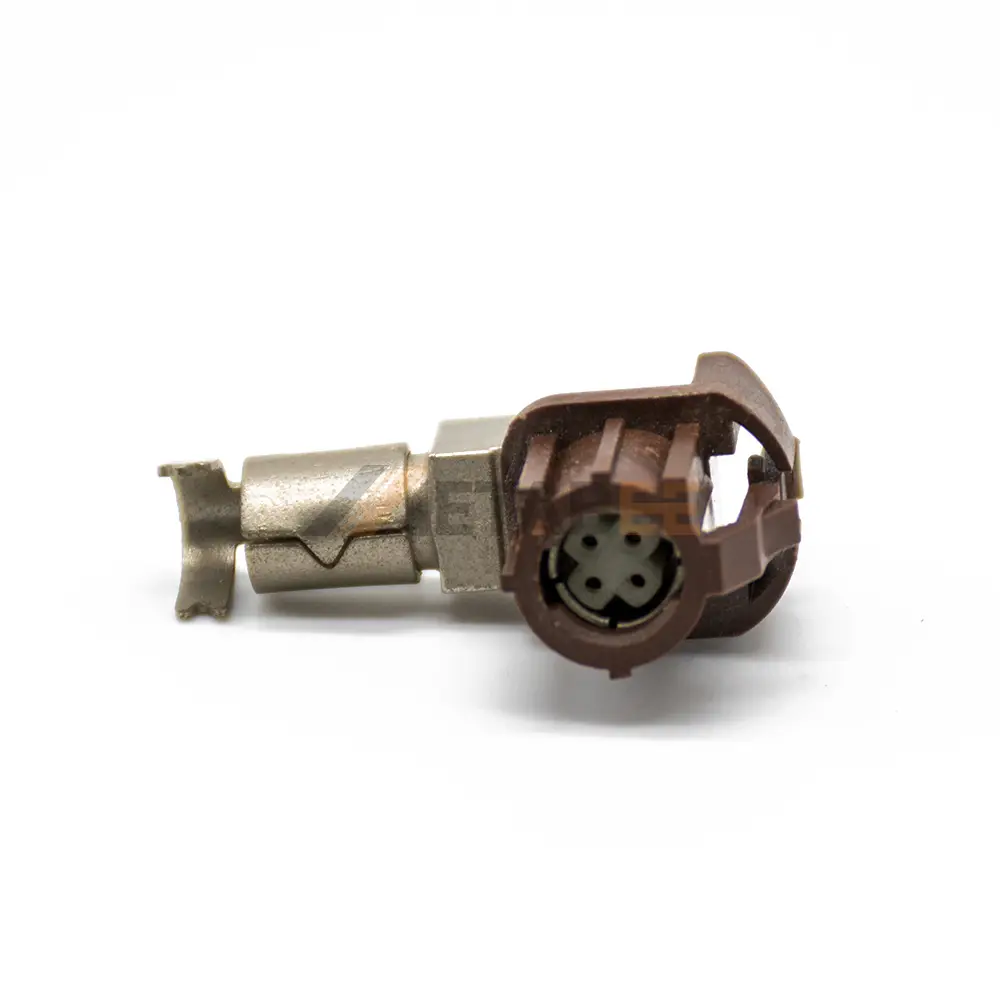

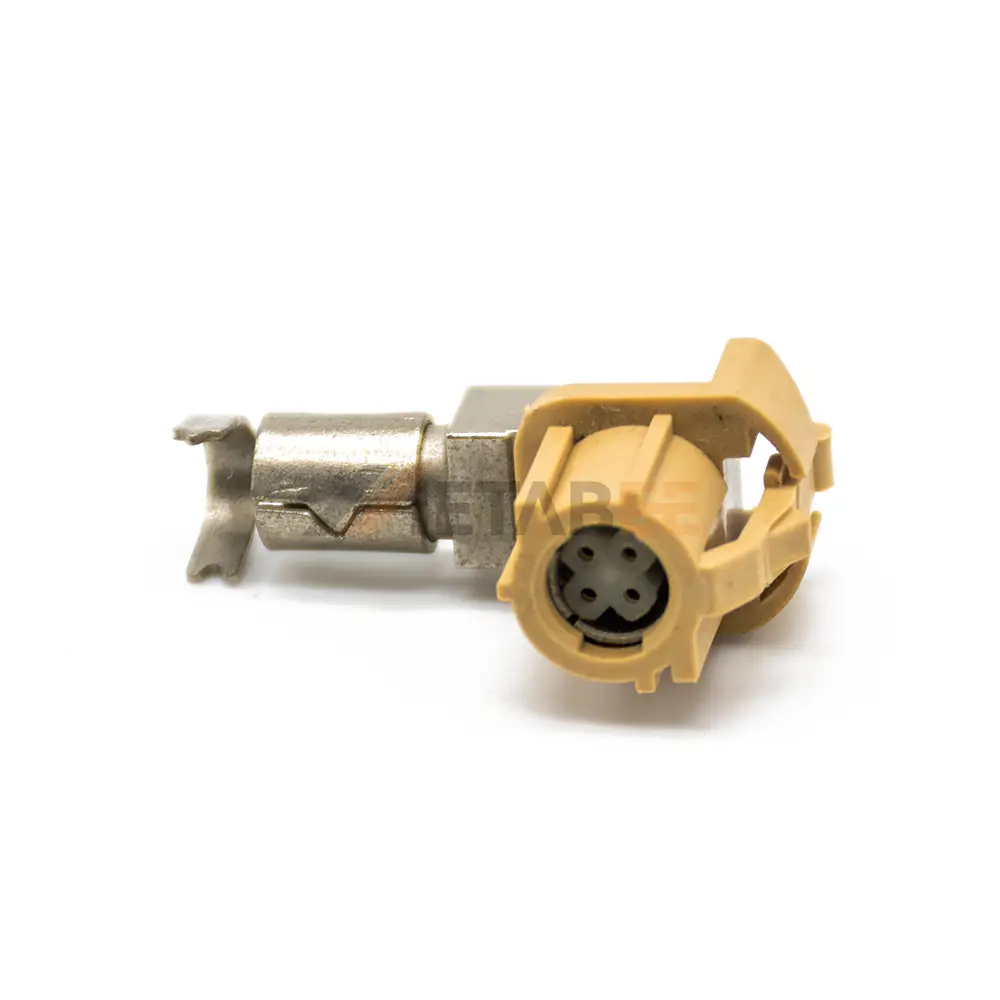

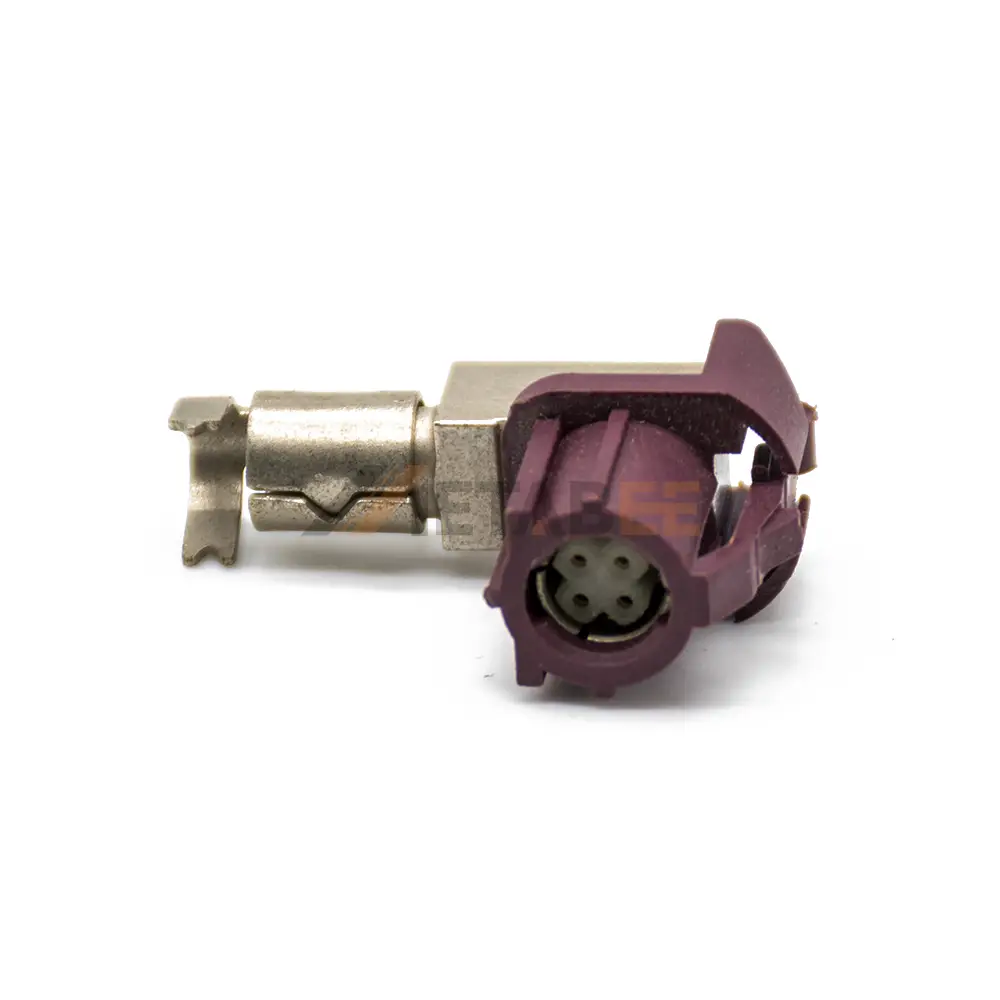

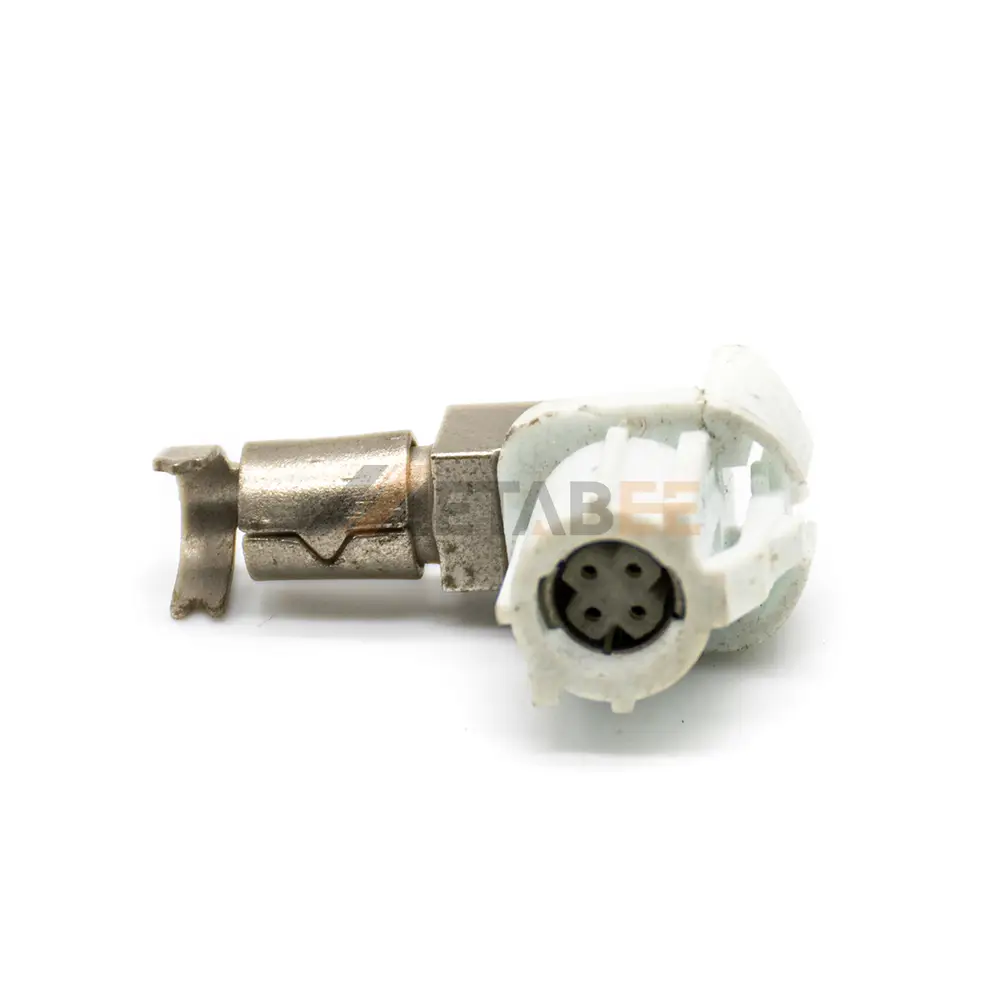

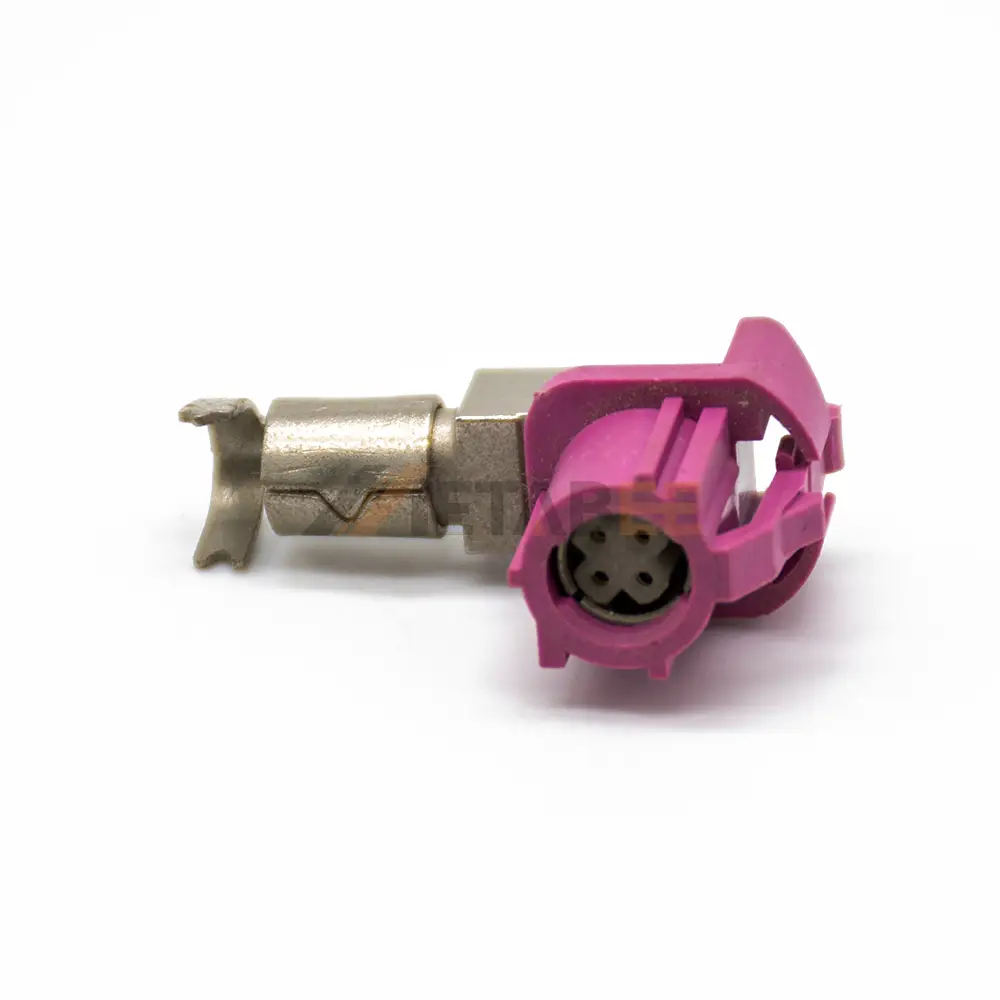

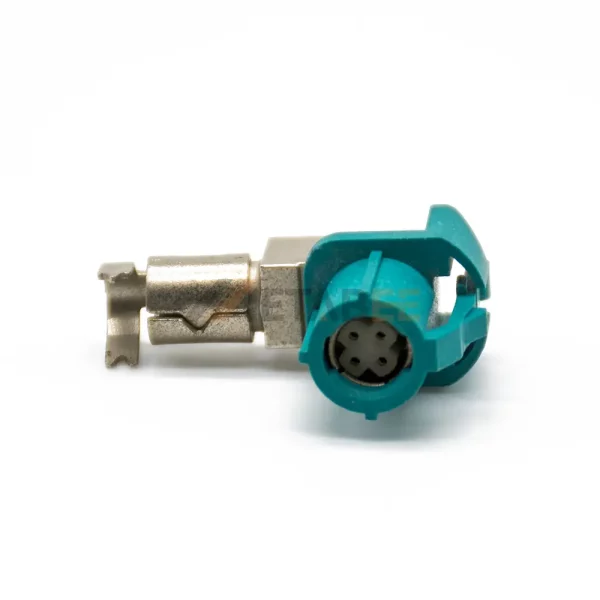

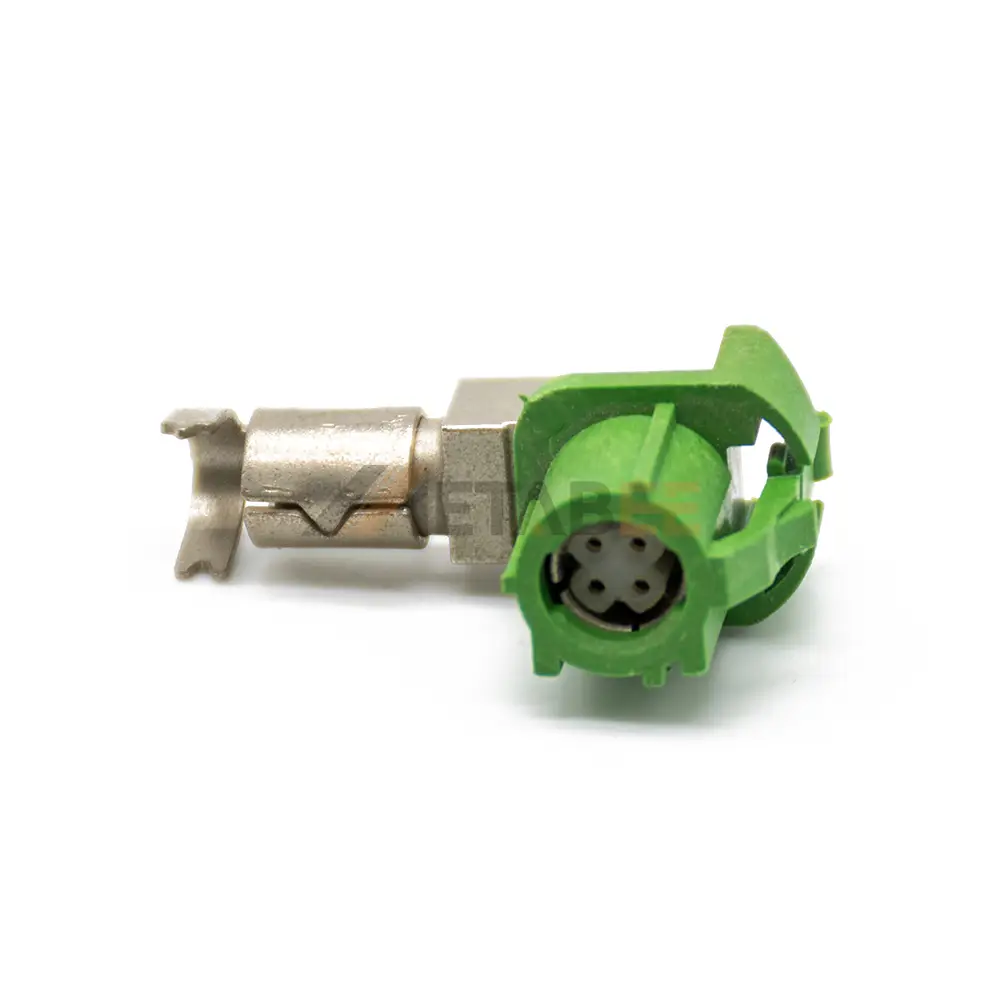

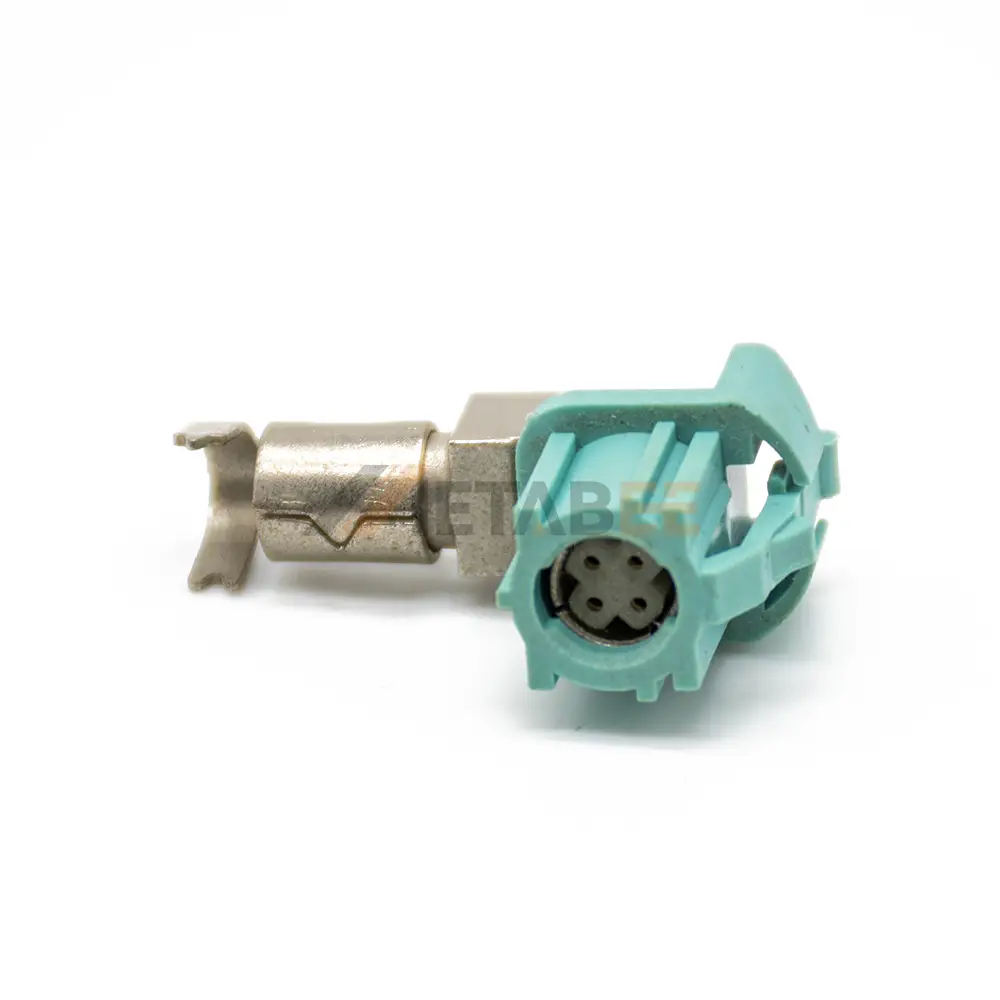

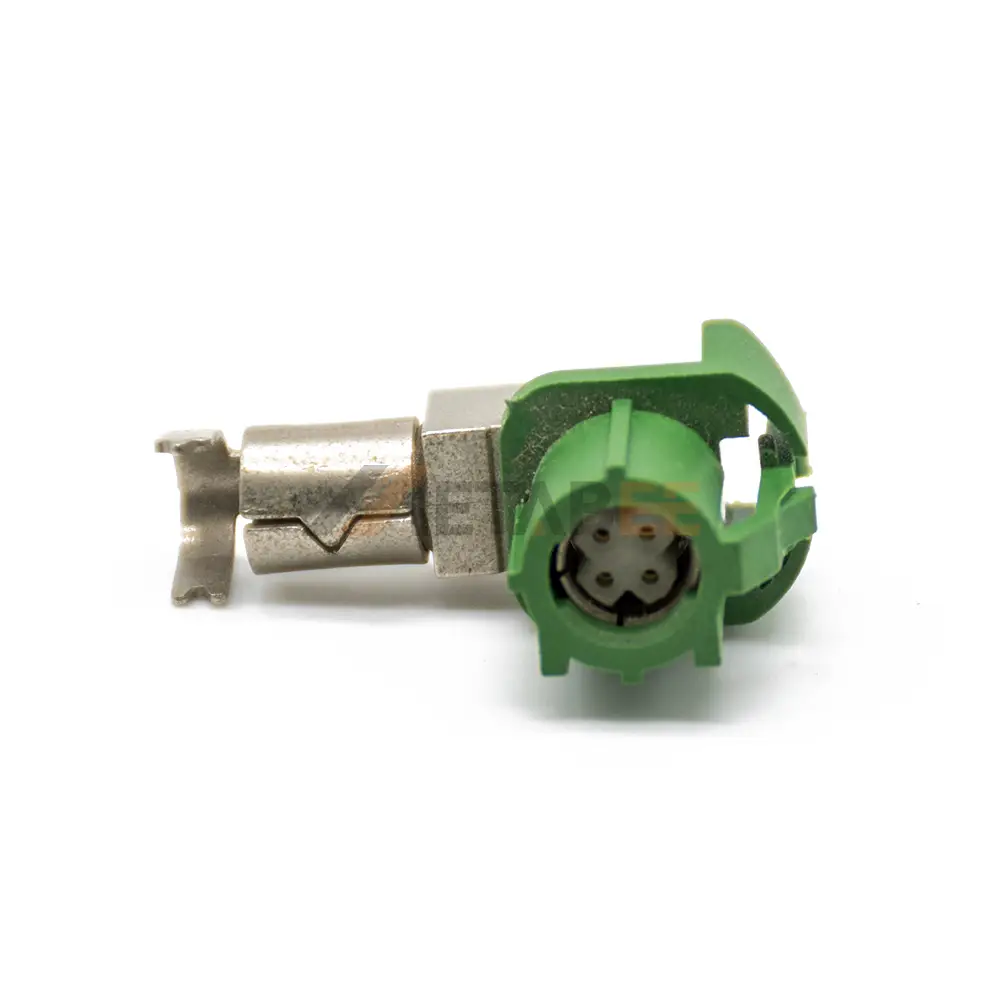

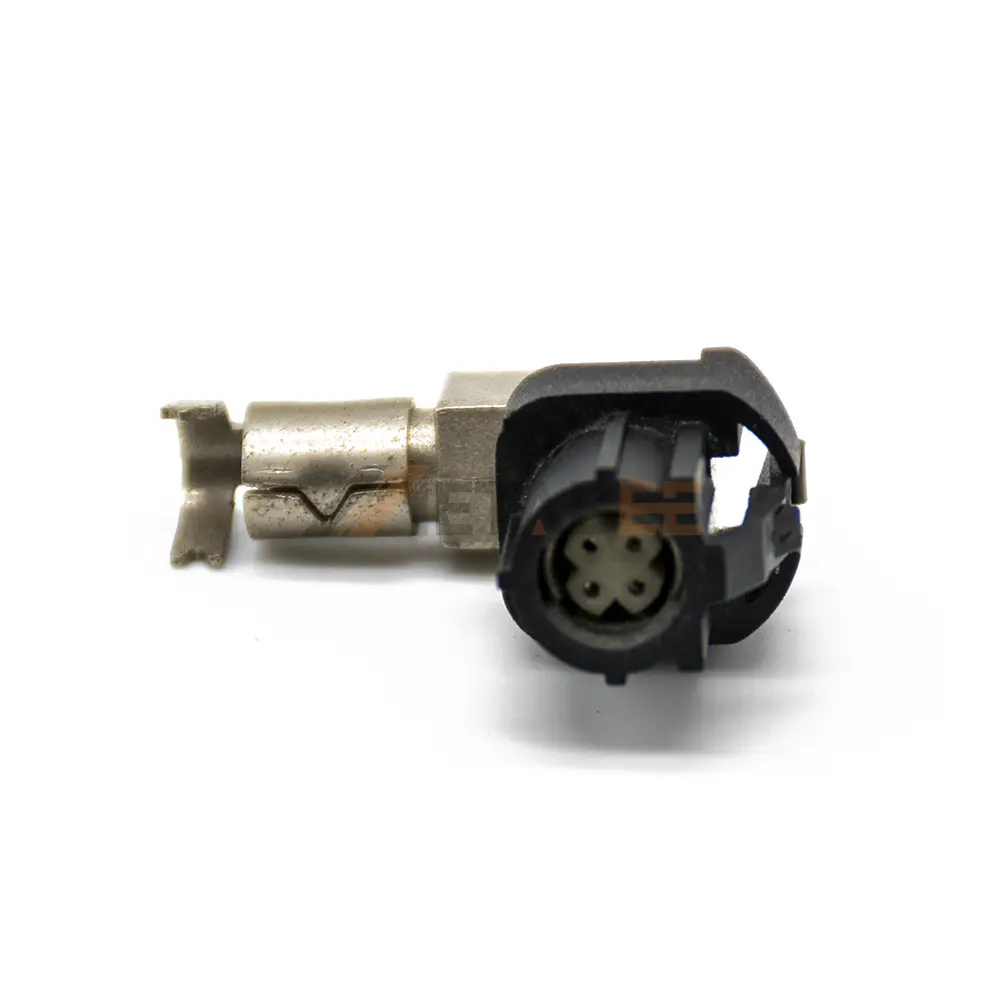

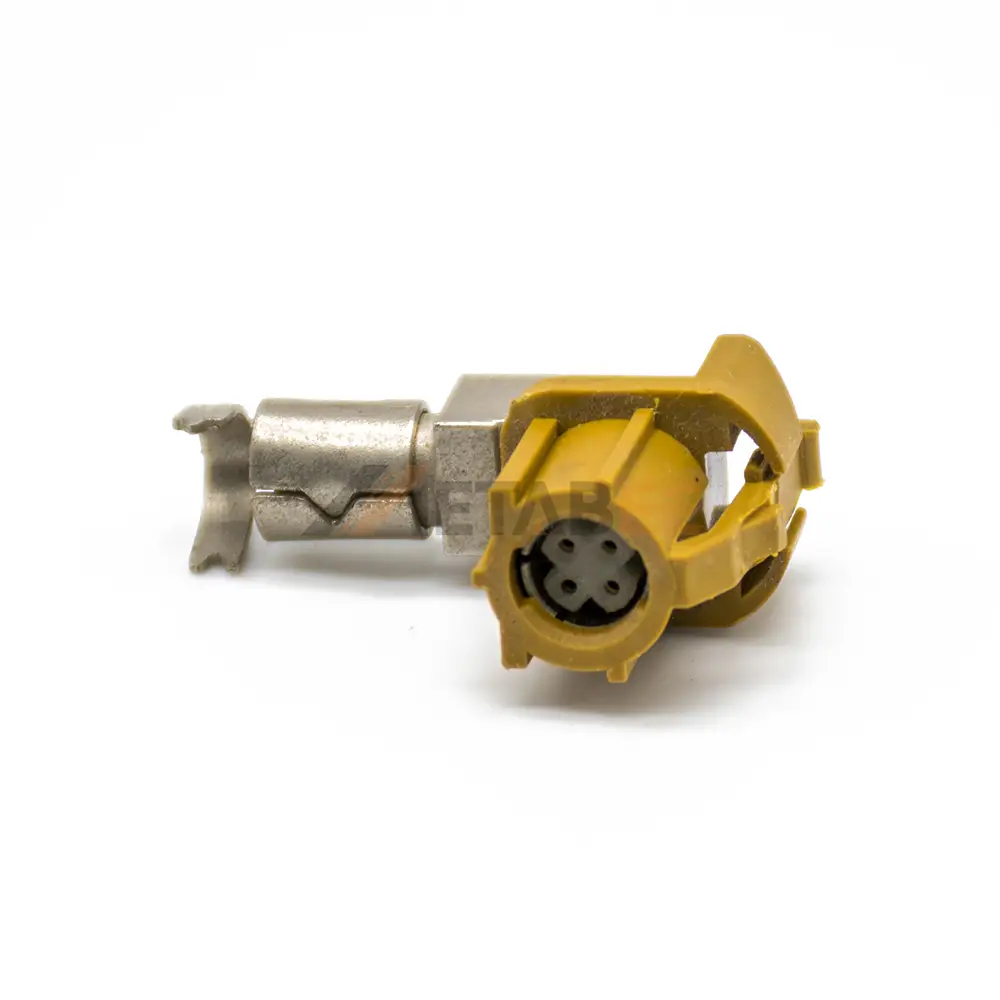

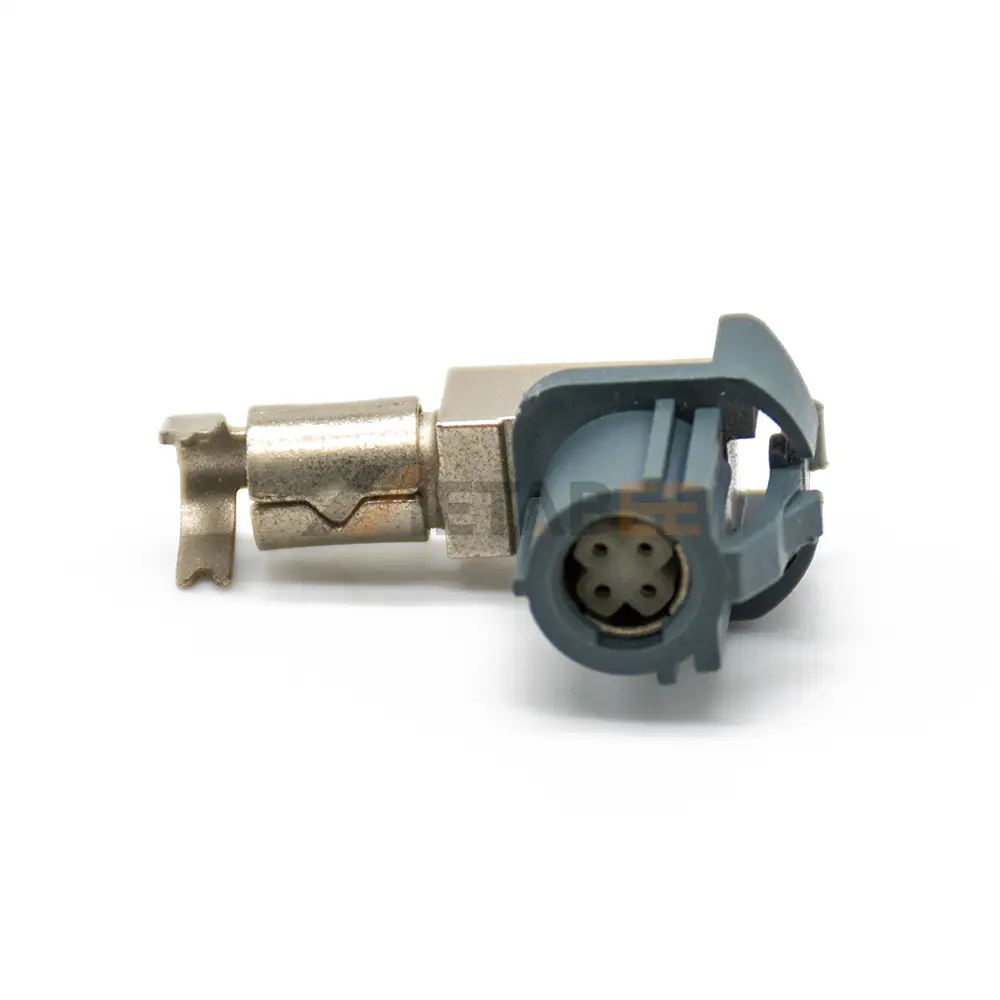

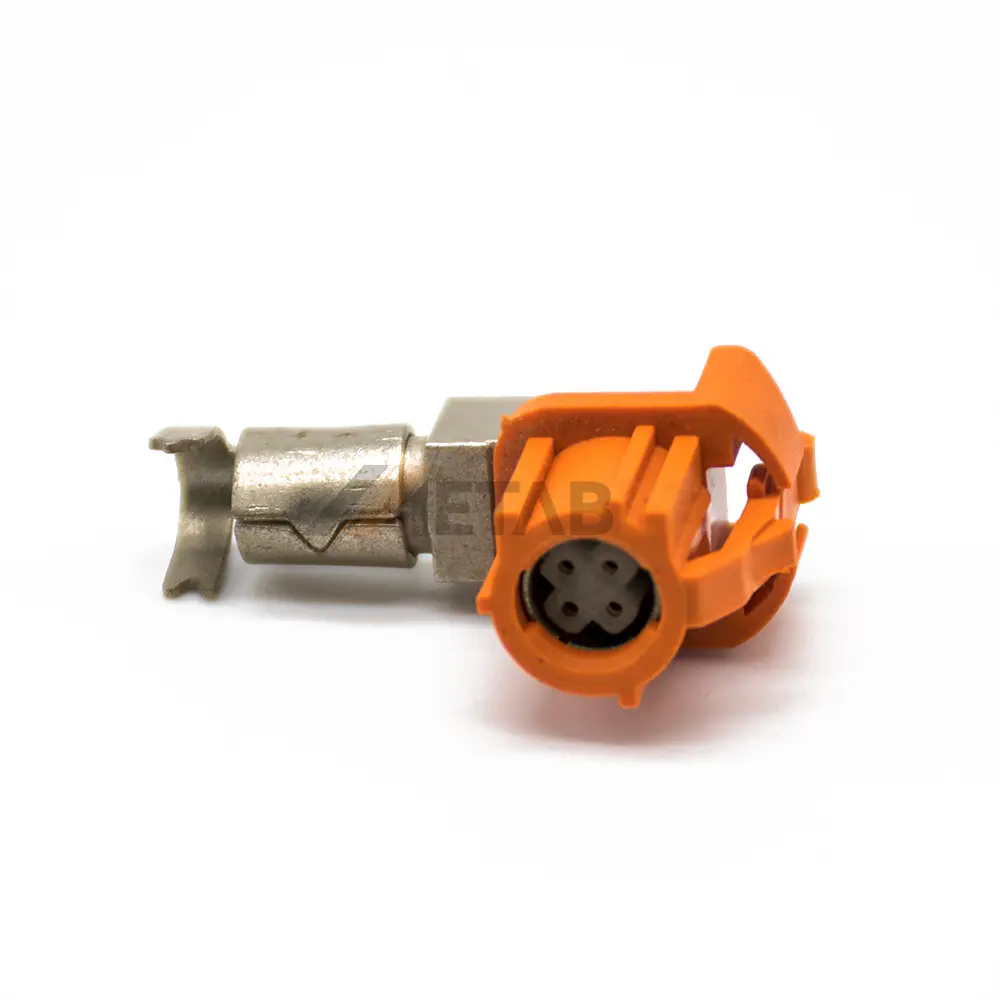

Fakra HSD 4 Pin Jack LVDS Connector for Cable, Right Angle, Solder
Introduction
The Fakra HSD LVDS Connector for Cable is a high-performance interconnect solution designed for reliable signal transmission in automotive and industrial applications. Featuring a 4-pin configuration, this right-angle jack connector ensures space-saving installation while maintaining excellent electrical performance. The connector is part of the HSD Connectors series, supporting keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z) to prevent mismating. Its PA plastic housing offers durability, while the zinc alloy outer conductor with nickel plating provides robust EMI shielding. The gold-plated copper alloy inner conductors ensure low contact resistance and stable signal integrity.
Engineered for high-frequency applications, this connector operates within a DC-2 GHz range, with a 100-ohm contact impedance for optimal signal fidelity. It withstands harsh environments with a wide operating temperature range (-40°C to +105°C). The solder termination ensures secure cable attachment, making it ideal for LVDS (Low-Voltage Differential Signaling) systems requiring high-speed data transfer.
Key Features:
- 4-pin right-angle jack connector for compact installations.
- 14 keying options (A-Z) to prevent incorrect mating.
- PA plastic housing with nickel-plated zinc alloy shield for durability and EMI protection.
- Gold-plated copper alloy inner conductors for superior conductivity.
- Solder termination ensures reliable cable connections.
- 100-ohm impedance and DC-2 GHz frequency range for high-speed signals.
- Wide operating temperature (-40°C to +105°C) for harsh environments.
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Jack | |
| Orientation: | Right Angle | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Fakra HSD 4 Pin Jack LVDS Connector for Cable:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
