Ethernet RJ45 Female Socket Connector, 8P8C, 1 Port, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port Ethernet RJ45 female socket connector designed for stable through hole mounting on networking circuit boards. It features a full brass shield with nickel plating that provides a robust barrier against electromagnetic interference to ensure signal clarity across all data paths. The Hi-temp thermoplastic housing is specifically engineered to survive intense industrial wave soldering temperatures without any structural warping. Phosphor Bronze contacts with a Gold over Nickel finish ensure high conductivity and a consistent 1.5A current rating within an impressive range of -40°C to +125°C. Utilizing a Tab-Up right angle configuration, this unit optimizes board surface area while maintaining an insulation resistance of 500MΩ Min. Technicians utilize this modular interface for industrial automation systems and telecommunication hardware requiring secure, shielded 8P8C connectivity.
Key Features
- Tab-Up Orientation: Optimizes vertical space for specialized board layouts.
- Full EMI Shielding: Blocks external noise with a nickel-plated brass shell.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Wide Temperature Range: Performs reliably between -40°C and +125°C.
- Hi-Temp Material: Survives intense heat during industrial soldering processes.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-PG-HT, MTJ-88ARX1-FSM-PG-HT-D | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max / 30mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +125℃ / -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

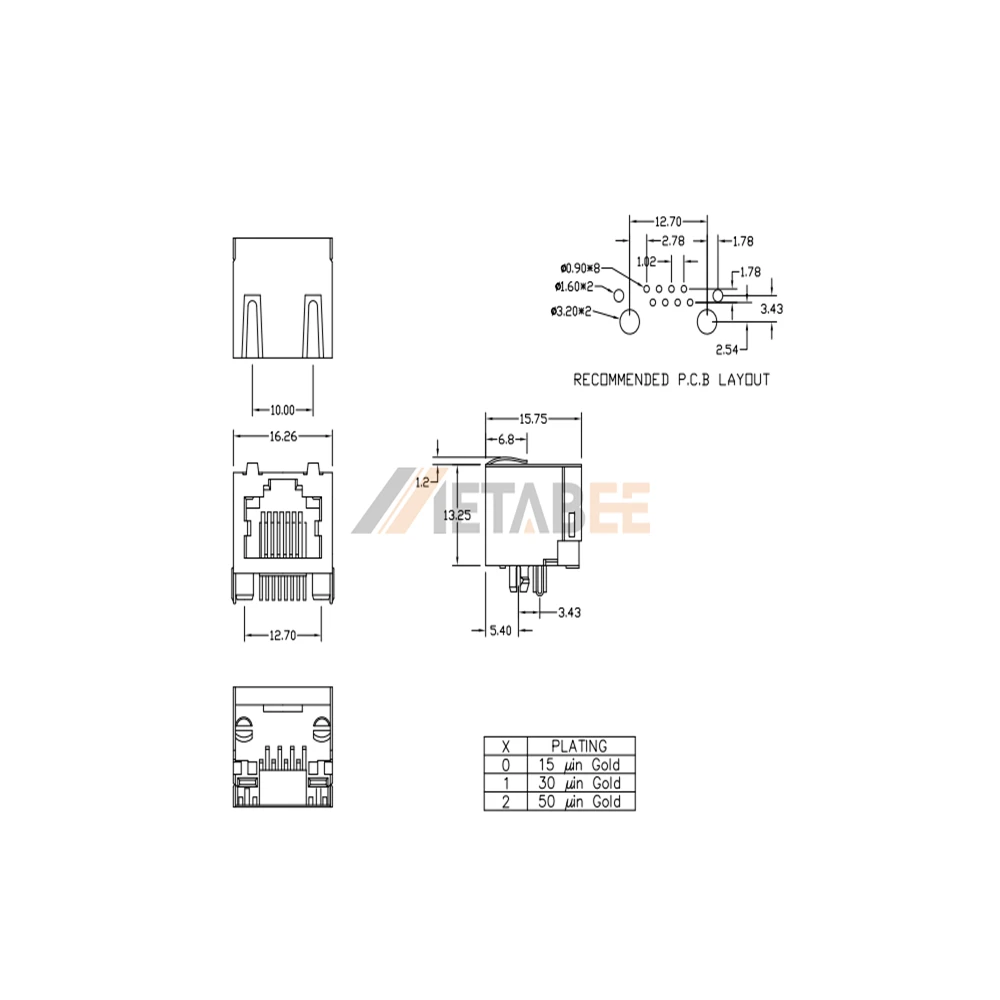

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
