Introduction:
Simplifying network board layouts is much easier with an Ethernet magnetic RJ45 jack that handles signal isolation in one compact unit. Internal transformers effectively clean up 10/100 Base-T data streams while blocking electrical spikes from damaging sensitive components. The stainless steel shell features EMI fingers to provide a rugged shield against external noise in busy environments. High-temperature thermoplastic housing ensures the connector survives industrial soldering processes without any issues. Monitoring the connection status is fast because of the integrated green and yellow LEDs positioned on the front. Because it includes a board lock, the right angle jack remains securely fixed to the PCB during daily operation.
Key Features
- Integrated Magnetics: Filters signal noise for stable 10/100 Base-T networking.
- Full EMI Shielding: Stainless steel shell blocks interference for data integrity.
- Status Indicator LEDs: Green and yellow lights show network activity instantly.
- Secure Board Lock: Ensures a strong mechanical bond to the PCB.
- Hi-Temp Housing: Rugged thermoplastic survives demanding industrial soldering processes.

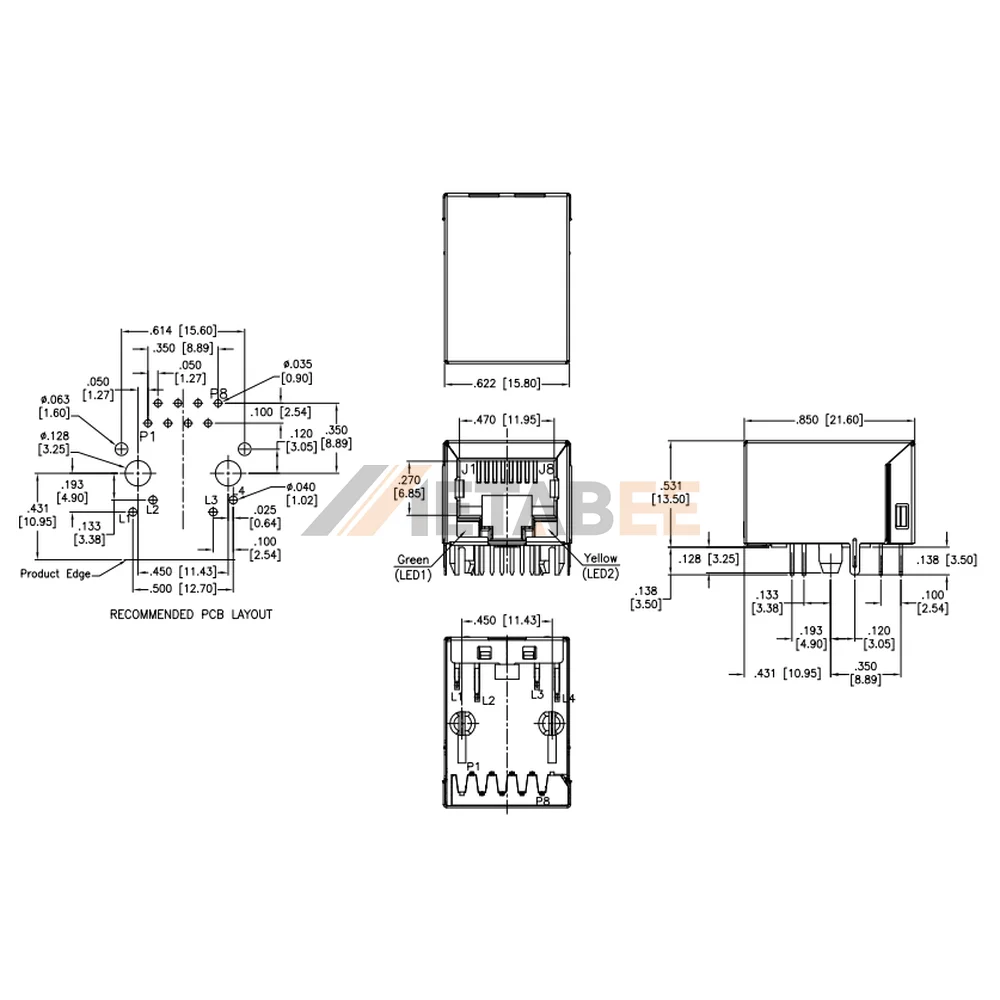

Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-D1LH-M4-HT-A | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
