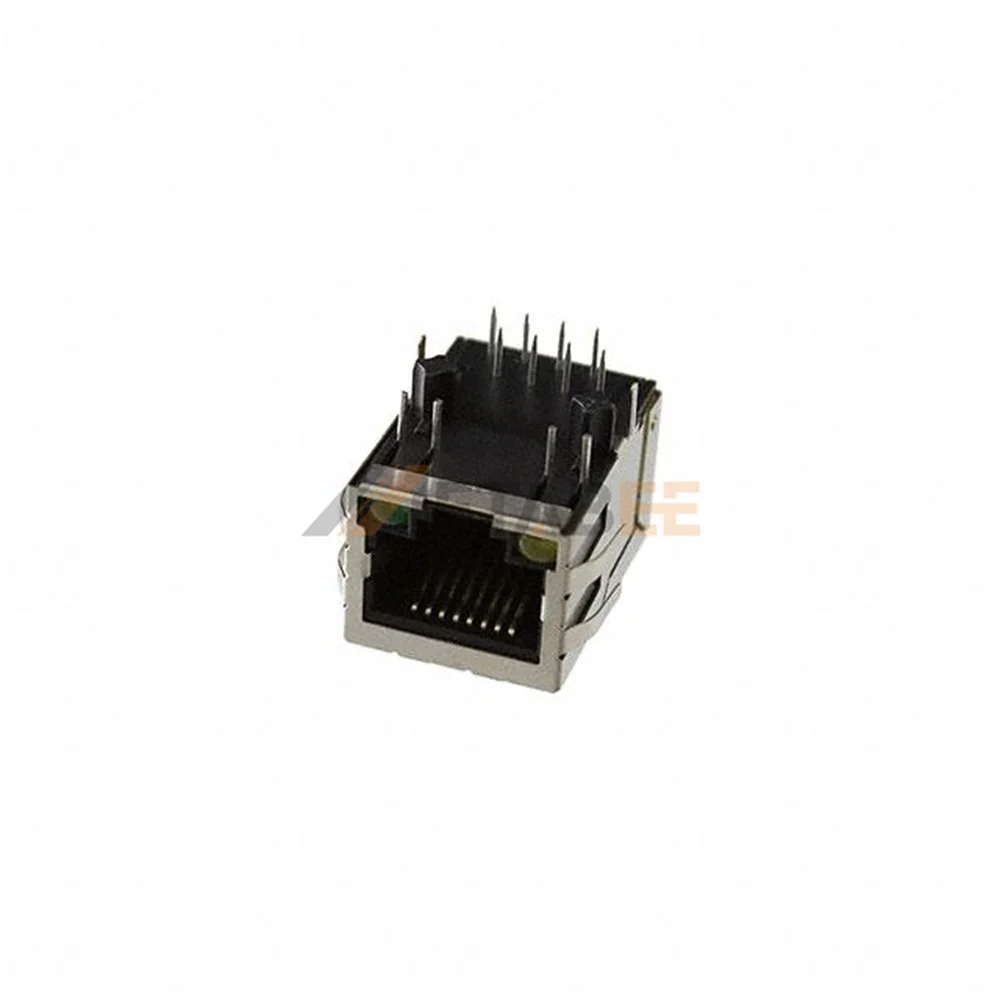

Ethernet Jack RJ45 with Magnetics, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Yellow/Green LEDs
Introduction:
Filtering network noise becomes much simpler with this Ethernet RJ45 with magnetics. Built-in transformers manage 10/100 Base-T signals while providing crucial electrical isolation to safeguard internal chips. A rugged brass shell featuring EMI fingers blocks outside interference to ensure a clear connection in busy data environments. Designers can easily check link activity using the integrated yellow and green indicators. Since it uses a right angle through hole design, the jack provides a stable mechanical fit while saving room on the circuit board. Solder retention features and board guides help keep the connector securely attached during the manufacturing process.
Key Features
- Integrated Magnetics: Filters signal noise for stable 10/100 Base-T links.
- Full EMI Shielding: Blocks interference using a nickel-plated brass shell.
- Status Indicator LEDs: Yellow and green lights show network activity.
- Right Angle Layout: Saves valuable space on compact networking boards.
- Board Guide System: Ensures a secure and stable mechanical fit.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LG-M48 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Board Guide |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
