Introduction:
A robust network link is established using the single-port RJ45 connector with integrated magnetics, which efficiently supports 10/100 Base-T PoE applications. Protection against electromagnetic interference comes from a premium nickel-plated SUS304 stainless steel shield. The black hi-temp thermoplastic housing incorporates a board lock to ensure strict mechanical stability during through-hole printed circuit board mounting. Visual status updates are clearly displayed by green/orange and yellow LEDs housed inside the tab-up profile. Gold-plated phosphor bronze contacts ultimately guarantee reliable signal continuity across the standard 0°C to 70°C commercial temperature range.
Key Features
- 10/100 Base-T PoE: Powers compatible standard Fast Ethernet devices.
- SUS304 Metal Shielding: Nickel-plated stainless steel blocks EMI effectively.
- Hi-temp Thermoplastic: Durable housing withstands severe soldering heat.
- Multi-color LED Status: Green/orange and yellow lights track activity.
- Secure THT Mounting: Integrated board lock ensures strong PCB retention.
Main Specifications:
General Information:
| Product No.: | MTJ-88SUX1-FS-PG-VL29-M252Y-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green/Orange, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless, SUS304, Nickel Plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

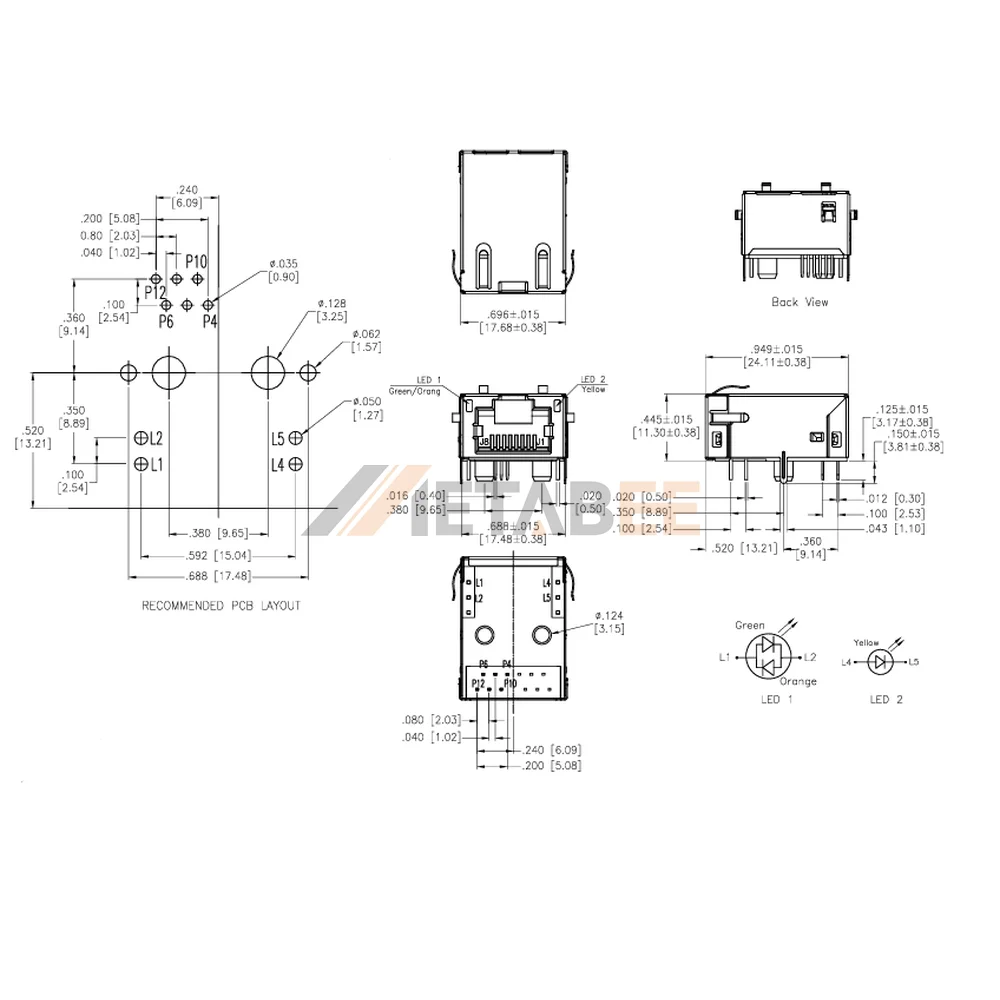

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
