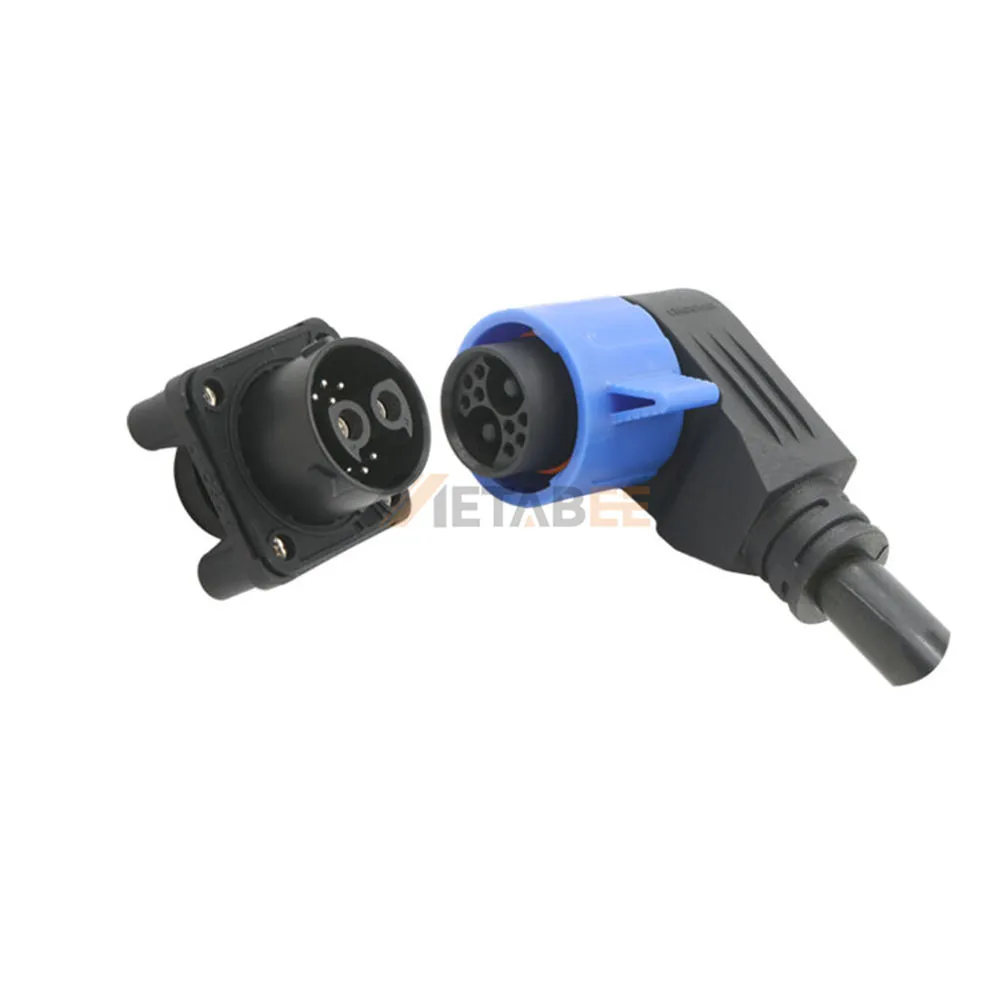

Electric Motorcycle Power BMS DC Charging Plug/Receptacle, 2+7 Pin, IP67
Introduction
This electric motorcycle power bms dc charging plug and receptacle provides safe power transfer and smart signal monitoring. Engineered with a specialized 2+7 pin configuration, it combines high-current delivery with seven dedicated bms data lines for balanced charging and battery health management.
Built to withstand demanding outdoor and road conditions, the connector ensures reliable electrical performance while resisting moisture ingress, vibration, and thermal stress during fast charging cycles.
Key Features:
- 2+7 pin configuration for power and bms signals
- Ip67 waterproof and dustproof sealed protection
- Wide operating temperature range from -40°c to 105°c
- Ul94v-0 high-grade flame-retardant housing
- Stable low-resistance contacts for dc charging
- Durable shock-resistant build for electric motorcycles
Main Specifications:
General Information:
| Part No.: | YC-E1001-0011 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+7 Pin | |
| Wire Gauge: | Power 9AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 80V DC | |
| Rated Current: | 50A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥5000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
