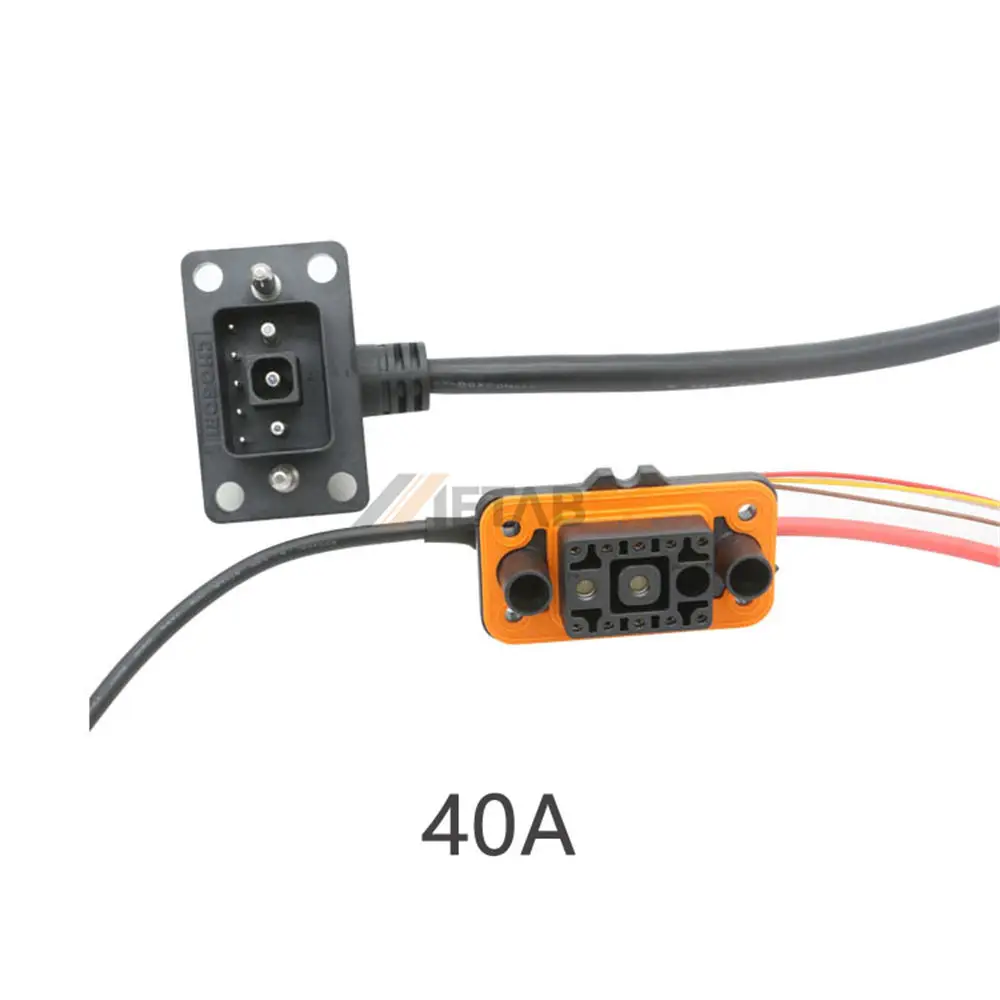

Electric Motorcycle Hybrid Power & Signal Charger, 2+5 Pin
Introduction
The Electric Motorcycle Hybrid Power & Signal Charger is designed for reliable electrical connectivity in electric motorcycle battery and charging systems. Featuring a 2+5 pin configuration, this hybrid connector integrates power and signal transmission into a compact interface, supporting efficient connections for electric mobility applications.
With an IPX5 protection rating, the connector resists water jets from any direction under specified test conditions. Its UL94V-0 flame-retardant material enhances fire safety, while the wide operating temperature range of -40°C to +105°C supports dependable performance in demanding environments.
Key Features:
- 2+5 Pin Configuration: Combines power and signal connections.
- Hybrid Connectivity: Integrates power and signal transmission.
- IPX5 Protection: Resists water jets from any direction.
- UL94V-0 Flame Retardancy: Enhances fire safety.
- Wide Temperature Range: Operates from -40°C to +105°C.
- Electric Motorcycle Application: Suitable for battery and charging systems.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0040 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+5 Pin | |
| Wire Gauge: | Power 10mm²/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 72V DC | |
| Rated Current: | 40A+5A | |
| Insulation Resistance: | 100MΩ at DC 500V | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | 5000 Cycles |
Environmental Performance:
| IP Rating: | IPX5 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
