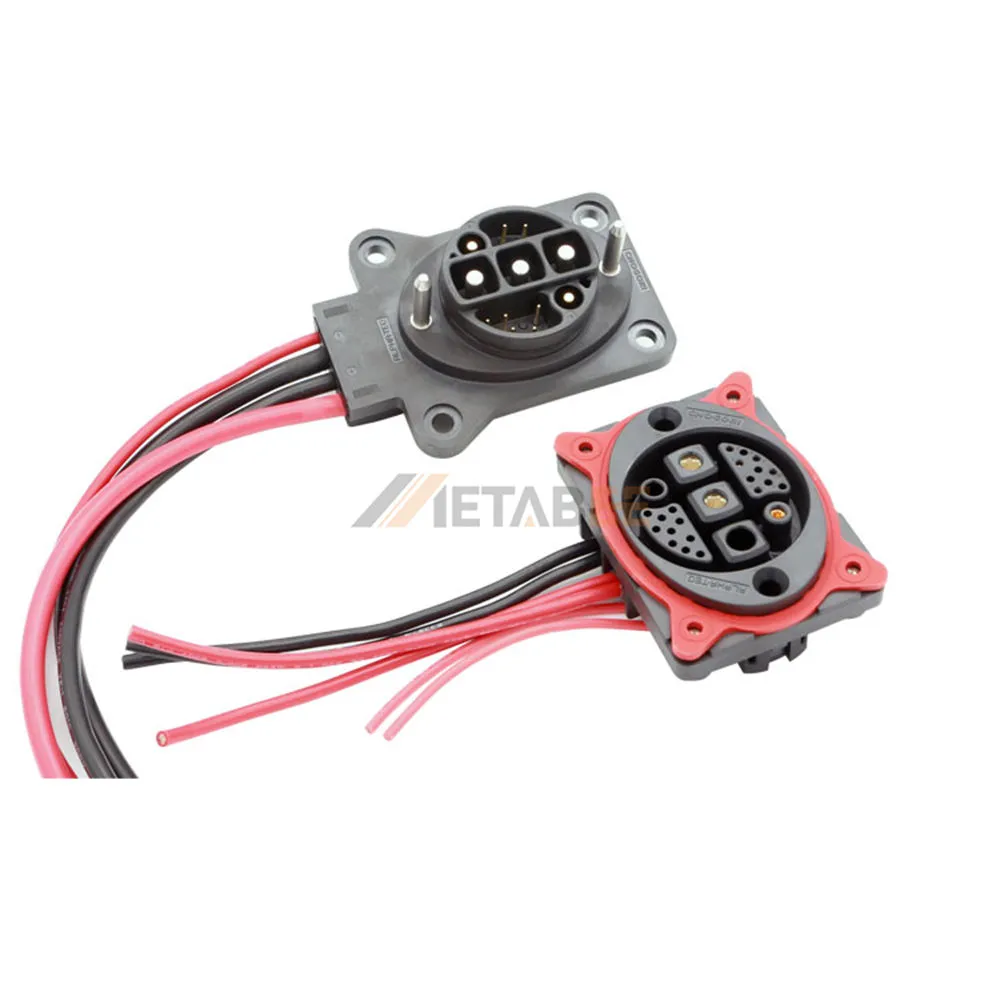

Electric Motorcycle Hybrid Charger for Signal & Power Transmission, 2+1+10 Pin, IPX5
Introduction
The Electric motorcycle hybrid charger for signal & power transmission, 2+1+10 pin, IPX5 is designed for integrated power delivery and signal transmission in electric motorcycle systems. Its hybrid configuration combines power and signal contacts in one connector, supporting efficient wiring and reliable electrical connections.
Featuring an IPX5 protection rating against water jets, this connector is suitable for electric motorcycle applications exposed to challenging environmental conditions. Its UL94V-0 flame-retardant rating and operating temperature range of -40°C to +105°C support dependable performance across a wide range of operating environments.
Key Features:
- Pin Configuration: 2+1+10 pin hybrid design
- Function: Combined power and signal transmission
- Protection Rating: IPX5 water-jet protection
- Flame Retardancy: UL94V-0 rated
- Operating Temperature: -40°C to +105°C
- Application: Electric motorcycle electrical and charging systems
Main Specifications:
General Information:
| Part No.: | YC-E1001-0039 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+10 Pin | |
| Wire Gauge: | Power 25mm²/Max, Signal 22AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V DC (Power), 100V DC (Signal) |
|
| Rated Current: | 100A+30A+2A | |
| Insulation Resistance: | >500MΩ at DC 500V | |
| Withstanding Voltage: | 2,000V AC | |
| Durability (Mating): | 5000 Cycles |
Environmental Performance:
| IP Rating: | IPX5 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
