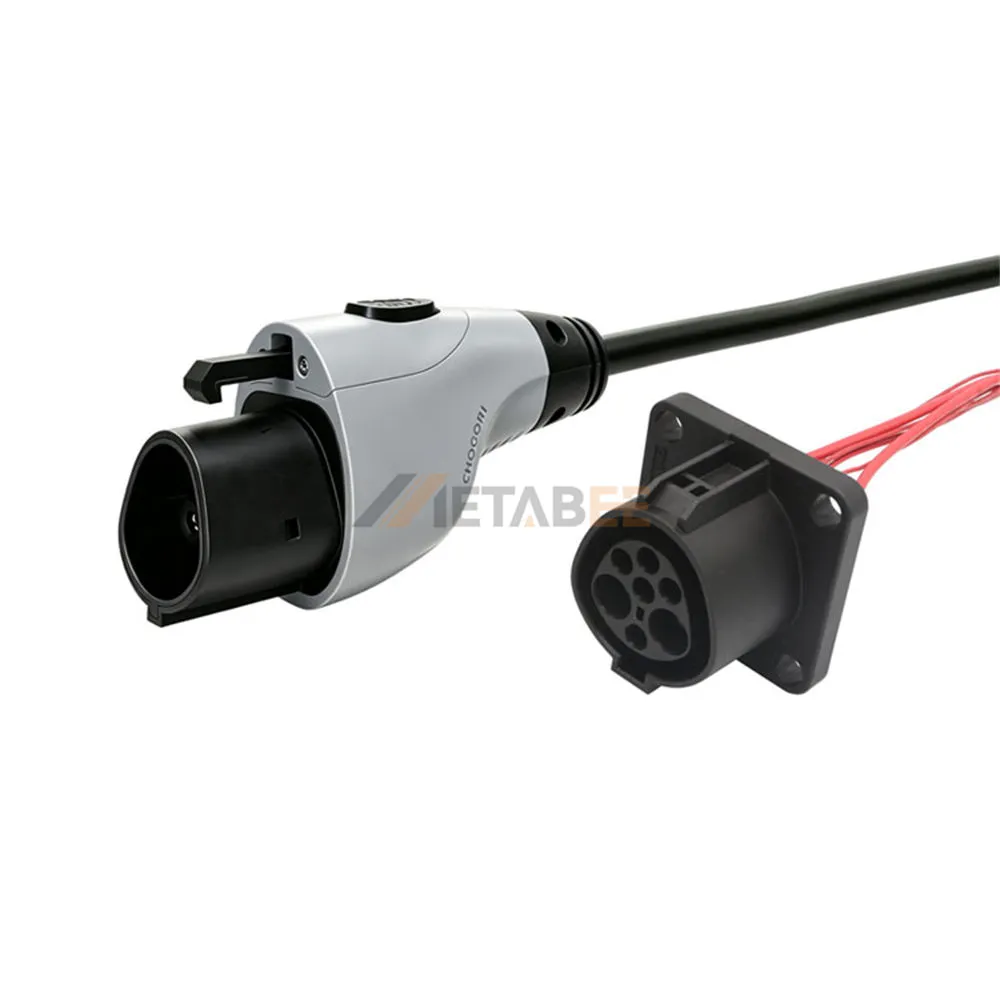

Electric Motorcycle DC Fast Charging Gun, 2+5 Pin, IP55
Introduction
The Electric motorcycle dc fast charging gun, 2+5 pin, IP55 is designed for DC charging applications in electric motorcycles. Its 2+5 pin configuration integrates power and signal connections into one connector, supporting efficient electrical connectivity for electric vehicle charging systems.
With an IP55 protection rating, this charging connector provides protection against dust ingress and water jets. Its UL94V-0 flame-retardant rating and operating temperature range of -40°C to +105°C support reliable performance in demanding operating environments.
Key Features:
- Pin Configuration: 2+5 pin
- Application: Electric motorcycle DC charging
- Protection Rating: IP55 dust and water protection
- Flame Retardancy: UL94V-0 rated
- Operating Temperature: -40°C to +105°C
- Connector Function: Integrated power and signal transmission
Main Specifications:
General Information:
| Part No.: | YC-E1001-0043 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+5 Pin | |
| Wire Gauge: | Power 12mm²/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 120V DC (Power), 30V DC (Signal) |
|
| Rated Current: | 100A+25A+5A | |
| Insulation Resistance: | >100MΩ at 500V DC | |
| Withstanding Voltage: | 2,000V AC (Power), 500V AC (Signal) |
|
| Durability (Mating): | 10000 Cycles |
Environmental Performance:
| IP Rating: | IP55 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
