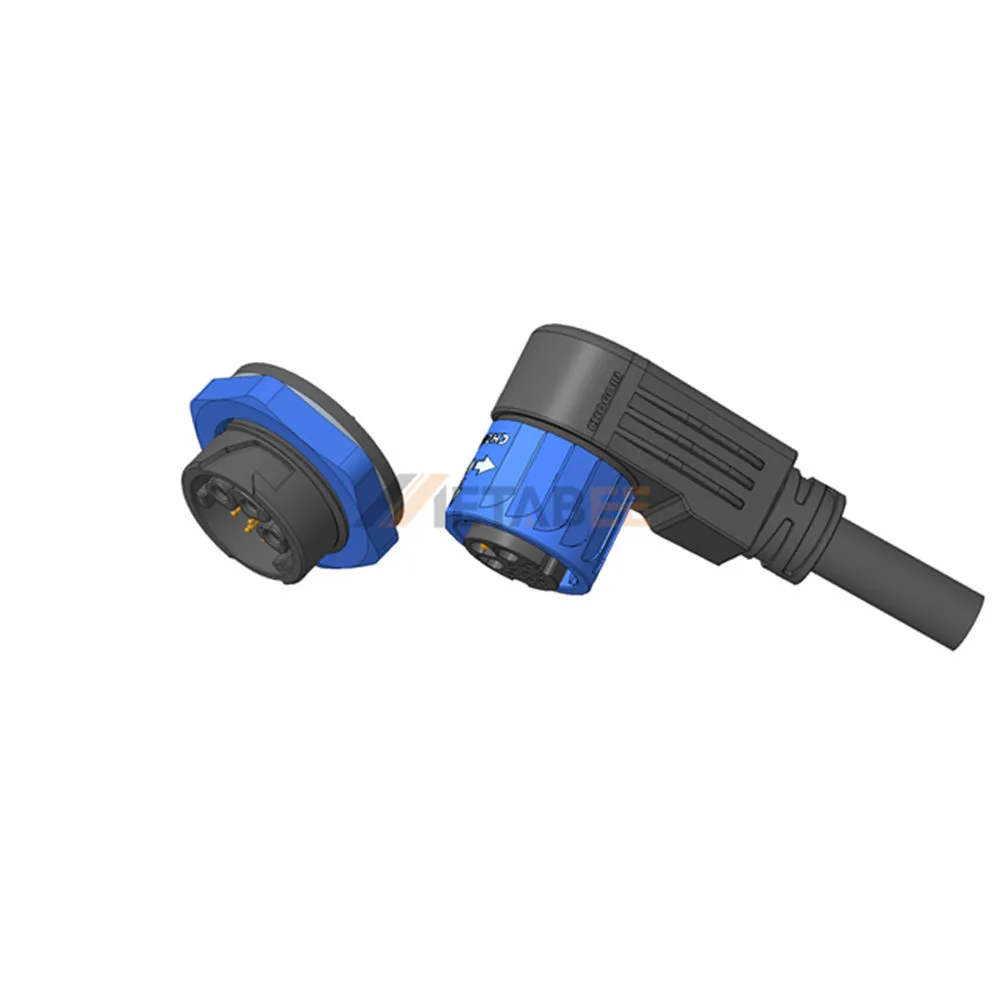

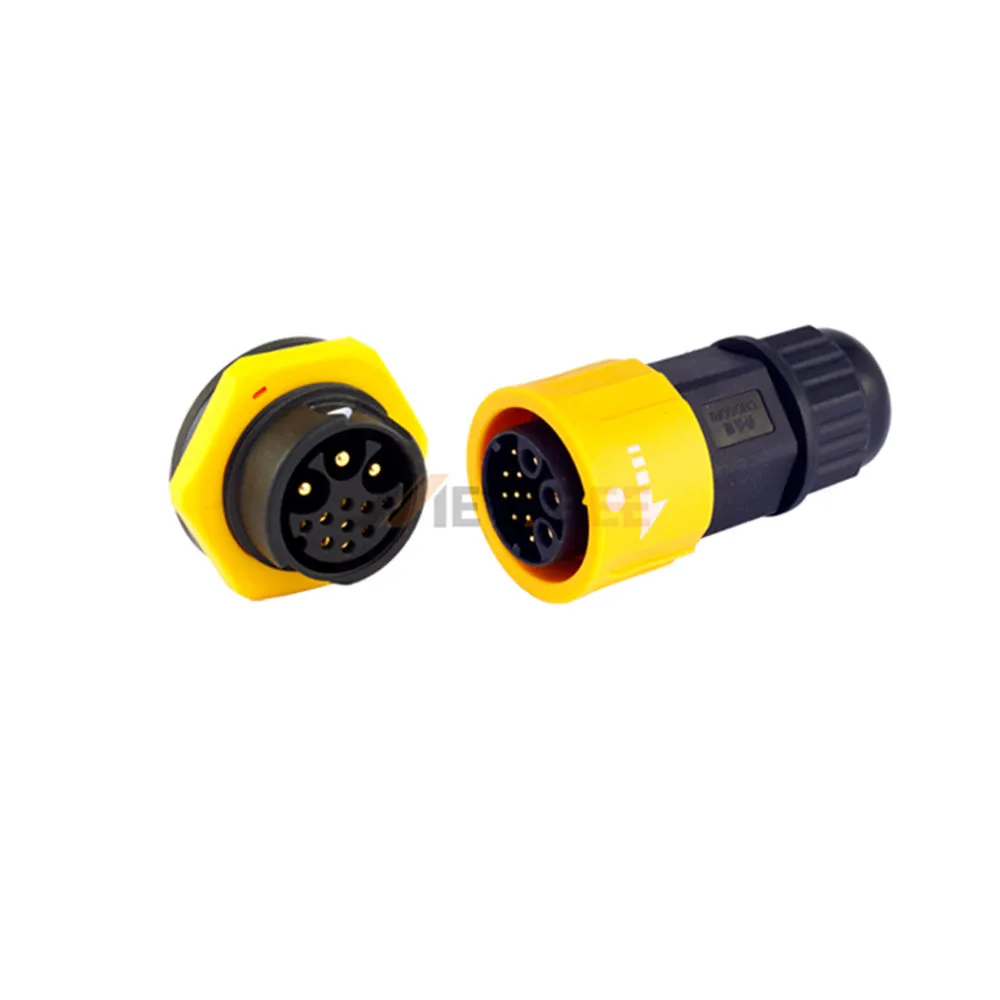

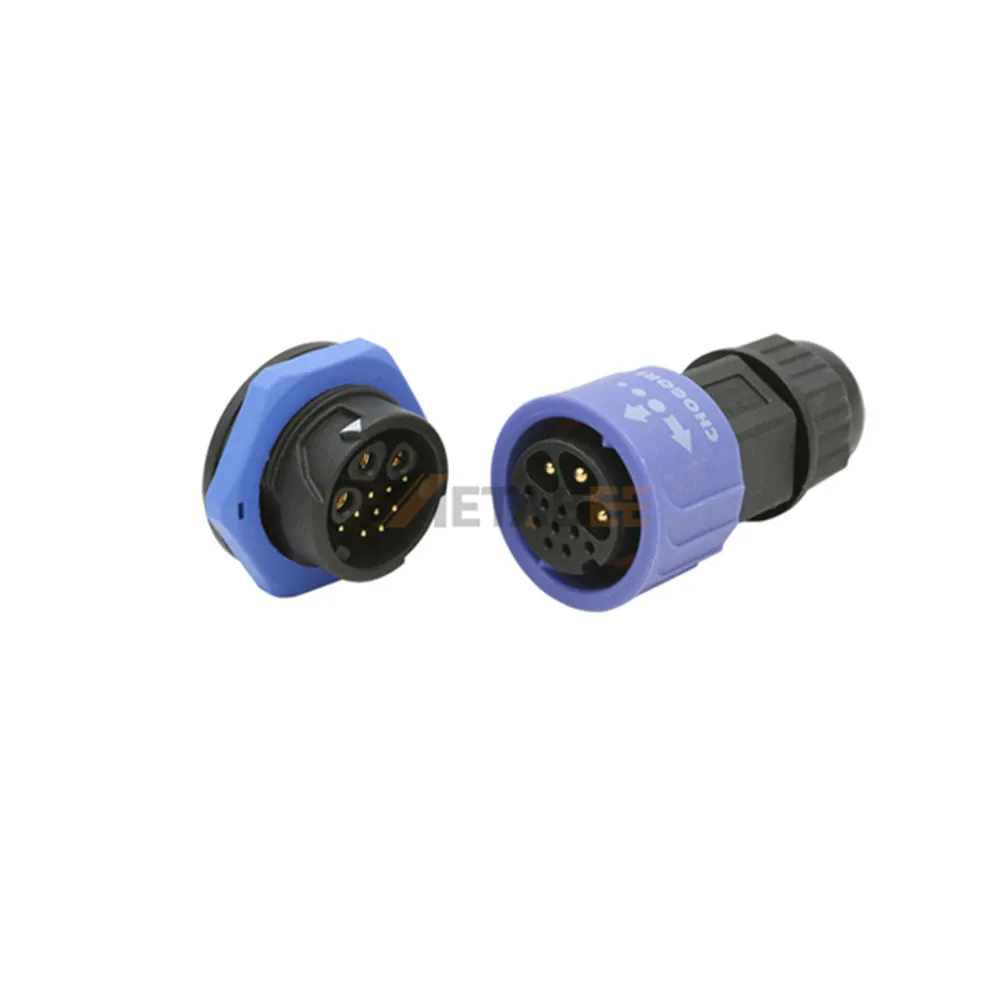

Electric Motorcycle Circular Battery Power Signal Charger, 3+9 Pin, Push Lock, IP67
Introduction
The Electric Motorcycle Circular Battery Power Signal Charger is designed for reliable power and signal transmission in electric motorcycle battery and charging systems. Featuring a circular connector design and push-lock mechanism, it provides secure mating and convenient connection for demanding electrical applications. Its hybrid interface integrates power and signal contacts into a compact connector solution.
With an IP67 protection rating, this connector offers dust-tight protection and resistance to temporary water immersion under specified test conditions. The UL94V-0 flame-retardant material enhances fire safety, while the wide operating temperature range of -40°C to +105°C supports dependable performance in challenging environments.
Key Features:
- 3+9 Pin Configuration: Integrates power and signal contacts.
- Push-Lock Design: Supports secure and convenient mating.
- IP67 Protection: Provides dust-tight and water immersion protection.
- UL94V-0 Flame Retardancy: Enhances fire safety.
- Wide Temperature Range: Operates from -40°C to +105°C.
- Electric Motorcycle Compatibility: Suitable for battery and charging connections.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0015 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 3+9 Pin | |
| Wire Gauge: | Power 12AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V+30V | |
| Rated Current: | 20A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 2,000V AC | |
| Durability (Mating): | 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
