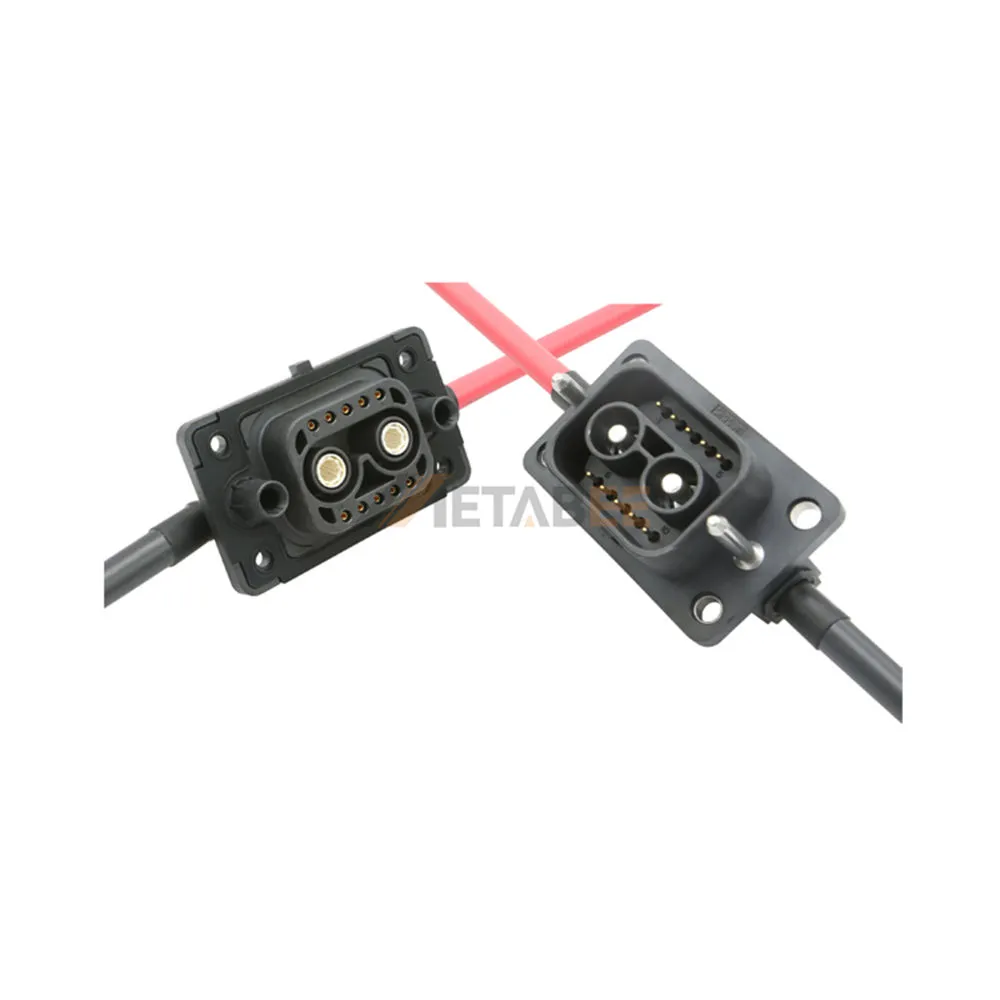

Electric Motorcycle Battery Power & Signal Charging Connector, 2+10 Pin, IP67
Introduction
Electric motorcycle battery power & signal charging connector, 2+10 pin, IP67. This connector combines two high-current power pins with ten signal pins in a single interface, supporting simultaneous battery charging and data communication. UL94V-0 flame-retardant housing and IP67 sealing ensure safe, dust-tight, and water-resistant performance in harsh riding conditions. Rated for -40°C to 105°C, it delivers stable operation across extreme temperature ranges.
Key Features:
- 2+10 pin hybrid layout for power and signal
- IP67 dust-tight and waterproof protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Stable high-current charging performance
- Reliable signal transmission in one connector
Main Specifications:
General Information:
| Part No.: | YC-E1001-0038 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+10 Pin | |
| Wire Gauge: | Power 25mm²/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 80V DC | |
| Rated Current: | 100A+5A | |
| Insulation Resistance: | >500MΩ at DC 500V | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | 5000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
