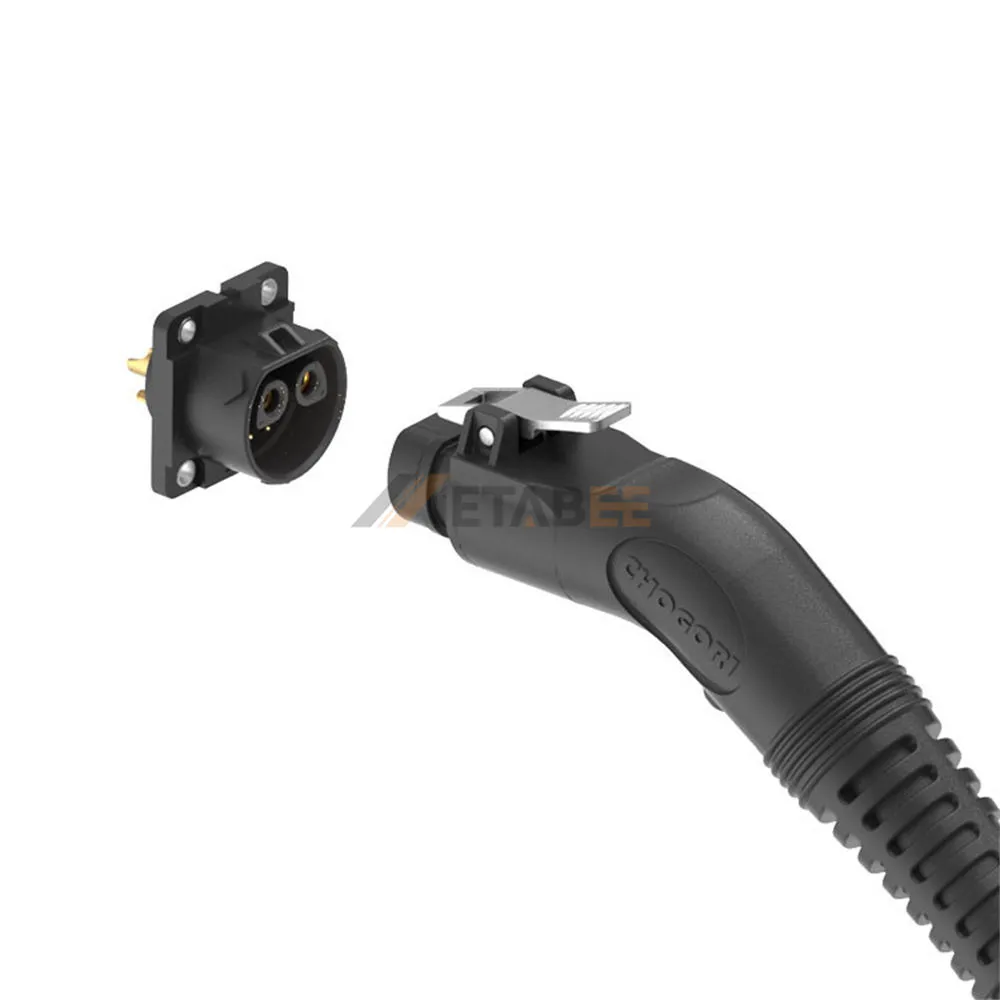

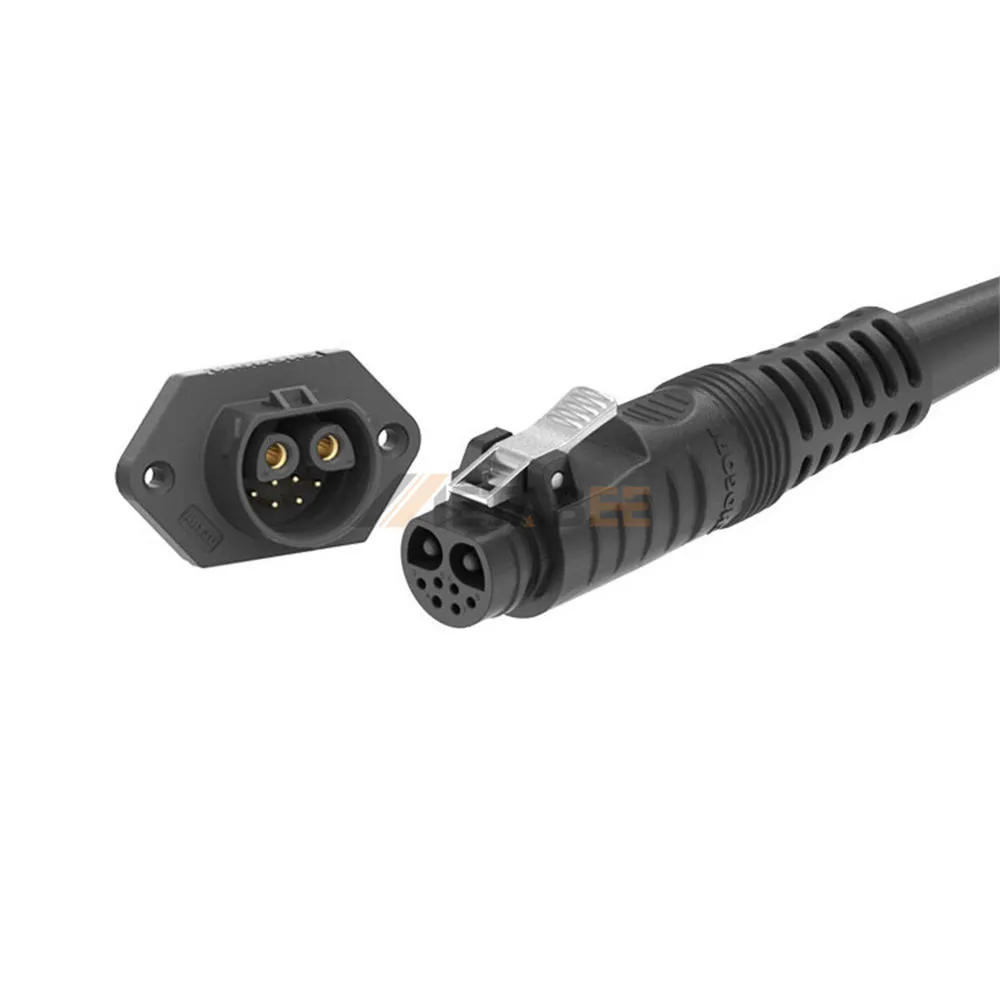

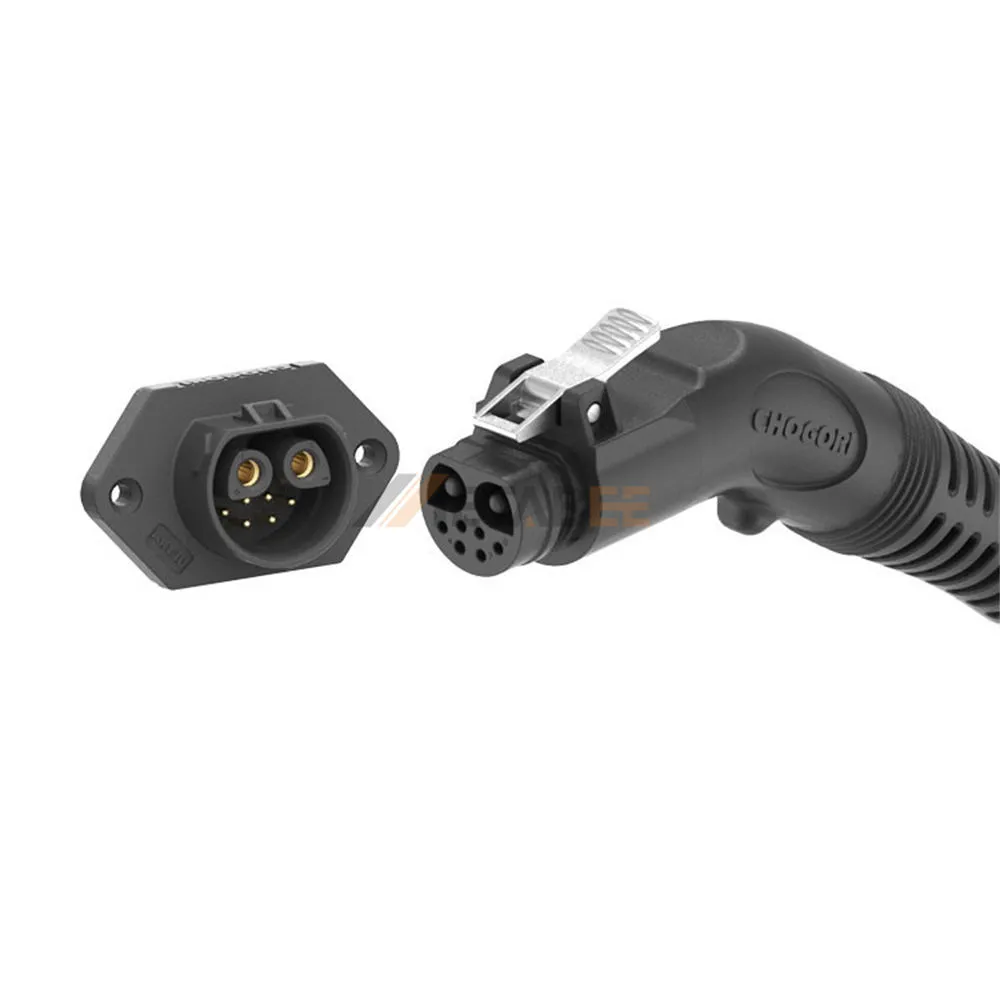

E-Motorcycle Power & BMS Signal Charging Connector, 2+6 Pin, IP67
Introduction
Introducing the e-motorcycle power & bms signal charging connector, an essential component meticulously engineered for the efficient and secure charging of electric motorcycle batteries. This connector provides a streamlined interface for both critical power delivery and precise battery management system (bms) signal communication, ensuring optimal charging performance and system integrity. It is designed to meet the rigorous demands of electric vehicle applications, delivering reliability in diverse operating environments.
This advanced connector features a robust 2+6 pin configuration, effectively separating high-current power transfer from sensitive bms signal lines for enhanced safety and data accuracy. Built to withstand challenging conditions, it boasts an ip67 ingress protection rating, offering superior resistance against water and dust. Safety is further augmented by its ul94v-0 flame retardancy classification. The connector maintains consistent operational efficiency across a broad temperature range, from -40°c to 105°c, guaranteeing dependable functionality when it matters most.
Key Features:
- 2+6 pin configuration: dedicated pins for power and bms signal.
- ip67 ingress protection: provides robust waterproofing and dustproofing.
- ul94v-0 flame retardant: ensures critical safety against flammability.
- wide temperature range: reliable operation from -40°c to 105°c.
- optimized for e-motorcycles: specifically designed for electric motorcycle charging.
- integrated charging solution: combines power and bms signal in one connector.
Main Specifications:
General Information:
| Part No.: | YC-E1001-008 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+6 Pin | |
| Wire Gauge: | Power 10AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 125V DC (Power), 72V DC (Signal) | |
| Rated Current: | 60A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,000V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
