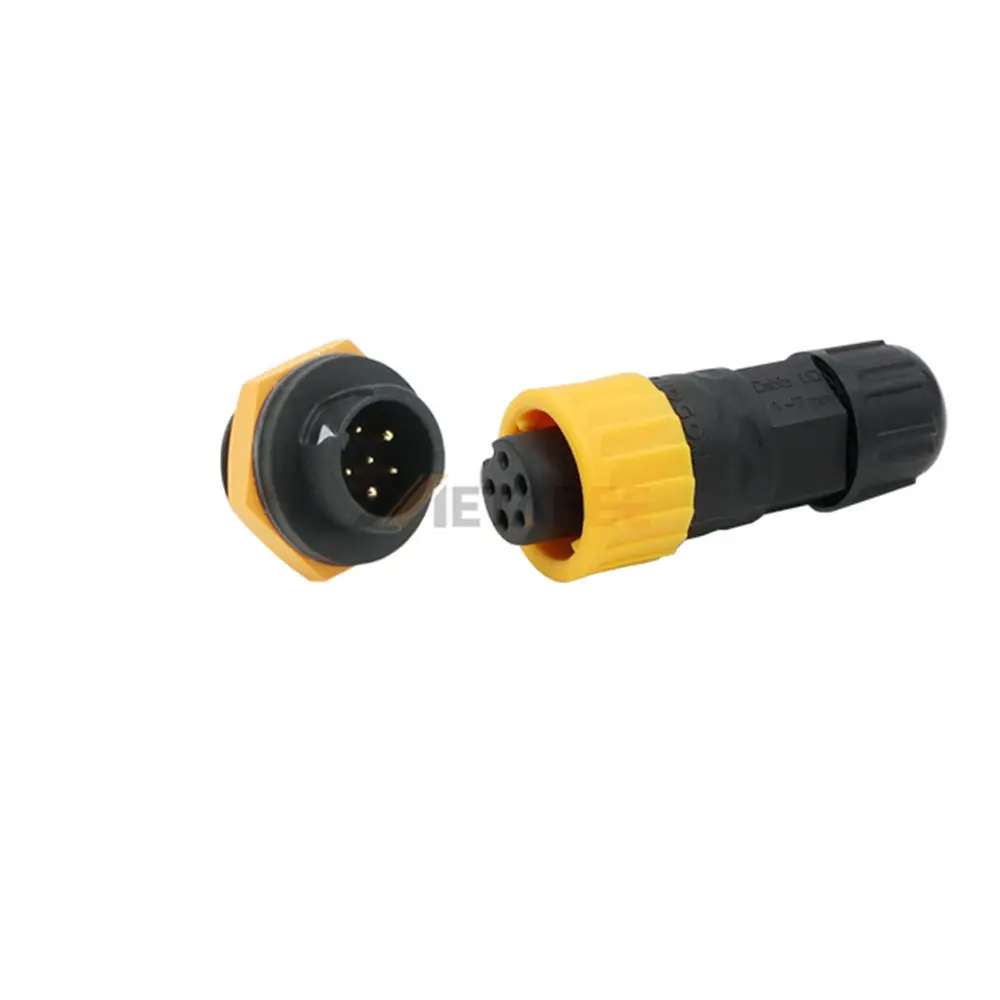

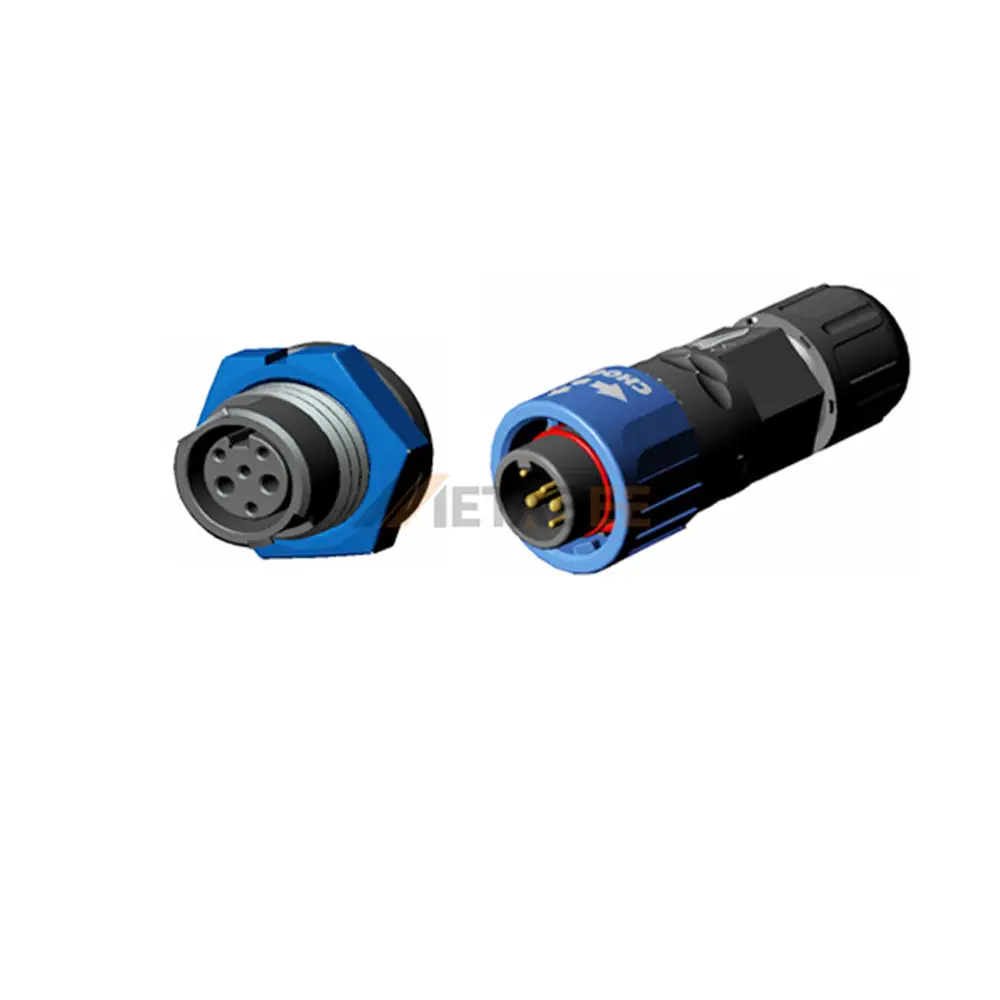

E-Motorcycle/E-Bike Battery Charger for Signal & Power Transmission, 2+4 Pin, IP67
Introduction
This 2+4 pin connector is designed for reliable signal and power transmission in e-motorcycle and e-bike battery charging systems. With an IP67 rating, it delivers dependable performance against dust and water ingress, making it suitable for demanding outdoor environments.
Built with UL94V-0 flame-retardant materials, the connector ensures enhanced safety, while its wide operating temperature range of -40°C to 105°C guarantees stable performance in extreme conditions.
Key Features:
- 2+4 pin configuration for combined signal and power transmission
- IP67 waterproof and dustproof protection
- UL94V-0 flame-retardant housing for safety
- Wide operating temperature: -40°C to 105°C
- Reliable performance for e-motorcycle and e-bike chargers
- Durable design for demanding outdoor use
Main Specifications:
General Information:
| Part No.: | YC-E1001-0026 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+4 Pin | |
| Wire Gauge: | Power 20AWG/ Max, Signal 22AWG/ Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 60V | |
| Rated Current: | 10A+2A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,300V AC | |
| Durability (Mating): | 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
