Introduction:
Available in dual-row configurations from 4 to 20 pins (2×2 to 2×10), this through-hole vertical pogo pin mating pad connector provides a compact, flat contact interface for spring-loaded connectors. Designed with a standard 2.54 mm (.100″) pitch and a low 2.4 mm body height, its dual-row vertical pins deliver high contact density and strong mechanical retention on printed circuit boards. The copper alloy contacts feature 3u” gold plating over nickel to ensure low contact resistance under 20 mΩ and a 3A/12V DC rating. Molded from high-temperature PA46/PA9T thermoplastic for wave soldering, it serves as a reliable mating target for docking stations, test fixtures, and board-to-board connections.
Key Features
- Dual-Row 4-20 Pins: Offers flexible 2×2 to 2×10 high-density board configurations.
- 3A / 12V DC Rating: Provides efficient power delivery with sub-20 mΩ low resistance.
- Through-Hole Mounting: Straight solder tails deliver robust mechanical board retention.
- 3u” Gold Plating: Copper alloy contacts ensure superior electrical conductivity and durability.
- 2.4mm Low Profile: Compact 2.54mm pitch optimizes tight vertical enclosure space.
Main Specifications:
General Information:

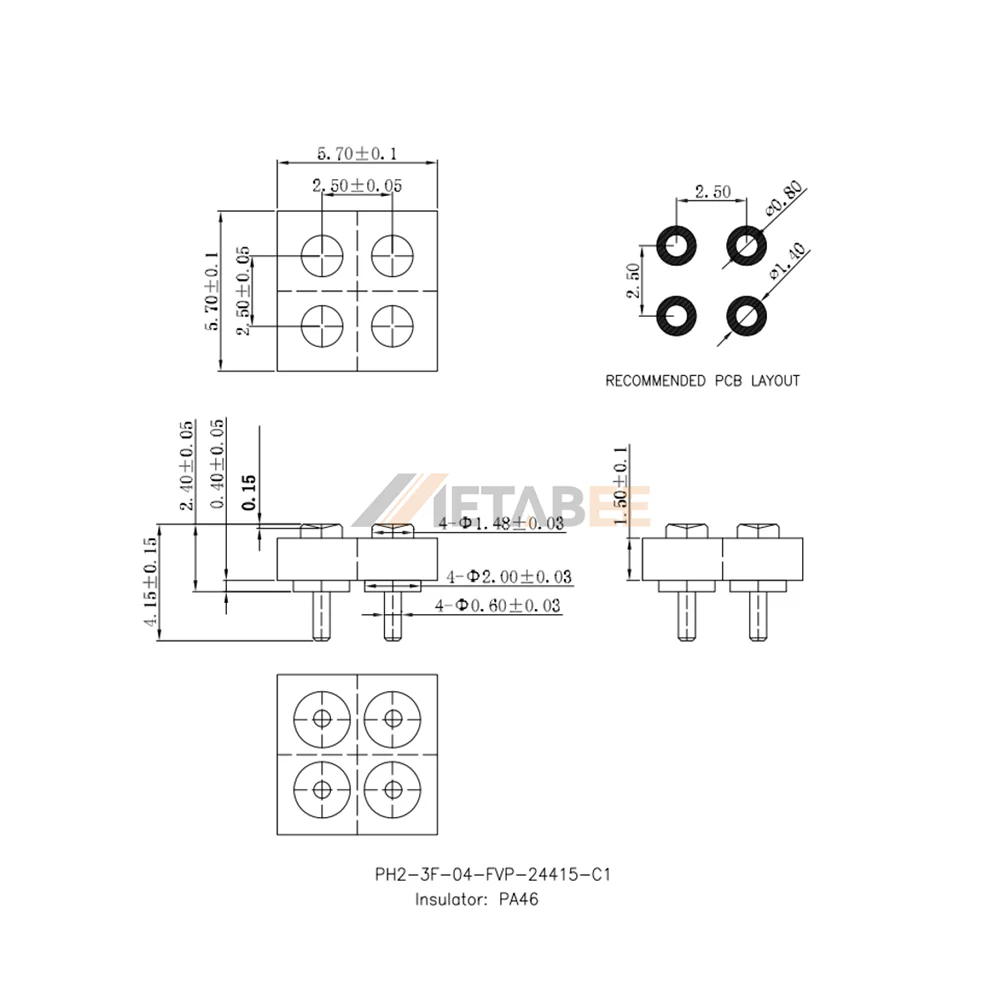

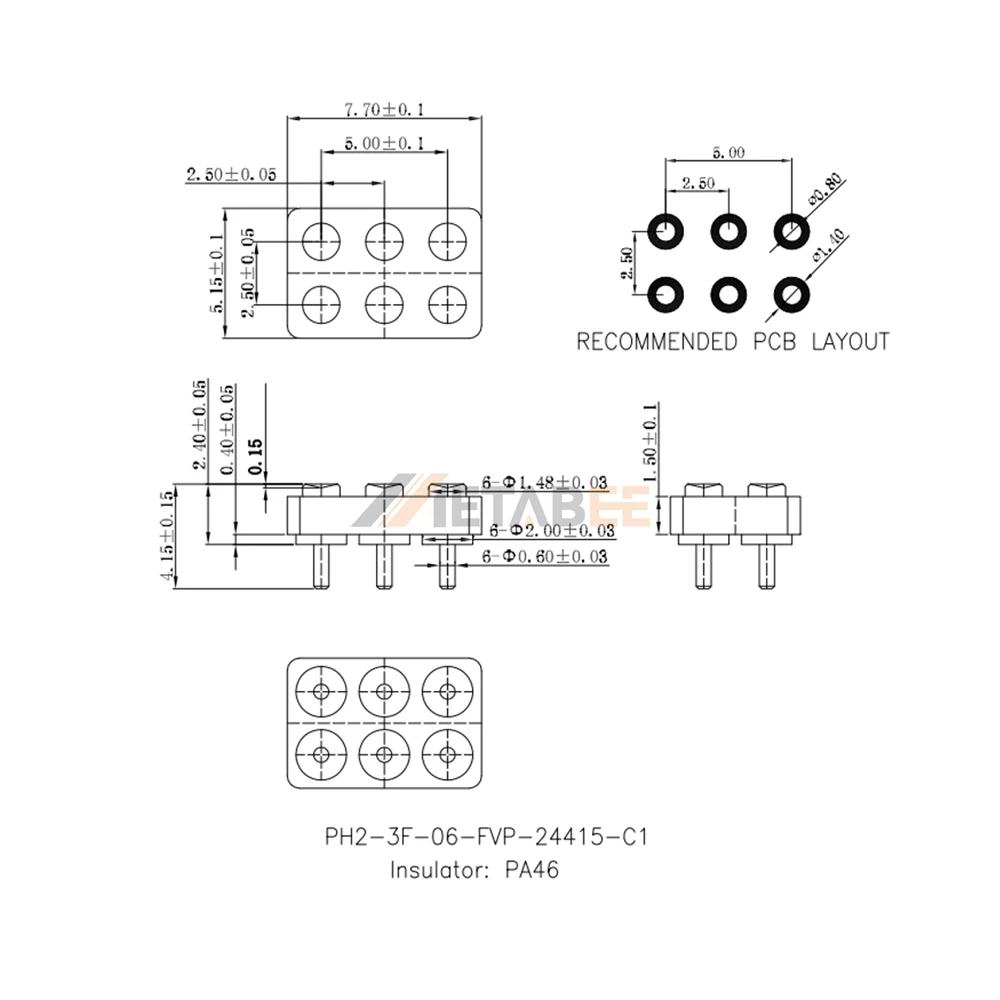

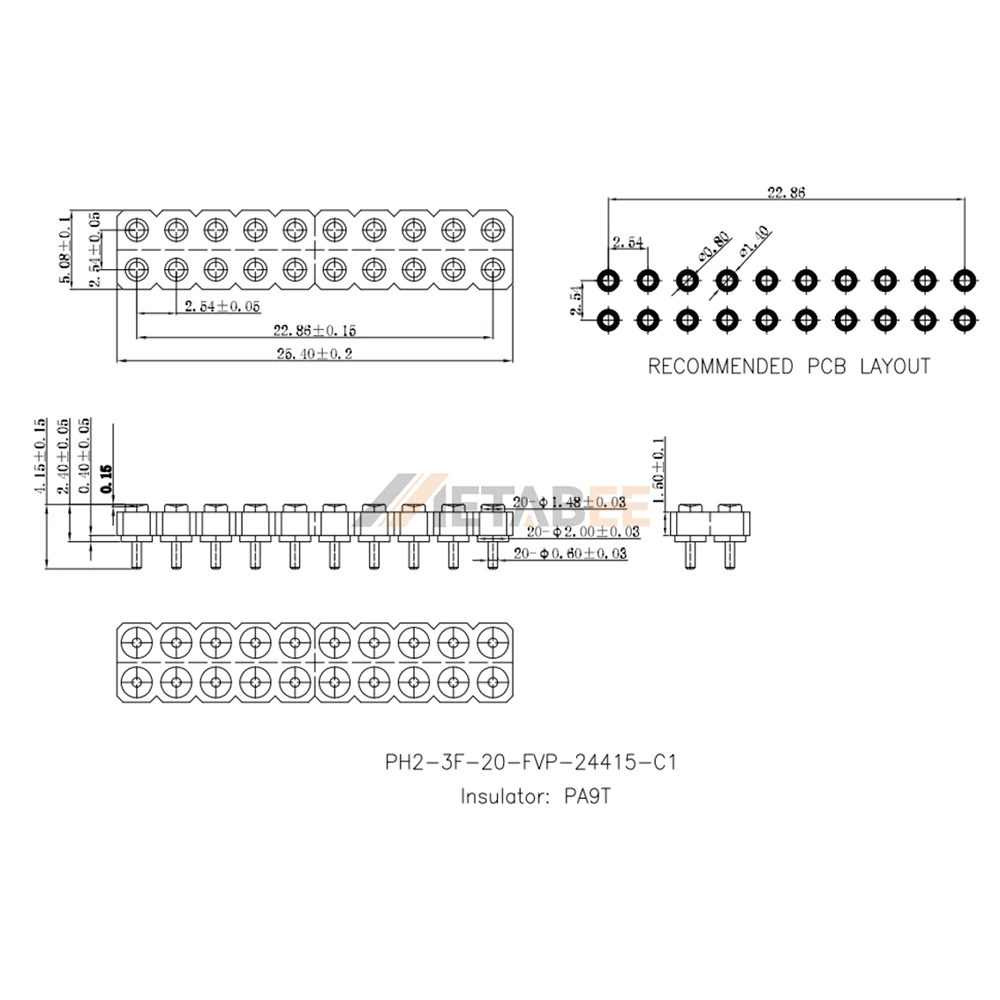

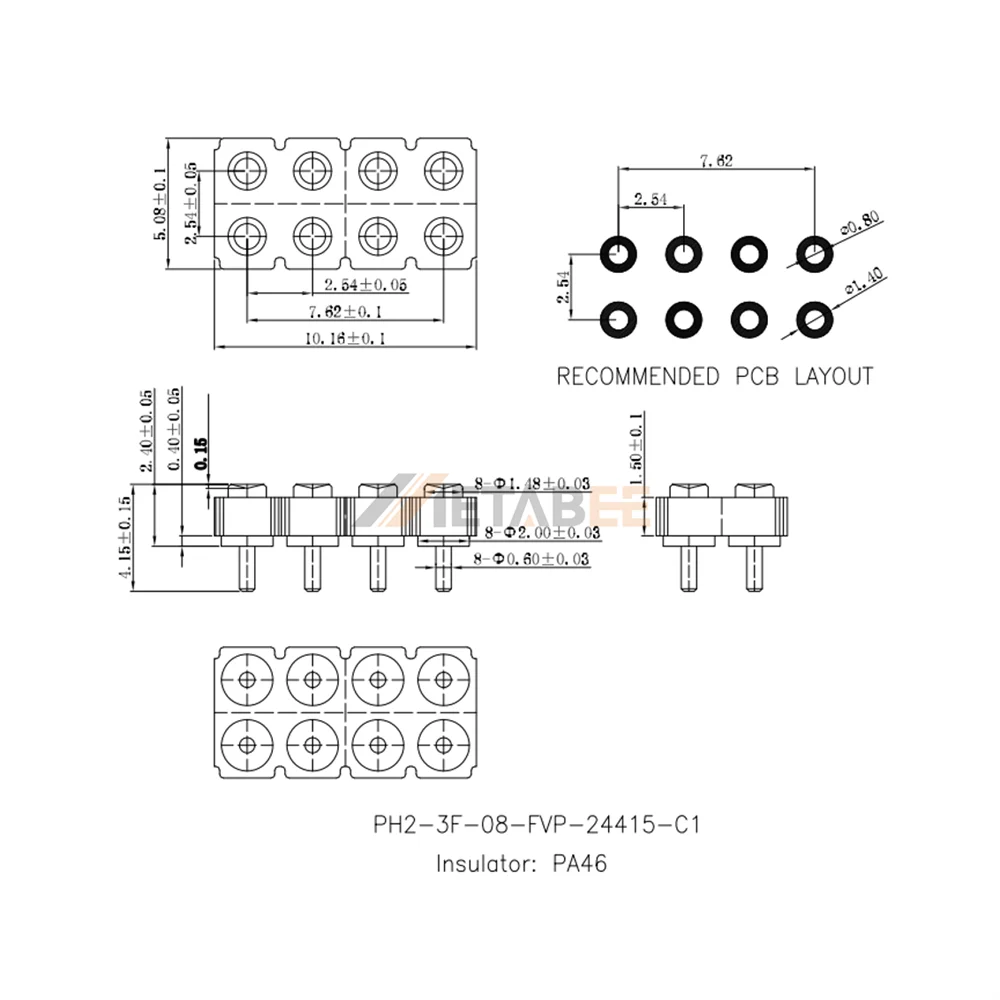

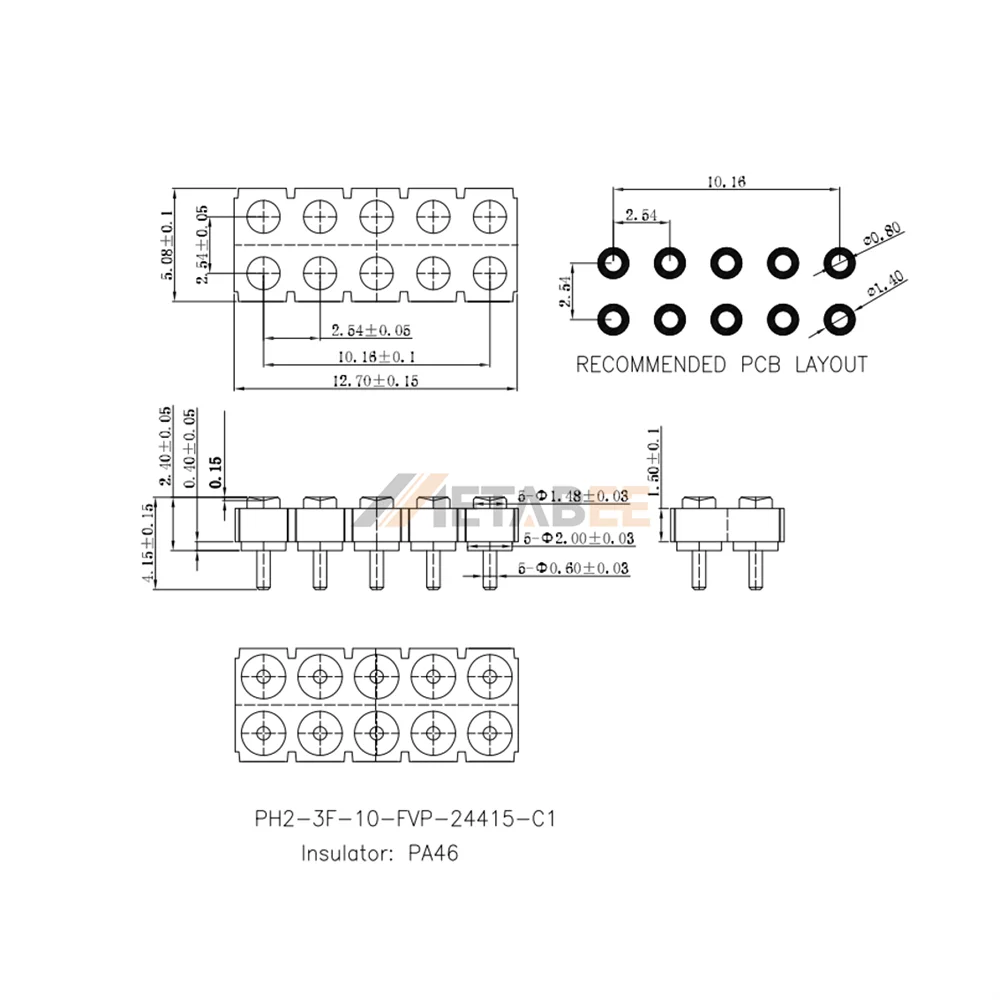

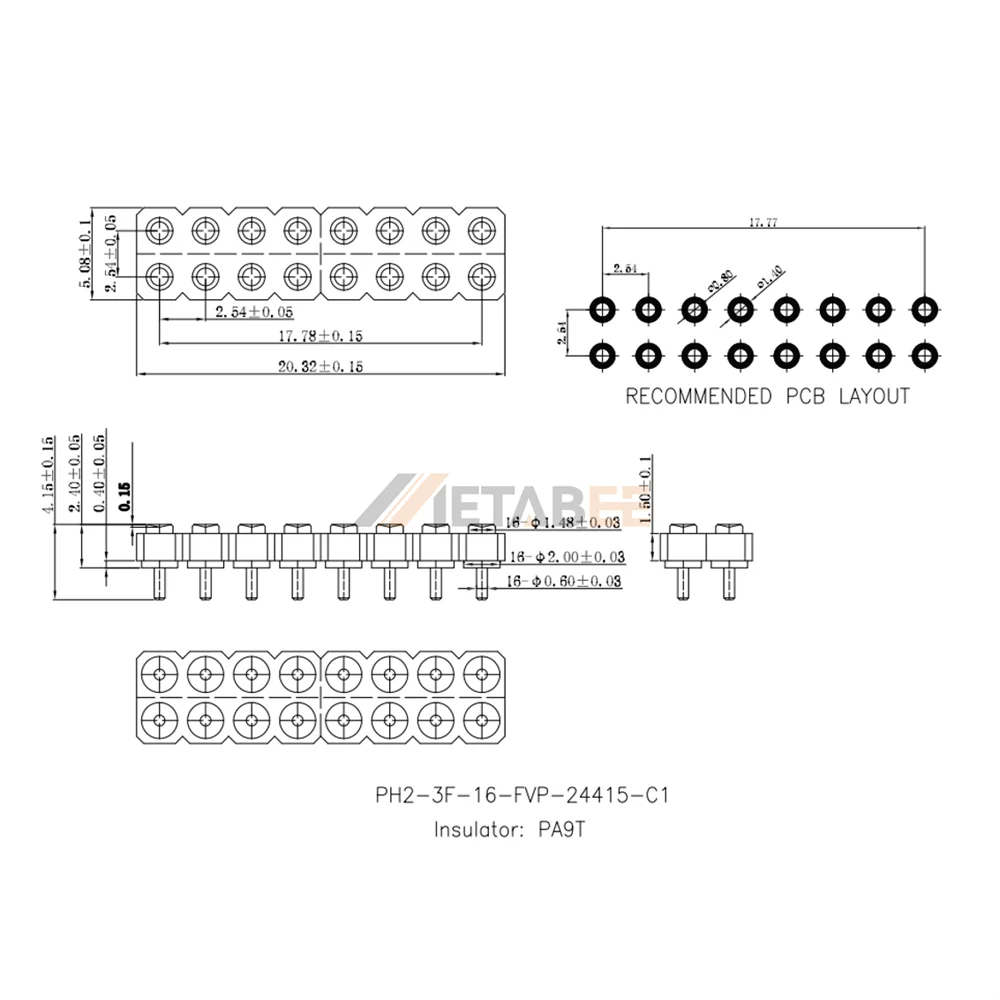

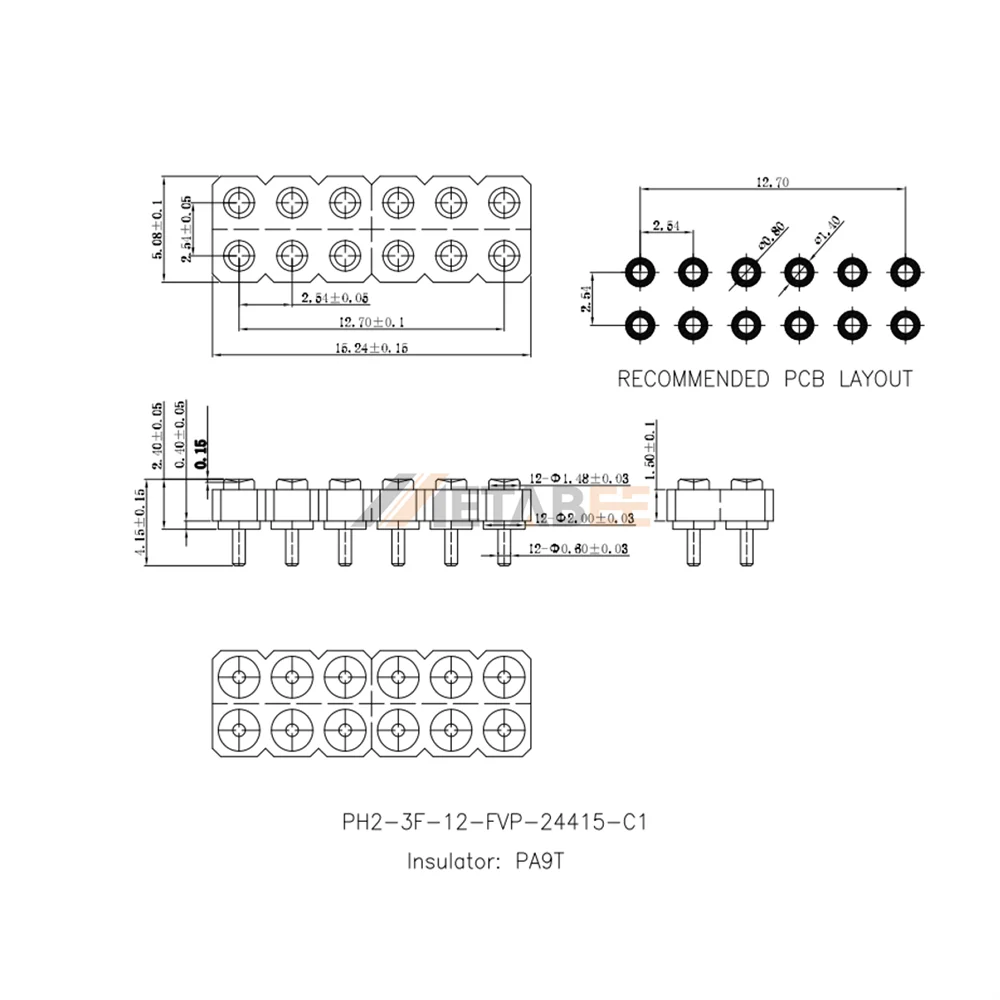

| Product No.: | PH2-3F-XX-FVP-24415-C1 | |
| Product Type: | Pogo Pin Contact Pad | |
| Pin Configuration: | 4/6/8/10/12/16/20 Pin | |
| Number of Rows: | Dual Row | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Type: | Through Hole | |
| Mounting Orientation: | Vertical | |
| Pitch(mm): | 2.54mm | |
| Body Height (mm): | 2.40±0.05 mm | |
| Initial Height (mm): | 4.15±0.15 mm |
Electrical:
| Rated Current: | 3A max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 20 mohms max |
Materials and Plating:
| Insulator Material: | PPA Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

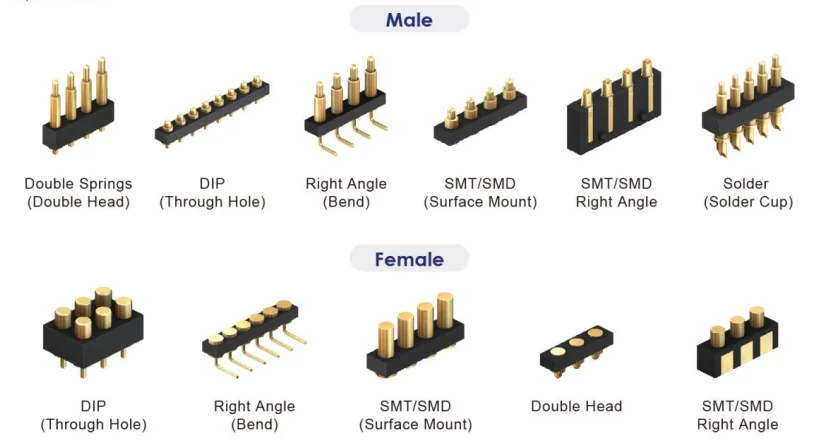

Male and Female Pogo Pin Connector
Applications:
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
