Introduction:
Offered in 2, 4, 6, 8, and 10-pin configurations, this through-hole vertical pogo pin target pad header provides a flat, wear-resistant docking surface for spring-loaded mating. Built with a standard 2.54 mm pitch and a low 2.4 mm body height, its single-row vertical pins deliver secure through-hole retention on printed circuit boards. The copper alloy contacts feature 3u” gold plating over nickel to guarantee an ultra-low contact resistance under 20 mΩ and reliable 3A/12V DC power transfer. Molded from high-temperature thermoplastic for industrial wave soldering, it serves as an adaptable target interface for charging cradles, modular systems, and test fixtures.
Key Features
- 2 to 10 Pin Options: Standardized single-row configurations share identical electrical specs.
- 3A / 12V DC Rating: Delivers high current with sub-20 mΩ low resistance.
- Through-Hole Mounting: Secure solder tails provide strong mechanical board retention.
- 3u” Gold Plating: Copper alloy contacts ensure superior conductivity and durability.
- Compact 2.4mm Height: 2.54mm pitch optimizes space in low-profile devices.

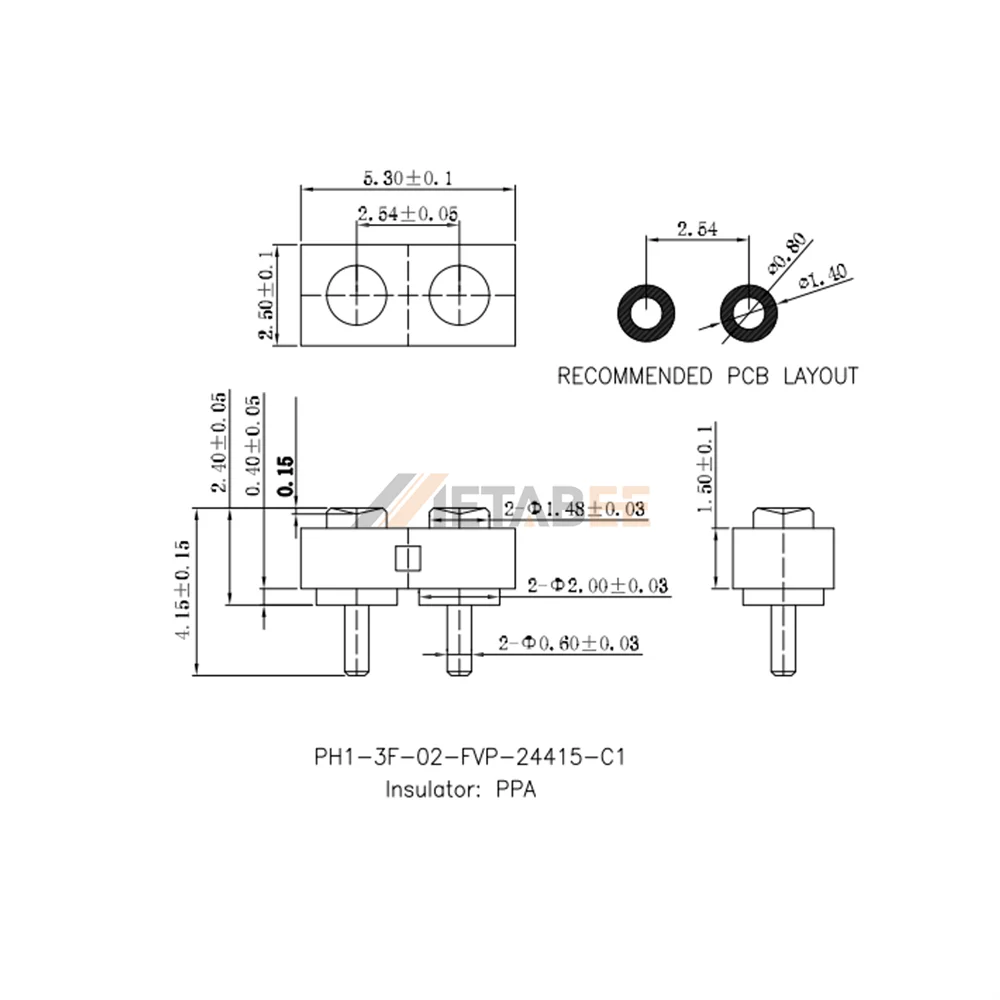

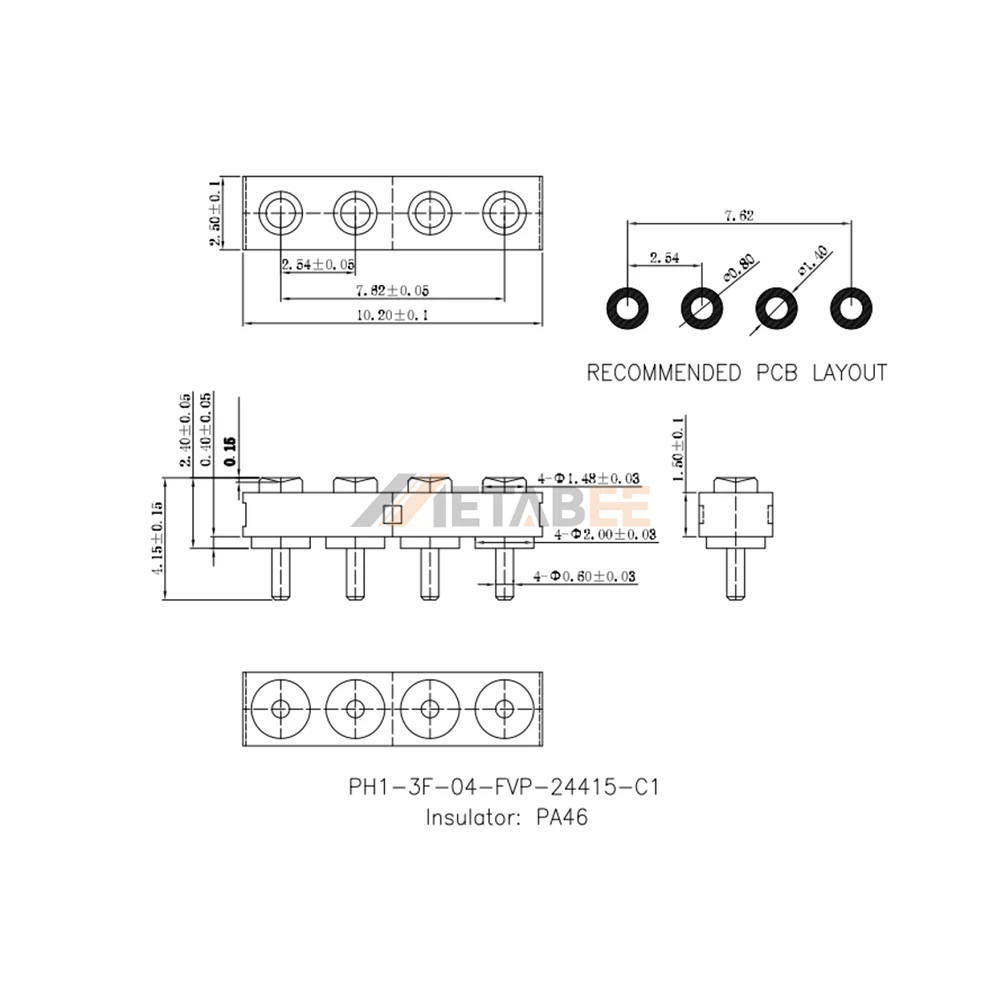

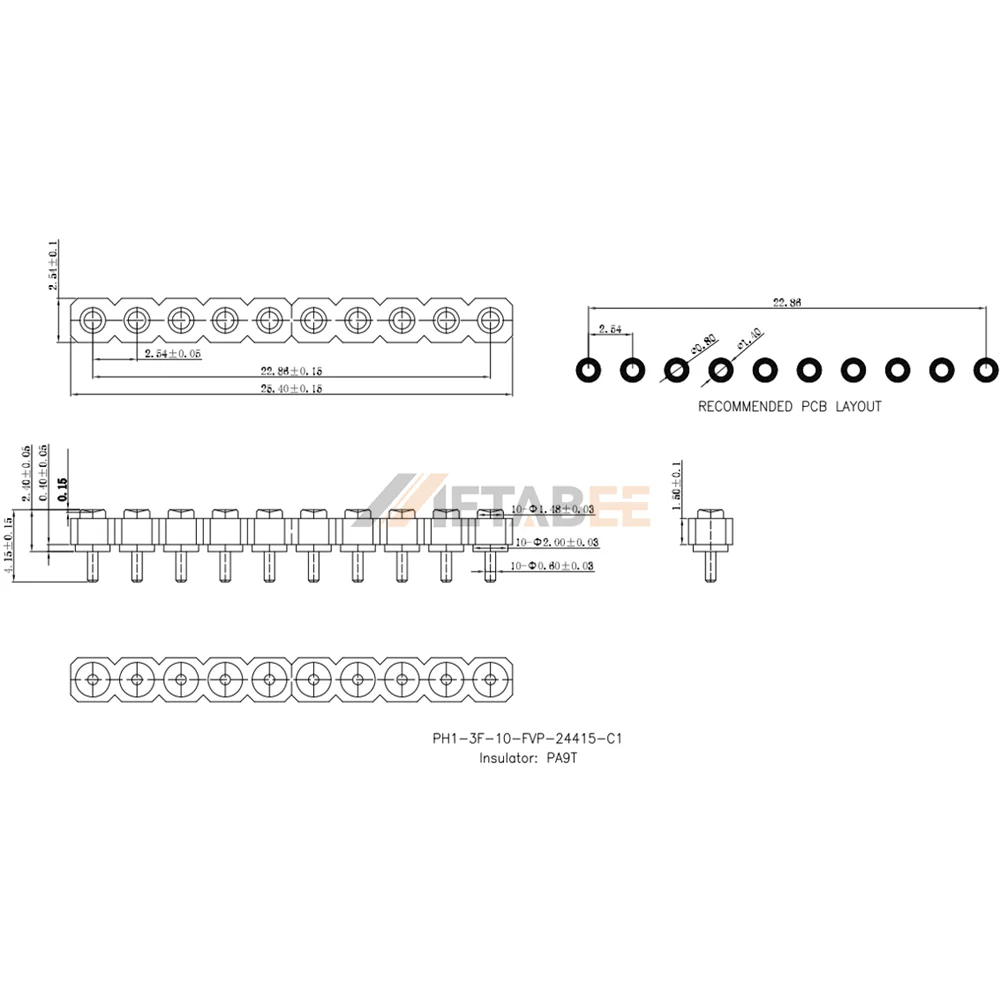

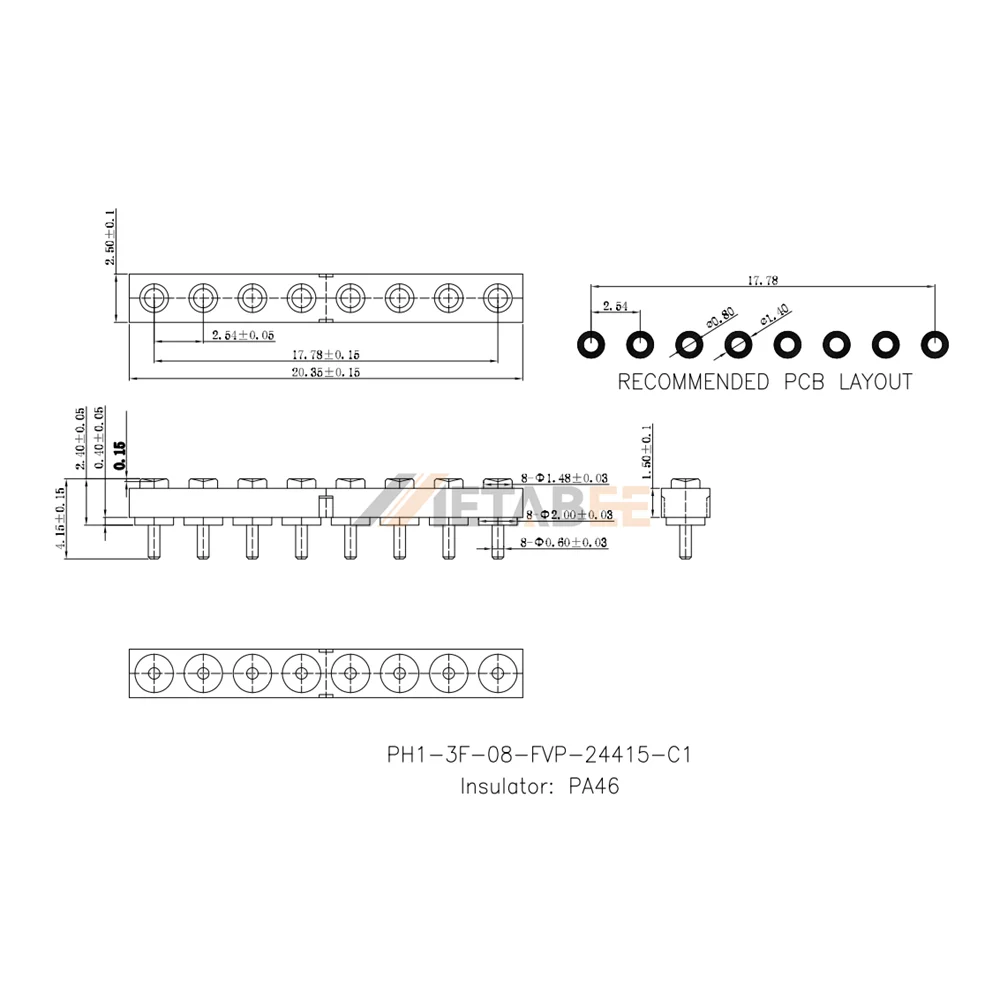

Main Specifications:
General Information:
| Product No.: | PH1-3F-XX-FHP-3656 | |
| Product Type: | Pogo Pin Contact Pad | |
| Pin Configuration: | 2/4/6/8/10 Pin | |
| Number of Rows: | Single Row | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Type: | Through Hole | |
| Mounting Orientation: | Vertical | |
| Pitch(mm): | 2.54mm | |
| Body Height (mm): | 2.40±0.05 mm | |
| Initial Height (mm): | 4.15±0.15 mm |
Electrical:
| Rated Current: | 3A max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 20 mohms max |
Materials and Plating:
| Insulator Material: | PPA Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Male and Female Pogo Pin Connector
Applications:
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
