Introduction:
This 2 pin magnetic connector is a straight male pogo pin terminal featuring a rectangular footprint with a 2.5mm pitch. It provides a generous 1.60mm working stroke with a spring force ranging between 100 and 150gf to ensure stable mechanical connectivity. The brass contacts are finished with 1u” gold over nickel plating to maintain a maximum resistance of 25 mohms. Rated for 1A to 1.65A at 12V, this PA46 insulated component operates effectively across an extensive temperature range from -40°C to +150°C. It serves as a reliable power or signal interface for docking stations and specialized devices requiring automated magnetic alignment.
Key Features
- Magnetic Alignment: Self-aligning rectangular head ensures secure device docking.
- Standard Pitch: 2.5mm pitch 2-pin layout for precise circuit integration.
- Stable Force: High 150gf force maintains contact over 1.6mm stroke.
- Extreme Temperature: Functions reliably from -40°C to +150°C environments.
- Gold Plated: Gold plating maintains stable low 25 mohms resistance.
Main Specifications:
General Information:
| Product No.: | PH1-C2520-02-MVF-4565 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 2 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.5mm | |
| Working Stroke (mm): | 1.60mm@100~150gf | |
| Life Test: | 10,000 cycles |
Electrical:
| Rated Current: | 1~1.65A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 25 mohms max |
Materials and Plating:
| Insulator Material: | (PA46)Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 1u” Gold plated over Nickel | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -40°C to +150°C | |
| Flammability Rating: | UL 94 V-0 |

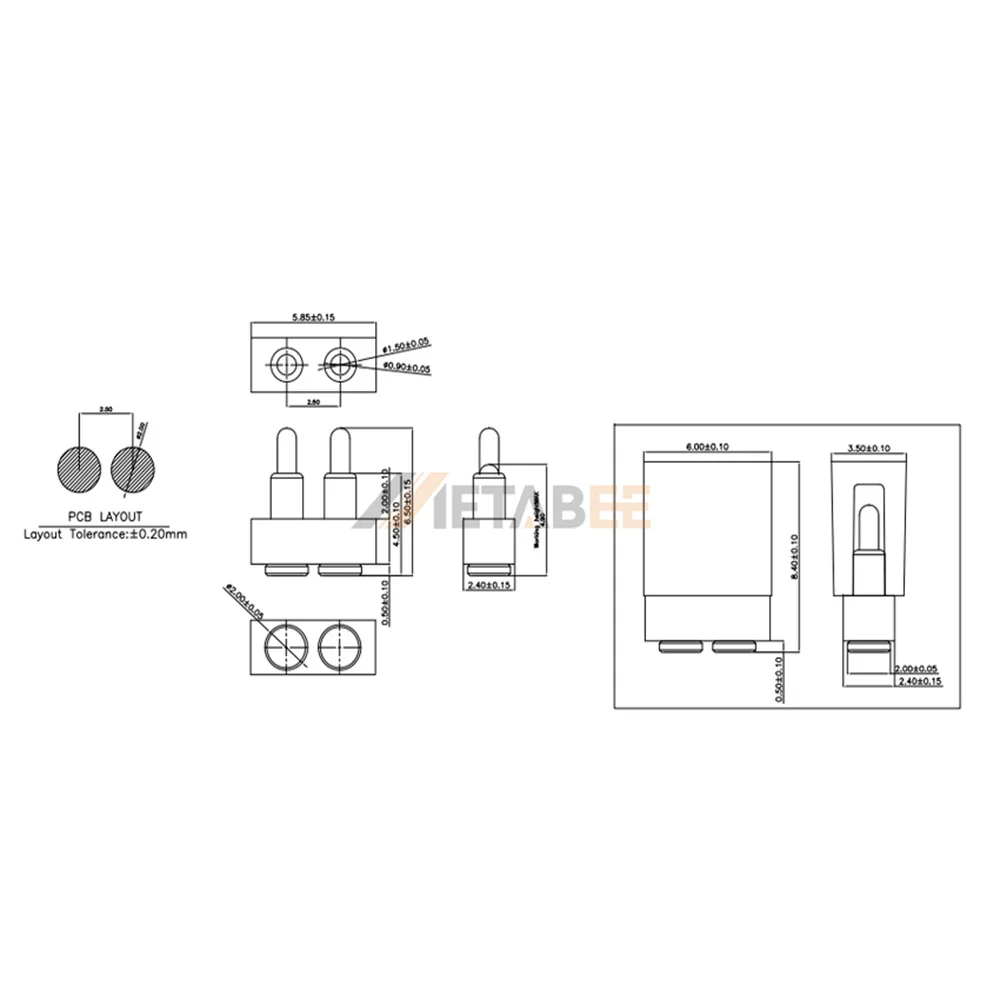

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
