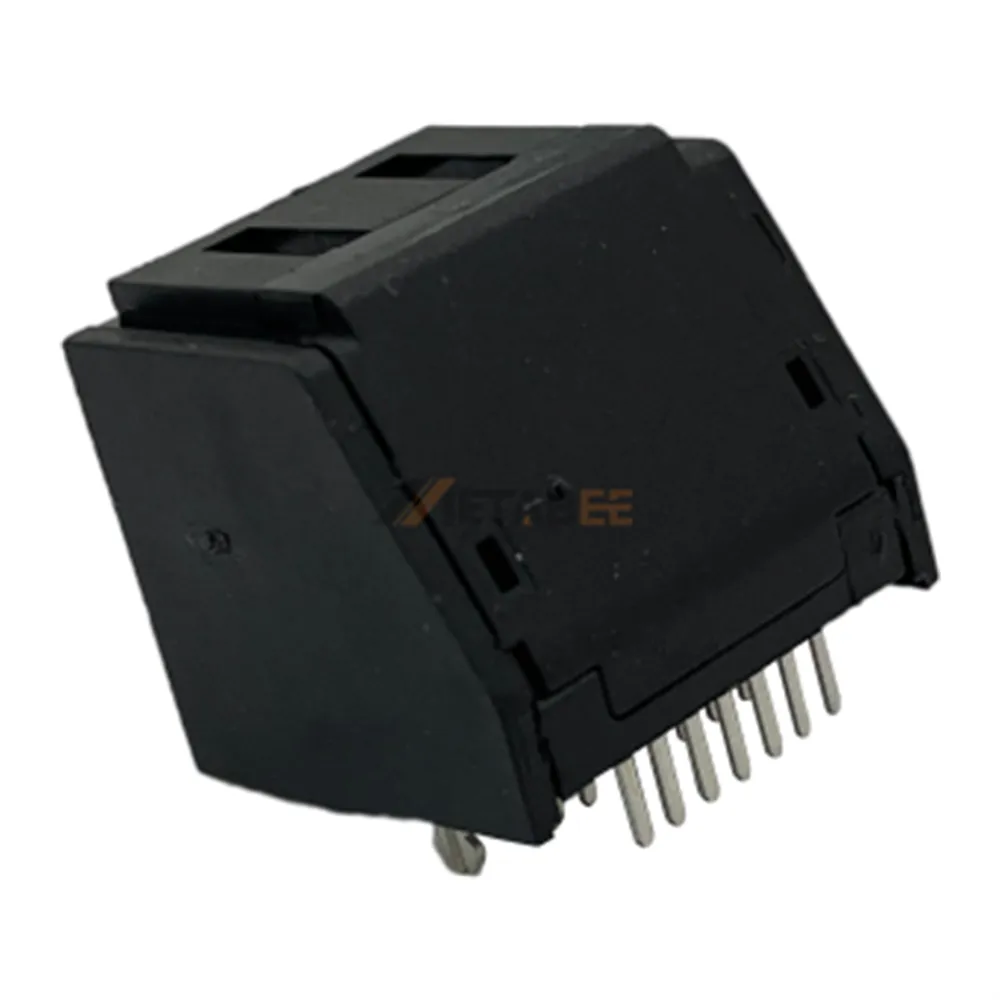

Dual Port SATA 7+7 14-Pin Data Receptacle, Thru Hole, R/A
Introduction:
Engineered for high-density storage and networking architectures, this dual port sata 7+7 14-pin female data receptacle provides superior signal integrity in a compact footprint. Its space-saving stacked design enables simultaneous dual-drive communication, reducing board real estate while maintaining robust data transmission pathways.
The right-angle, through-hole mounting configuration delivers exceptional mechanical stability and vibration resistance, making it ideal for enterprise servers, industrial computing, and high-performance pcb assemblies. Built with high-grade ul94v-0 flame-retardant thermoplastics, it withstands harsh operating environments across extreme thermal ranges without compromising connectivity.
Key Features
- Dual-port 14-pin (7+7) female design maximizes pcb space efficiency.
- Robust through-hole right-angle mounting ensures superior solder joint durability.
- 1.5 a rated current capacity accommodates demanding data transfer requirements.
- Low 30 mohms maximum contact resistance minimizes signal degradation.
- High 1,000 mohms minimum insulation resistance with 500 vac dielectric tolerance.
- Resilient -55°c to +85°c operating range housed in ul94v-0 rated insulation.
Main Specifications:
General Information:
| Product No.: | SATA-D-PL-RT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+7 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
